Multifunctional AC Test Source
2.Technology: IGBT-based PWM Static Frequency Converter with DSP Control
3.Input: 1-Phase 220V or 3-Phase 380V/400V, 50/60Hz
4.Output: 0-300V Adjustable, 45-400Hz Variable Frequency, Pure Sine Wave
5.Applications: Laboratory Research, Production Testing, Component Evaluation, Educational Training
6.Core Features: Programmable Voltage/Frequency, High Stability, LCD Display, Remote Control
7.Brand: ACSOON (Benchtop & Rackmount Options).
- Product Description
Multifunctional AC Test Source | Programmable AC Power Supply for Laboratory & Production
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the versatile Multifunctional AC Test Source, a high-performance programmable AC power supply designed for a wide range of testing and development applications. This unit delivers clean, stable, and adjustable AC power with precise voltage and frequency control, making it an indispensable tool for research laboratories, production lines, and educational institutions. Its intuitive interface and robust construction ensure reliable operation across diverse testing scenarios.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON ACSW Series |
| Model Number | ACSW-330015 (15kVA Three Phase) |
| Input | 1-Phase 220V or 3-Phase 380V/400V/415V ±15%, 50/60Hz |
| Output | Voltage: 0-300V (L-N) adjustable Frequency: 45-400Hz adjustable Power: 3kVA, 6kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA |
| Output THD | <3% @ linear load |
| Regulation | Voltage: ≤ ±1% FS, Frequency: ≤ ±0.1% FS |
| Memory | 10 programmable sets (V/F/Time) |
| Efficiency | ≥85% |
| Display | LCD Digital (V, I, F, P, PF) |
| Communication | RS232, RS485 (Modbus) |
| Protections | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Cooling | Forced Air |
| Operating Temp. | -10°C to 45°C |
Multifunctional AC Test Source Main Features
Adjustable Output: Voltage adjustable from 0 to rated maximum; frequency adjustable from 45Hz to 400Hz.
Programmable Memory: Stores 10 preset test profiles for quick recall and automated testing.
Comprehensive Protections: Built-in safeguards against overload, short circuit, and over-temperature.
Communication Interface: RS232/RS485 for remote control and integration into automated test systems.
Why Choose ACSOON Multifunctional AC Test Source?
Wide Application Range: Suitable for R&D, production testing, quality assurance, and educational labs with versatile output capabilities.
High Precision Output: Maintains voltage regulation within ±1% and frequency stability within ±0.1% for accurate test results.
User-Friendly Operation: Clear LCD display, intuitive keypad, and rotary knob simplify setup and monitoring.
Programmable Sequences: Store up to 10 sets of voltage, frequency, and time parameters for automated testing.
Multifunctional AC Test Source Application Areas
R&D Laboratories: Powering prototypes, testing circuits, and validating new designs under various AC conditions.
Production Testing: Functional testing of assembled products, power supplies, and electronic components.
Educational Institutions: Providing a safe, adjustable AC source for student experiments and demonstrations.
Service & Repair: Testing repaired equipment and verifying power supply performance.
Our Services

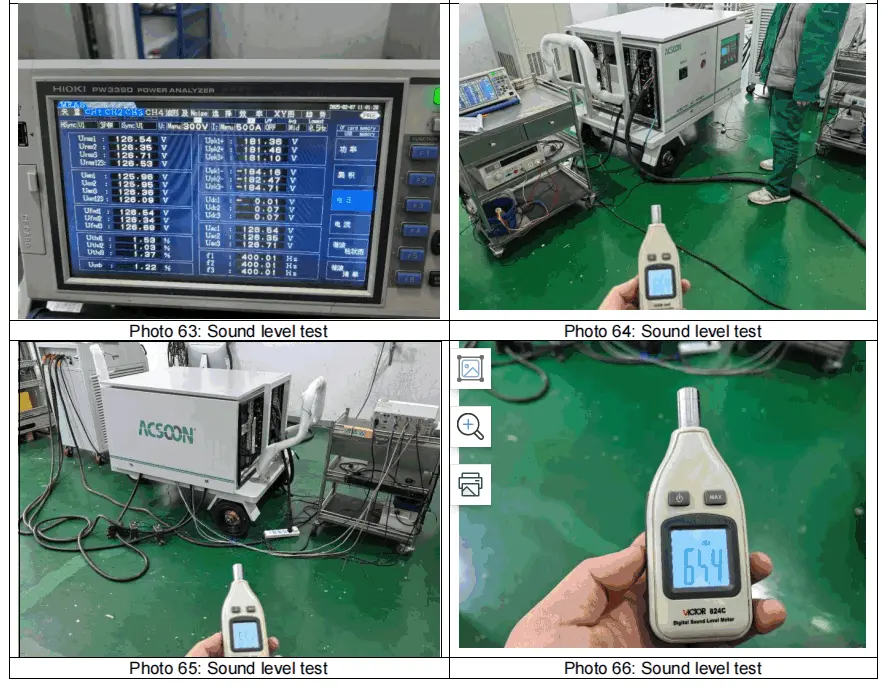

Quality Control
Component Pre-Testing: All IGBT modules, control boards, and transformers are tested before assembly.
Full-Load Burn-In: Each unit operates at 100% rated load to verify thermal and electrical stability.
Output Waveform Analysis: THD and voltage accuracy measured and calibrated to ensure specification compliance.
Final Safety Inspection: Comprehensive check of all protective functions and electrical safety.

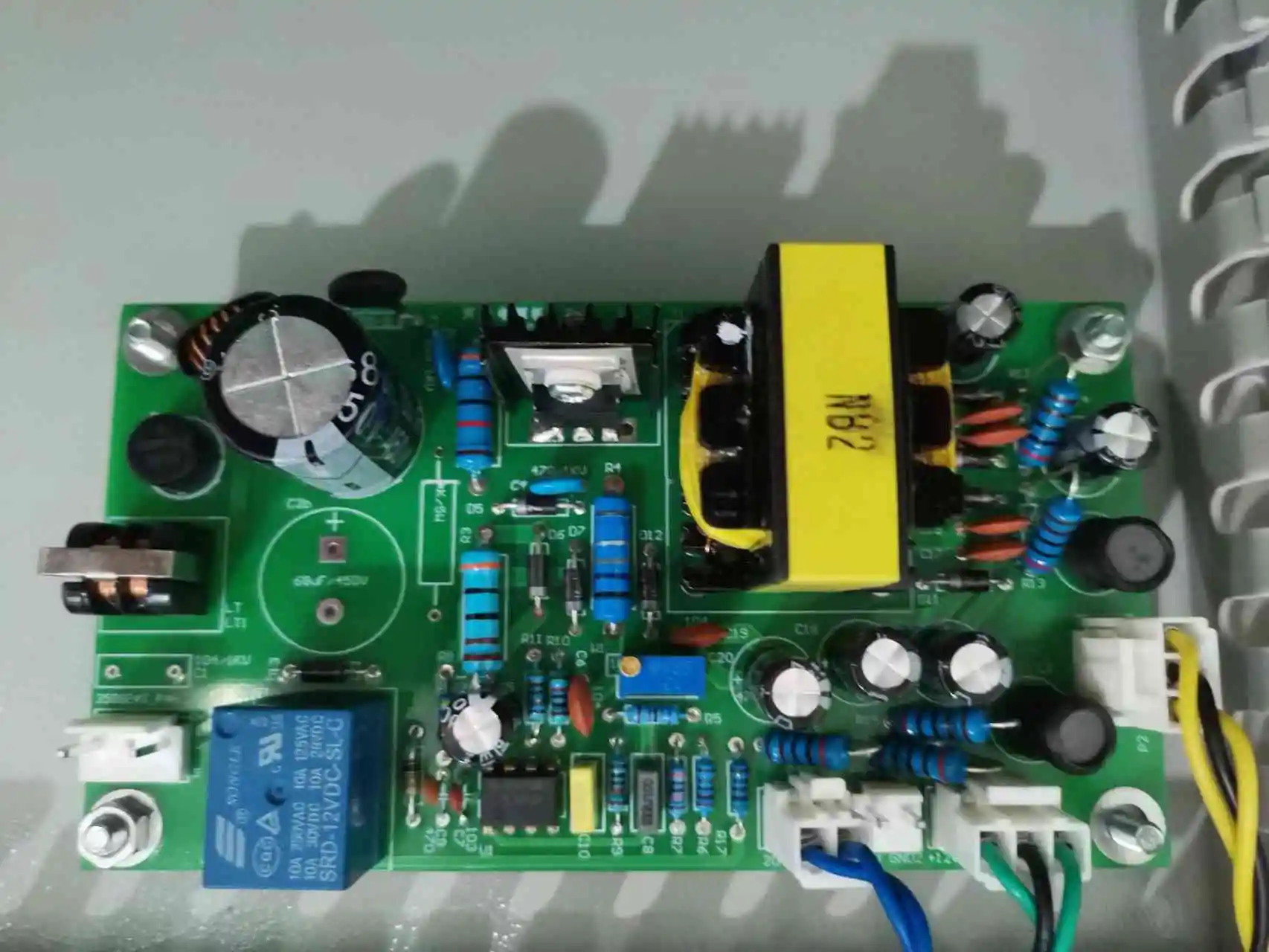

R&D Results
Advanced DSP Control: Developed precise digital control algorithm for stable output and fast transient response.
Programmable Sequence Engine: Implemented memory storage for 10 user-defined test profiles with timing functions.
Enhanced User Interface: Designed intuitive front panel with rotary encoder for quick parameter adjustment.
Compact Mechanical Design: Optimized layout for benchtop or rackmount integration.
Packaging and Transportation
Secure Protective Packaging: Unit packed in foam-cushioned double-wall carton with anti-static protection.
Complete Accessory Kit: Includes power cord, user manual, and communication cable.
Clear Documentation: Quick-start guide, programming manual, and calibration certificate.
Global Shipping: Reliable carriers with full tracking and insurance.
After‑Sales Service
We offer an 18-month warranty, technical support for application setup, firmware updates, and availability of spare parts.
Qualification Certification
ISO 9001:2015 Certified manufacturing quality system；CE Marked for safety and EMC compliance；Factory Test Report: Provided with detailed performance measurements.
FAQ |
|---|
| Q1: What is the main advantage of a programmable AC test source? |
| A: It allows precise control of voltage, frequency, and test sequences, enabling repeatable testing under various power conditions that simulate real-world applications. |
| Q2: Can it simulate different international power grids? |
| A: Yes, with adjustable voltage (0-300V) and frequency (45-400Hz), it can simulate 115V/60Hz (USA), 230V/50Hz (Europe), and other global standards. |
| Q3: How do I create and run a test sequence? |
| A: Using the front panel, you can store up to 10 sets of voltage, frequency, and duration parameters. The unit will execute them sequentially for automated testing. |
| Q4: Is it suitable for three-phase equipment testing? |
| A: Yes, three-phase models are available for testing motors, drives, and other three-phase devices. |
| Q5: What communication protocols are supported for remote control? |
| A: Standard RS232 and RS485 with Modbus protocol allow integration with PC-based test systems and PLCs. |
Contact Us
For technical specifications or global solutions for the Multifunctional AC Test Source: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
