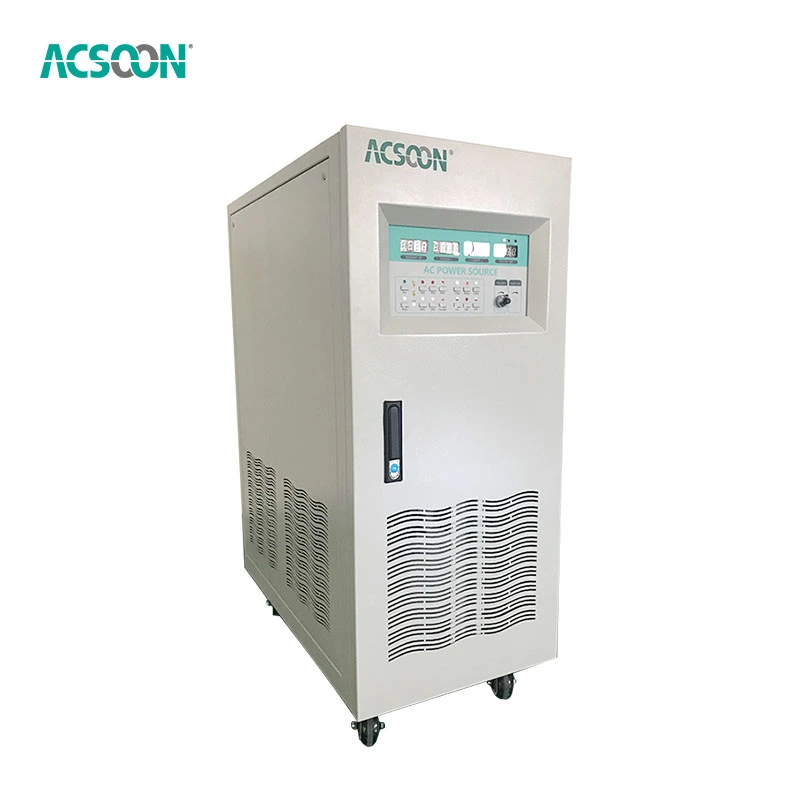

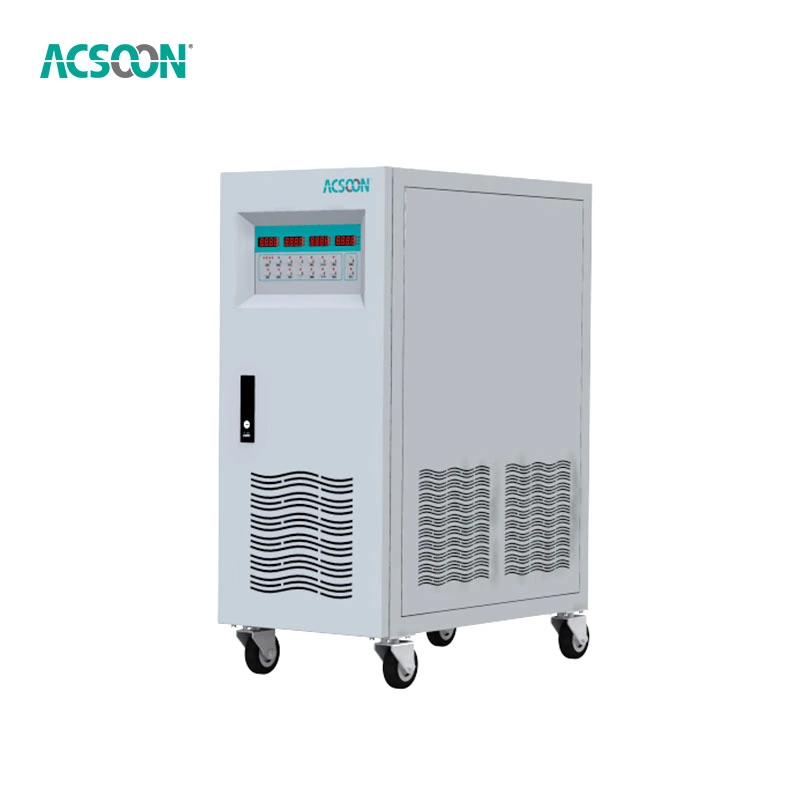

Three-Phase Programmable High-Power AC Source
2.
Technology: Advanced IGBT with DSP control system
3. Input: 3-phase 380VAC ±15%, 50/60Hz auto-ranging
4. Output: 0-520VAC, 45-70Hz fully programmable
5. Key Applications: Industrial load testing, power equipment verification, manufacturing testing
6.Key Features: High-power output; precise voltage/frequency control; remote monitoring; robust construction
7. Ingress Protection Grade: IP21/54
8. Brand: ACSOON (OEM services available).
- Product Description
Three-Phase Programmable High-Power AC Source | Industrial Testing Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures reliable three-phase programmable high-power AC sources for demanding industrial testing applications. Our systems provide stable and precise three-phase AC power for equipment verification, load testing, and manufacturing processes, ensuring accurate power delivery for various industrial requirements.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Working Temperature | -10°C to 50°C |
| Altitude | <1800m |
ACSOON Three-Phase Programmable High-Power AC Source Main Features
- Isolated output transformer,suitable for any unbalance loads.Every single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Galvanically isolated, low harmonic distortion
- Pure sine wave,sinusoidal output
- Variable frequency and voltage
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON Three-Phase Programmable High-Power AC Sources?
ACSOON delivers exceptional performance for industrial testing needs:
High Power Capacity: 120kVA output for demanding applications
Precise Control: Accurate voltage and frequency regulation
Three-Phase Output: Balanced three-phase power delivery
Robust Design: Industrial-grade components for reliable operation
Advanced Monitoring: Comprehensive system status display
Application Area
Our three-phase programmable high-power AC sources are essential for:
Industrial Load Testing: Equipment load capacity verification
Power Equipment: Transformer and generator testing
Manufacturing: Production line testing systems
Research Facilities: Power system experiments
Quality Assurance: Product performance validation
Educational Institutions: Engineering training programs
Service Centers: Equipment repair and diagnostics
System Integration: OEM equipment power solutions

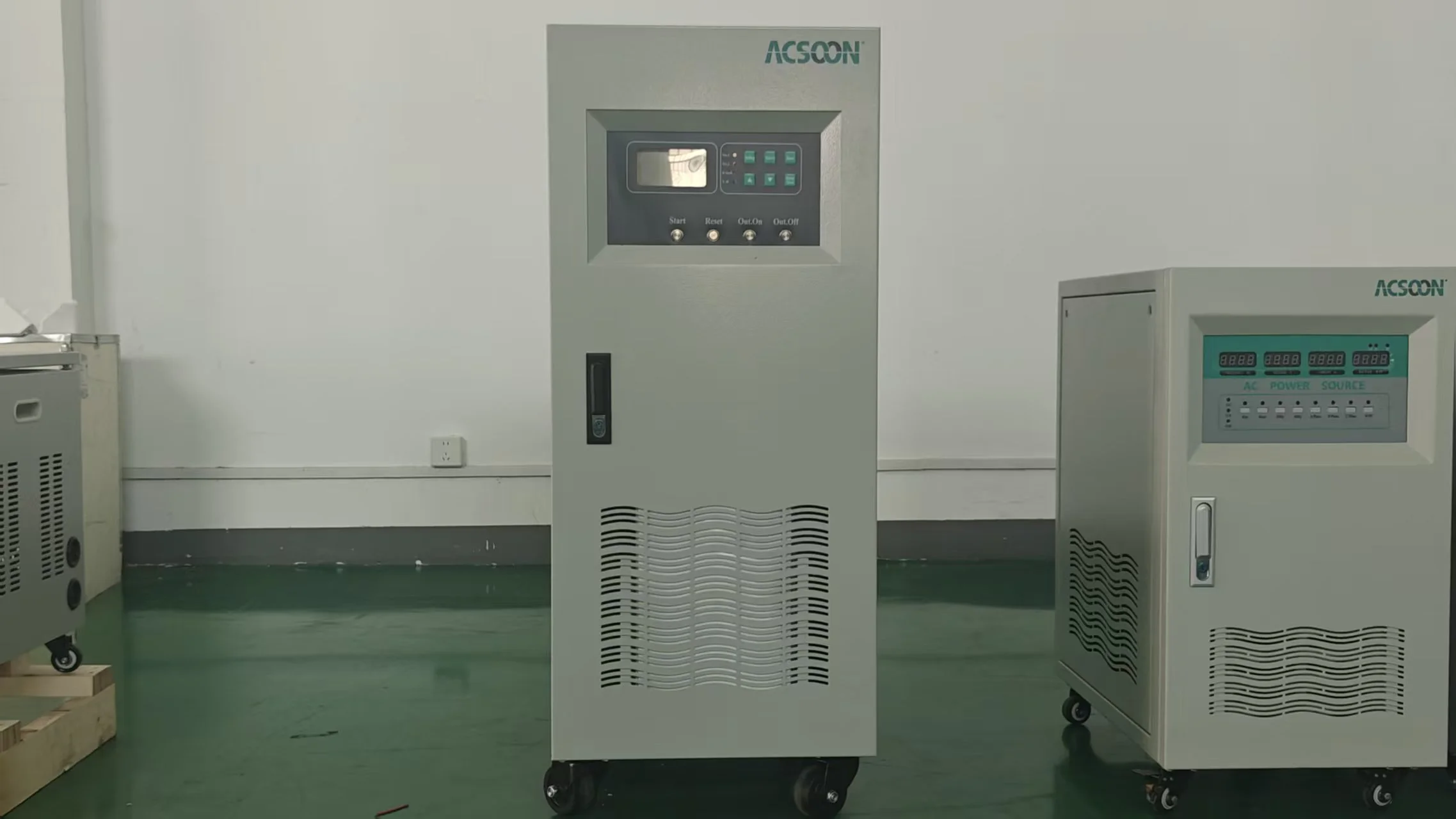

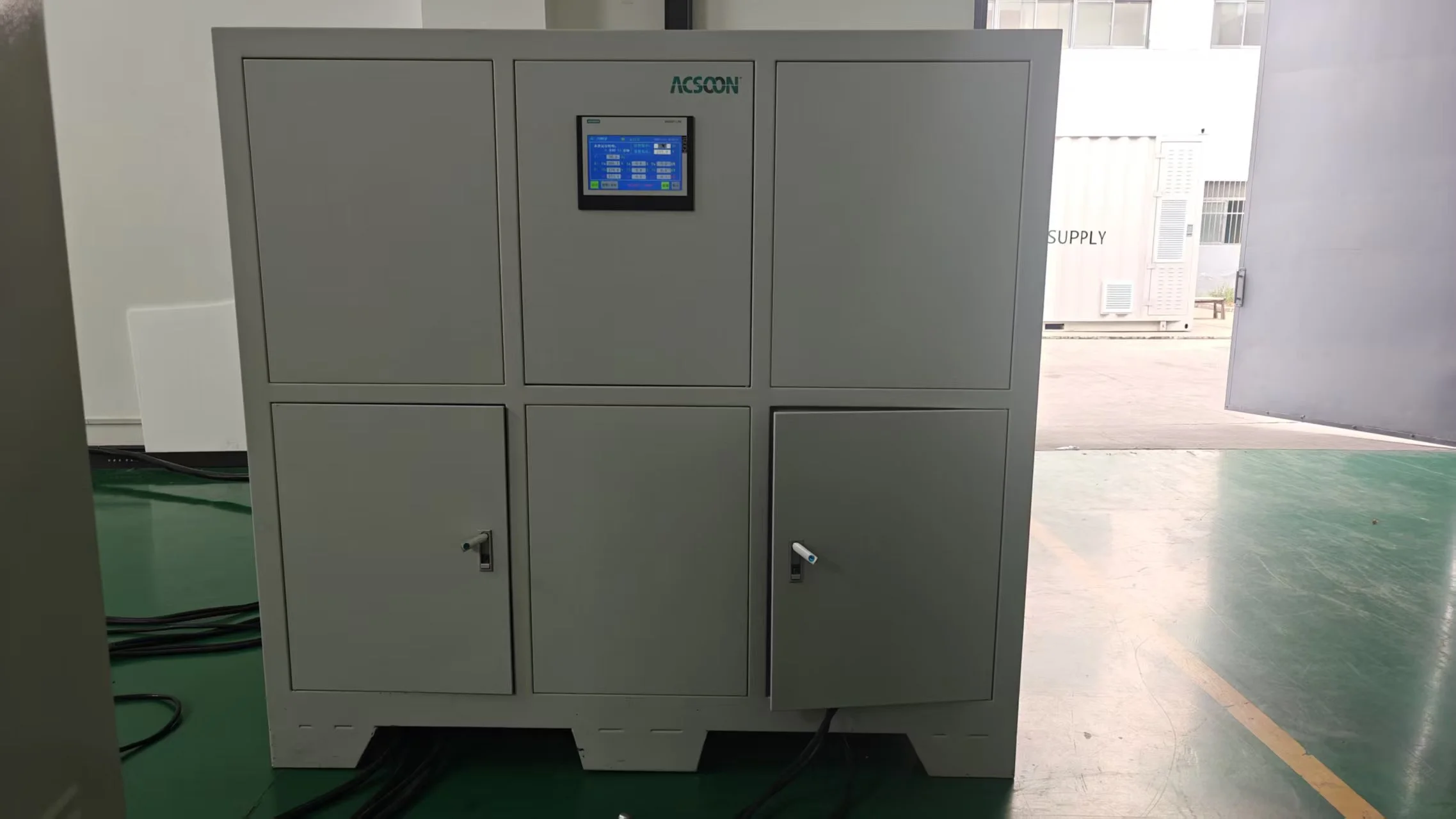

Details display
Quality Assurance
Each three-phase programmable high-power AC source undergoes rigorous validation:
Extended load testing under various conditions
Thermal performance verification
Environmental testing
Safety standard compliance testing
Final performance certification
Technical Features
Our three-phase programmable high-power AC source incorporates:
Advanced power conversion technology
Precision control systems
Three-phase output balancing
Comprehensive protection circuitry
Efficient thermal management
Packaging and Delivery
We ensure secure delivery:
Industrial-grade protective packaging
Careful handling procedures
Worldwide shipping coordination
Professional installation support
After-Sales Service
Comprehensive support package includes:
Technical support services
Maintenance programs
Repair services
Operator training
Parts supply support
Certifications
FAQ |
|---|
| Q1: What are the main advantages of a three-phase programmable high-power AC source? |
| A: High power capacity, precise three-phase output, and reliable performance for industrial testing applications. |
| Q2: What types of equipment can be tested with this system? |
| A: Suitable for transformers, generators, industrial motors, and other three-phase equipment. |
| Q3: How is output balance maintained? |
| A: Advanced control systems ensure balanced three-phase output under various load conditions. |
| Q4: What safety features are included? |
| A: Comprehensive protection including overvoltage, overcurrent, and thermal protection. |
| Q5: Can the system be integrated into existing test setups? |
| A: Yes, designed for easy integration with various industrial test systems. |
