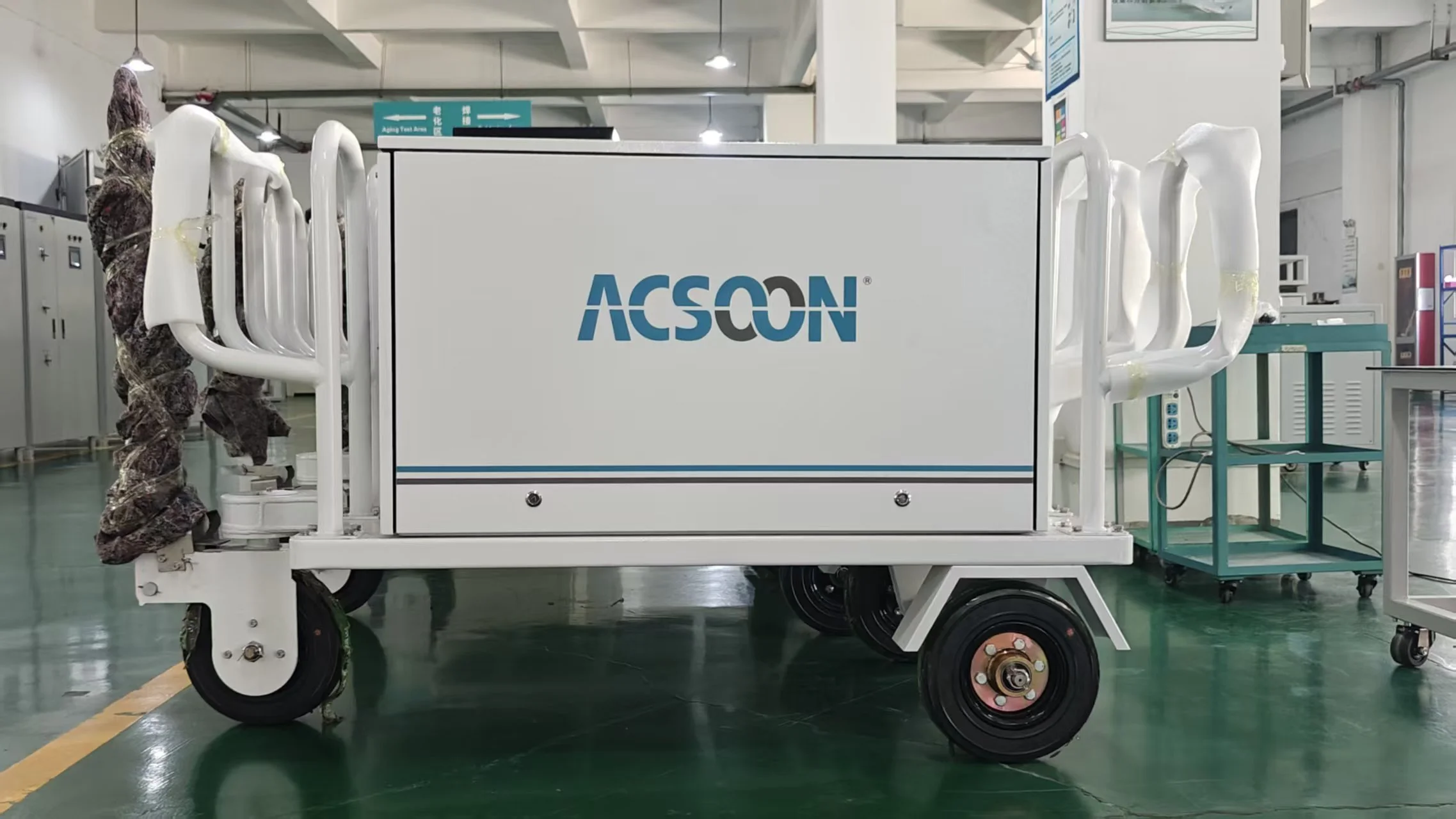

400Hz Aviation Power Supply
2.Output Specification: 115V/200V 400Hz, three-phase four-wire
3.Input Power: 380V/400V/480V, three-phase, 50Hz/60Hz
4.Frequency Stability: ±0.01% crystal-controlled precision
5.Voltage Regulation: ±1% under varying load conditions
6.Key Applications: Aircraft ground operations, avionics testing, maintenance
7.Cooling System: Intelligent forced air cooling with thermal protection
8.Brand: ACSOON (support OEM)
9.Features: multiple history events memorized in record.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the advanced 400Hz Aviation Power Supply, specifically engineered for modern aircraft ground power applications. Our 400Hz Aviation Power Supply delivers reliable and stable 400Hz power that meets stringent aviation standards, ensuring safe and efficient aircraft operations during maintenance, testing, and turnaround procedures.
Technical Specification
| PARAMETER | SPECIFICATION |
|---|---|
| INPUT | |
| Voltage | 380V/400V/480V ±15% |
| Frequency | 50Hz/60Hz ±5% |
| Phase | Three-phase + Neutral |
| OUTPUT | |
| Voltage | 115V/200V ±1% |
| Frequency | 400Hz ±0.01% |
| Waveform | Pure Sine Wave THD<2% |
| PERFORMANCE | |
| Efficiency | ≥92% at full load |
| Response Time | <10ms for load changes |
| Load Regulation | ±1% (0-100% load) |
| PROTECTION | |
| Input | Over/under voltage, phase loss |
| Output | Overload, short circuit, over temperature |
| ENVIRONMENTAL | |
| Operating Temperature | -20°C to 50°C |
| Protection Grade | IP54 |
400Hz Aviation Power Supply Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON 400Hz Aviation Power Supply?
ACSOON 400Hz Aviation Power Supply provides exceptional advantages for aviation ground operations:
Aviation Standard Compliance: Meets MIL-STD-704F and ISO 6858 requirements
High Precision Output: Excellent frequency and voltage stability for sensitive avionics
Pure Sine Wave: Clean power with THD<2% for aircraft systems
Robust Construction: Industrial-grade components for reliable operation
Smart Monitoring: Comprehensive digital display and remote control capability
Application Areas
Our 400Hz Aviation Power Supply serves critical functions in aviation operations:
Aircraft Ground Power: Power supply during aircraft maintenance and turnaround
Avionics Testing: Testing and development of aircraft electronic systems
Maintenance Hangars: Aircraft system verification and maintenance procedures
Military Operations: Ground power for military aircraft
Aerospace Manufacturing: Production testing of aircraft components
Emergency Services: Backup power for critical aircraft operations
Our Services
Quality Control
Each 400Hz Aviation Power Supply undergoes rigorous aviation-grade testing:
Frequency accuracy and stability validation
Load performance testing with aircraft-grade equipment
Environmental testing for operational temperature range
Safety certification to international aviation standards
Final calibration with precision measurement instruments
R&D Results
Our technical innovations in 400Hz Aviation Power Supply technology include:
Enhanced frequency stability through advanced control algorithms
Improved power conversion efficiency
Smart thermal management for continuous operation
Reduced electromagnetic interference
Modular design for easy maintenance and service
Packaging and Transportation
We ensure secure delivery of every 400Hz Aviation Power Supply:
Aviation-grade packaging with adequate protection
Custom packaging solutions for international shipping
Comprehensive documentation including calibration certificates
Global logistics support with professional handling
After-Sales Service
We provide dedicated support for all 400Hz Aviation Power Supply installations:
Technical assistance for aviation applications
Calibration services to maintain precision performance
Remote troubleshooting and diagnostic support
Operator training for optimal system utilization
Rapid response for critical technical requirements
Qualification Certification
FAQ |
|---|
| Q1: What aircraft types are compatible with your 400Hz Aviation Power Supply? |
| A: Our systems are compatible with most commercial and military aircraft requiring 115V/200V 400Hz ground power, including Boeing and Airbus models. |
| Q2: How quickly can your 400Hz Aviation Power Supply be deployed? |
| A: With optimized mobility and quick-connect systems, our units can be operational within 2-3 minutes of arrival at aircraft. |
| Q3: What safety features are specifically designed for aviation operations? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, and aircraft-grade safety interlocks. |
| Q4: Can your 400Hz Aviation Power Supply operate in extreme weather conditions? |
| A: Yes, our units feature IP54 protection and are tested for operation in temperatures from -20°C to 50°C. |
| Q5: What is the maintenance schedule for your 400Hz Aviation Power Supply? |
| A: We provide detailed maintenance schedules including daily operational checks, weekly inspections, and comprehensive monthly maintenance. |
Contact Us
For 400Hz aviation power supply solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
