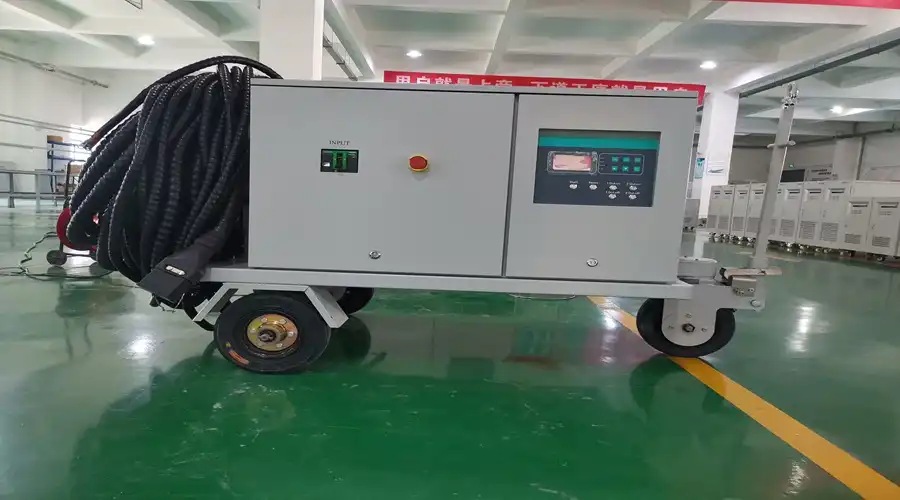

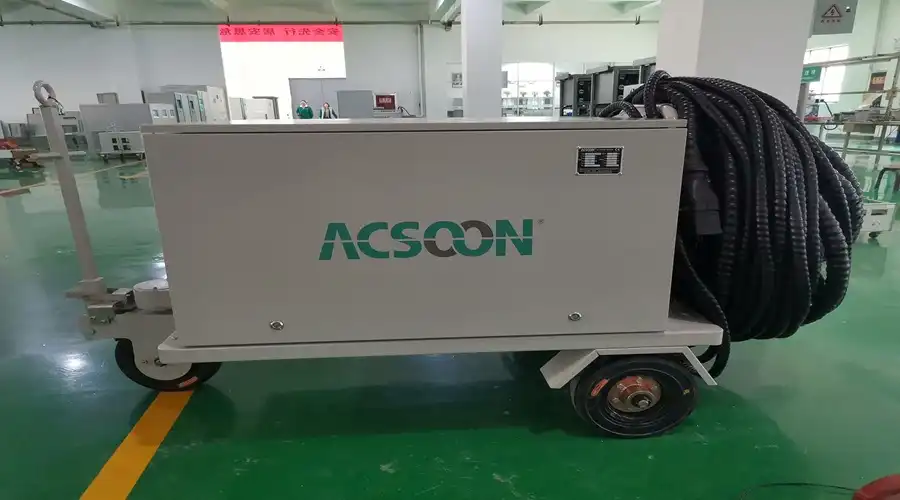

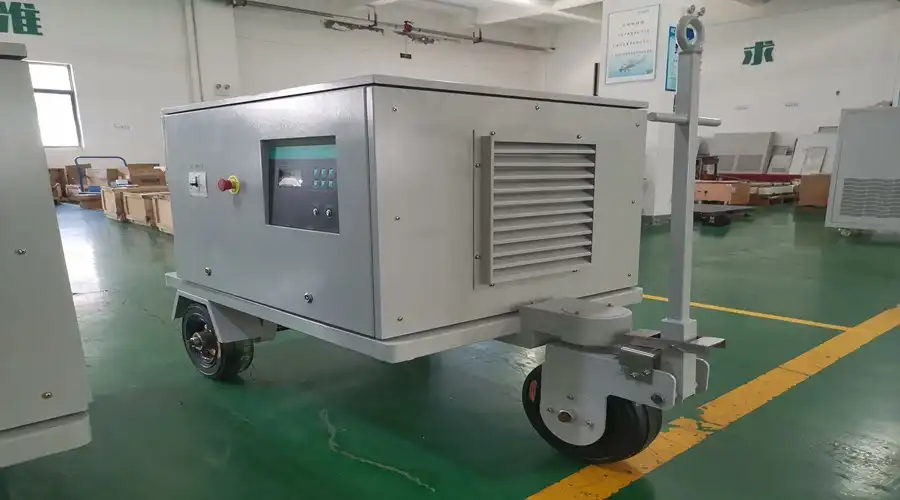

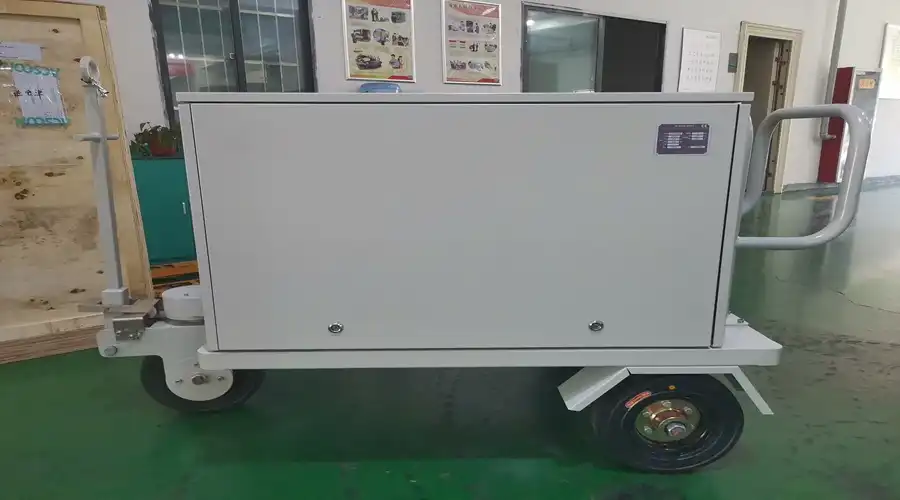

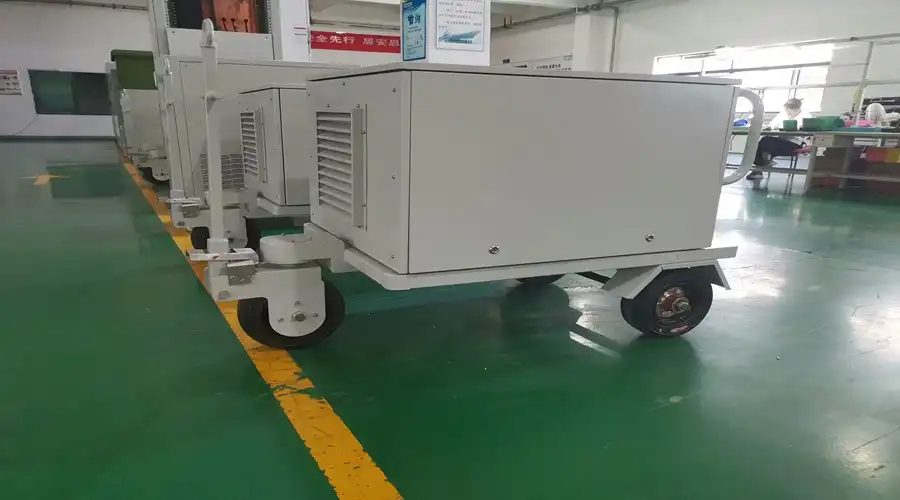

In Ground Power Unit
2. Power Rating: 180kVA
3. Input Voltage & Frequency: 3 Phase 380V, 50HZ
4. Output Voltage & Frequency: 3 Phase 115V(L-N)/200V(L-L), 400HZ
5. Type: Solid state GPU, static power converter
6. Ingress Protection Grade: IP32
7. Applications: aviation power source,military 400HZ AC power source, 28vDC output optional
8. Brand: ACSOON (support OEM)
9.Features: two outputs, each output independentely , completely protections, all standard complies with ISO 6858 / MIL-704F
- Product Description
In Ground Power Unit: Powering Aviation Excellence
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of in ground power units. With over 15 years of expertise, we deliver cutting-edge solutions that meet the rigorous demands of the aviation industry. Our products are renowned for their reliability, efficiency, and compliance with international standards, making us the preferred choice for airports and airlines worldwide.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | Three Phase Output: 30kVA - 180kVA |
| Input | 200-440VAC (L-L) ±20%, 40-70HZ |
| Output | 200/208Vac, 400HZ (300-500HZ adjustable) |
| Voltage Regulation | ±1% |
| VTHD | <2% |
| Overload Capacity | 125% for 10 mins, up to 400% for 1s |
| MTBF | 30,000 hours |
Application Areas
Our products are essential across various aviation sectors.
Commercial Airports: Powering passenger aircraft during turnaround
Cargo Terminals: Supporting freight operations
Military Airbases: Ensuring readiness for defense aircraft
Maintenance, Repair, and Overhaul (MRO) Facilities: Powering aircraft during servicing
Private Aviation: Supporting business and charter jets
Aerospace Manufacturing: Testing newly produced aircraft
Emergency Response: Providing power in critical situations
Remote Airfields: Ensuring reliable power in challenging locations
Aircraft Testing Facilities: Supporting rigorous testing procedures
Flight Training Centers: Powering simulators and training aircraft
Why Choose ACSOON In Ground Power Units?
R&D Innovations
Our commitment to innovation drives continuous improvement:
Energy-efficient power conversion technologies
Smart monitoring and diagnostic systems
Integration with airport management software
Development of eco-friendly, low-emission units
01
Quality Control
At ACSOON, quality is our cornerstone. Our rigorous quality control process includes:
Component-level testing
Full-load operational tests
Environmental stress screening
Compliance checks with aviation standards
Final inspection and certification
02
After-Sales Service
Our support doesn't end with delivery:
24/7 technical support
Comprehensive warranty coverage
Regular maintenance programs
Operator training sessions
Spare parts readily available
03
Packaging and Transportation
We ensure your in ground power unit arrives safely:
Custom-built shock-absorbing crates
Climate-controlled shipping for sensitive components
Real-time tracking and insurance coverage
On-site delivery and installation services available
04
FAQ
1.Q: What's the typical lifespan of a product?
A: With proper maintenance, our units typically last 15-20 years.
2.Q: Can your units handle different aircraft types?
A: Yes, our range covers requirements from small private jets to large commercial airliners.
3'Q: How quickly can you deliver a unit?
A: Standard units can be delivered within 4-6 weeks, with expedited options available.
4.Q: Are your units compliant with international aviation standards?
A: Absolutely. All our units meet or exceed FAA, EASA, and IATA standards.
5.Q: Do you offer installation services?
A: Yes, we provide full installation, commissioning, and training services worldwide.
Choosing the right product is crucial for efficient airport operations. With ACSOON, you're not just buying a product; you're investing in reliability, efficiency, and world-class support. Ready to power up your aviation operations? Contact us today to discuss your in ground power unit needs.
