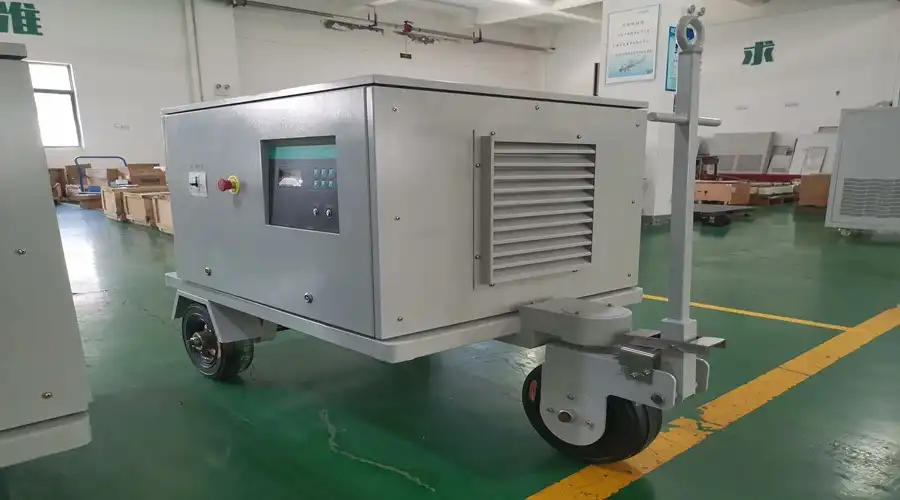

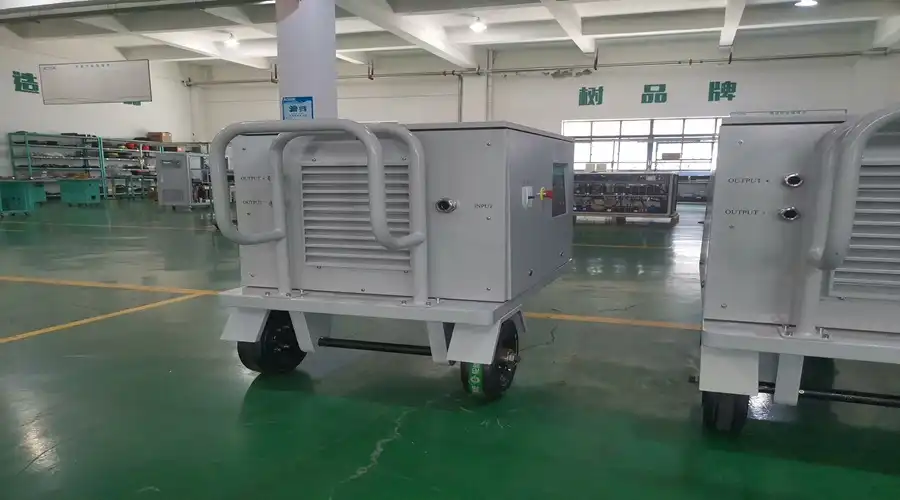

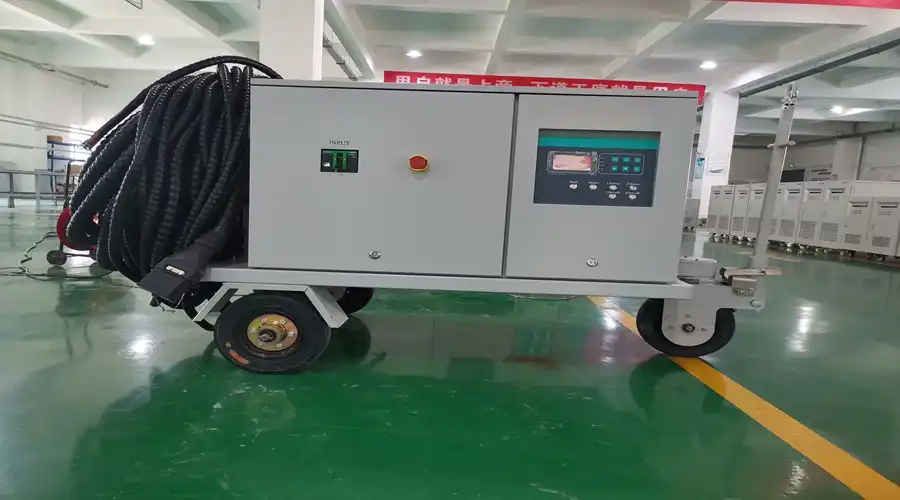

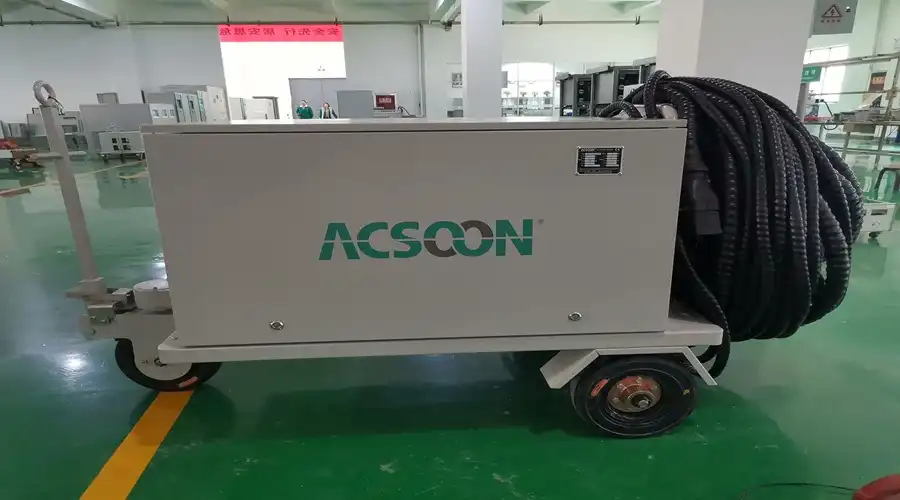

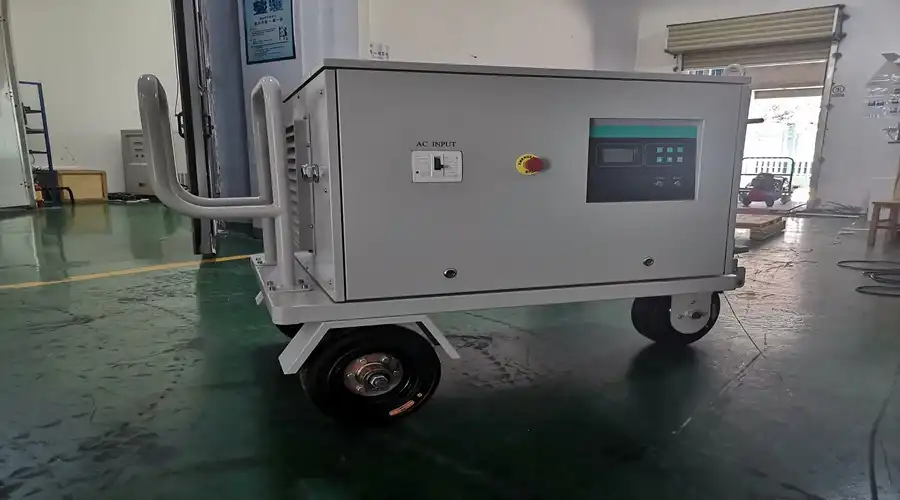

Air Force Ground Power Unit
2. Power Rating: 150kVA
3. Input Voltage & Frequency: 3 Phase 380V, 50HZ
4. Output Voltage & Frequency: 3 Phase 115V/200V, 400HZ
5. Type: Solid state GPU, floor mounted
6. Ingress Protection Grade: IP54
7. Applications: Widely used as aviation power source,military equipment.
8. Brand: ACSOON (support OEM)
9.Features: multiple output, Input voltage, output voltage and frequency are variably changed as per different circumstances among countries, completely protections,Voltage transient recovery complies with ISO 6858 / MIL-704F
- Product Description
ACSOON Air Force Ground Power Units: Powering Military Aviation Excellence
Welcome to XI'AN JERRYSTAR INSTRUMENT CO., LTD, your trusted manufacturer and supplier of high-quality air force ground power units. With over 15 years of experience, we specialize in designing and producing state-of-the-art power solutions for military aviation. Our ACSOON brand products are renowned for their reliability, efficiency, and compliance with stringent military standards.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA - 180kVA |
| Input Three Phase | 200-440VAC (L-L) ±20% |
| Output Three Phase | 200/208VAC rated, 0-520VAC (L-L) |
| Frequency | Input: 40-70HZ, Output: 400HZ rated (300-500HZ adjustable) |
| Voltage Regulation | ±1% |
| Output VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| Mean Time Between Failure | 30,000 hours |
Application Areas
Our products are designed for a wide range of military aviation applications.
Fighter jet maintenance and pre-flight checks
Transport aircraft ground operations
Helicopter servicing and avionics testing
Unmanned aerial vehicle (UAV) ground control stations
Mobile air defense systems
Airfield emergency power backup
Aircraft hangar power distribution
Avionics testing and calibration facilities
Airborne early warning and control (AEW&C) system ground support
Aerial refueling tanker ground operations
Why Choose ACSOON Air Force Ground Power Units?
Quality Control and R&D
At ACSOON, we maintain rigorous quality control processes to ensure our air force ground power units meet the highest standards:
ISO 9001 certified manufacturing facilities
Comprehensive testing at every production stage
Continuous investment in R&D for cutting-edge power solutions
Collaboration with military aviation experts for product enhancement
01
Qualification Certifications
ACSOON power solutions are certified by:
CE (European Conformity)
ISO 9001:2015 Quality Management System
Various military standards certifications (available upon request)
02
After-Sales Service
Our commitment to your mission doesn't end with delivery. ACSOON offers:
24/7 technical support hotline
On-site maintenance and repair services
Comprehensive training programs for operators and technicians
Long-term spare parts availability guarantee
03
Packaging and Transportation
We understand the importance of secure packaging and efficient transportation for military-grade equipment:
Custom-designed shock-absorbing packaging
Weatherproof crating for long-distance shipping
Full documentation and export compliance support
Flexible shipping options to meet urgent deployment needs
04
FAQ
1.Q: What makes ACSOON products suitable for military applications?
A: Our units are built to military specifications, offering superior reliability, ruggedness, and performance in demanding environments.
2.Q: Can ACSOON provide customized ground power solutions?
A: Yes, we specialize in tailoring our units to meet specific air force requirements and aircraft types.
3.Q: What is the typical lead time for ACSOON air force ground power units?
A: Lead times vary based on specifications and quantity, but we strive to meet urgent military needs with expedited production when possible.
4.Q: Does ACSOON offer training for unit operation and maintenance?
A: Absolutely. We provide comprehensive training programs for both operators and maintenance personnel.
5.Q: How does ACSOON ensure long-term support for its products?
A: We maintain a robust spare parts inventory and offer long-term service agreements to support the entire lifecycle of our units.
Contact Us
Ready to power up your air force operations with ACSOON ground power units? Contact our military aviation specialists today at acpower@acsoonpower.com for expert consultation and tailored solutions.
