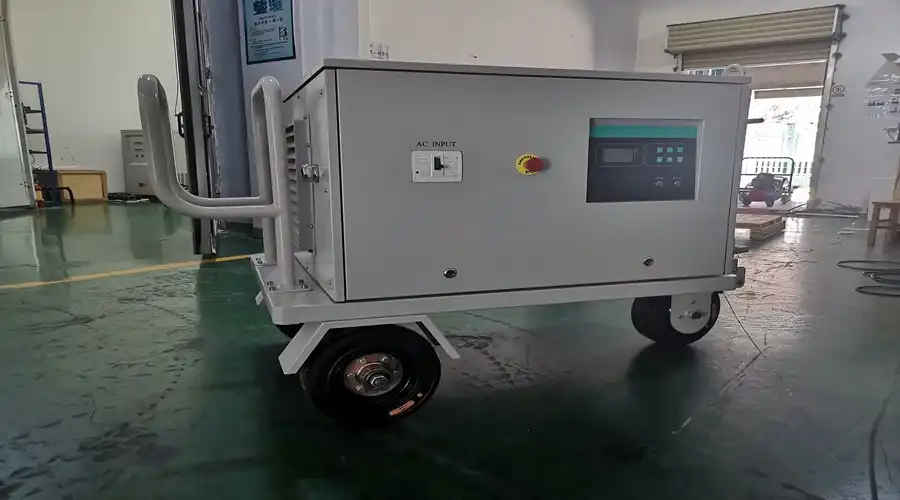

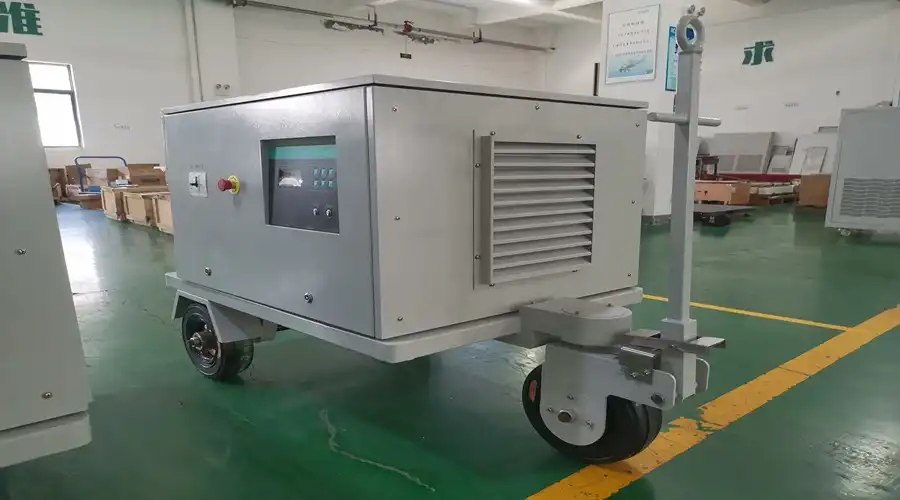

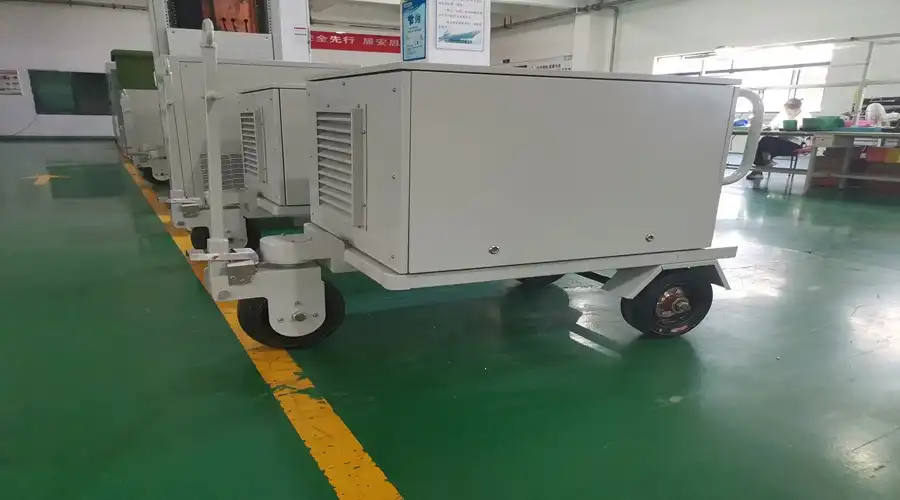

Electric Ground Power Unit
2. Power Rating: 150kVA
3. Input Voltage & Frequency: 3 Phase 380V, 60HZ
4. Output Voltage & Frequency: 3 Phase 120V, 400HZ
5. Type: Solid state GPU, floor mounted
6. Ingress Protection Grade: IP21
7. Applications: flexibly to be used at hangar and apron for aviation aerospace equipment
8. Brand: ACSOON (support OEM)
9. Features: a mobile Ground Power Unit that delivers electric quality power to aircraft. It's an upgrade product to diesel engined GPU, it has low emissions and cost savings.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD: Your Trusted Electric Ground Power Unit Manufacturer
XI'AN JERRYSTAR INSTRUMENT CO., LTD, founded in 2007, is a leading manufacturer and supplier of high-quality Electric Ground Power Units (EGPUs). With state-of-the-art design and manufacturing capabilities, we specialize in ACSOON brand power converters for aviation, industry, marine, and oil fields. Our ISO 9001 certification and CE product approval underscore our commitment to excellence in the product sector.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input (Three Phase) | 200-440VAC (L-L) ±20% (Customizable) |
| Input Frequency | 40 - 70HZ |
| Output (Three Phase) | 200/208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300-500HZ adjustable |
| Circuit Breakers | MCCB installed |
| AC Outputs | One terminal strip (Two optional) |
| DC Output | Available on Combi GPU (28V) |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Efficiency | ≥85% |
| Display | LCD (voltage, current, frequency) |
| Noise Level | <65dB (1m distance) |
| Protection Features | Multiple safeguards |
| Communication | Modbus RS485 |
| Overload Capacity | 125% for 10min, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF / MTTR | 30,000H / <30 min |
| Altitude | <1800m |
Application Areas
Our Electric Ground Power Units are versatile and find applications in various sectors.
Commercial Airports
Military Airbases
Aircraft Maintenance Facilities
Aerospace Manufacturing Plants
Private Aviation Terminals
Emergency Response Centers
Aircraft Testing Facilities
Mobile Ground Support Operations
Quality Control
At ACSOON, quality is our top priority. We implement:
- Rigorous testing at every production stage
- Regular calibration of testing equipment
- Continuous staff training on quality standards
- Strict adherence to ISO 9001 guidelines
Why Choose ACSOON Electric Ground Power Units?
R&D Achievements
Our commitment to innovation has led to several breakthroughs:
Enhanced energy efficiency in our latest product models
Reduced noise levels for improved airport environments
Advanced digital control systems for precise power delivery
Compact designs for easier maneuverability and storage
01
Qualification Certifications
Our products are certified by:
ISO 9001:2015
CE Marking
Various international aviation authorities
02
After-Sales Service
Our commitment doesn't end with the sale. We provide:
24/7 technical support
Comprehensive warranty coverage
Regular maintenance services
Spare parts availability
03
Packaging and Transportation
We ensure safe delivery of our EGPUs through:
Robust, weather-resistant packaging
Custom-designed crates for larger units
Comprehensive shipping insurance
Detailed handling instructions for transporters
04
Exhibitions
We regularly showcase our products at major industry events:
- Inter Airport Europe
- Dubai Airshow
- Singapore Airshow
- MRO Americas
FAQ
1.Q: What makes ACSOON products stand out?
A: Our units offer superior reliability, efficiency, and customization options, backed by excellent after-sales support.
2.Q: Can your EGPUs be customized for specific aircraft types?
A: Yes, we offer customization to meet the power requirements of various aircraft models.
3.Q: What is the warranty period for your products?
A: We typically offer a 12-month warranty, with extended options available.
4.Q: How quickly can you deliver an EGPU?
A: Delivery times vary based on the model and customization, but we strive for the fastest possible turnaround.
5.Q: Do you provide installation and training services?
A: Yes, we offer comprehensive installation services and operator training for all our products.
