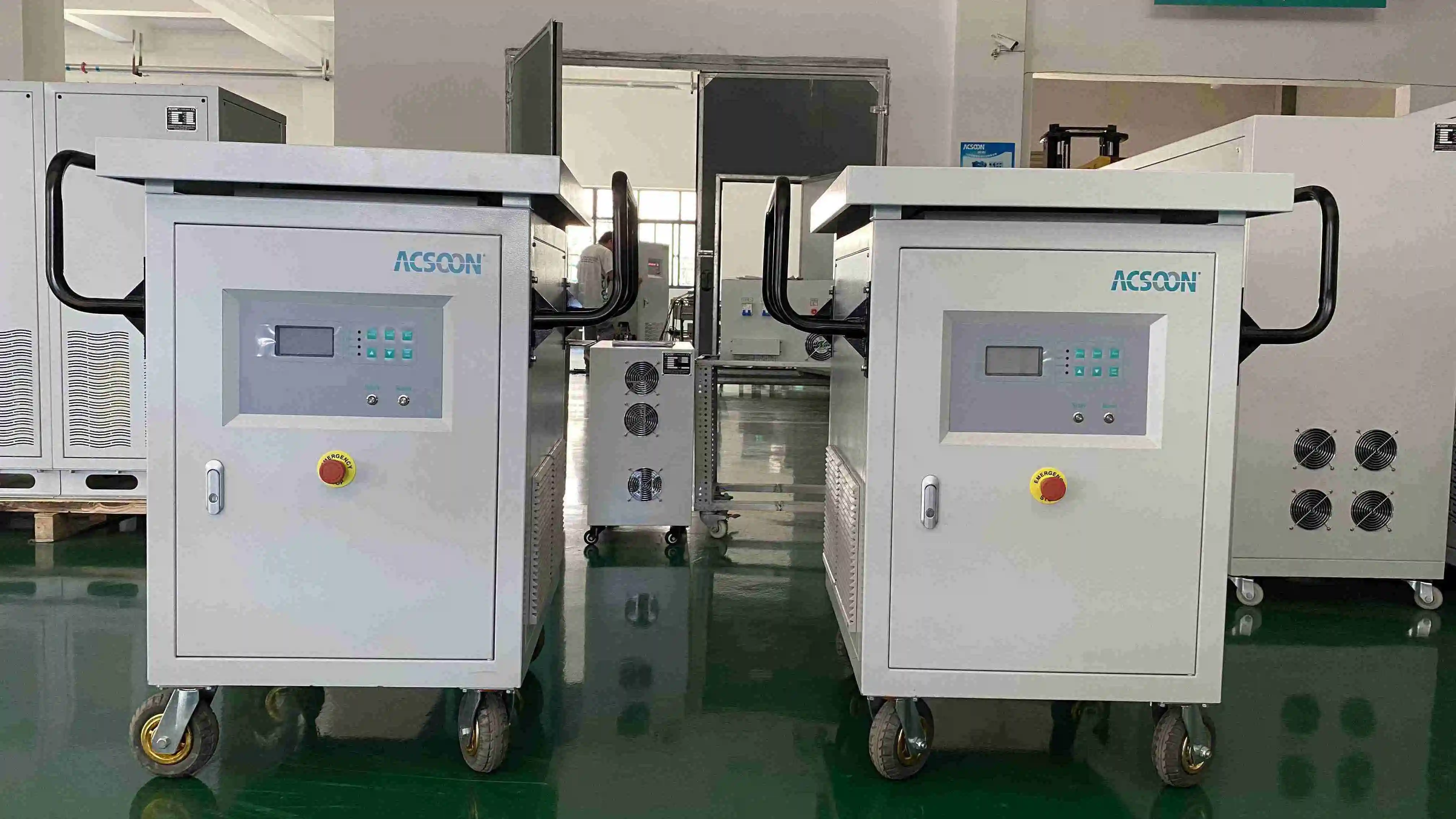

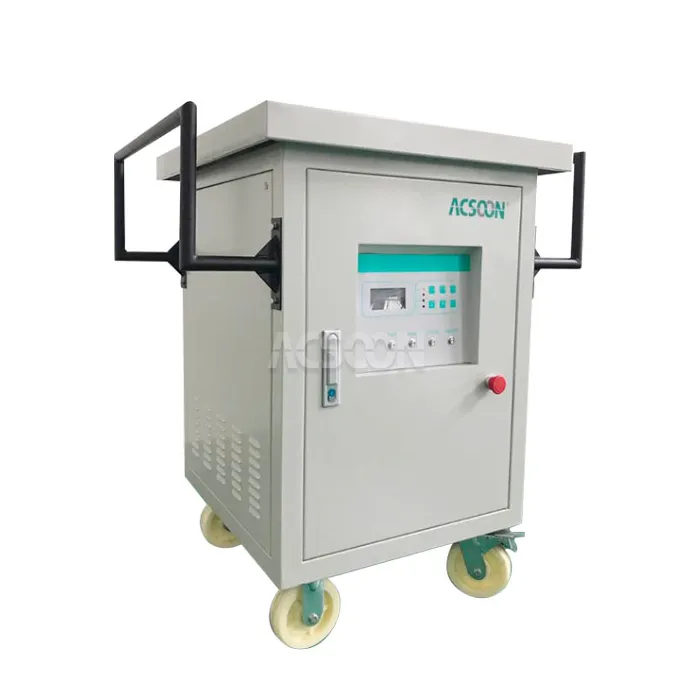

ACSOON ADCW Series 28.5V DC Aircraft Rectifier Power Supply for Ground Start
- Product Description

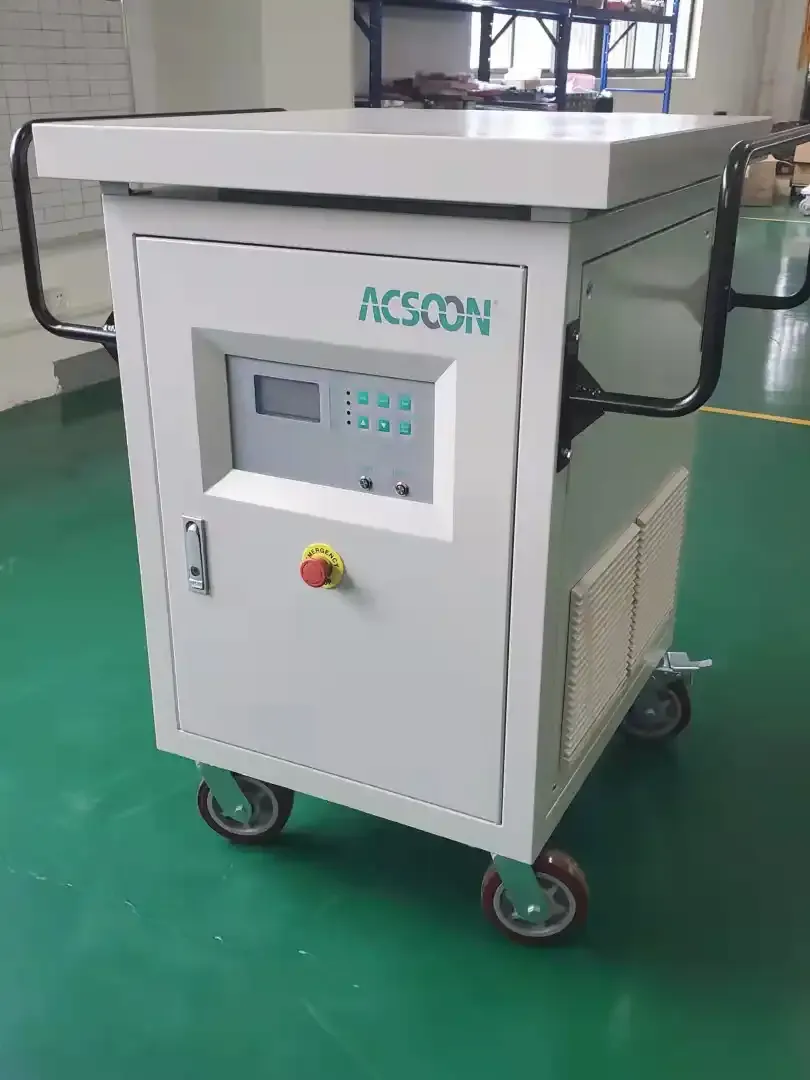

ACSOON ADCW Series 28.5V DC Aircraft Rectifier Power Supply for Ground Start
The ADCW Series supplies 28.5V DC aircraft ground power for ground-start and maintenance projects. Select rated current, connector and installation type against the aircraft requirements. The supplied series specification lists adjustable 20–32V DC output and current options from 300A to 2000A.
Request a Quote Technical Consultation
Why Choose ADCW Series
- 28.5V DC rated output with 20–32V adjustment listed in the series specification.
- Current options cover 300, 400, 500, 600, 800, 1000 and 2000A by model.
- DC ripple listed at ≤0.25V for the applicable configuration.
- RS232/RS485 Modbus communication and enclosure options should be specified on the quotation.
Technical Specifications
| Rated output | 28.5V DC |
|---|---|
| Adjustment range | 20–32V DC |
| Current options | 300/400/500/600/800/1000/2000A; selected by model |
| DC ripple | ≤0.25V per supplied specification |
| Communication | RS232/RS485 Modbus; confirm selected interface |
| Enclosure options | IP20/IP21/IP54 options; confirm order configuration |

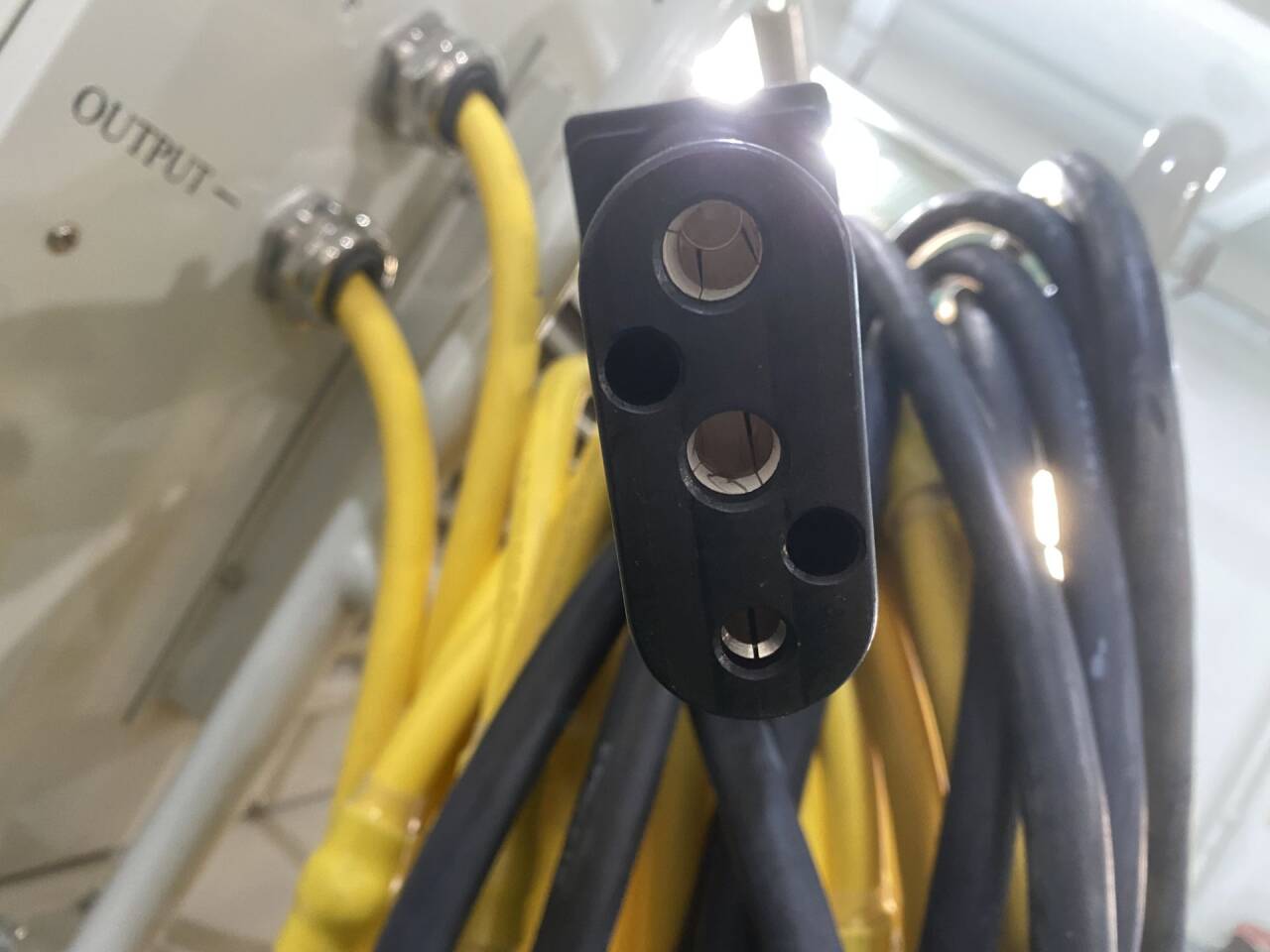

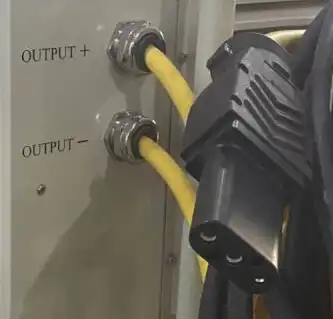

| Connector and cables | Aircraft interface, cable length and current rating to be agreed |
Application Areas
Aircraft ground-start preparation, helicopter servicing and airport MRO DC supply. Aircraft compatibility, peak demand and start duration must be checked for the selected model. For apron projects in the Middle East, specify ambient temperature and enclosure location.
Specify Your Project
Send aircraft type, required continuous and peak current, start duration, DC voltage, connector, cable length, AC site supply, enclosure rating and destination. Ask for a quotation with the selected model and operating limits.
Request a Quote Technical Consultation
Quality Control

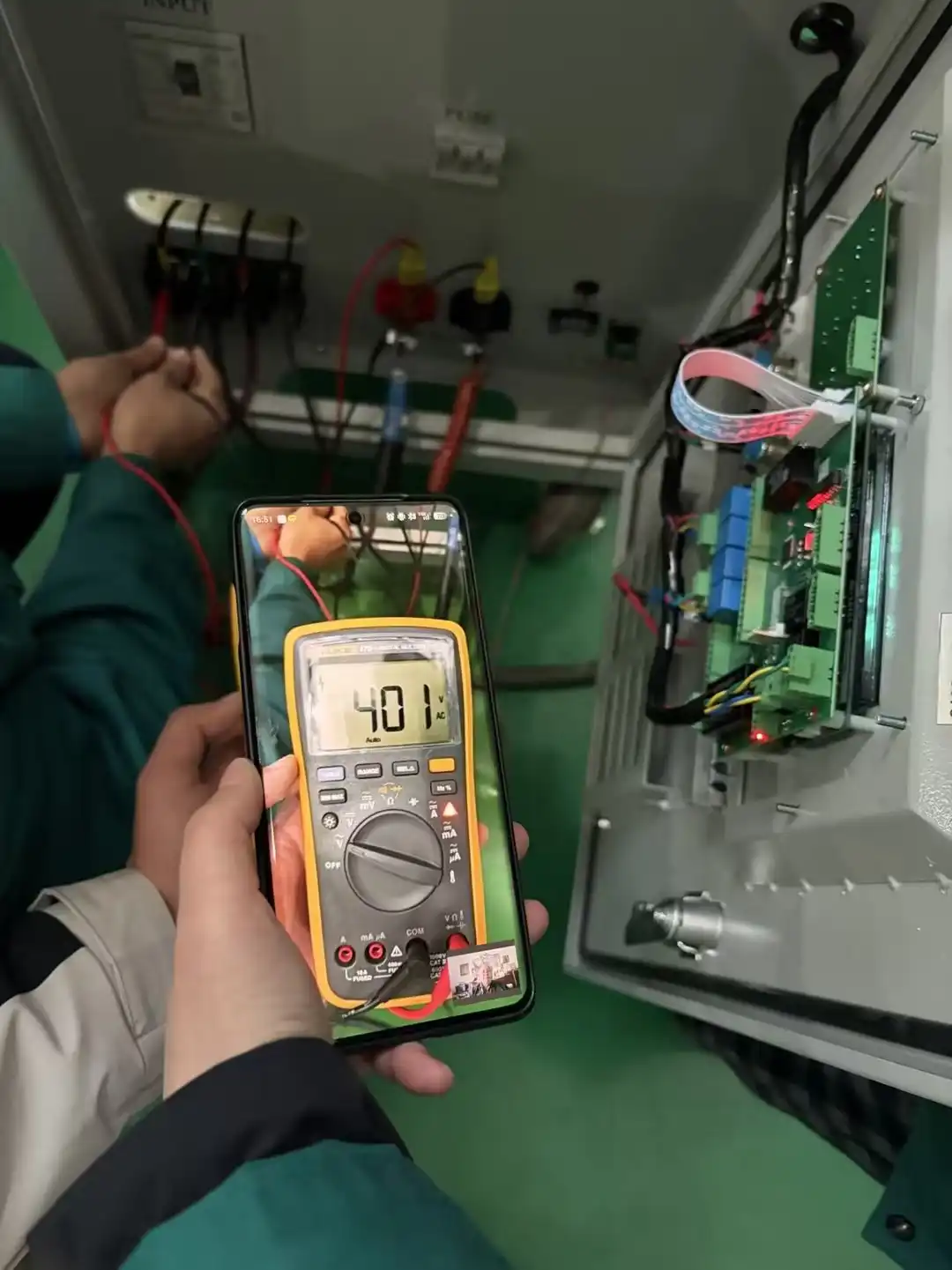

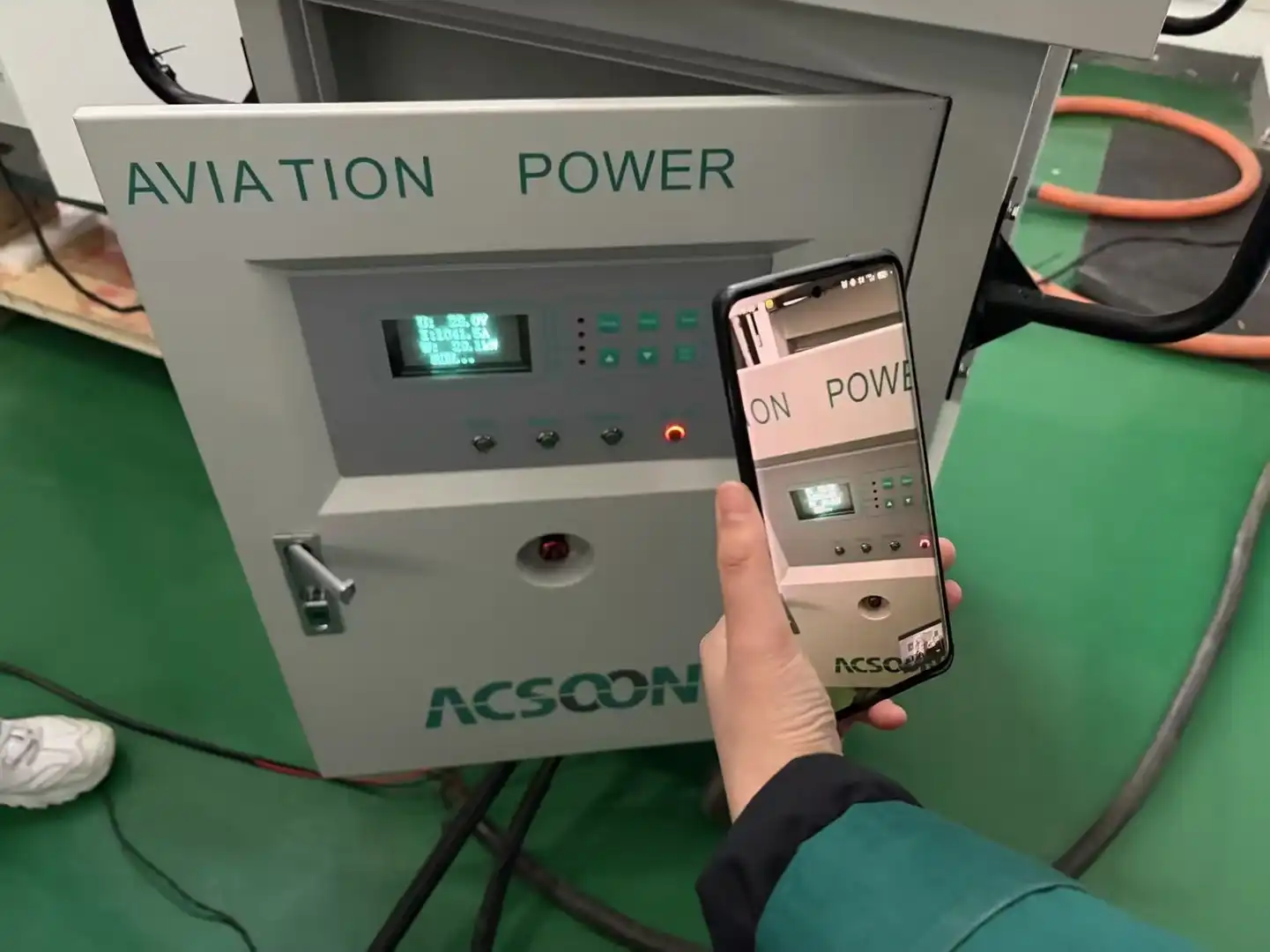

Each project is configured against the selected ADCW Series model and agreed inspection scope. Quality checks include component inspection, production-stage inspection and final testing. Request the applicable drawing and test records with your quotation.
R&D Achievements
- Digital control algorithms for output stability
- Modular design for maintenance and upgrades
- Power-management functions for efficient operation
- Compact equipment layouts for installation planning
Qualification Documents
ISO 9001 quality management and CE documents can be discussed for the applicable product configuration. Confirm the current certificate scope and destination requirements before order placement.
View Qualification Documents · Request Technical Specification & User Manual
ABOUT US
- 19+ years of manufacturing and export experience
- 7,000+ sq.m production factory
- 60+ independent patented technologies
- China National High-Tech Enterprise
About Our Factory · ACSOON Power Solutions
Custom Solution & Quotation
Request a technical datasheet, configuration review, OEM cooperation or project quotation. Email acpower@acsoonpower.com with your requirements.
Request a Quote Technical Consultation
FAQ
Is 28.5V DC suitable for my aircraft?
Confirm the aircraft ground-power requirement and connector. A matching nominal voltage alone does not establish compatibility.
Which current rating should I choose?
Provide continuous current, starting peak and start duration. The selected model must cover the agreed duty cycle.
Can the output voltage be adjusted?
The supplied ADCW specification lists a 20–32V DC adjustment range. Confirm the final setting and control arrangement for your project.
Are outdoor versions available?
IP54 is listed as an option alongside IP20/IP21. Confirm enclosure, ambient conditions and installation before ordering.
