ACSOON GPU400 Series 115V 400Hz Aircraft Ground Power Unit for MRO
- Product Description

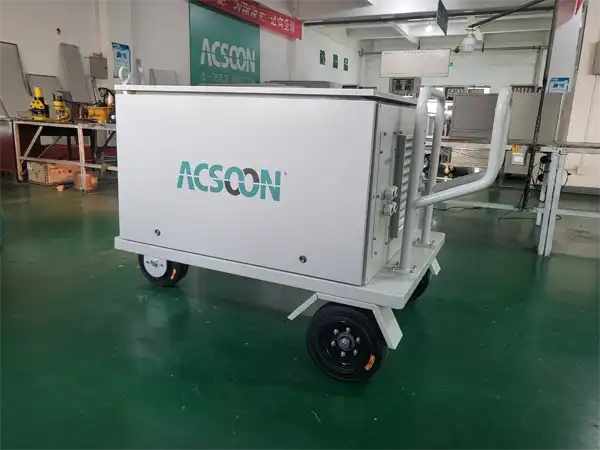

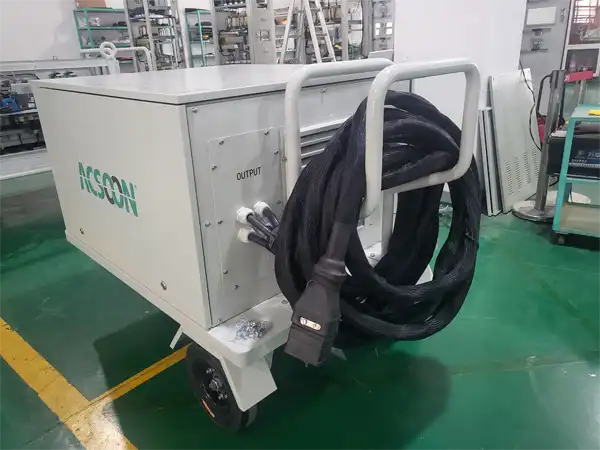

ACSOON GPU400 Series 400Hz Aircraft Ground Power Unit

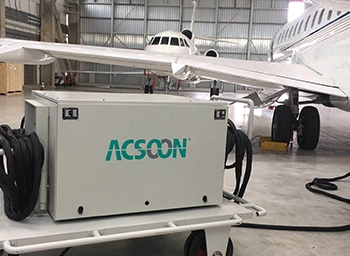

ACSOON GPU400 Series is a 400Hz ground power unit for aircraft maintenance, MRO hangars and apron service. Capacity options are 30, 45, 60, 90, 120 and 180 kVA. The series provides 115/120V single-phase and 200/208V three-phase output options.
30–180 kVA | 115/120V & 200/208V | 400Hz | Pure sine wave
Send an Inquiry Contact JERRYSTAR
Why choose the GPU400 Series
For aircraft ground power supply and aircraft maintenance power supply, GPU400 pairs a 400Hz output with a pure sine wave. The specification lists VTHD below 2%, voltage regulation and stability of ±1% FS, frequency stability of ±0.01% FS, and efficiency of at least 93%.

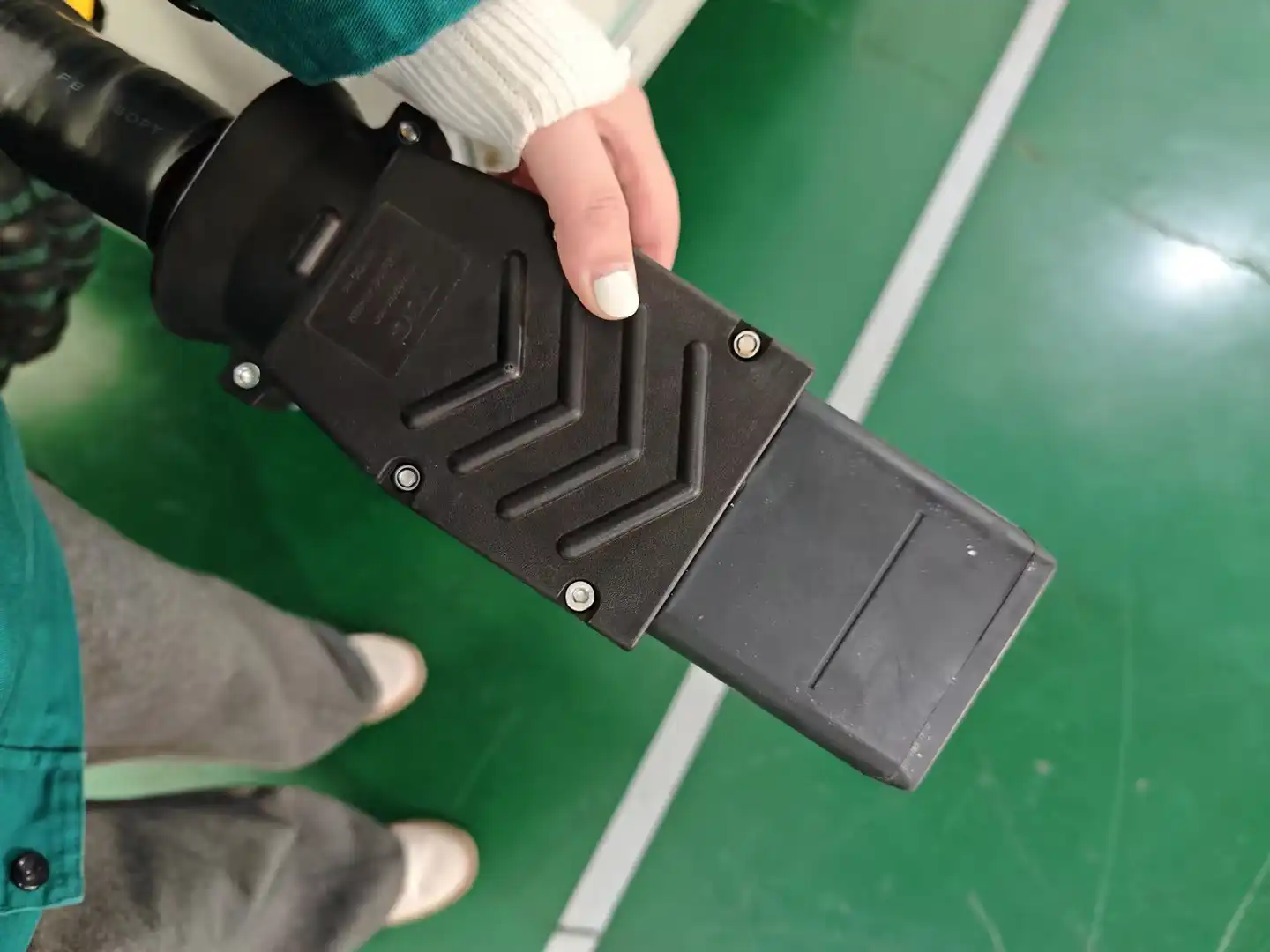

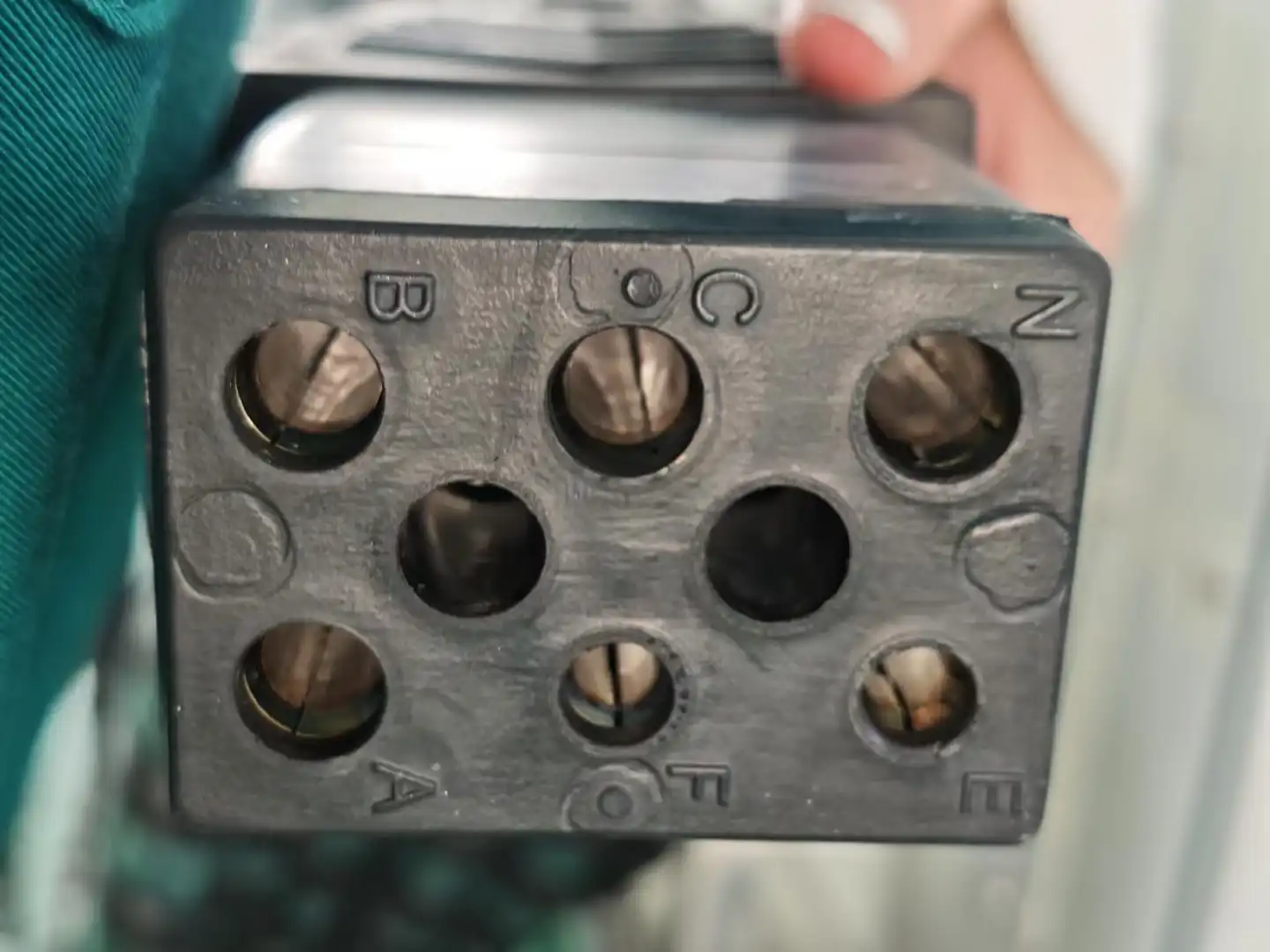

Multiple capacities support different aircraft loads and airport ground-support requirements. Confirm the selected kVA rating, aircraft connector, cable length and site input before ordering.
Technical Specifications
| Item | GPU400 Series |
|---|---|
| Capacity | 30 / 45 / 60 / 90 / 120 / 180 kVA |
| Input | 3-phase, 208 / 380 / 400 / 415 / 440 / 480V AC; 50/60Hz nominal; 40–70Hz range; ±15% voltage tolerance |
| Output | 400Hz; 115/120V single phase and 200/208V three phase, four wire |
| Waveform / distortion | Pure sine wave; VTHD <2% |
| Protection / enclosure | Overcurrent, overload, overtemperature and short circuit; IP54 |
| Efficiency / environment | ≥93%; −20 to 50°C |
Final capacity, output interface and cabinet drawing are confirmed for the selected configuration.
Applications

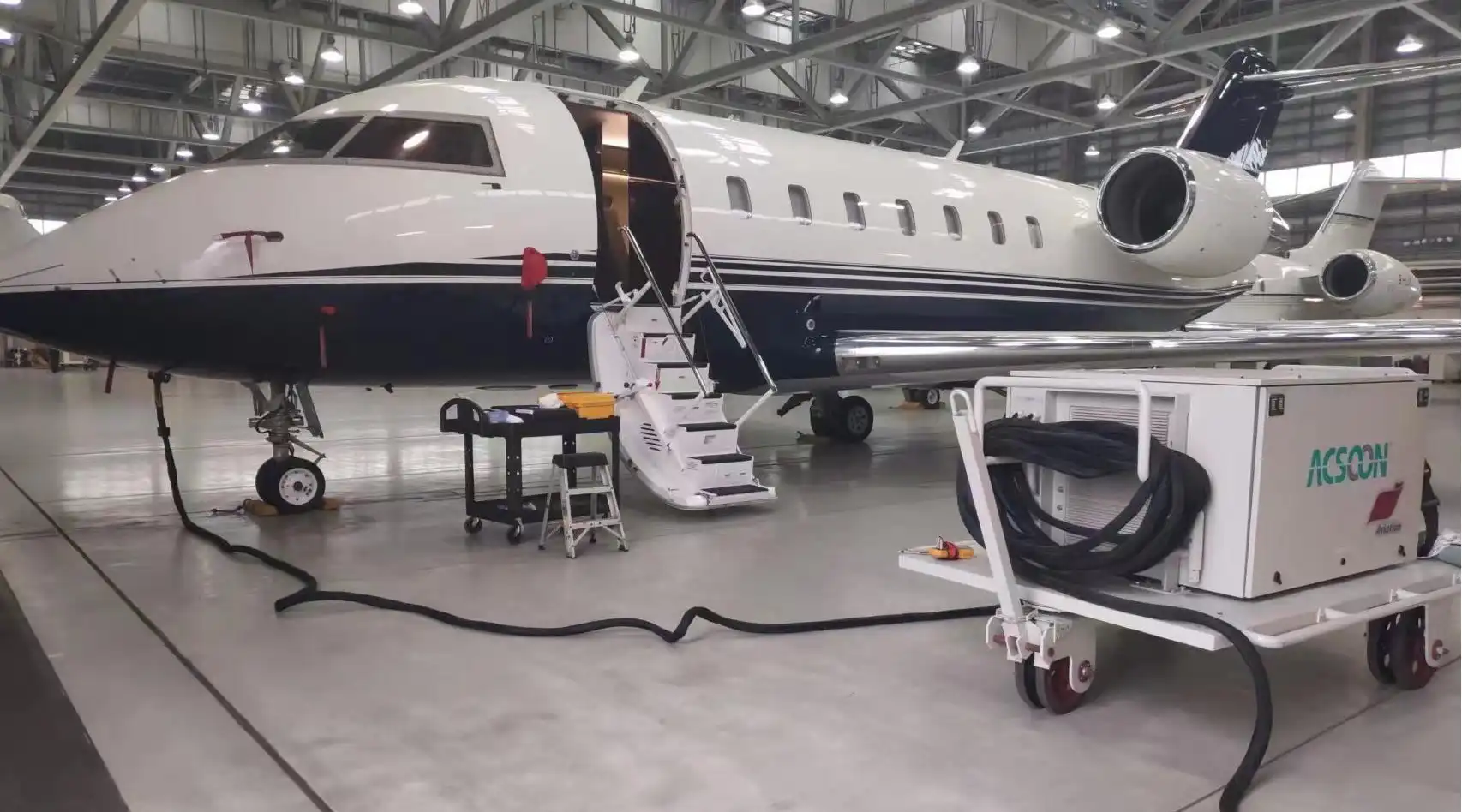

Aircraft maintenance
· MRO hangars
· Apron operations
· Aircraft testing and ground support

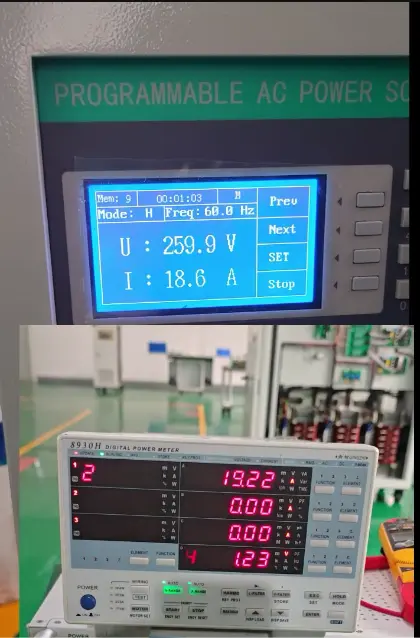

Quality Control
Each project is configured against the selected GPU400 model and agreed inspection scope. Quality checks include component inspection, production-stage inspection and final testing. Request the applicable drawing and test records with your quotation.
R&D Achievements
- Digital control algorithms for output stability
- Modular design for maintenance and upgrades
- Power-management functions for efficient operation
- Compact equipment layouts for installation planning
Qualification Documents
ISO 9001 quality management and CE documents can be discussed for the applicable product configuration. Confirm the current certificate scope and destination requirements before order placement.
GPU400 Technical Specification & User Manual · ACSOON Aviation Power Solutions · Aircraft GPU Selection Guide Request a GPU400 Quote
If you need it,Contact us at Email: acpower@acsoonpower.com
ABOUT US
·28,698+ long-term repeat clients globally with stable repeat orders
·19+ years domestic & export manufacturing experience for aviation ground power equipment

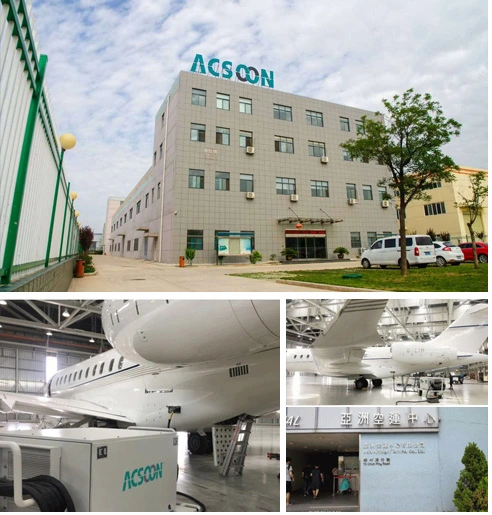

·7,000+ sq.m modern production factory
·24/7 customer service:＜30 mins quick response + lifetime after-sales support
·60+ independent patented technologies
·Certified as China National High-Tech Enterprise
·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification
Custom Solution & Quotation
Contact ACSOON for:
✔ Technical datasheet
✔ Customized voltage/frequency solution
✔ OEM cooperation
✔ Project quotation
📩 Get Price / Technical Consultation
Response within 24 hours by engineering team.
FAQ
Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.
Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.
Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.
Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.
Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.
Q6:How can I get more details?
A:Click here.Send inquiry get price and specification.
Q7:Can a 60Hz to 50Hz converter change both frequency and voltage?
Yes. A static frequency converter can adjust frequency and voltage output according to application requirements. The AF60W supports adjustable voltage and frequency configurations for different electrical systems.
Q8：What equipment needs a 60Hz to 50Hz converter?
Common applications include imported industrial machines, motors, pumps, laboratory equipment, testing systems and marine electrical equipment that require a different frequency from the local power grid.
Q9:What is the difference between a transformer and a frequency converter?
A transformer can change voltage but cannot change frequency.
A frequency converter changes the electrical frequency by converting AC power into a controlled AC output.
Q10:Can AF60W convert 50Hz to 60Hz?
Yes. The AF60W series supports bidirectional frequency conversion according to system configuration requirements.
