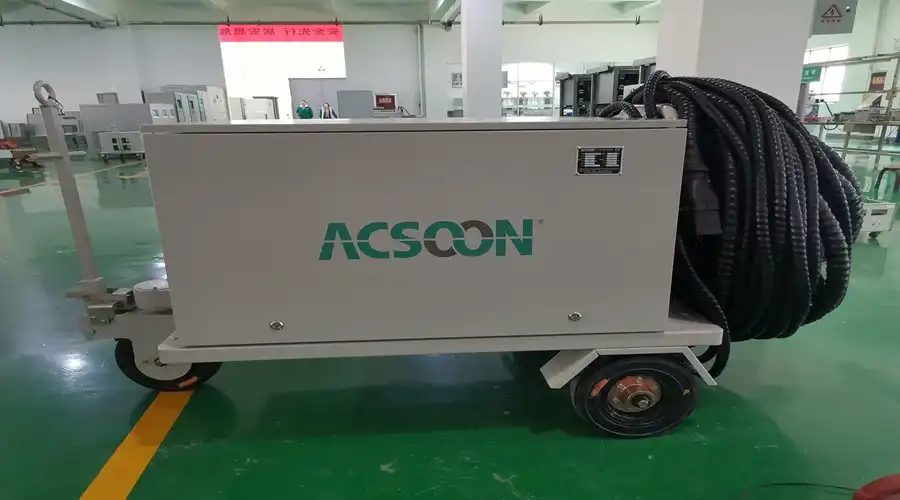

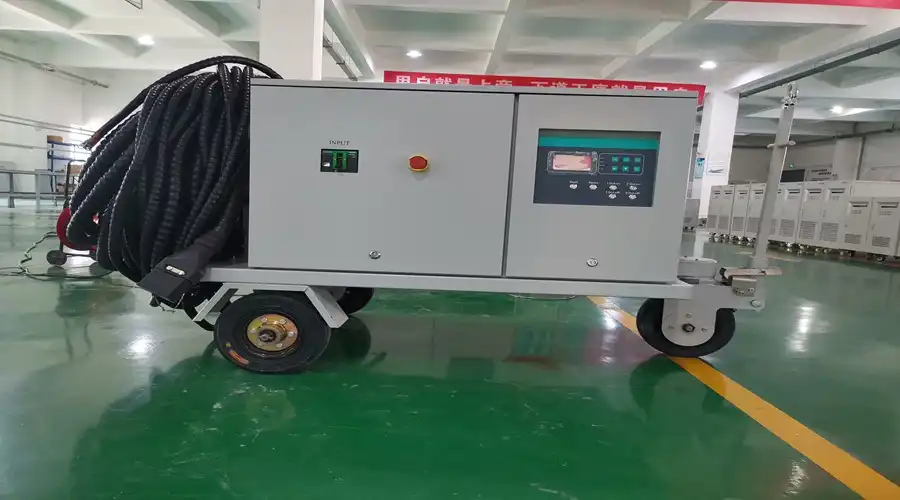

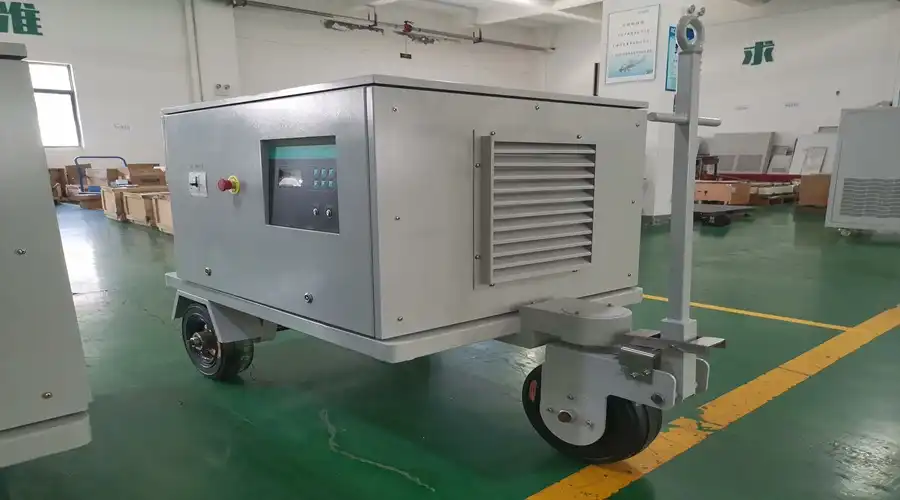

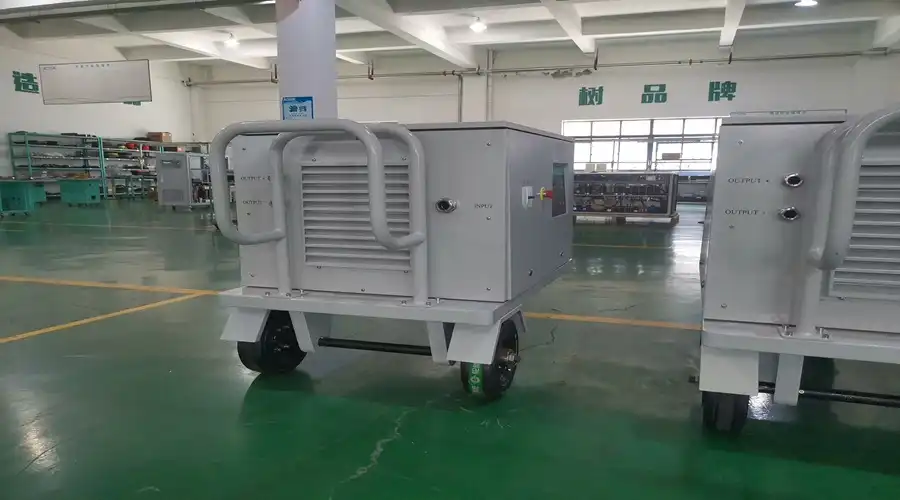

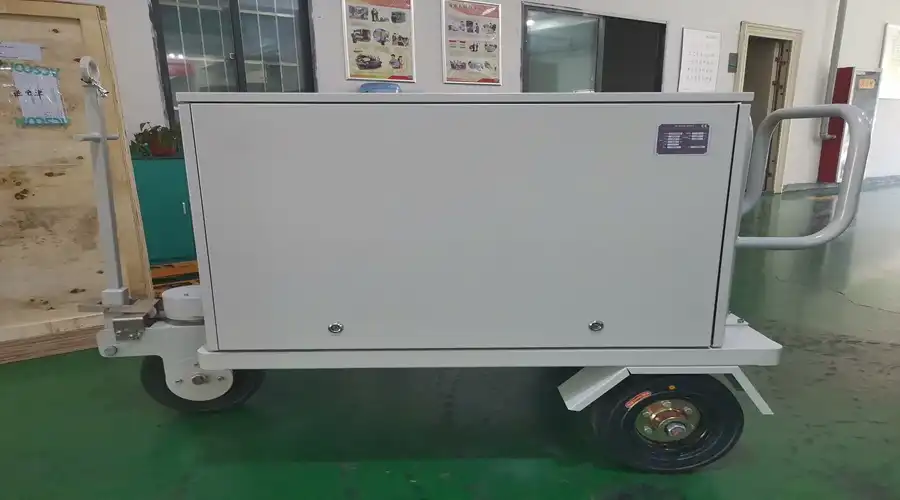

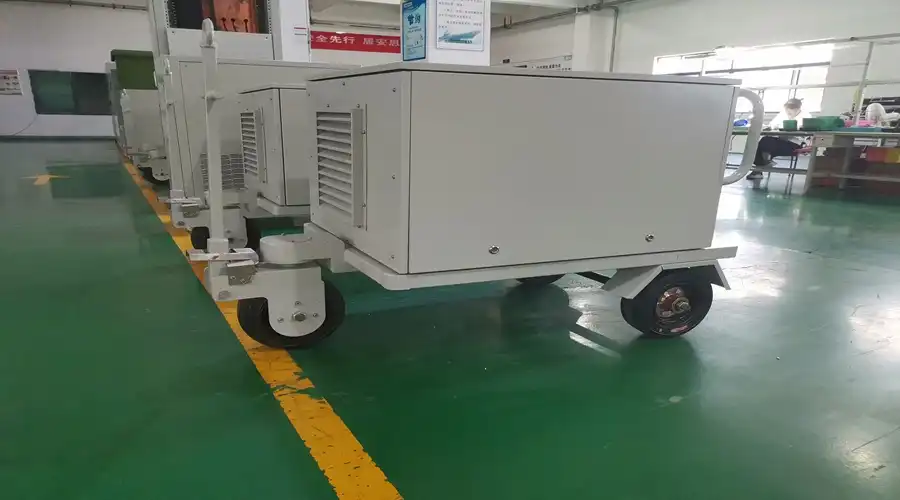

Avionics 400HZ Converter
2. Power Rating: 200kVA
3. Input Voltage & Frequency: 3 Phase 380V, 50HZ
4. Output Voltage & Frequency: 3 Phase 115V/200V, 400HZ
5. Type: Solid state GPU,
6. Ingress Protection Grade: IP54
7. Applications:Aerospace component testing
8. Brand: ACSOON (support OEM)
9.Features: Precision 400HZ output with ultra-low distortion, certified for aviation standards.
- Product Description
Avionics 400HZ Converter: Powering Aircraft Systems with Precision
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of high-quality avionics 400HZ converters. With over 15 years of experience in the power industry, we offer cutting-edge solutions for aerospace and defense applications. Our products are designed to meet the stringent requirements of modern aircraft, ensuring reliable and stable power supply for critical onboard systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Three-Phase Output: 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input | Voltage: 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440Vac (L-L), ±20% Configuration: 3-Phase Delta or 3-Phase 4-Wire Wye Frequency: 40Hz – 70Hz Custom voltage options available |
| Output | Voltage: Rated 200Vac / 208Vac, Adjustable Range: 0–260Vac or 0–520Vac (L-L) Configuration: 3-Phase Delta or 3-Phase 4-Wire Wye Frequency: Rated 400Hz, Adjustable 300Hz – 500Hz |
| Circuit Breakers | Equipped with MCCB circuit breaker |
| AC Output Terminals | One standard output terminal strip Optional: Dual AC outputs (customizable) Includes aircraft plug (for GPU with trolley) |
| DC Output (Optional) | Available on combined GPU models Provides 28V DC power output |
| Frequency Regulation/Stability | ≤ 0.1% |
| Voltage Regulation/Stability | ±1% |
| Output Voltage THD (VTHD) | < 2% |
| Power Factor | ≥ 0.8 (Standard) ≥ 0.9 (with optional 12-pulse configuration) |
| Efficiency | ≥ 85% |
| Display Interface | LCD display showing voltage, current, frequency Includes ON/OFF buttons |
| Noise Level | < 65 dB (measured at 1 meter) |
| Protection Features | Input phase loss, input over/under voltage Output phase overcurrent (A/B/C phases) Short circuit protection, Overheat protection |
| Communication Protocol | Modbus RS485 |
| Crest Factor | 1.414 ± 0.1 |
| Inrush Current | No soft start |
| Overload Capacity | 125% for 10 minutes 150% for 60 seconds 200% for 30 seconds 400% for 1 second |
| Mean Time Between Failure (MTBF) | ≥ 30,000 hours |
Application Areas
Our products find extensive use in:
Commercial Airlines: Powering ground support equipment and aircraft systems during maintenance
Military Aviation: Supporting mission-critical systems in fighter jets and transport aircraft
Aerospace Manufacturing: Facilitating aircraft assembly and testing processes
MRO Facilities: Enabling comprehensive maintenance and repair operations
Progressio technologiae telephonicae mobiles per plures aetates ab initio analogi temporis, ad signum digitale aeram, et nunc ad aeram hodiernam invalescit, technologia telephonica mobile pergit ad directionem intelligentiae, miniaturizationis et multi- officium.
Quality Control
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, quality is our top priority. We implement rigorous quality control measures throughout the manufacturing process:
Stringent component selection and testing
Multiple inspection points during assembly
Comprehensive final product testing
Regular calibration of testing equipment
Continuous improvement based on customer feedback
Why Choose ACSOON Avionics 400HZ Converters?
R&D Results
Our commitment to innovation has led to several advancements in avionics 400HZ converter technology:
Improved efficiency, reaching over 85%
Reduced harmonic distortion (VTHD <2%)
Enhanced overload capacity (up to 400% for 1 second)
Integration of advanced communication protocols (Modbus RS485)
01
Qualification Certification
Our products meet or exceed industry standards:
ISO 9001:2015 certified quality management system
CE marking for European market compliance
RoHS compliance for environmental safety
02
After-Sales Service
Our commitment doesn't end with the sale. We provide comprehensive after-sales support:
24/7 technical assistance
Regular maintenance guidance
Firmware updates
Spare parts availability
On-site support (where applicable)
03
Packaging and Transportation
We ensure the safe delivery of our products through:
Robust, custom-designed packaging
Shock-absorbing materials to prevent transit damage
Clear labeling and handling instructions
Partnerships with reliable logistics providers
04
Exhibitions
We regularly showcase our products at major industry events:
- Paris Air Show
- Farnborough International Airshow
- Singapore Airshow
- AUSA Annual Meeting & Exposition
FAQ
Q1: What is the warranty period for your products?
A1: We offer a standard 2-year warranty on all our converters, with options for extended coverage.
Q2: Can your converters be integrated with existing aircraft power systems?
A2: Yes, our converters are designed for seamless integration and come with various interface options.
Q3: How quickly can you deliver custom product solutions?
A3: Depending on specifications, we typically deliver custom solutions within 4-8 weeks.
Q4: Do you provide training for operating and maintaining the converters?
A4: Yes, we offer comprehensive training programs for both operation and maintenance.
Q5: Are your products suitable for harsh environmental conditions?
A5: Absolutely. Our converters are built to withstand extreme temperatures, humidity, and vibration.
Contact Us
For inquiries about our avionics 400HZ converters or to discuss your specific requirements, please email us at acpower@acsoonpower.com.
