Compact High-Frequency GPU
2. Technology: High-frequency solid-state conversion
3.Input: 3-phase 400VAC ±15%, 50/60Hz auto-sensing
4.Footprint: Compact design for space-constrained areas
5. Key Applications: Regional airports, business aviation, confined hangars
6.Key Features: Space-saving design; high power density; quick deployment; low noise
7. Ingress Protection Grade: IP21/54
8.Brand: ACSOON (compact configurations available).
- Product Description

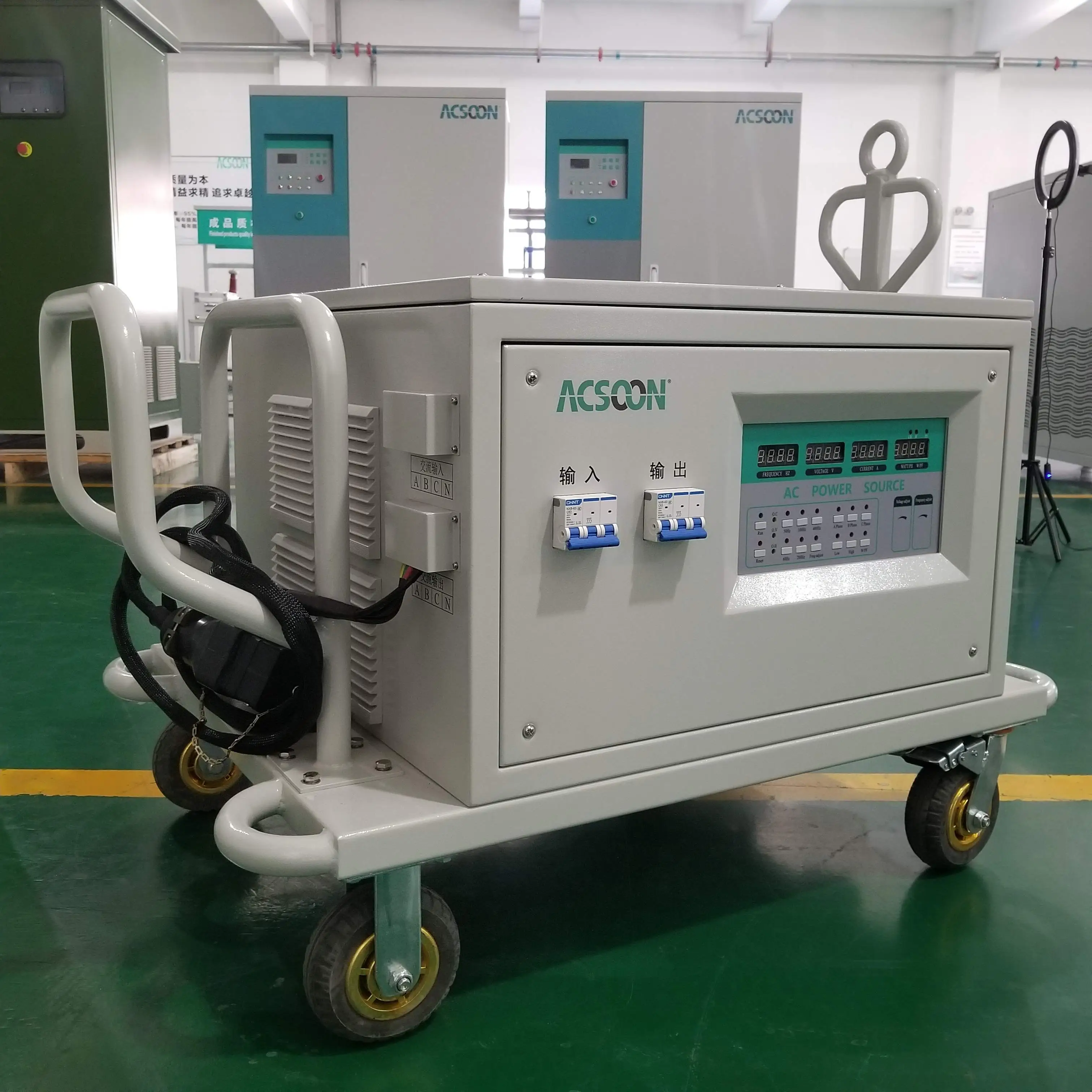

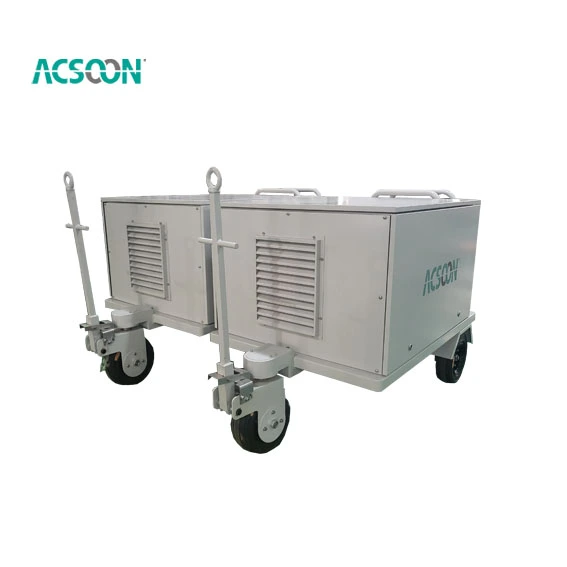

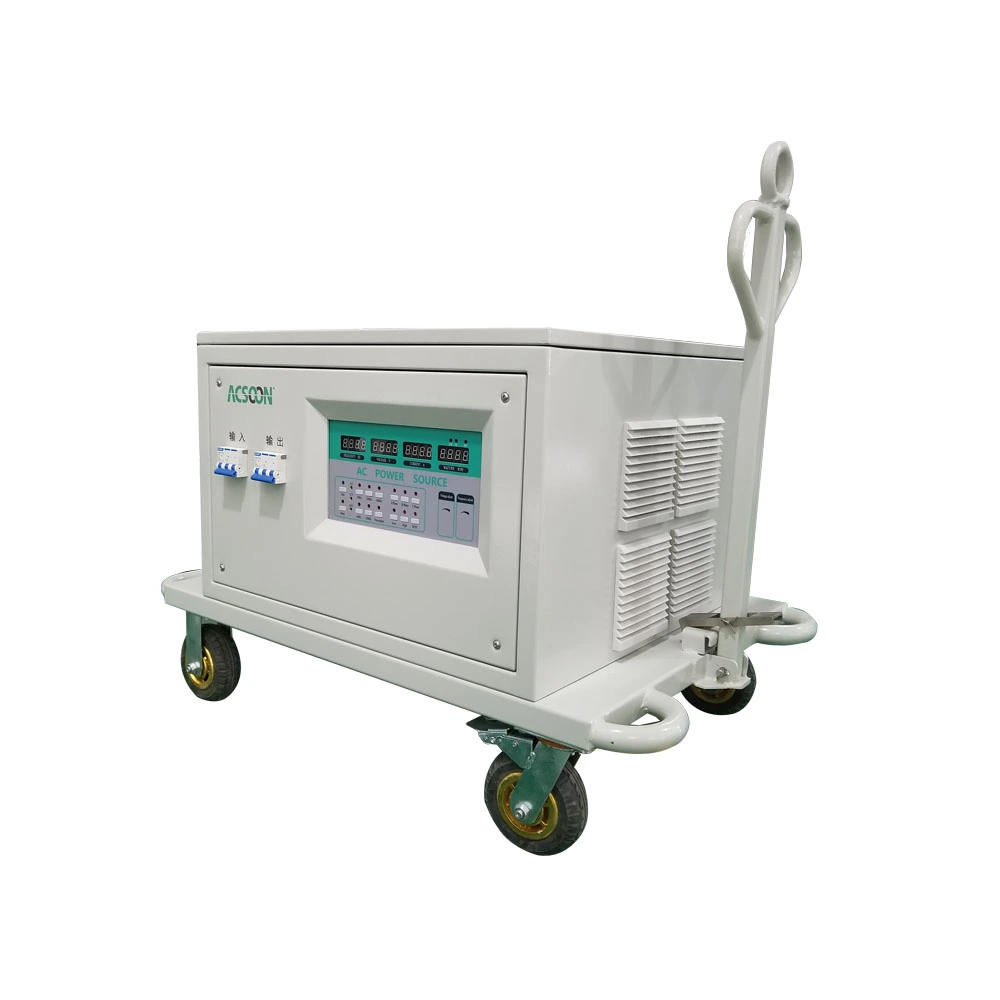

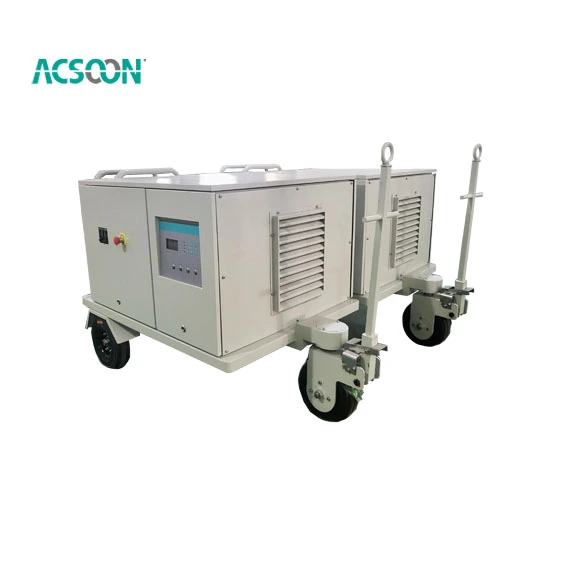

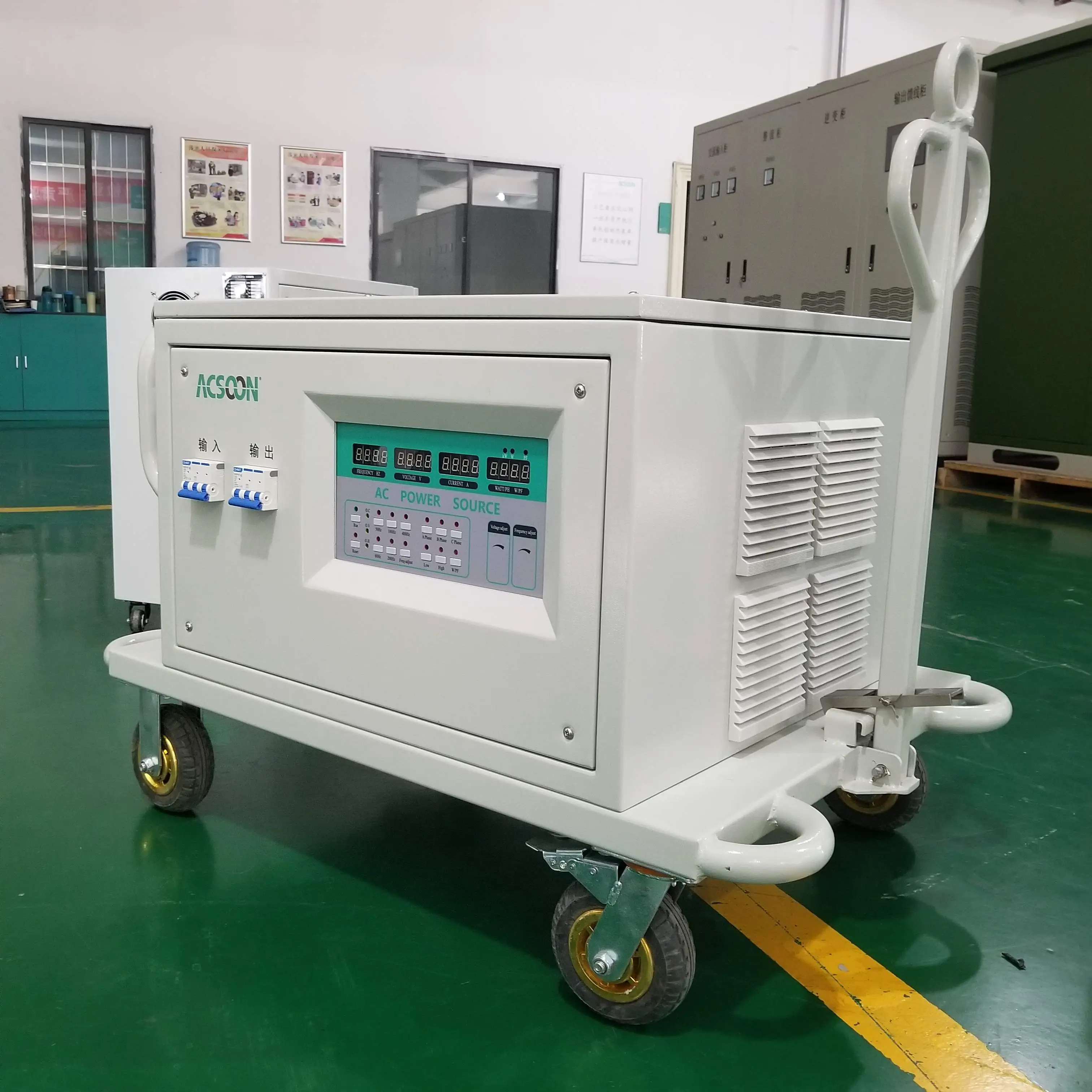

Compact High-Frequency GPU | Space-Saving Aircraft Power
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures space-efficient compact high-frequency GPUs for operations where space optimization is critical. Our compact design delivers full 400Hz power performance while occupying minimal floor space, making it ideal for regional airports, business aviation facilities, and other space-constrained environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
ACSOON Compact High-Frequency GPU Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Compact High-Frequency GPUs?
ACSOON delivers maximum power in minimal space:
Space Efficient: Compact footprint saves valuable floor space
Full Performance: Complete 400Hz power capability
Easy Deployment: Quick installation in confined areas
Quiet Operation: Low noise for sensitive environments
Flexible Placement: Multiple installation options

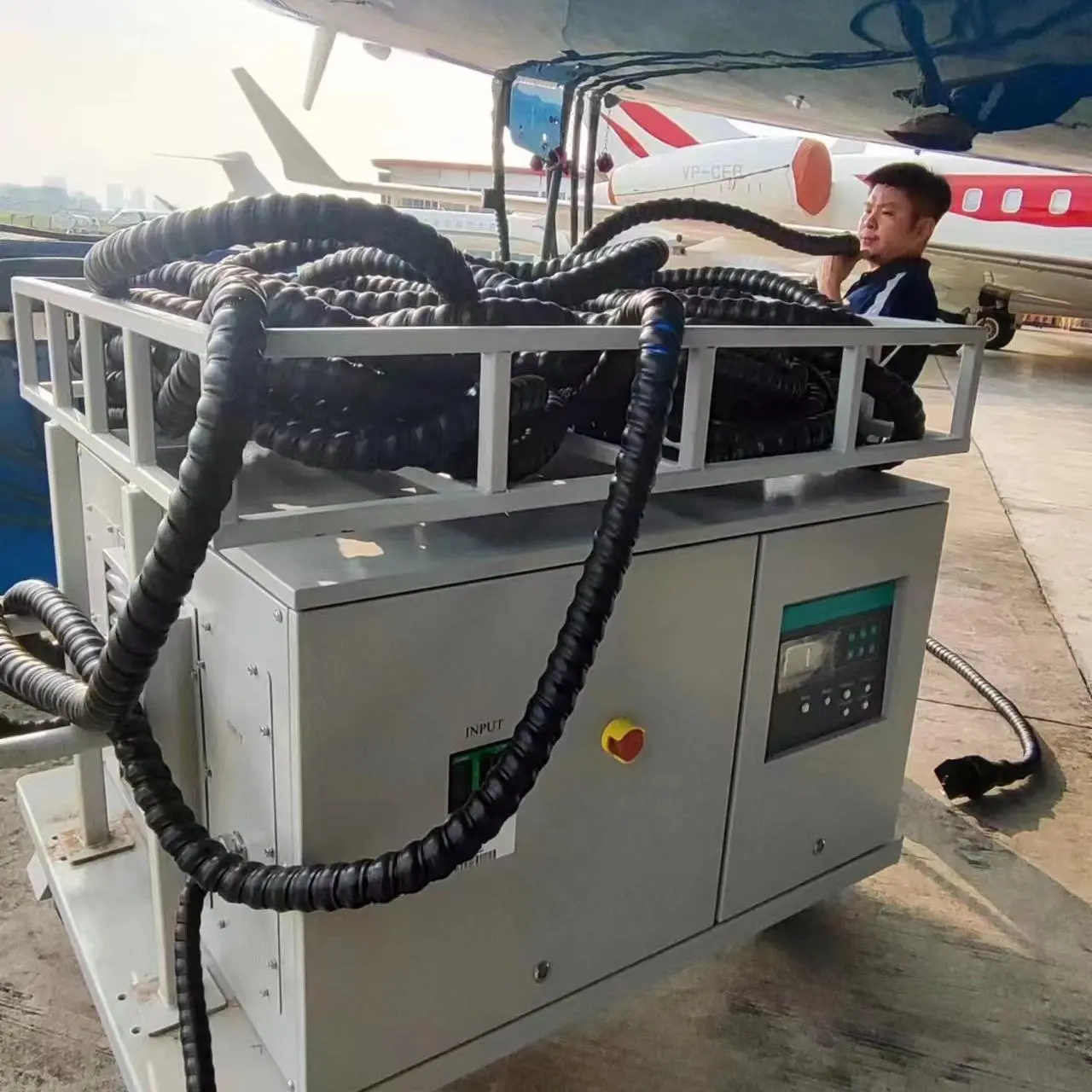

Application Areas
Our compact high-frequency GPUs are essential for:
Regional Airports: Limited space operations
Business Aviation: Corporate FBO facilities
Compact Hangars: Space-constrained maintenance
Military Installations: Confined area operations
Emergency Services: Mobile deployment needs
Urban Airports: Space-optimized operations
Service Centers: Limited space facilities
Temporary Setups: Portable power requirements
Details display
Quality Assurance
Each compact high-frequency GPU undergoes rigorous testing:
Space efficiency validation
Performance in confined spaces
Thermal management testing
Reliability verification
Safety certification
Technical Features
Our compact high-frequency GPU incorporates:
High-density power design
Compact cooling system
Space-optimized layout
Efficient thermal management
Easy access components
Packaging and Delivery
We ensure compact packaging:
Space-efficient packaging
Easy handling features
Worldwide shipping
Installation guidance
After-Sales Service
Compact support package includes:
Technical support
Maintenance services
Parts availability
Training programs
Repair services
Certifications
FAQ |
|---|
| Q1: What are the advantages of compact high-frequency GPUs? |
| A: Space savings, full performance, and flexible installation options. |
| Q2: How much space is saved? |
| A: Significantly reduced footprint compared to standard units. |
| Q3: What about performance in small spaces? |
| A: Full 400Hz power performance maintained in compact design. |
| Q4: How is cooling managed in compact design? |
| A: Optimized airflow and efficient thermal design. |
| Q5: Are installation options flexible? |
| A: Yes, multiple mounting and placement configurations available. |
Contact Information
For technical specifications or compact solutions: acpower@acsoonpower.com ,or submit your requirements using the form at the bottom of our website.
