Compact Mobile Ground Power Unit
2. Technology: High-frequency switching with active PFC
3. Input: 3-phase 400VAC ±15%, 50/60Hz auto-sensing
4.Mobility: Integrated trailer with tow hitch, compact design
5. Key Applications: Regional aircraft, business jets, military ground support
6.Key Features: Compact mobile design; quick-connect aircraft interfaces; low noise operation; IP54 protection
7. Brand: ACSOON (custom configurations available)
- Product Description

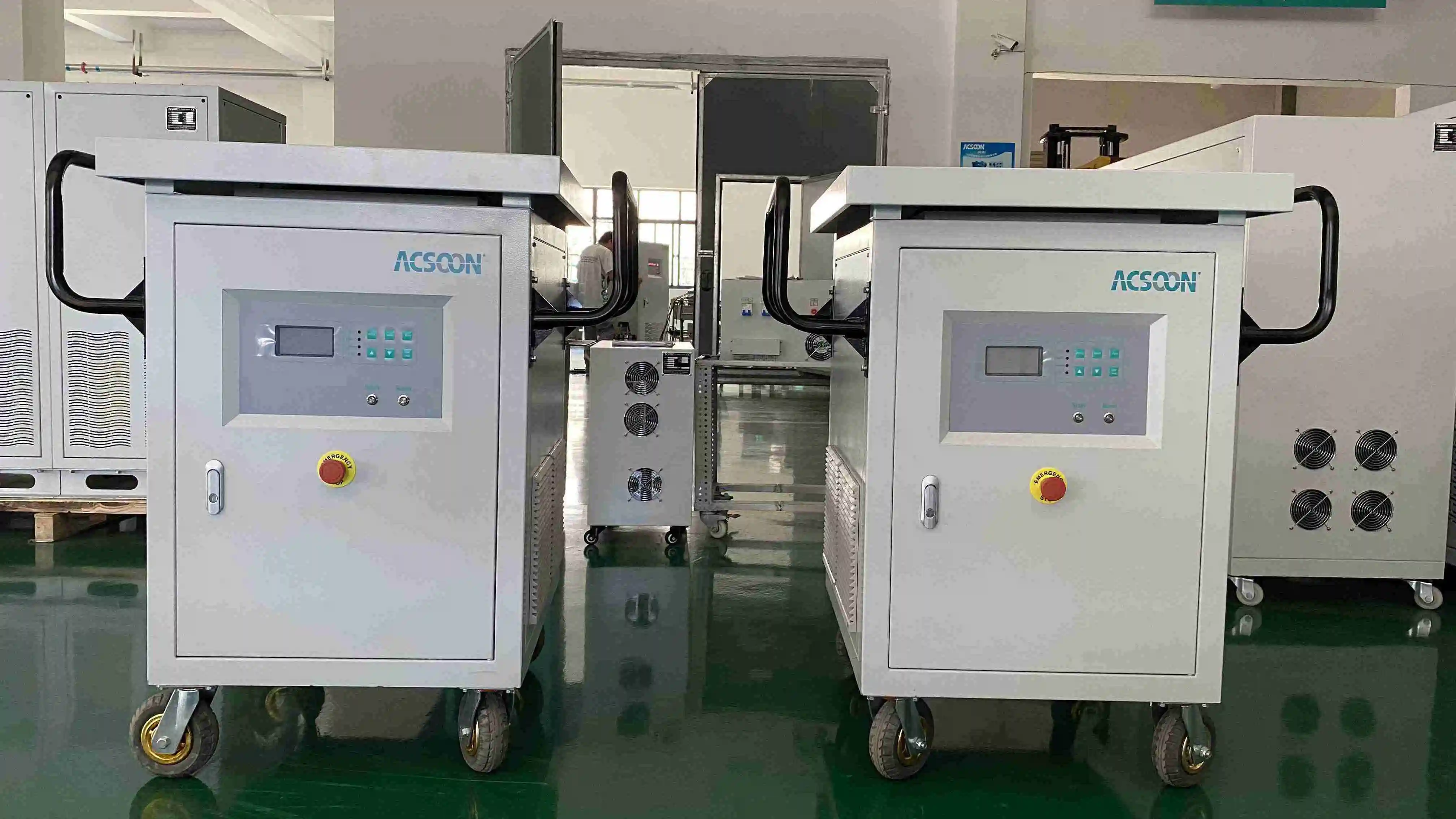

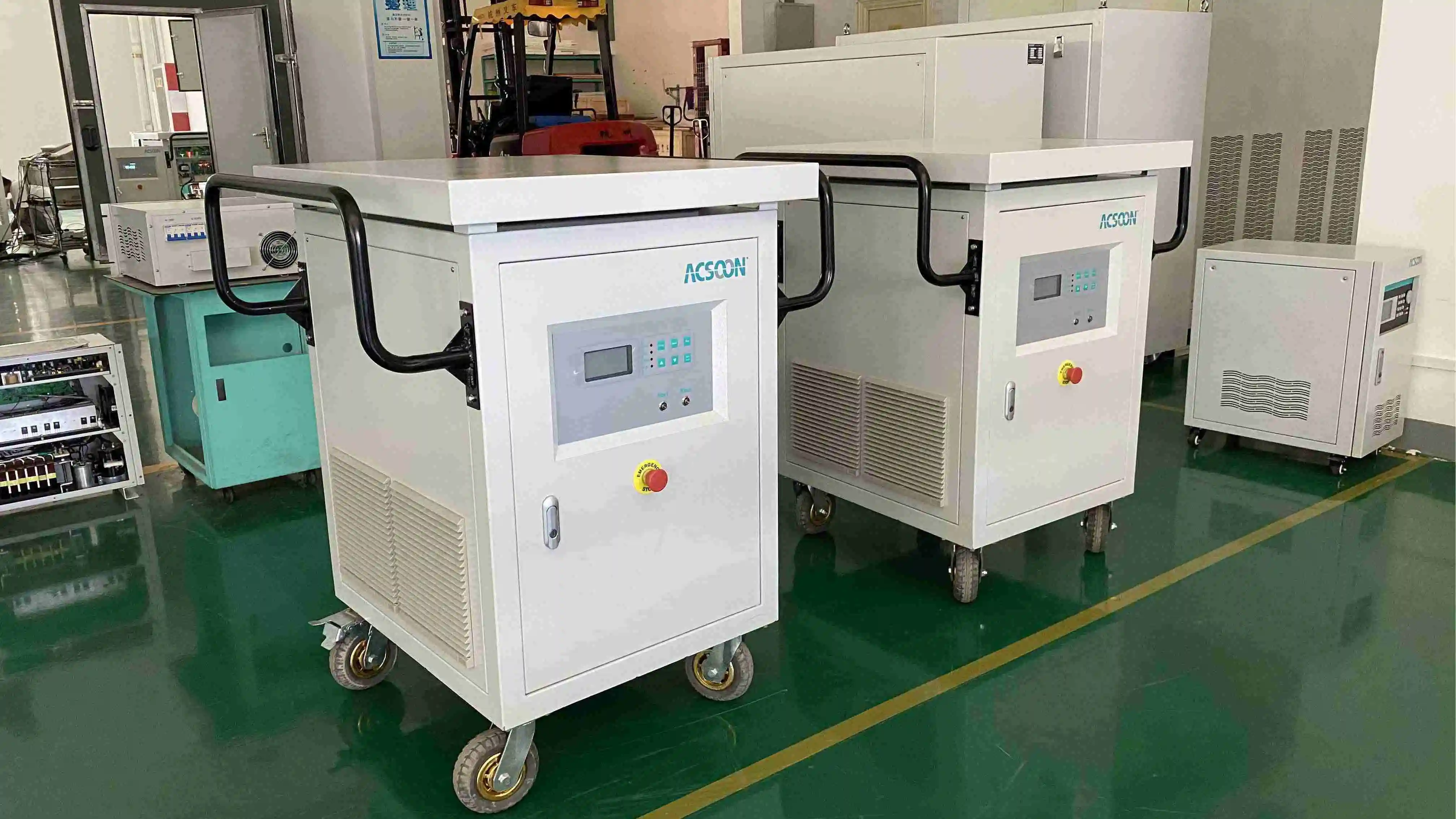

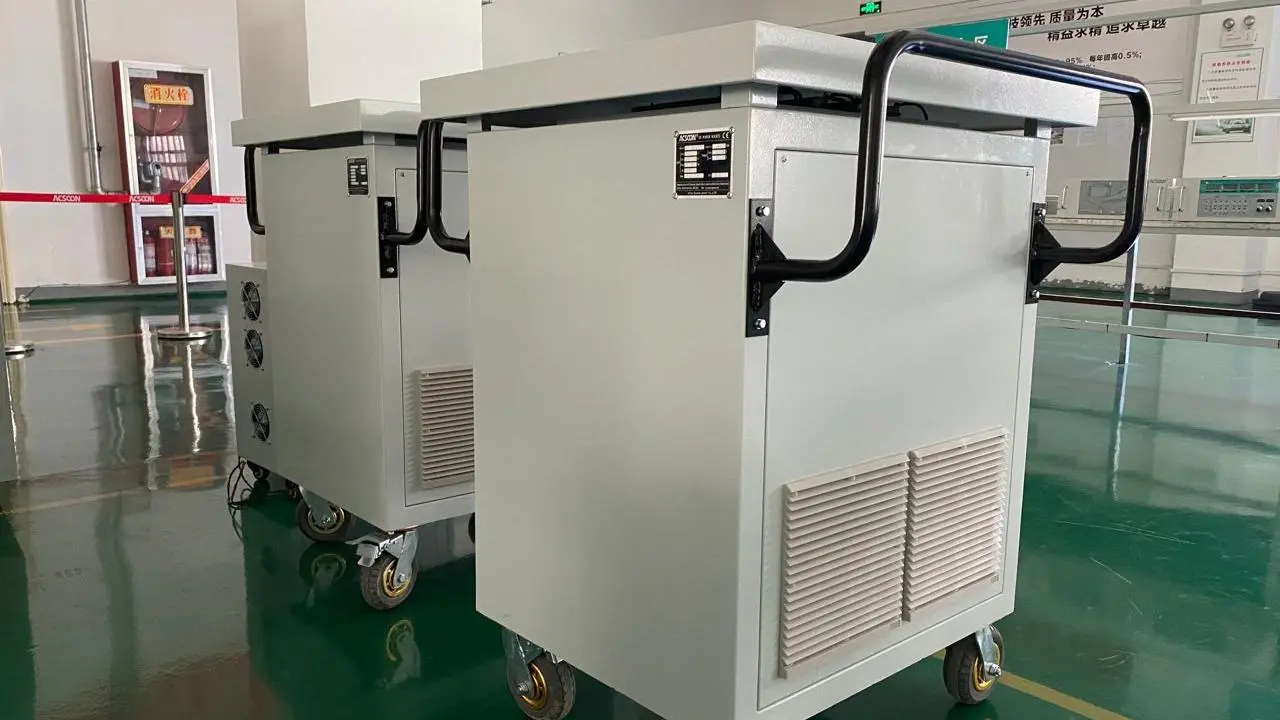

Compact Mobile Ground Power Unit | Portable Aircraft DC Power
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures versatile compact mobile ground power units for flexible aircraft ground support operations. Designed for mobility and reliability, our units provide stable 28VDC power for regional and business aircraft in various operational environments. These compact units combine portability with professional-grade performance for demanding aviation applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Input | Three Phase: 200-440VAC (L-L) ±20% |
| Frequency | 40 - 70HZ |
| Output Voltage | DC 28.5V (adjustable 24V-32V) |
| Output Current | 50A to 1000A |
| Voltage Regulation | ±1% |
| Power Factor | ≥0.9 |
| Efficiency | ≥85% |
| Ripple | <150mV, max 250mV (rms) |
| Display | VFD / LCD (Voltage, Current, Power) |
| Overload Capacity | 125% for 10 min, 150% for 60s, 200% for 10s |
| Protections | Overvoltage, Undervoltage, Current Limiting, Overheating, Short Circuit |
| Operating Temperature | -10°C to 50°C |
| Humidity | 10% - 95% |
| Altitude | <1800 meters |
| MTBF | 30,000 hours |
| MTTR | <30 minutes |
| Standards Compliance | EN61000-6-2:2005, GJB152A-97, MIL-STD-704F |

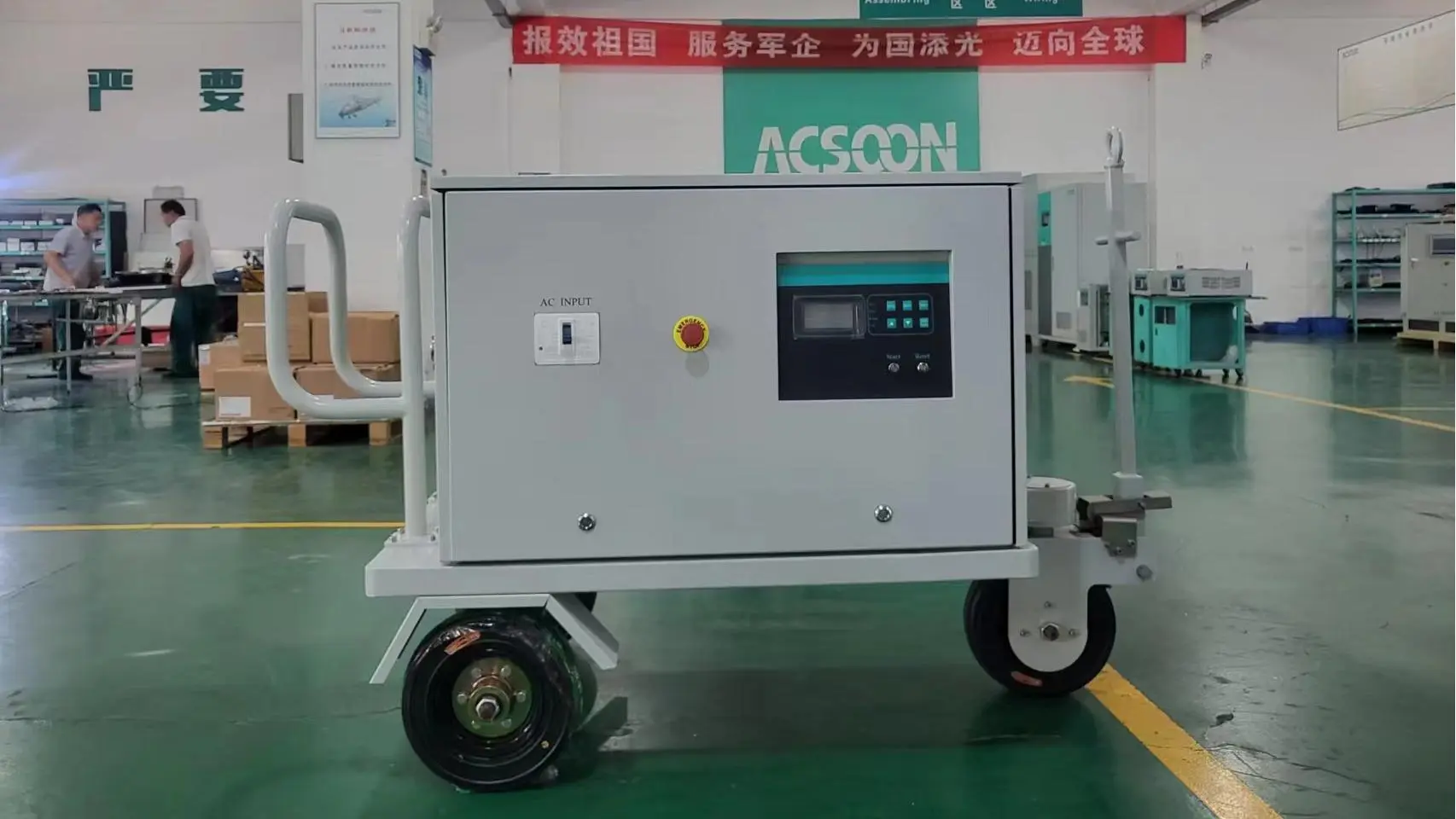

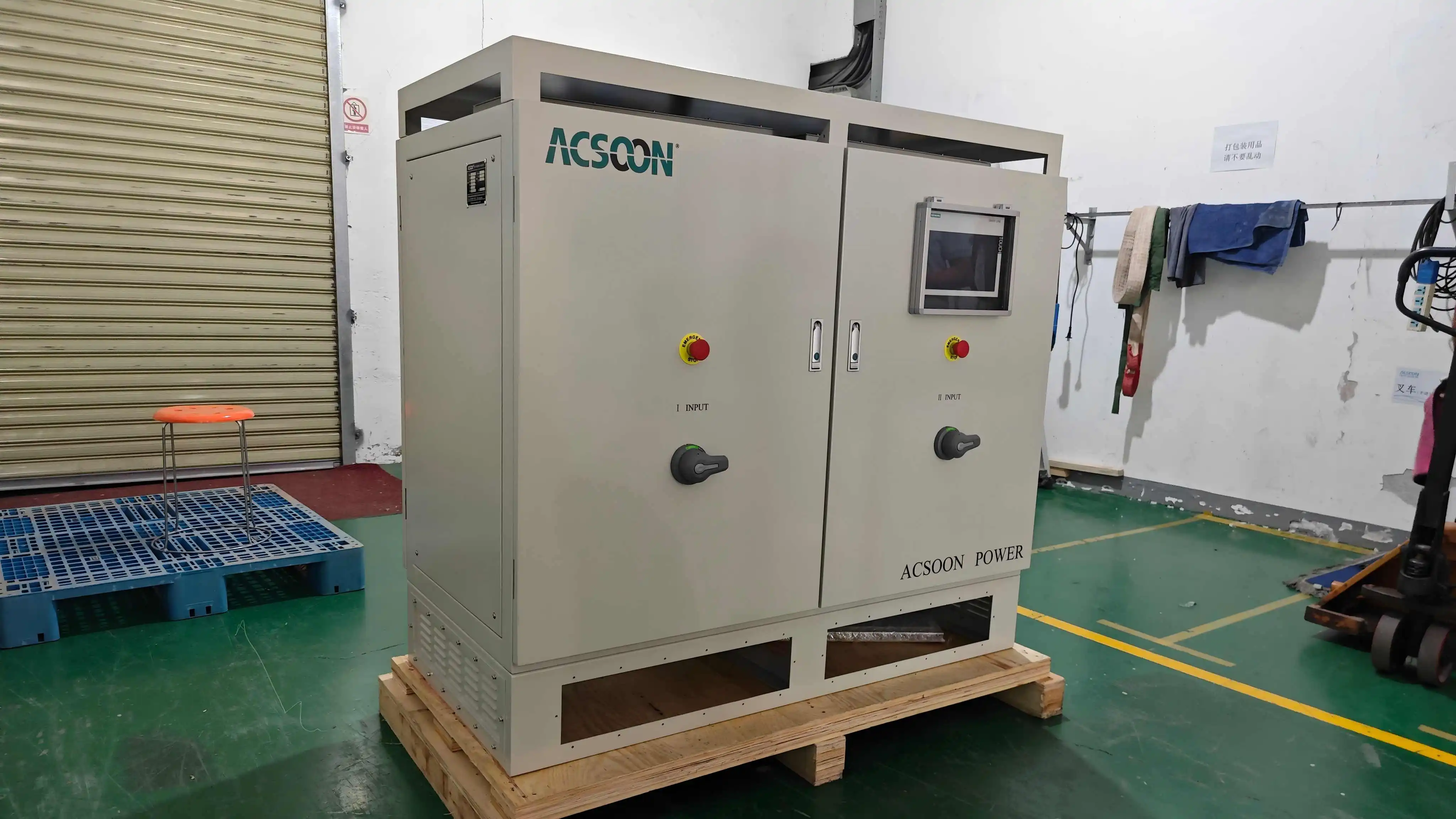

ACSOON Compact Mobile Ground Power Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock telephonica m
Why Choose ACSOON Compact Mobile Ground Power Units?
ACSOON delivers exceptional mobility and reliability in ground power technology:
Compact Design: Space-efficient configuration for easy maneuverability
Mobile Operation: Integrated trailer system for flexible deployment
High Performance: 800A output capacity for various aircraft types
User-Friendly: Intuitive controls and quick-connect interfaces
Durable Construction: IP54 protection for outdoor operation

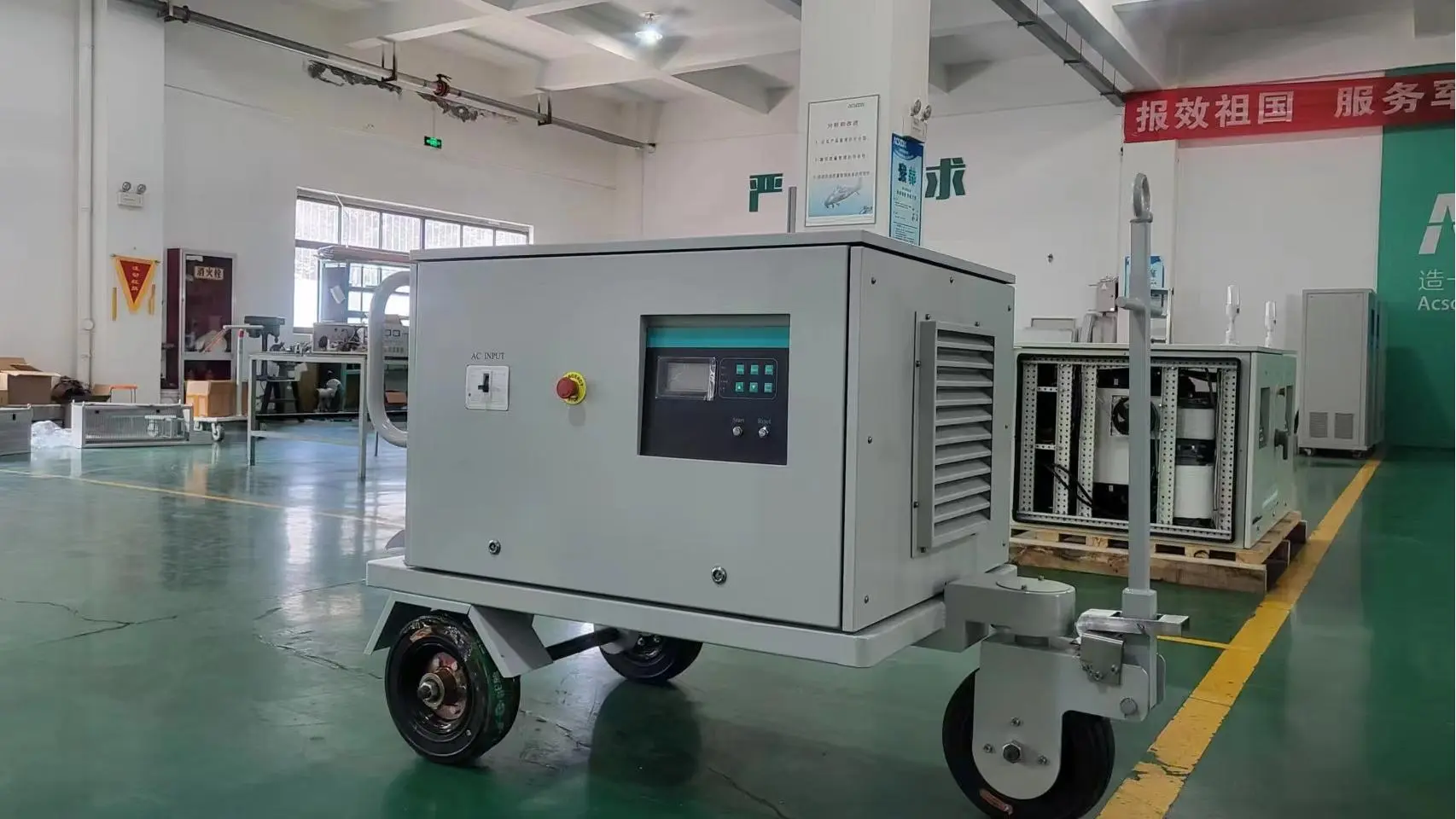

Application Areas
Our compact mobile ground power units are ideal for:
Regional Airlines: Aircraft turnaround operations
Business Aviation: Corporate jet servicing
Military Operations: Field deployment and support
FBO Services: Fixed base operator operations
Emergency Support: Rapid deployment scenarios
Remote Locations: Operations without fixed infrastructure
Aircraft Maintenance: Line maintenance and servicing
Special Events: Temporary aviation support
Details display
Quality Assurance
Each compact mobile ground power unit undergoes rigorous testing:
Full-load performance testing
Mobility and stability testing
Environmental protection validation
Safety system verification
Operational reliability testing
Technical Features
Our compact mobile ground power unit incorporates:
Advanced switching technology
Active power factor correction
Military-grade connectors
Comprehensive protection systems
Temperature-controlled cooling
Packaging and Delivery
We ensure secure delivery worldwide:
Customized protective packaging
Comprehensive pre-delivery testing
Global shipping coordination
On-site commissioning support
After-Sales Service
Complete support package includes:
24/7 technical support
Preventive maintenance programs
Emergency repair services
Operator training programs
Global spare parts network
Certifications
FAQ |
|---|
| Q1: What aircraft types can the compact mobile ground power unit support? |
| A: Our units are ideal for regional jets, business aircraft, and military platforms requiring 28VDC power. |
| Q2: How mobile is the unit for field operations? |
| A: The integrated trailer design allows easy towing and flexible deployment in various environments. |
| Q3: What maintenance is required? |
| A: Regular maintenance includes electrical checks, connector inspection, and periodic performance verification. |
| Q4: Can the unit operate in extreme weather conditions? |
| A: Yes, with IP54 protection and designed for outdoor operation in various weather conditions. |
| Q5: Do you provide custom connector configurations? |
| A: Yes, we offer various aircraft connector options to meet specific requirements. |
