General Aviation Ground Power Unit
1.Power Configuration: 28VDC (up to 400A) & Optional 14VDC Output
2.Technology: Solid-State Rectifier / Converter with High-Frequency Switching
3.Input: 1-Phase 220V/240V or 3-Phase 400V, 50/60Hz
4.Output: Regulated 28.5VDC Primary, with Selectable 14VDC for Light Aircraft
5.Key Applications: Flight Training Schools, Private Aircraft Hangars, Light Aircraft MRO, FBOs (Fixed-Base Operators)
6.Core Features: Compact & Mobile Design, Simple Push-Button Operation, Cost-Effective, High Reliability
7.Brand: ACSOON (Options for Cart/Trailer Mount or Bench-Top).
2.Technology: Solid-State Rectifier / Converter with High-Frequency Switching
3.Input: 1-Phase 220V/240V or 3-Phase 400V, 50/60Hz
4.Output: Regulated 28.5VDC Primary, with Selectable 14VDC for Light Aircraft
5.Key Applications: Flight Training Schools, Private Aircraft Hangars, Light Aircraft MRO, FBOs (Fixed-Base Operators)
6.Core Features: Compact & Mobile Design, Simple Push-Button Operation, Cost-Effective, High Reliability
7.Brand: ACSOON (Options for Cart/Trailer Mount or Bench-Top).
- Product Description

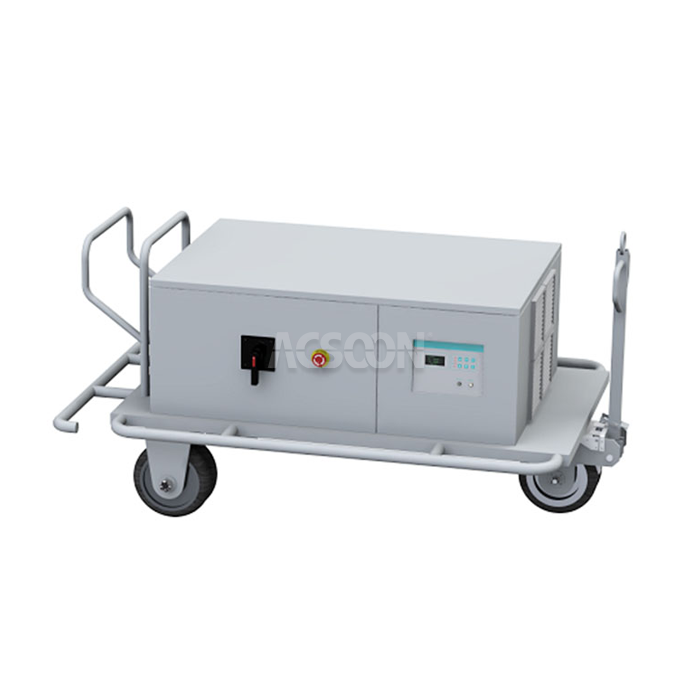

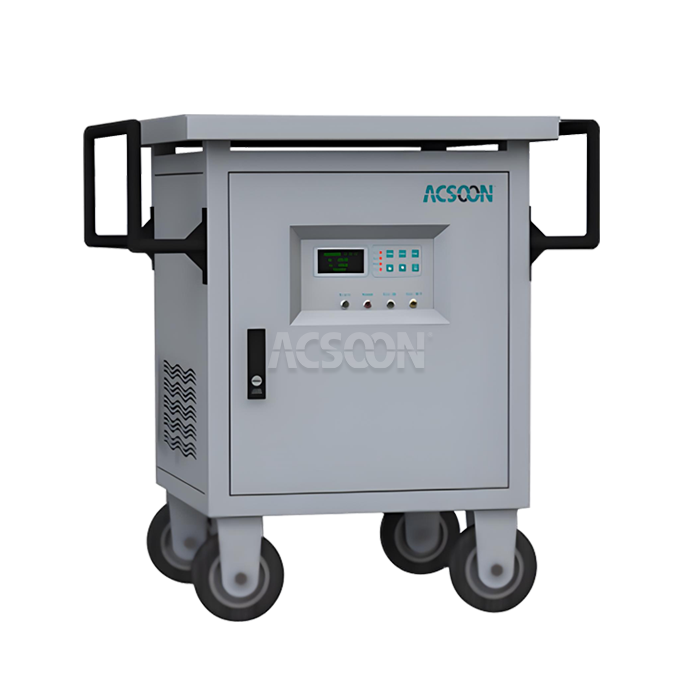

General Aviation Ground Power Unit | DC Power Supply for Light Aircraft
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the General Aviation Ground Power Unit, a practical and reliable DC power solution designed for the world of light and training aircraft. This compact unit provides the stable 28VDC (and optional 14VDC) power required for engine starts, system checks, and maintenance of piston-engine aircraft, helicopters, and trainers. Engineered for simplicity and durability, it is the ideal support tool for flight schools, private owners, and small aviation service centers.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU Series |
| Input | 1-Phase 220V/240V or 3-Phase 400V, 50/60Hz |
| DC Output | Voltage: 28.5VDC (20-32V adjustable) Current: 200A, 300A, 400A Continuous Optional: 14VDC (Selectable) |
| Efficiency | ≥90% |
| Cooling | Temperature-Contforced Fan |
| Display | Analog or Digital Meter (V, A) |
| Protections | Over Voltage, Over Current, Over Temperature |
| Enclosure | Steel Cabinet on Wheeled Cart or Bench-Top |
| Operating Temp. | -10°C to 40°C |
General Aviation Ground Power Unit Main Features
- Dual Voltage Output (Optional): Primary 28.5VDC output with a front-panel selector switch for 14VDC to support older or specific light aircraft models.
- Solid-State Reliability: Utilizes modern switching technology for high efficiency, low weight, and minimal maintenance compared to old-fashioned transformer units.
- Essential Protections: Built-in over-voltage, over-current, and reverse polarity protection (via external contactor) safeguard both the GPU and the aircraft.
- User-Friendly Interface: Features a voltmeter/ammeter display, power on/off switch, output enable, and fault indicator lights for straightforward operation.
Why Choose ACSOON General Aviation Ground Power Unit?
- Dedicated to General Aviation: Tailored output (28VDC/14VDC) perfectly matches the electrical systems of most single and twin-engine piston aircraft.
- Compact & Highly Mobile: Lightweight design on a wheeled cart or as a bench-top unit allows easy movement around crowded hangars and ramps.
- Simple & Safe Operation: Features intuitive push-button controls, clear status indicators, and essential protections for worry-free use by students and technicians.
- Excellent Cost Efficiency: Provides reliable aircraft-grade power at an accessible price point for training academies and small operators.
General Aviation Ground Power Unit Application Areas
- Flight Training Academies: Daily starting and ground power for fleets of Cessna, Piper, Diamond, and other training aircraft.
- Private Aircraft Hangars: Reliable power for owner-operated aircraft during pre-flight and maintenance.
- Aviation Maintenance Shops (MRO): Essential tool for testing and servicing the electrical systems of light aircraft.
- FBOs (Fixed-Base Operators): Offering ground power services to visiting general aviation traffic.
Our Services
01
Quality Control
- Component-Level Testing: All switching transistors, diodes, and control boards are tested for function and rated performance.
- Full-Load Thermal Test: Each unit operates at its maximum rated DC current to verify thermal stability of heatsinks and components.
- Voltage Accuracy & Ripple Check: Output voltage setpoint accuracy and DC ripple are measured and adjusted to meet specifications.
- Functional Safety Verification: All protection circuits are tested by simulating fault conditions to ensure they engage correctly.
02
R&D Results
- Optimized for Light Aircraft Loads: Electrical design focuses on the typical starting and continuous load profiles of piston aircraft engines and avionics.
- Enhanced Cooling for Intermittent Duty: Developed a fan control algorithm that provides aggressive cooling during high-current start cycles and quiet operation during standby.
- Robust Connection System: Designed and sourced high-current, aviation-style output connectors and cables that are durable and easy for ground crews to handle.
- Compact Chassis Design: Achieved a small footprint through efficient component layout, making the unit easy to store and maneuver in space-limited hangars.
03
Packaging and Transportation

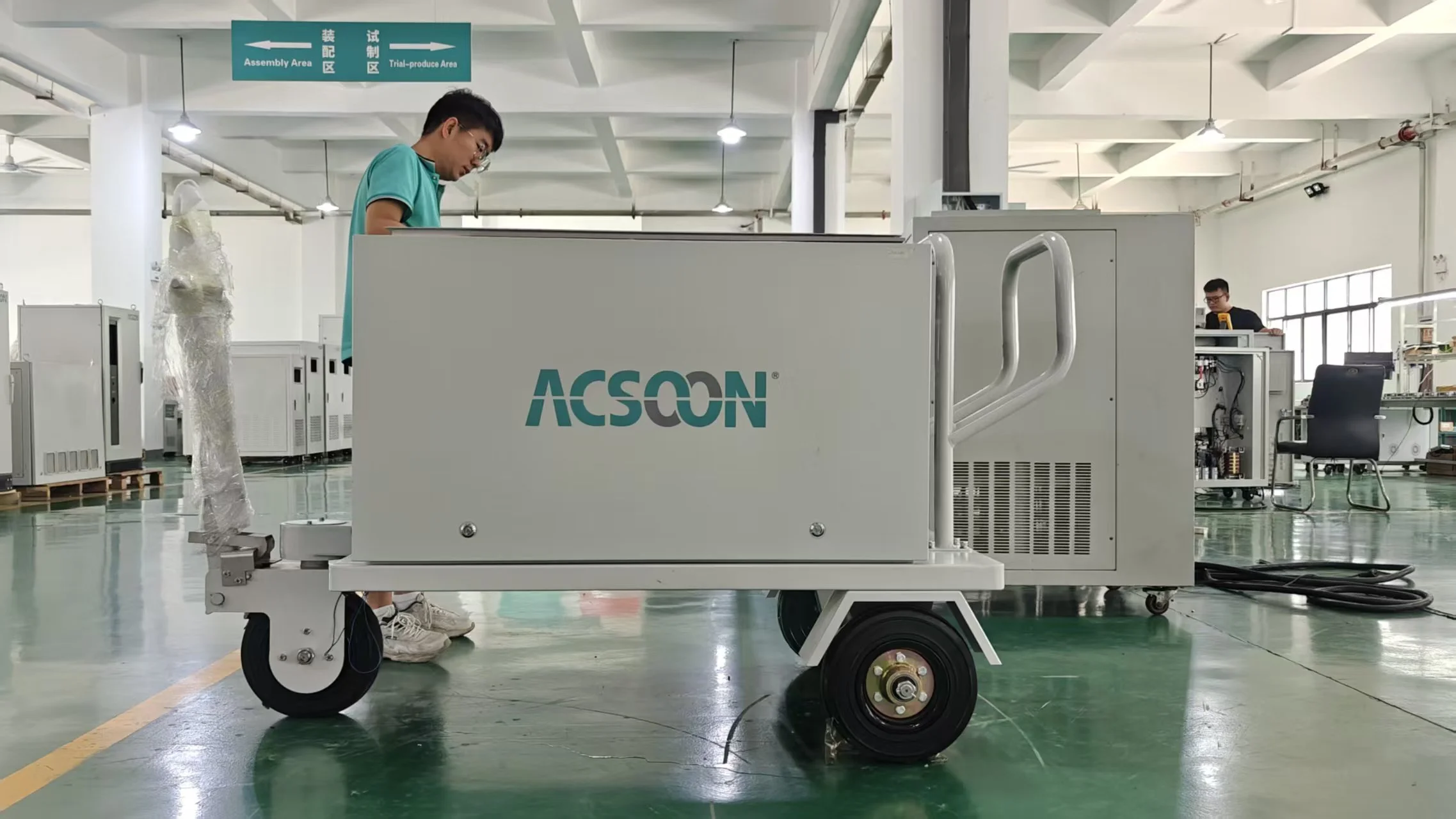

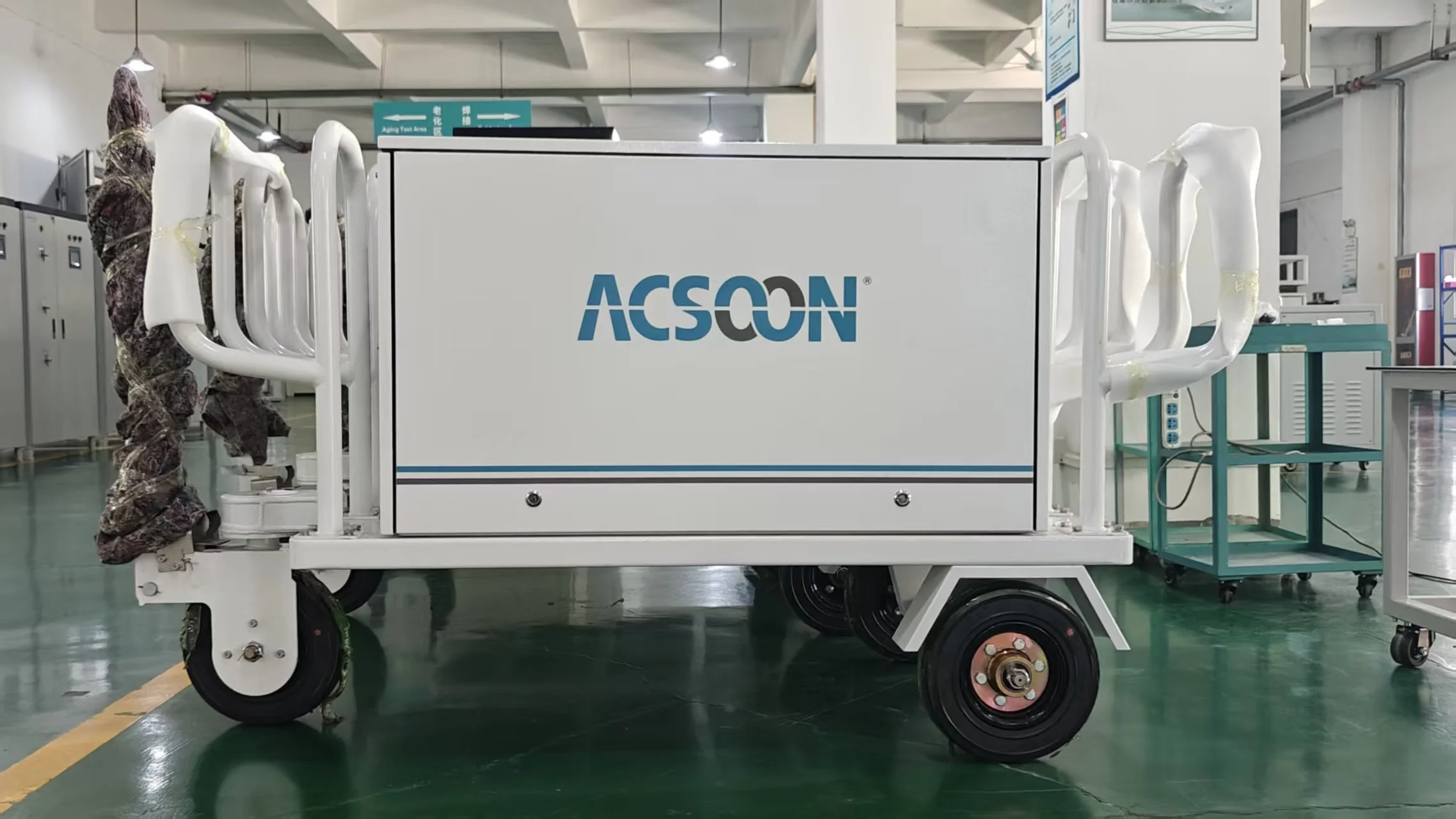

- Ready-to-Use Packaging: The wheeled cart unit is shipped fully assembled, wrapped in protective plastic, and secured to a pallet.
- Basic Protective Crating: For bench-top models or long-distance export, a simple but effective wooden crate with foam lining is used.
- Included Accessories: Standard shipping includes the operator's manual, test report, and necessary power input cables.
- Economical Global Shipping: Due to its relatively compact size and weight, it can be shipped cost-effectively via air or sea freight worldwide.
04
After‑Sales Service
- We offer an 18-month warranty, easy-to-access technical documentation, responsive customer support, and availability of common spare parts like fans and control modules.
Qualification Certification
CE Marked: Complies with relevant EU safety and EMC standards for industrial equipment;ISO 9001:2015: Manufactured under a certified quality management system.
Design Specification; Engineered to provide power characteristics suitable for general aviation aircraft electrical systems.
FAQ |
|---|
| Q1: What types of aircraft is this GPU designed for? |
| A: It is designed for piston-engine general aviation aircraft, including common trainers (Cessna 172, Piper Archer), single-engine and twin-engine private aircraft, and some helicopters that use 14V or 28V DC electrical systems. |
| Q2: Can it be used to jump-start an aircraft with a completely dead battery? |
| A: Yes, its high current output (e.g., 300A or 400A) is designed to provide the necessary power to crank an engine and can also charge a depleted battery. Always follow the aircraft manufacturer's ground power procedures. |
| Q3: What is the main advantage over using the aircraft's own battery for ground operations? |
| A: It preserves the aircraft battery's life by taking the load off it during extended pre-flight checks, avionics programming, or maintenance. It also ensures full starting power is available regardless of the battery's state of charge. |
| Q4: Is the 14VDC output standard? |
| A: The 14VDC output is an optional feature. Please specify your requirement when ordering. The standard unit provides 28VDC output, which is most common. |
| Q5: How do I connect it to the aircraft? |

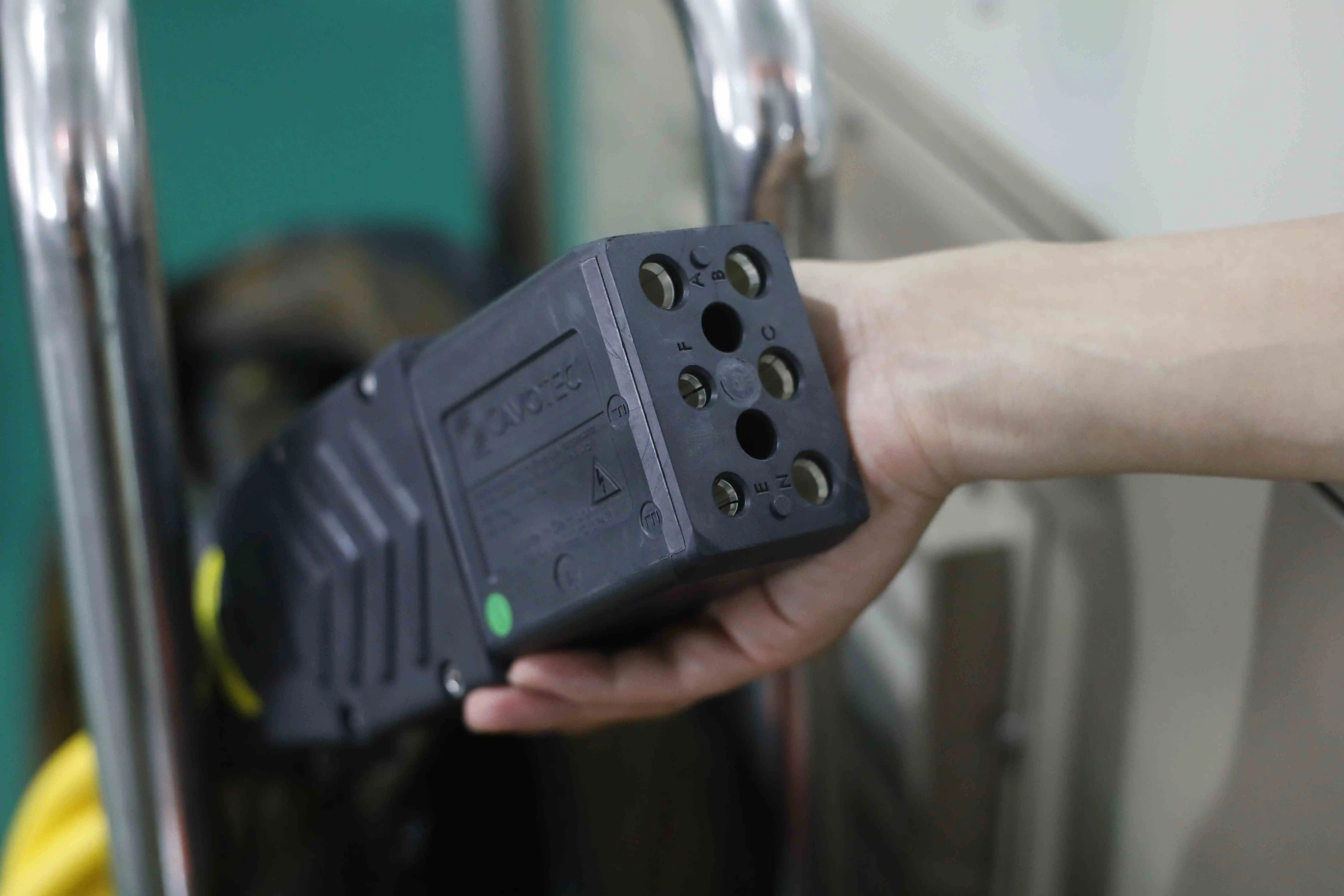

| A: It comes equipped with a heavy-duty output cable terminated in standard aviation plugs (e.g., NATO-type or Anderson plugs). You connect this to the aircraft's external power receptacle, following standard safety procedures. |
