Mobile Aircraft GPU Trailer
1.Power Configuration: 90kVA, 120kVA, or 180kVA 400Hz AC Output (Configurable)
2.Technology: Trailer-Mounted Solid-State Static Frequency Converter with 12-Pulse Rectifier
3.Input: 3-Phase, 208V-480V, 50/60Hz (via Trailer-mounted Cable Reel or Direct Connection)
4.Output: 3-Phase 115V/200V, 400Hz Aircraft Power
5.Key Applications: Remote Apron Operations, Military Deployments, Emergency Support, Aircraft Servicing at Remote Stands
6.Core Features: Integrated Trailer with Braking & Lighting, Fast Deployment, MIL-STD-704F Compliant, High Mobility
7.Brand: ACSOON (Custom Configurations Available).
2.Technology: Trailer-Mounted Solid-State Static Frequency Converter with 12-Pulse Rectifier
3.Input: 3-Phase, 208V-480V, 50/60Hz (via Trailer-mounted Cable Reel or Direct Connection)
4.Output: 3-Phase 115V/200V, 400Hz Aircraft Power
5.Key Applications: Remote Apron Operations, Military Deployments, Emergency Support, Aircraft Servicing at Remote Stands
6.Core Features: Integrated Trailer with Braking & Lighting, Fast Deployment, MIL-STD-704F Compliant, High Mobility
7.Brand: ACSOON (Custom Configurations Available).
- Product Description

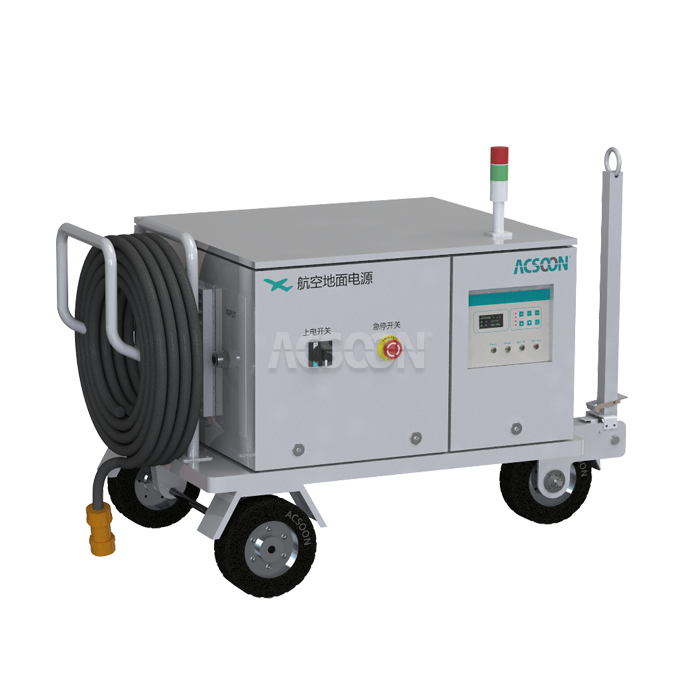

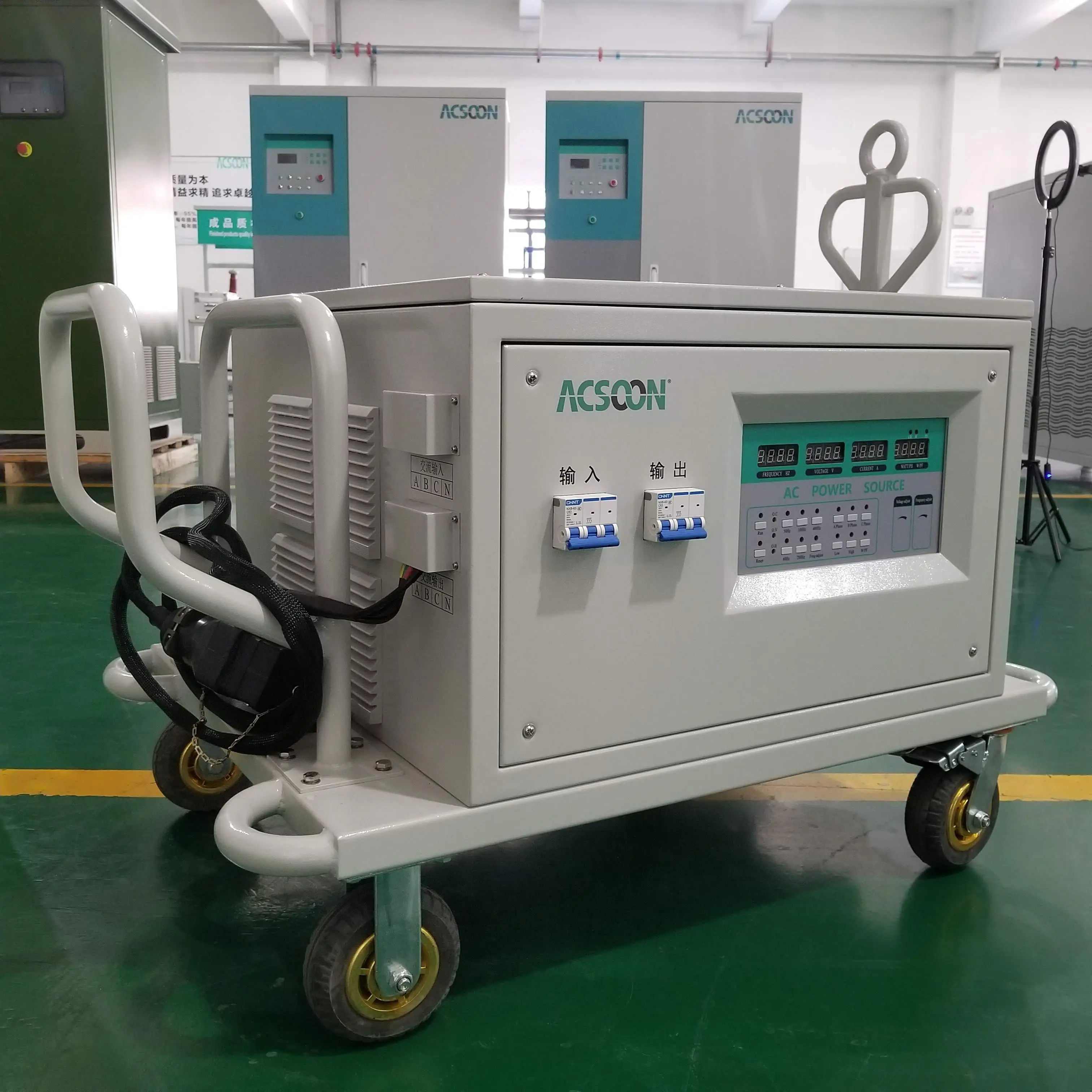

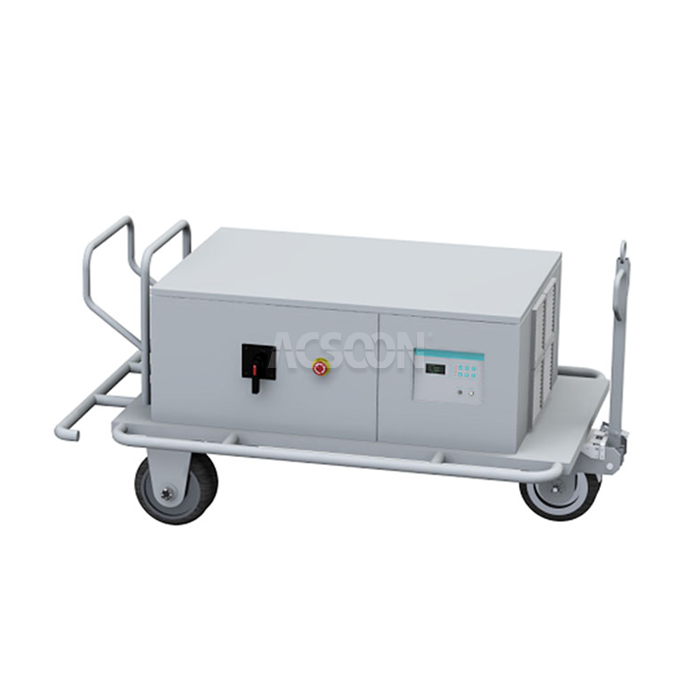

Mobile Aircraft GPU Trailer | Portable 400Hz Ground Power Unit
XI'AN JERRYSTAR INSTRUMENT CO., LTD designs the Mobile Aircraft GPU Trailer, a fully integrated, towable ground power solution that brings reliable 400Hz aircraft power anywhere it's needed on the airfield. Combining our robust solid-state GPU technology with a durable road-worthy trailer, this system ensures rapid deployment for remote gate operations, military expeditions, emergency scenarios, and flexible support where fixed infrastructure is unavailable.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400 Series (Trailer-Mounted) |
| Input | Voltage: 3-Phase 208V, 380V, 400V, 415V, 440V, 480V ±15% Frequency: 50Hz / 60Hz Connection: Trailer-mounted Industrial Plug & Cable Reel |
| Output | Voltage: 115V (L-N), 200V (L-L), 100-130V adjustable Frequency: 400Hz ±0.01% Configuration: 3-Phase, 4-Wire + PE Power Rating: 90kVA, 120kVA, 180kVA |
| Trailer Specs | Chassis: Heavy-duty steel, road-legal Brakes: Overrun/inertia braking system Lighting: Full LED road/tail/brake lights Enclosure: IP54 rated, lockable |
| Efficiency | ≥93% |
| Protections | Complete electrical (over V/I, short circuit) and thermal protection |
| Display | VFD Digital (V, I, F, P, PF, Fault Codes) |
| Operating Temp. | -20°C to 50°C |
| Standards | MIL-STD-704F, GJB572A, ISO6858, Road Transportation Safety Standards |
Mobile Aircraft GPU Trailer Main Features
- Integrated Trailer Design: Includes a rugged chassis, tow hitch, parking brake, road lights, and stabilizer jacks.
- High-Efficiency Power Module: Features a 12-pulse rectifier and IGBT inverter with ≥93% efficiency and low harmonic distortion (THD <2%).
- User-Friendly Operation: Central VFD display, auto voltage compensation, and front-panel controls for easy operation.
- Comprehensive Safety Systems: Full electrical protection, mechanical locking, and secure cable storage with automatic reel.
Why Choose ACSOON Mobile Aircraft GPU Trailer?
- Ultimate Mobility & Flexibility: Quickly towable by standard vehicles to any location on or off the apron, providing power where fixed units cannot reach.
- Rapid Deployment: Fully integrated system requires only connection to mains power and the aircraft, enabling operational readiness in minutes.
- Robust & Road-Legal: Built on a heavy-duty trailer chassis with certified braking, lighting, and weatherproof enclosures (IP54) for safe transit and operation.
- High-Performance Power: Delivers the same clean, stable 400Hz power (per MIL-STD-704F) as our stationary units, ensuring safe aircraft operation.
Mobile Aircraft GPU Trailer Application Areas
- Remote Stand Operations: Servicing aircraft parked at temporary or remote gates without built-in ground power.
- Military & Expeditionary Use: Supporting forward operating bases, disaster relief, and remote airfield operations.
- Emergency Backup: Providing immediate ground power during failures of fixed gate GPU systems or electrical substations.
- Aircraft Maintenance & Storage: Powering aircraft in remote hangars, maintenance bays, or long-term storage facilities.
Our Services
01
Quality Control
- Chassis & Structural Inspection: Each trailer frame undergoes weld integrity checks and load testing before assembly.
- Roadworthiness Verification: All braking systems, lighting circuits, and tires are tested to ensure compliance with towing safety standards.
- Power Module Validation: The integrated GPU undergoes the same rigorous full-load burn-in and performance testing as our stationary units.

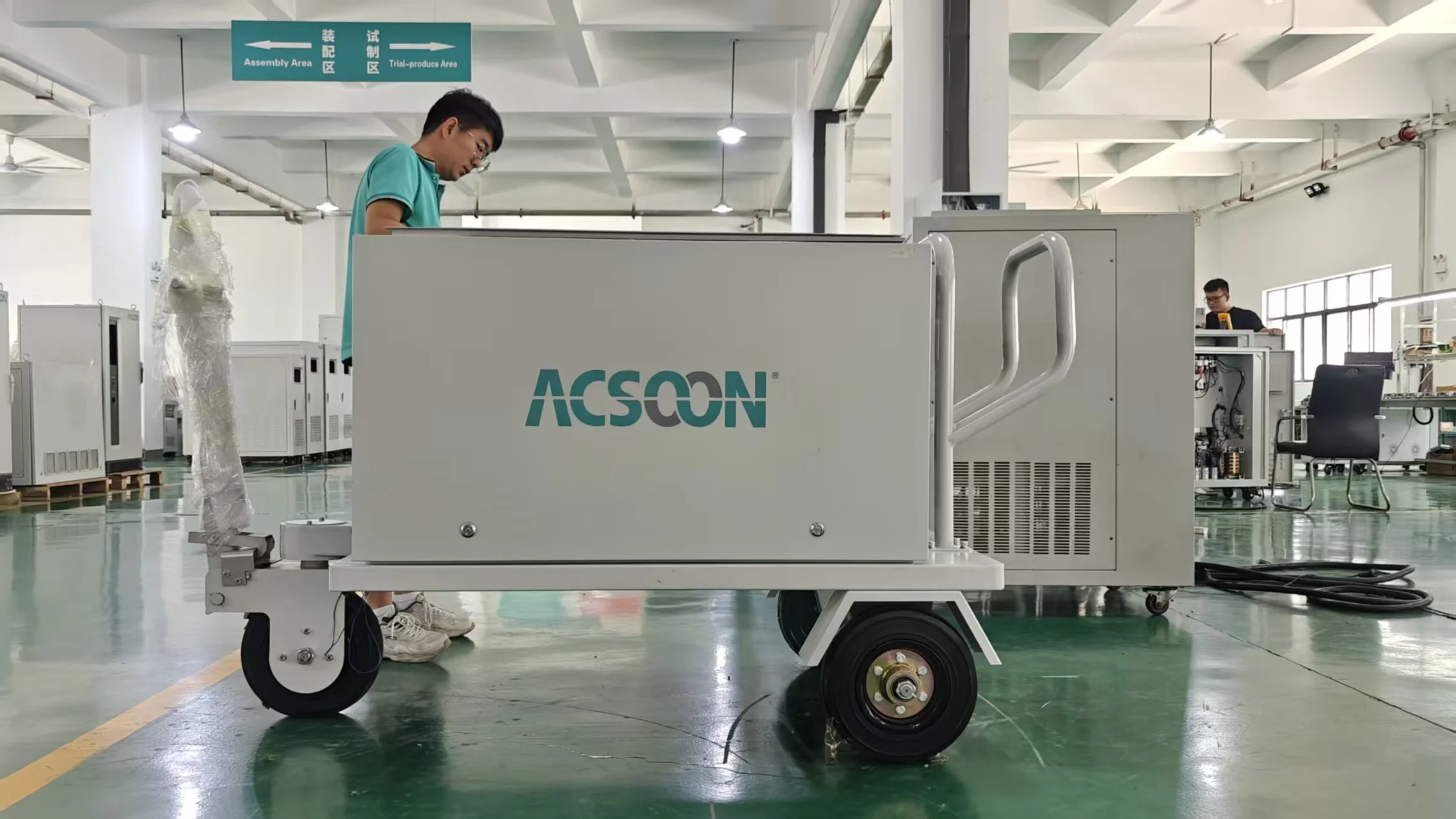

- Final Integrated System Test: The complete trailer is tested for operational safety, including stability when deployed and functionality of all interlocks.
02
R&D Results
- Vibration & Shock Resistance: Enhanced mounting and component securing methods were developed to protect electronics during transit over rough airfield surfaces.
- Unified Power & Trailer Management: Integrated control system that monitors both GPU performance and trailer status (e.g., brake engagement, door locks).
- Optimal Weight Distribution: Engineering focus on balancing the unit weight on the trailer axle for safe and stable towing characteristics.

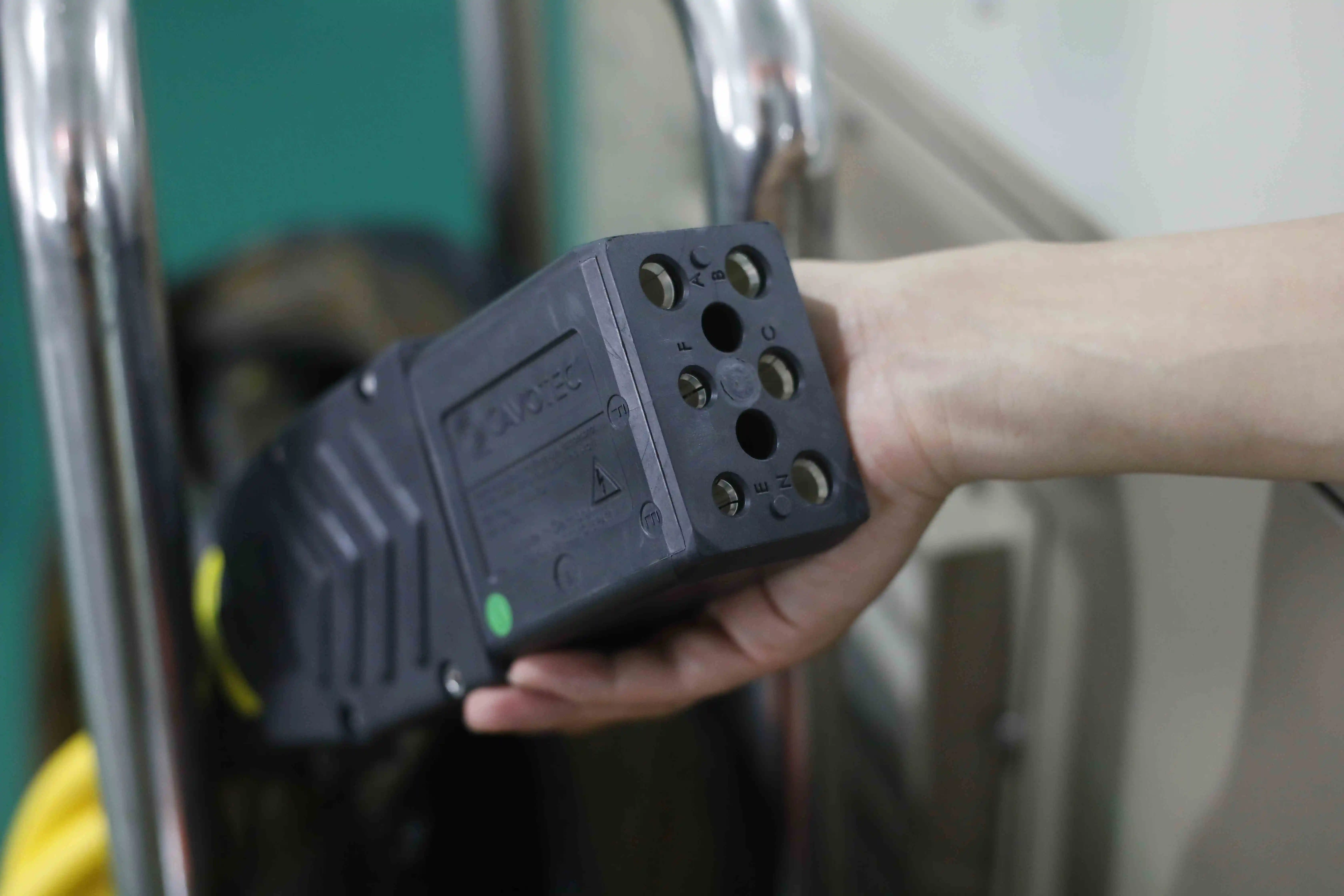

- Quick-Connection Systems: Development of weatherproof, high-current input/output connectors for rapid setup and tear-down.
03

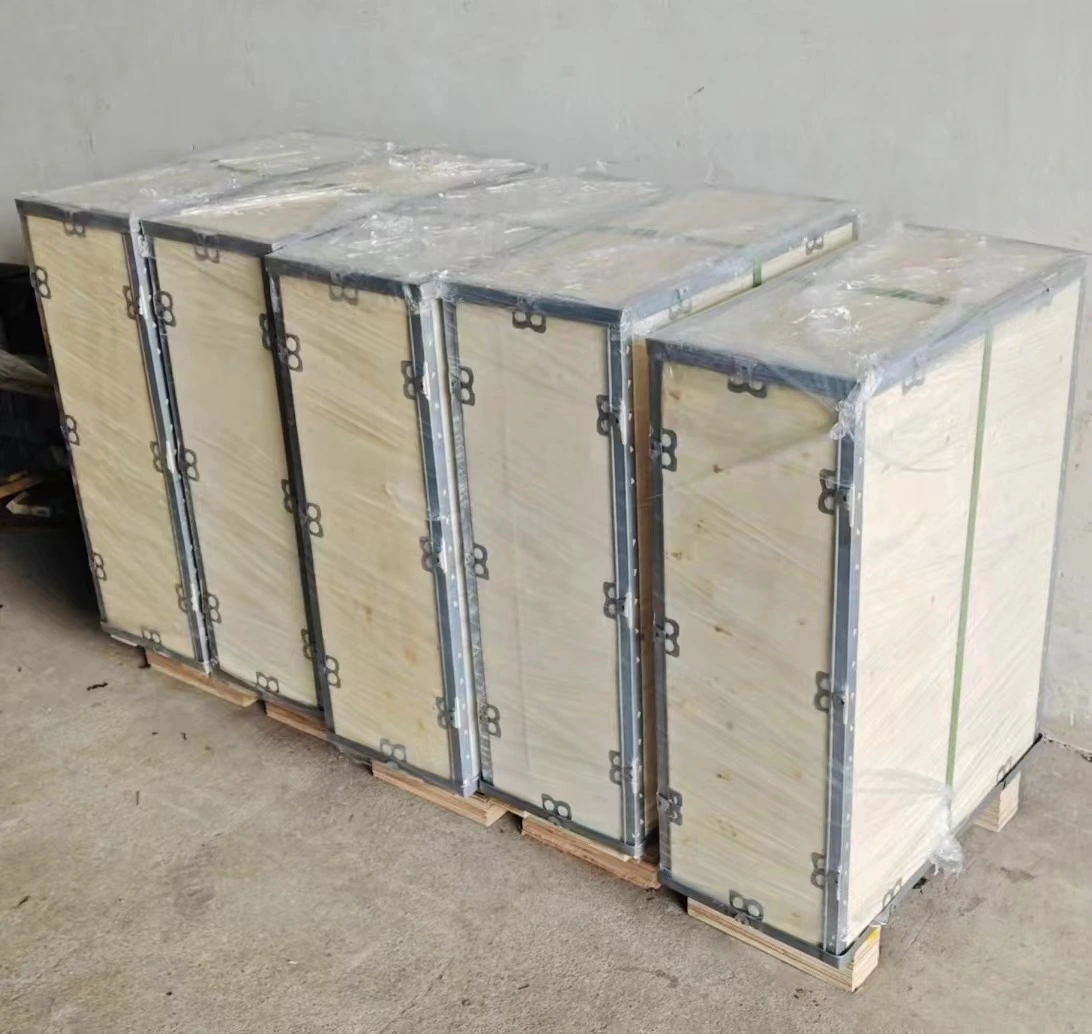

Packaging and Transportation
- Ready-to-Roll Delivery: The unit is delivered fully assembled, tested, and ready for towing. No on-site assembly is required.
- Secure Shipping: For long-distance export, the trailer is securely fastened inside a container or on a flat rack with additional corner protection.
- Comprehensive Documentation Pack: Includes GPU manuals, trailer registration/weight documents, test reports, and parts catalogs.
- Global Delivery Coordination: We manage the logistics, offering door-to-door delivery with all necessary export and customs documentation.
04
After‑Sales Service
- We provide a 24-month warranty on the GPU module and a 12-month warranty on the trailer chassis and running gear. Our global support network offers spare parts, remote diagnostics, and optional on-site maintenance contracts.
Qualification Certification
GPU Compliance: Certified to meet MIL-STD-704F and GJB standards for aircraft ground power;Trailer Compliance: Manufactured to meet relevant national road safety and lighting standards for towed equipment;ISO 9001:2015: All manufacturing processes are carried out in our certified facility;CE Marking (GPU Module): Confirms compliance with EU electrical safety directives.
FAQ |
|---|
| Q1: What vehicle is needed to tow the Mobile Aircraft GPU Trailer? |
| A: A standard light-duty truck, airport tug, or heavy SUV with an appropriate tow hitch and rating exceeding the trailer's gross weight is sufficient. Specific weight details are provided for each model. |
| Q2: How is the unit powered when on location? |
| A: The trailer is equipped with a long, heavy-duty input cable reel. It connects to a standard 3-phase industrial outlet (208-480V) near the operating site. Some models offer optional integrated diesel generators. |
| Q3: Is special training required to operate it? |
| A: Basic training is recommended for safe towing, deployment, and connection procedures. The GPU control panel is user-friendly and similar to our stationary units. |
| Q4: Can it be used in all weather conditions? |
| A: Yes. The power cabinet is IP54 rated, protecting against dust and water spray from any direction. It is designed for operation in typical airport environmental conditions. |
| Q5: What is the lead time for a custom-configured trailer? |
| A: Standard models have a lead time of 10-12 weeks. Custom configurations (e.g., specific voltage, additional features) may require 14-16 weeks. |
Contact Us
For technical specifications or global solutions for the Mobile Aircraft GPU Trailer: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
