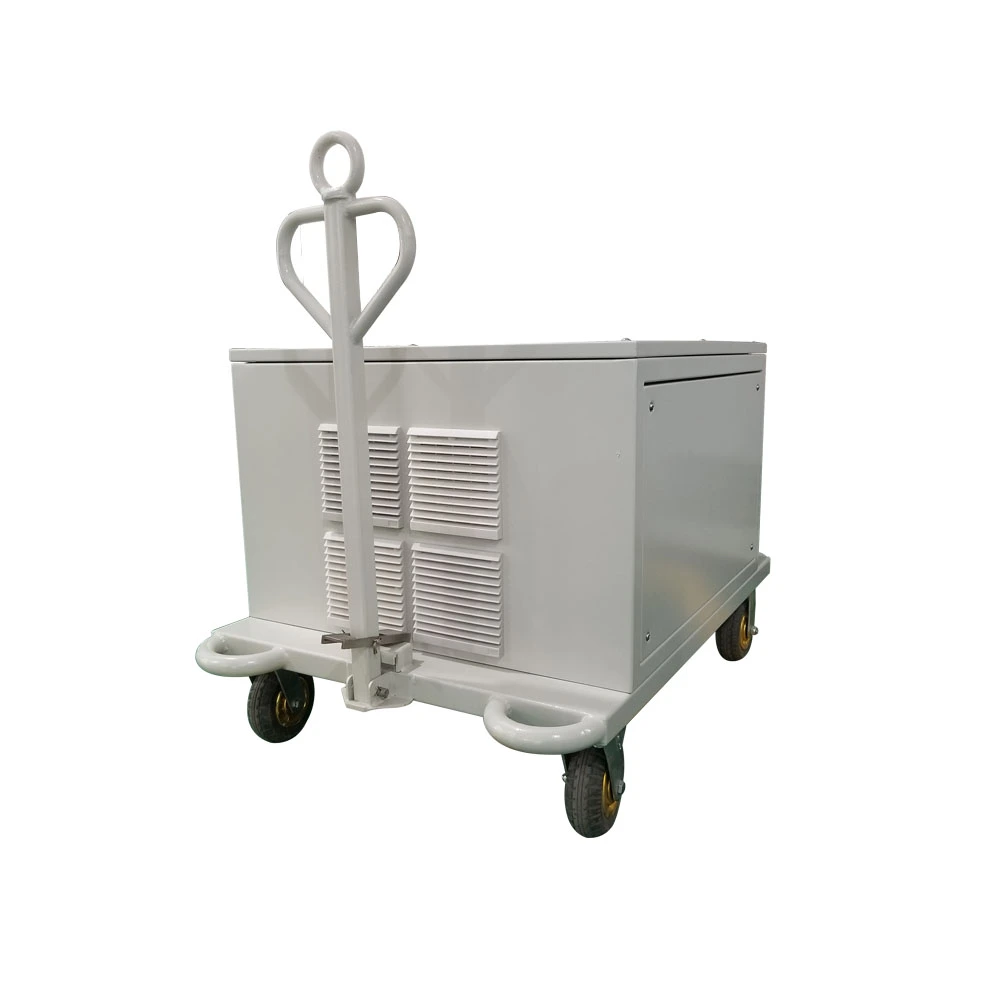

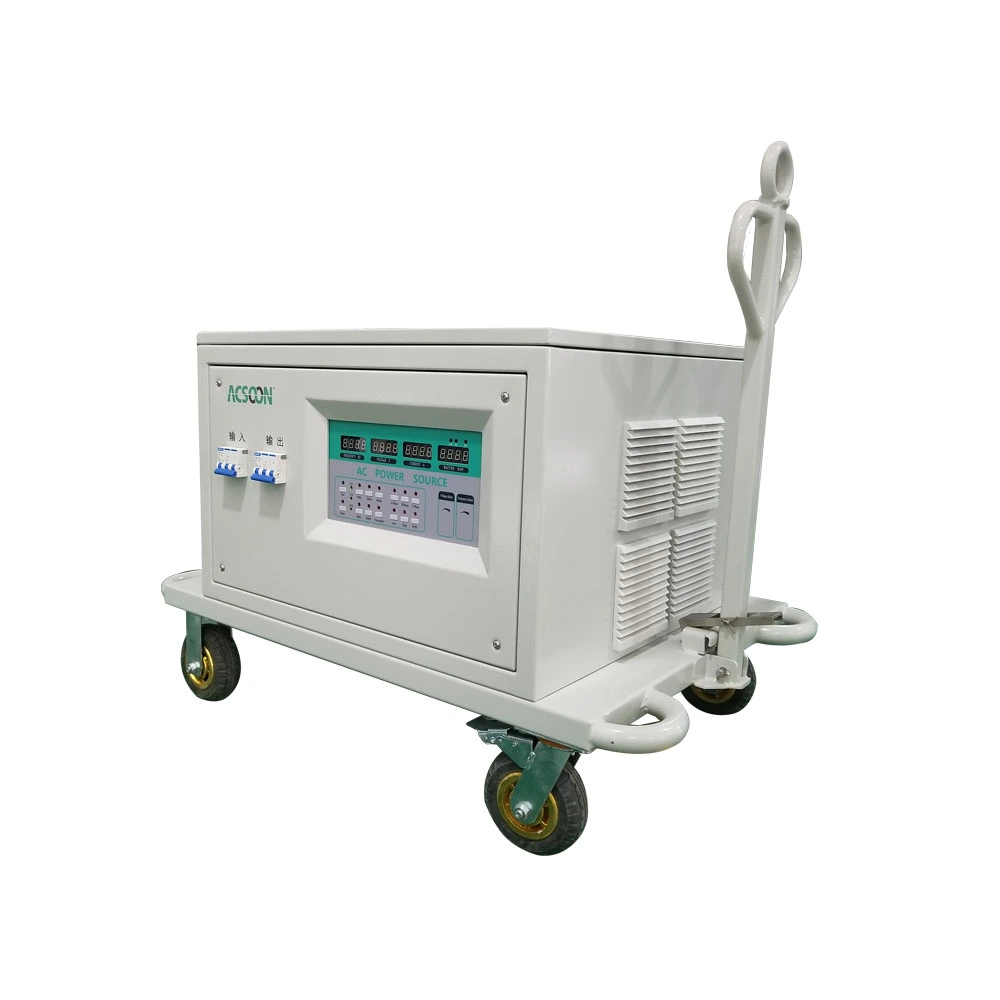

Modular Ground Power Unit
2. Technology: Modular solid-state design with hot-swap capability
3. Input: 3-phase 400VAC ±15%, 50/60Hz auto-sensing
4. Design: Modular architecture for easy maintenance
5. Key Applications: High-utilization airports, MRO facilities, military bases
6. Key Features: Modular design; hot-swap modules; quick maintenance; high availability
7. Ingress Protection Grade: IP21/54
8. Brand: ACSOON (modular configurations available).
- Product Description
Modular Ground Power Unit | Easy Maintenance GPU System
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures innovative modular ground power units for operations requiring maximum uptime and easy maintenance. Our modular design allows for quick component replacement and simplified servicing, ensuring continuous ground power availability for critical aircraft operations and reducing maintenance downtime.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
ACSOON Modular Ground Power Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Modular Ground Power Units?
ACSOON delivers maximum uptime through modular design:
Quick Maintenance: Modular components for fast replacement
Minimum Downtime: Hot-swap capable modules
Easy Service: Simplified maintenance procedures
High Availability: Continuous operation capability
Cost Effective: Reduced maintenance costs

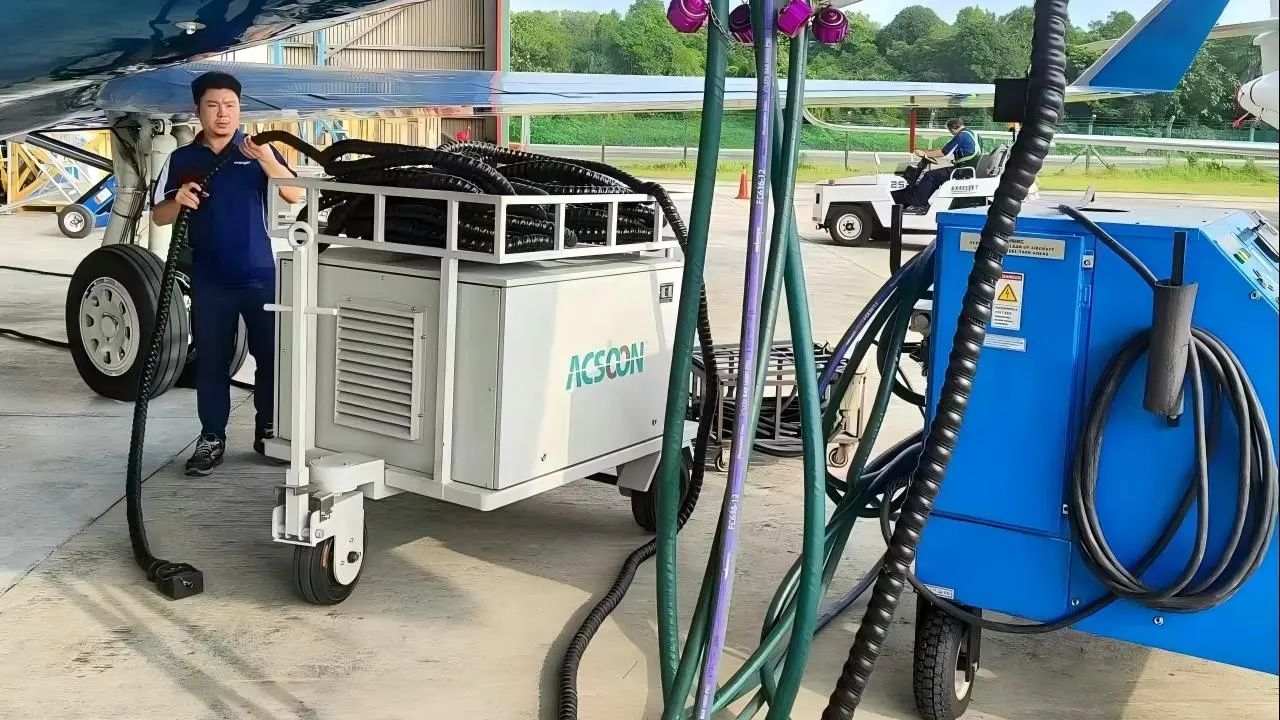

Application Areas
Our modular ground power units are essential for:
Busy Airports: High-traffic gate operations
MRO Facilities: Continuous maintenance operations
Military Bases: Critical mission support
Cargo Hubs: 24/7 cargo operations
Hub Airports: High-availability requirements
Base Operations: Continuous aircraft support
Emergency Services: Uninterrupted operations
Remote Locations: Simplified maintenance needs

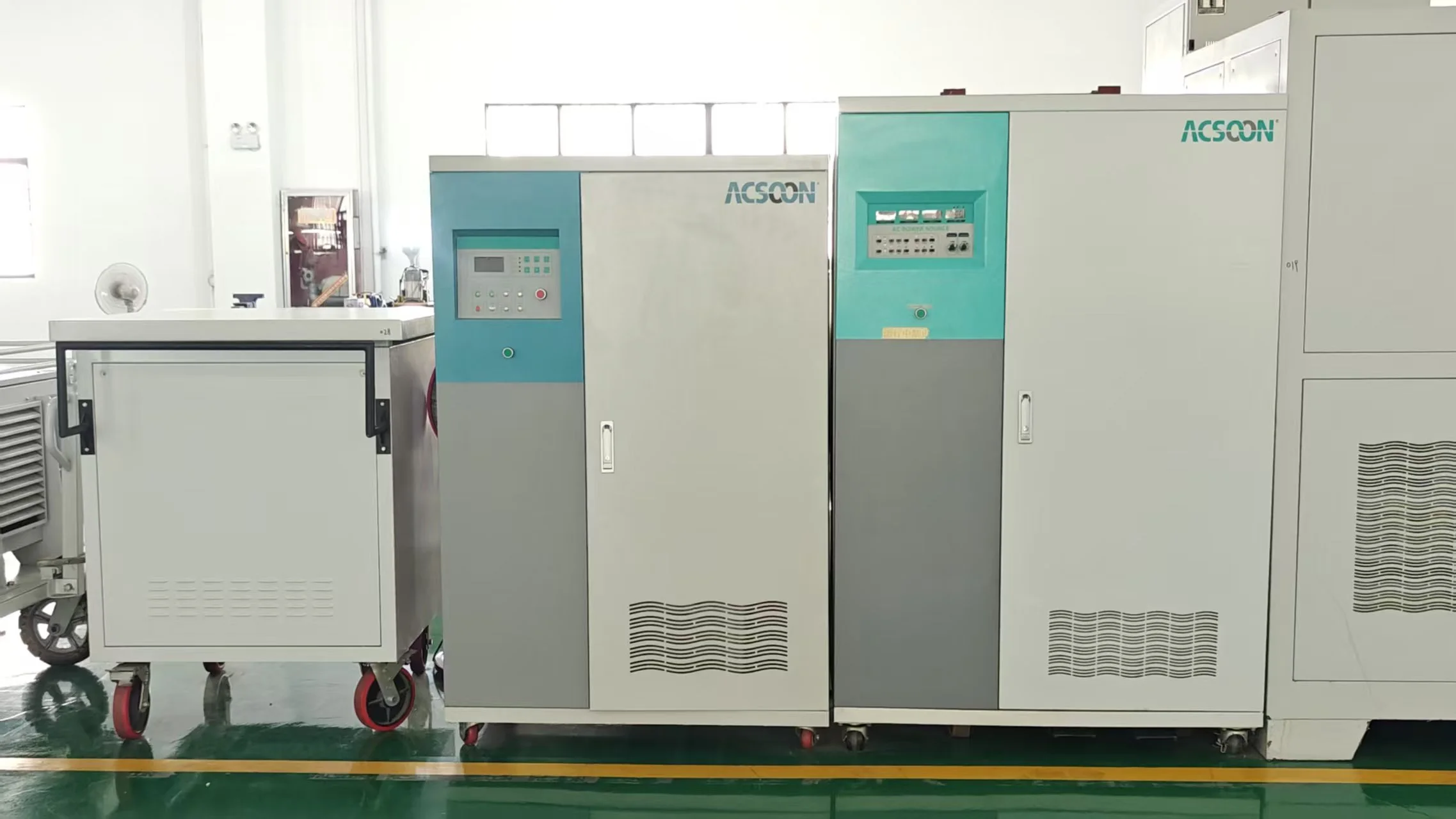

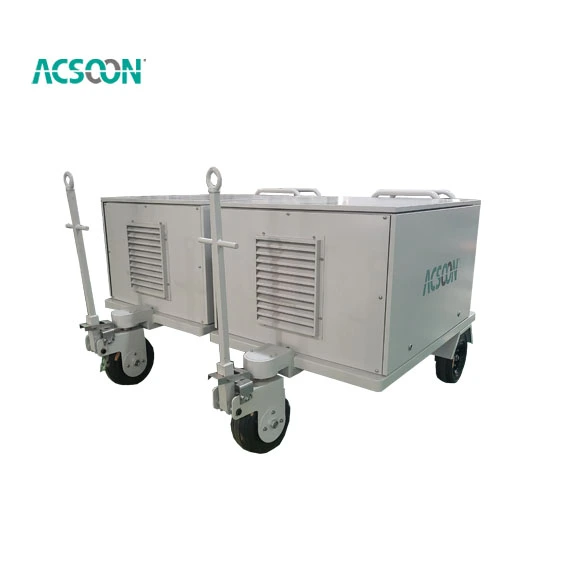

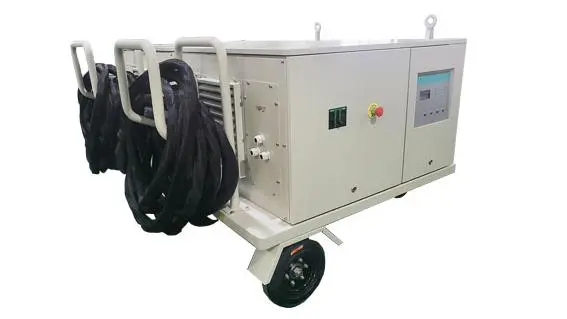

Details display
Quality Assurance
Each modular ground power unit undergoes comprehensive testing:
Module functionality testing
Hot-swap capability verification
System integration testing
Reliability validation
Performance certification
Technical Features
Our modular ground power unit incorporates:
Modular power architecture
Hot-swap capable design
Quick-connect interfaces
Service-friendly layout
Diagnostic systems
Packaging and Delivery
We ensure modular packaging:
Component-specific packaging
Careful handling procedures
Worldwide shipping
Installation services
After-Sales Service
Modular support package includes:
Module replacement services
Technical support
Maintenance training
Parts inventory
Repair services
Certifications
FAQ |
|---|
| Q1: What are the benefits of modular ground power units? |
| A: Quick maintenance, reduced downtime, and easy serviceability. |
| Q2: How does modular design help maintenance? |
| A: Allows individual component replacement without full system shutdown. |
| Q3: What is hot-swap capability? |
| A: Modules can be replaced while system remains operational. |
| Q4: How does this reduce costs? |
| A: Less downtime and simpler repairs reduce overall maintenance costs. |
| Q5: Are spare modules available? |
| A: Yes, we maintain spare module inventory for quick replacement. |
Contact Information
For technical specifications or modular solutions: acpower@acsoonpower.com ,or submit your requirements using the form at the bottom of our website.
