MRO Aircraft Power Equipment
2.Technology: High‑frequency switching rectifier, passive cooling up to 80A
3.Input: 220V single‑phase, 50/60Hz (110V optional)
4.Compliance: MIL‑STD‑704 (28V aircraft systems)
5.Applications: General aviation, light helicopters, experimental aircraft, battery charging
6.Key features: Light enough to carry, simple controls, short‑circuit proof, low ripple
7.Brand: ACSOON (1‑year warranty, built in Xi’an).
- Product Description

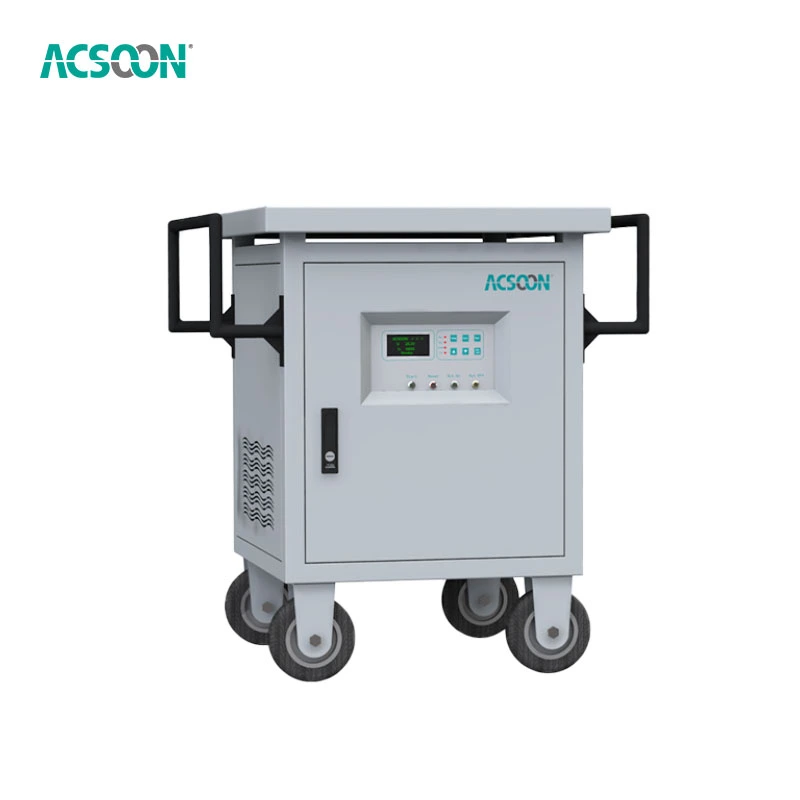

ACSOON ADCW Series 28V DC Rectifier
MRO Aircraft Power Equipment Problems & Solutions
❌ Problem 1: Aircraft startup instability
Aircraft requires high current DC power during engine start, unstable power may cause system failure or interruption.
✅ Solution:
ADCW 28V DC Rectifier provides high surge capacity up to 400% peak load, ensuring stable engine start without voltage collapse.
❌ Problem 2: High ripple damages avionics equipment
Poor quality DC power can cause communication noise and equipment malfunction.
✅ Solution:
Low ripple output ≤0.25V ensures clean DC power, protecting sensitive aircraft electronics and control systems.
❌ Problem 3: Harsh airport environment operation
Heat, continuous load, and dust can reduce equipment lifespan.
✅ Solution:
Industrial-grade cooling system + protection design ensures stable operation from -20°C to 50°C with MTBF 50,000 hours.
❌ Problem 4: Difficult integration with airport systems
Many power units cannot integrate into monitoring or pit systems.
✅ Solution:
RS485 Modbus communication enables integration into airport central monitoring systems and smart maintenance platforms.
MRO Aircraft Power Equipment
28V DC Power Supply for Engine Start & MaintenanceACSOON ADCW Series 28V DC Rectifier is designed for professional aircraft ground power applications requiring high stability, safety, and reliability. It converts three-phase AC power into regulated 28.5V DC output with ultra-low ripple and precise voltage control, ensuring safe operation of aircraft systems during engine start and maintenance.
With advanced IGBT-based solid-state technology, the ADCW series delivers high efficiency, strong overload capability, and intelligent monitoring functions. It is widely used in airports, hangars, aircraft manufacturing facilities, and military aviation operations.
The system supports multiple installation types including fixed ground installation and trailer-mounted configurations, making it suitable for flexible deployment in different operational environments.
Built according to international aviation standards, ACSOON ADCW ensures reliable performance even in harsh industrial conditions.
ACSOON ADCW Series 28V DC Rectifier is a high-reliability static solid-state ground power unit designed to deliver stable 28.5V DC aircraft power for engine starting, maintenance testing, and hangar operations.
Built for airport, MRO, and aircraft manufacturing environments, it provides clean, low-ripple DC output with strong overload capability and industrial-grade protection.
| Parameter | Specification |
|---|---|
| Model Series | ACSOON ADCW Series |
| Model Number | ADCW‑28150 |
| Input | 220V ±15% single‑phase, 50/60Hz |
| Output | 28.5VDC nominal, adjustable 22‑32V, 150A continuous, 200A for 30 sec |
| Ripple | ≤ 0.2V RMS |
| Regulation | ±1% line & load |
| Efficiency | ≥88% |
| Overload | 125% for 2 minutes, 150% for 30 sec |
| Display | LED voltmeter, ammeter |
| Protections | Over‑current (user set), short circuit, over‑temp, reverse polarity (fuse) |
| Cooling | Passive up to 80A, variable fan above |
| Output Cable | 3m, NATO plug or Anderson SB175 |
| Compliance | MIL‑STD‑704 (voltage and ripple) |
If you need it,Contact us at Email: acpower@acsoonpower.com
MRO Aircraft Power Equipment 28V DC GPU Main Points
1. Stable Aircraft-Grade 28V DC Output
28.5V DC regulated output for aircraft ground support
Ultra-low ripple ≤ 0.25V ensures sensitive avionics safety
Voltage stability ±0.5% line/load regulation
2. High Efficiency Industrial Design
≥93% high conversion efficiency
Power factor ≥0.9 for stable grid loading
Reduced energy loss for long-time operation in hangars
3. Strong Overload & Fault Protection
125% overload (10 min)
150% overload (60 sec)
200% overload (30 sec)
400% surge protection (1 sec)
Over-voltage / short circuit / overheat protection
4. Flexible Industrial Installation Options
Floor standing / fixed installation
Trailer-mounted optional design
Suitable for hangar, apron, pit system integration
5. Intelligent Monitoring System
VFD digital display: Voltage / Current / Power / PF
RS232 / RS485 Modbus communication
0.1V / 0.1A resolution precision monitoring
6. Military & Aviation Standard Compliance
MIL-STD-704F compliant
ISO 6858 / GJB standards
Industrial EMC protection design
Portable 28V DC GPU Application Areas
1.Aircraft Ground Support
Aircraft engine start power supply
Ground maintenance DC power
Aircraft battery charging support
2.Airport & Hangar Operations
Hangar aircraft maintenance power system
Apron ground power pit system integration
Line maintenance support equipment
3.Aviation Manufacturing & Testing
Aircraft factory testing power supply
Avionics system test bench DC power
Aerospace equipment validation
4.Military Aviation
Military aircraft ground support system
Field maintenance DC power supply
Rapid deployment power support unit
ABOUT US
Striving to provide the best power solutions to global users
We focus on a comprehensive range of power equipment, including AC Power Supplies, DC Power Supplies, Ground Power Units, UPS Systems, and Voltage Stabilizers. Whether you need standard products or fully customized solutions, we provide true one-stop service — from design and production to shipping, logistics, and on-time delivery.
As a direct source manufacturer, we are committed to providing the most stable, reliable, and cost-effective power systems and tailored solutions for clients across aviation, industrial, medical, telecommunications, data centers, and other critical sectors.
We always happy to connect with global partners, distributors, and end customers who are looking for dependable power equipment and excellent service.
Advantage
·28,698+ long-term repeat clients globally with stable repeat orders
·19+ years domestic & export manufacturing experience for aviation ground power equipment

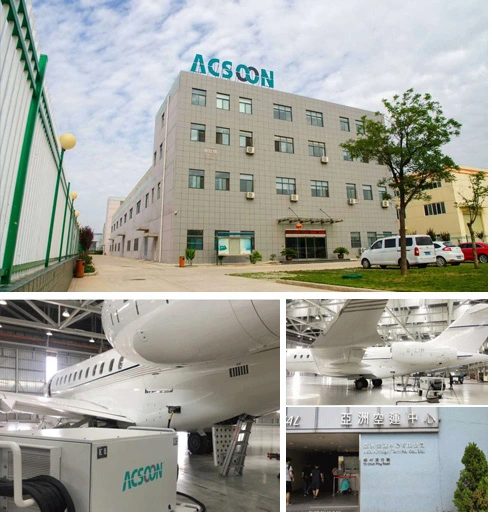

·7,000+ sq.m modern production factory
·24/7 customer service:＜30 mins quick response + lifetime after-sales support
·60+ independent patented technologies
·Certified as China National High-Tech Enterprise
·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification
Long-Standing Customer
over 19 years experience
Factory Area
7/24h
high-quality efficiency Service
Our Services
Quality Control

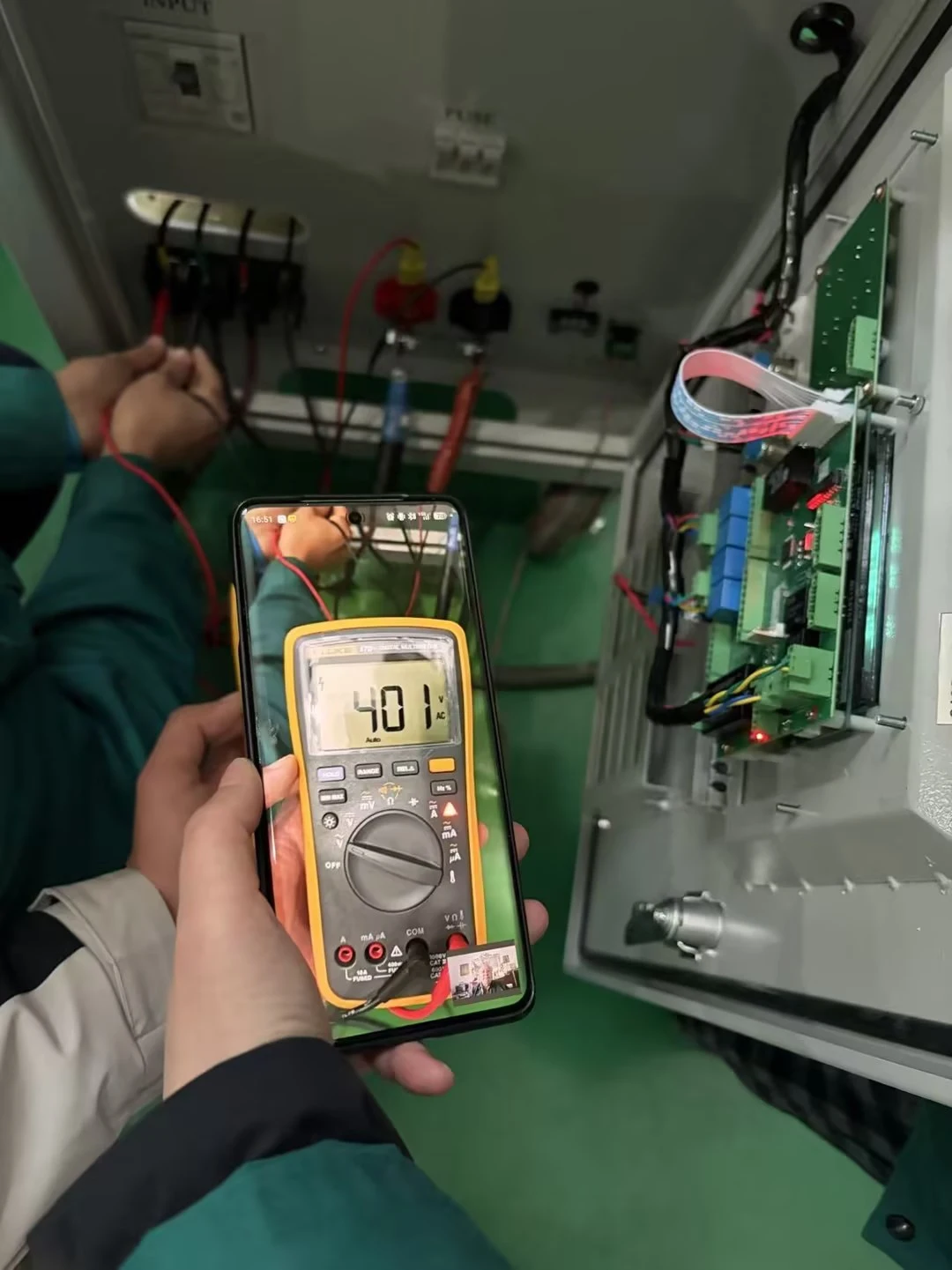

Every unit load tested – 150A for 1 hour, then 200A for 30 seconds. Thermal camera scan.
Ripple checked – At 80A and 150A. Must stay under 0.2V RMS.
Drop test – One from each batch dropped from bench height. Must still run.
Final inspection – Human checks handles, knobs, and connectors.
R&D Results
Weight reduction – First prototype was too heavy. Switched to a high‑frequency design. Cut weight by 40%.
Handle placement – Original handles on the sides were awkward. Moved to the top. Much better.
Fan noise – Early unit had fan running constantly. Too annoying. Now it only spins when hot.
Customer request – Added a shoulder strap option for walking across ramps.
Packaging and Transportation
Shipped from Xi'an – Cardboard box with foam. Small enough for courier.
Included – Power cord (2m), output cable with plug, printed quick start, spare fuse.
Manual – Full manual on USB. QR code links to a video.
Pallet – 6 units per pallet for dealers.
After‑Sales Service
1‑year warranty – Return to Xi'an for repair. Parts and labor.
Spare parts (fan, fuse, display board) kept in Xi'an. Express shipping available.
Email support – We answer within one business day. Include serial number.
Qualification Certification
CE – LVD and EMC tested externally;ISO 9001:2015 – Our Xi'an factory;MIL‑STD‑704 – Output tested. Report available.
FAQ |
|---|
| Q1: What aircraft can this power? |
| A: Any 28V aircraft that draws less than 150A continuous. That includes most single‑engine pistons (Cessna 172, Piper Archer), light twins (Beechcraft Baron), and small helicopters (Robinson R22/R44, Schweizer 300). For a King Air or PC‑12, you'll need our 300A model. |
| Q2: Can I charge the aircraft battery with it? |
| A: Yes. Set voltage to 28.8V (lead‑acid) or 29.4V (NiCd). Set current limit to 10‑20A. The unit runs in constant‑current mode until the battery reaches set voltage. |
| Q3: Will it run from 110V? |
| A: Yes,The ADCW‑28150's input voltage sport customized. On 110V, max output drops to 100A continuous, still fine for most light aircraft. |
| Q4: How long is the output cable? |
| A: Standard is 3m. We can do 5m or 10m for an extra charge. Longer cables need thicker wire – let us know. |
| Q5: Lead time from Xi'an? |
| A: 2‑3 weeks. We keep a few in stock. Ask sales. |
| Q6: What is a 28V DC rectifier used for in aviation? |
A: It provides stable DC power for aircraft engine start and ground maintenance. |
| Q7: Can it handle engine start surge current? |
A: Yes, it supports up to 400% overload capacity. |
| Q8: Is it compatible with military aircraft standards? |
A: Yes, it complies with MIL-STD-704F. |
Contact Us
For technical specifications or global solutions for the MRO Aircraft Power Equipment: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
