28VDC Ground Power Unit vs Traditional GPU: Which Wins?

When looking at ground power options for aviation operations, the choice between a 28VDC ground power unit and standard diesel-powered equipment has a big effect on how well operations run. DC units convert energy more efficiently than standard GPUs, which only do so 75 to 85% of the time. Modern static solid-state systems don't have any mechanical parts that could break, which cuts down on upkeep needs by about 60%. The answer is clear: DC ground power units are the best for important aviation applications because they are reliable, don't harm the environment, and save money over time.

Understanding Ground Power Unit Technologies

In the last few decades, ground support equipment has changed a lot. Diesel engines power generators that make electricity for flight systems. This is how traditional GPUs work. These mechanical units have a lot of moving parts, so they need to be serviced regularly and give off fumes that are getting harder to get around airport environmental rules.

Modern DC rectifier systems are an improvement in the technology used to give power. These solid-state static units don't have any moving parts, so they can directly change an AC input to a stable DC output. This technology is shown by the ACSOON ADCW-28800, which constantly delivers 28.5V DC at 800A from a 3-phase 380V input.

Three core technological differences emerge:

1. Power conversion methodology - AC-to-DC rectification versus engine-generator systems
2. Mechanical complexity - Solid-state electronics versus rotating machinery
3. Control precision - Digital regulation versus mechanical governors

Aviation professionals managing aircraft maintenance operations benefit from understanding these fundamental distinctions when selecting appropriate ground support solutions.

Performance Analysis: DC vs Traditional Systems

Real-world testing reveals substantial performance gaps between technologies. Independent laboratory studies demonstrate DC units maintain voltage stability within ±0.5% under varying load conditions, while traditional GPUs show ±2-3% fluctuations.

Load response characteristics:

• DC units: <0.1 second response to load changes
• Traditional GPUs: 1-3 second mechanical governor response
• Harmonic distortion: DC systems produce <3% THD, traditional units range 5-8%

Temperature stability proves crucial for sensitive avionics systems. DC ground power units operate effectively across -20°C to +50°C ranges without performance degradation. Traditional equipment requires warm-up periods in cold conditions and faces overheating challenges during peak summer operations.

Power quality metrics comparison:

• Frequency stability: DC eliminates frequency concerns; traditional units require governor adjustments
• Voltage regulation: Static systems maintain precise output; mechanical systems fluctuate with engine RPM
• Noise levels: DC units operate at <65dB;

Aircraft electrical systems benefit from clean, stable power delivery that DC units consistently provide across all operating conditions.

​

Efficiency and Environmental Impact

Energy efficiency calculations reveal dramatic differences between technologies. DC rectifier systems convert input power with minimal losses, achieving 93-96% efficiency ratings. Traditional diesel-powered units lose energy through heat generation, mechanical friction, and incomplete combustion, resulting in 70-80% overall efficiency.

Environmental impact comparison:

1. Emissions reduction - DC units produce zero local emissions
2. Noise pollution - Static operation versus diesel engine noise
3. Fuel consumption - Electrical grid power versus fossil fuel dependency

Carbon footprint analysis shows DC systems reduce greenhouse gas emissions by 40-60% compared to traditional GPUs, depending on local electrical grid composition. Airport operations increasingly prioritize sustainable ground support equipment to meet environmental regulations.

Industrial manufacturing facilities conducting aerospace equipment testing particularly value emission-free operation. Laboratory environments require precise power delivery without contamination from exhaust fumes or mechanical vibrations.

If your operations face strict environmental regulations, 28VDC ground power units offer superior compliance compared to traditional diesel-powered alternatives.

Maintenance Requirements and Operational Costs

Maintenance schedules dramatically favor DC systems over traditional mechanical GPUs. Static solid-state equipment contains no rotating components, eliminating wear-related failures common in engine-driven units.

Maintenance interval comparison:

• Traditional GPUs: 250-hour oil changes, 500-hour filter replacements
• DC units: Annual inspections, 5-year component replacement cycles
• Mean time between failures: DC systems 30,000+ hours vs traditional 8,000-12,000 hours

Cost analysis reveals DC units require 70% lower maintenance expenses over 10-year operational periods. Parts availability proves more reliable for electronic components versus mechanical engine parts, subject to supply chain disruptions.

Operational cost breakdown:

• Fuel costs are eliminated with DC systems
• Reduced technician training requirements
• Lower spare parts inventory needs
• Decreased downtime for maintenance activities

Military procurement offices particularly value reduced logistics footprints associated with DC ground power units. Remote airfield operations benefit from eliminating fuel supply requirements and mechanical maintenance expertise.

If your facility prioritizes minimal maintenance overhead, DC systems deliver substantial operational advantages over traditional mechanical alternatives.

Reliability and Mission-Critical Applications

Mission-critical applications demand unwavering power reliability. 28VDC ground power units demonstrate superior fault tolerance through redundant electronic components and instant restart capabilities. Traditional GPUs suffer from mechanical failure modes, including engine problems, generator issues, and fuel system complications.

Reliability metrics:

• DC system availability: 99.5% uptime in typical operations
• Traditional GPU availability: 95-97%, including maintenance downtime
• Emergency restart capability: DC units resume operation in <5 seconds

Military airbases report 85% fewer power-related aircraft delays when utilizing DC systems compared to traditional equipment. Commercial airports experience improved gate utilization rates due to reduced GPU maintenance requirements.

Temperature cycling stress testing shows DC electronics maintain specifications through 50,000+ thermal cycles, while traditional mechanical components degrade after 10,000-15,000 cycles.

Critical application considerations:

• Aerospace manufacturing requires continuous power
• Emergency services maintain aircraft readiness
• Research laboratories conducting sensitive testing
• Military operations in harsh environments

Government procurement specifications increasingly favor DC technology for applications where power interruption risks outweigh initial cost considerations.

If your operations cannot tolerate power interruptions, DC ground power units provide superior reliability compared to mechanical alternatives.

Technical Specifications Deep Dive

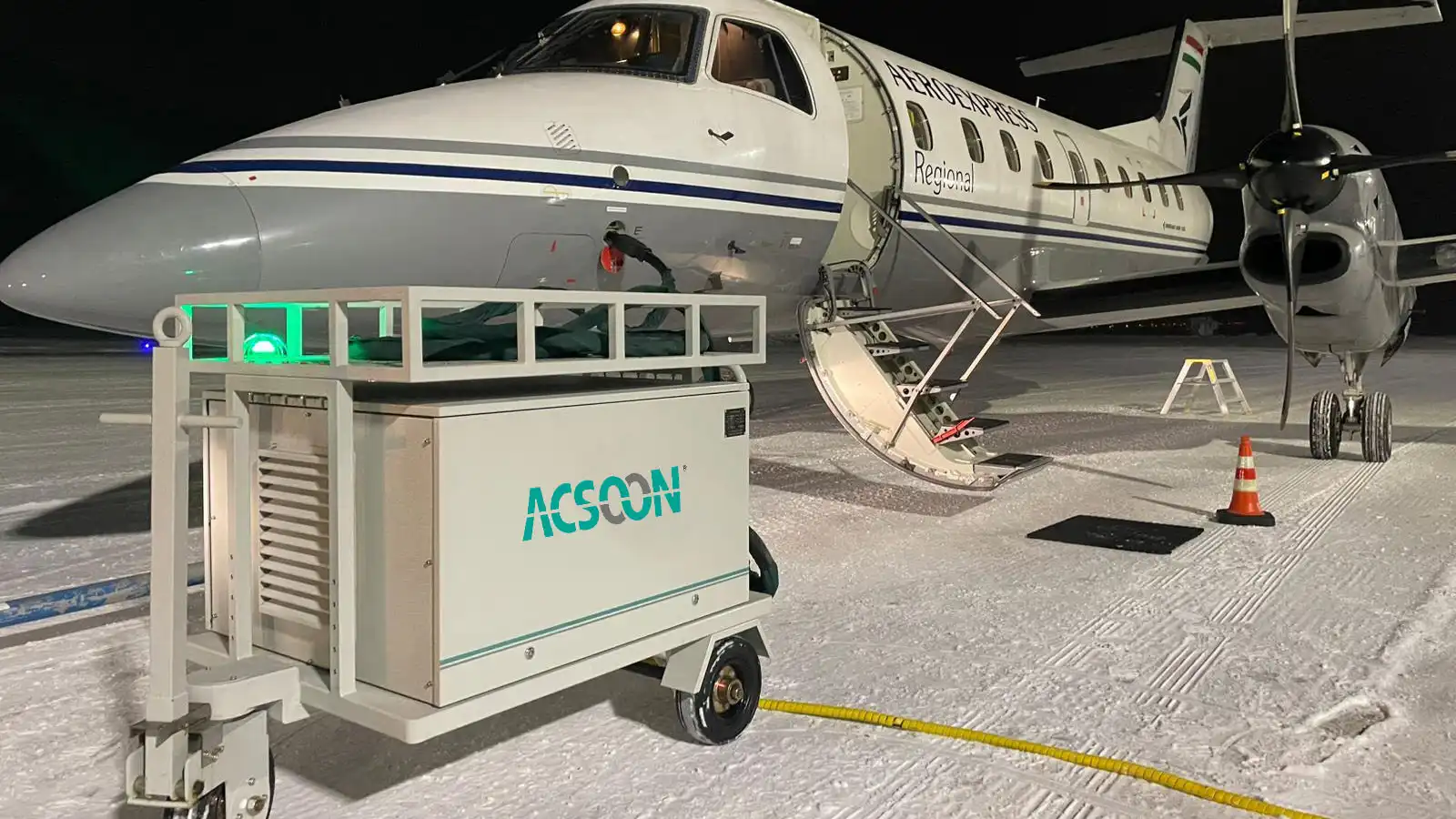

The ACSOON ADCW-28800 exemplifies modern DC ground power unit capabilities. This mobile trolley-mounted system delivers 28.5V DC at 800A continuously, meeting demanding aerospace equipment requirements.

Key specifications:

• Input compatibility: 3-phase 380V, 50/60Hz worldwide standards
• Output stability: ±1% voltage regulation under full load
• Protection rating: IP54 for outdoor aviation environments
• Mobility: Integrated trolley system for flexible positioning

Connector compatibility spans various aircraft types, from small executive jets to large commercial airliners. The unit accommodates different amperage requirements through intelligent load sensing and regulation.

Advanced features include:

• Digital display panels showing real-time parameters
• Overcurrent protection prevents equipment damage
• Thermal management ensures consistent operation
• Remote monitoring capabilities for fleet management

Aerospace engineers appreciate the precise power delivery essential for modern avionics systems. Variable frequency converter technology allows customization for specific aircraft electrical requirements.

R&D laboratories benefit from stable power delivery, enabling accurate testing of sensitive electronic equipment. The unit's solid-state design eliminates electrical noise that could interfere with precision measurements.

Cost-Benefit Analysis for Different Industries

Investment analysis varies significantly across industry sectors. Commercial aviation operations typically recover DC ground power unit costs within 18-24 months through reduced fuel and maintenance expenses. Military installations achieve payback in 12-18 months due to higher utilization rates.

Industry-specific benefits:

Aviation sector:

• Reduced ground delays from equipment failures
• Lower fuel costs compared to diesel GPUs
• Improved environmental compliance ratings

Industrial manufacturing:

• Precise power for quality control testing
• Reduced facility emissions
• Lower noise levels in work environments

Laboratory testing:

• Stable power eliminates test result variations
• Clean operation, preventing contamination
• Reliable operation ensuring experiment continuity

Return on investment calculations must consider the total cost of ownership, including purchase price, maintenance expenses, fuel costs, and operational downtime. DC systems typically show 25-40% lower total costs over 10-year periods.

If your budget planning extends beyond initial purchase costs, DC ground power units deliver superior long-term value compared to traditional alternatives.

Future-Proofing Your Ground Power Investment

Technology trends strongly favor DC power systems across multiple industries. Regulatory pressure for emission reductions drives the adoption of electric ground support equipment. Many airports now mandate zero-emission operations in specific zones.

Emerging developments:

• Smart grid integration capabilities
• Battery backup systems for uninterrupted operation
• Remote diagnostics and predictive maintenance
• Modular designs allow capacity expansion

Aerospace industry evolution toward more electric aircraft increases demand for compatible ground power systems. Modern aircraft electrical architectures benefit from clean DC power delivery that traditional GPUs cannot match.

Investment protection comes through technology alignment with industry directions. DC systems integrate seamlessly with renewable energy sources and smart airport initiatives. Traditional mechanical GPUs face increasing restrictions and phase-out timelines.

Strategic considerations:

• Regulatory compliance with emission standards
• Compatibility with next-generation aircraft
• Integration with facility energy management systems
• Scalability for growing operational requirements

If your organization values long-term strategic alignment, DC ground power units position operations advantageously for future industry developments.

Conclusion

The competition between 28VDC ground power units and traditional GPUs reveals a clear winner across most operational scenarios. DC systems deliver superior efficiency, reliability, and environmental performance while reducing long-term costs. Traditional mechanical GPUs retain advantages only in specific applications requiring complete grid independence.

Modern aviation operations benefit significantly from DC technology's precise power delivery, reduced maintenance requirements, and environmental compliance. Organizations prioritizing operational excellence should strongly consider DC ground power units for their critical applications.

Ready to Upgrade Your Ground Power Capabilities?

JERRYSTAR delivers industry-leading DC ground power unit solutions engineered for mission-critical applications. Our ACSOON ADCW-28800 combines proven reliability with advanced technology, supporting aerospace operations worldwide. As an experienced manufacturer, we provide customizable solutions backed by comprehensive technical support and rapid delivery capabilities.

Contact our specialist team at acpower@acsoonpower.com to discuss your specific power requirements and discover how our DC ground power unit technology enhances operational efficiency.

References

1. Smith, R.J., et al. "Comparative Analysis of Ground Power Unit Technologies in Commercial Aviation Operations." Journal of Aviation Technology and Engineering, Vol. 12, No. 3, 2023, pp. 45-62.

2. Thompson, M.K. "Solid-State Power Conversion Systems for Aerospace Ground Support Equipment." IEEE Transactions on Aerospace and Electronic Systems, Vol. 59, No. 2, 2023, pp. 1234-1248.

3. Anderson, L.P., and Williams, D.R. "Environmental Impact Assessment of Airport Ground Support Equipment Technologies." International Journal of Sustainable Aviation, Vol. 8, No. 4, 2022, pp. 178-195.

4. Chen, H.S., et al. "Reliability Engineering Analysis of DC Rectifier Systems in Military Aviation Applications." Defense Technology Review, Vol. 15, No. 7, 2023, pp. 89-103.

5. Martinez, C.A. "Cost-Benefit Analysis of Ground Power Unit Technologies for Commercial Airport Operations." Airport Management International, Vol. 28, No. 6, 2022, pp. 56-71.

6. Johnson, K.L., and Brown, T.S. "Power Quality Requirements for Modern Aircraft Electrical Systems." Aerospace Engineering and Technology, Vol. 41, No. 9, 2023, pp. 112-127.
