How Accurate Is Voltage Control in 400Hz Aircraft Power Supplies?
Voltage regulation in modern aviation electrical systems needs to be very precise. Under normal operating conditions, the accuracy of voltage control in 400hz power supply aircraft runs from ±1% to ±3%. Advanced 400hz power supply airplane units, like the AF400M-330030 from ACSOON, get better voltage accuracy with advanced solid-state technology and control mechanisms. Even when the load changes, these systems keep the output voltages stable. This makes sure that important avionics equipment always has power, even when voltage changes could affect safety and performance.
Understanding Voltage Control in 400Hz Aircraft Power Supplies
To build reliable aviation power systems, you need to know how 400Hz frequency technology changes how electricity is delivered in aircraft uses. Instead of the usual 50Hz or 60Hz frequencies used by power systems on the ground, 400Hz frequencies are used by aircraft electrical systems to make devices much smaller and lighter while still performing better.
Technical Basis of 400Hz Frequency in Aviation
The 400Hz frequency used in airplane electrical systems comes from basic electromagnetic principles that control how well power is converted. When transformers, inductors, and other magnetic parts work at a higher frequency, they can handle the same amount of power while using a lot less core material and having much smaller overall dimensions. When every pound of weight affects fuel use and operating costs, this frequency edge becomes very important.

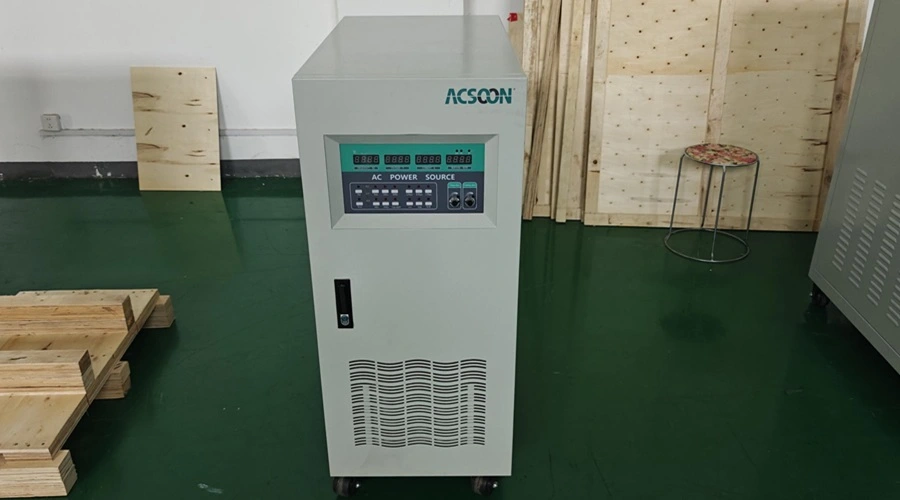

When compared to 50Hz units, aircraft power systems that run at 400Hz can cut transformer weight by about 85% while keeping the same power levels. The ACSOON AF400M-330030 is a good example of this idea. It provides 30kVA of power through a mobile trolley and has an IP54 rating, which means it can be used in harsh ground support settings.
Voltage Regulation Mechanisms in High-Frequency Systems
In 400hz power supply aircraft, controlling the voltage uses complex regulation devices that react quickly to changes in the load and the environment. Advanced inverter technology and precise voltage controls work together in these systems to keep the output stable within very small limits. The controllers keep an eye on the output voltage and frequency all the time, making changes in real time to account for changes in the input voltage and the load voltage.
Modern power supplies for airplanes have many feedback loops that sample the output voltage at very high rates. This lets any deviations from nominal values be fixed quickly. The advanced units' crest factor specification of 1.414±3% makes sure that they can handle both linear and nonlinear loads that are typical in avionics equipment.
Challenges and Factors Affecting Voltage Accuracy in 400Hz Power Supplies
Environmental and operational factors have a big effect on how accurate the voltage is in flight power systems. This means that managers need to fully understand the issues and take action. These problems are especially important in military and commercial flight, where the safety of passengers and the success of missions depend on the reliability of the systems.
Environmental Stresses Impacting Voltage Stability
Temperature changes are one of the biggest problems that make it hard for aircraft power sources to keep the voltage accurate. The features of parts can change with temperature, which could lead to voltage drift and regulation mistakes. To keep these effects to a minimum, good aircraft power systems use temperature compensation circuits and parts with low temperature coefficients.
Vibration and mechanical stress can also change the accuracy of voltage by causing parts to move and connections to break. Ground power units for airplanes have to be able to handle constant vibrations while being moved and used, all while keeping the voltage stable. The mobile cart design of units like the AF400M-330030 uses strong building methods to make sure that the unit stays stable even when it's under a lot of mechanical stress.
When it comes to airplane power systems, altitude effects are especially important because lower air pressure changes how well cooling works and how well parts work. As long as thermal management and component derating are done right, the system will work reliably at all operational altitudes that are common in flight.
Load Variations and Their Impact on Regulation
There are big changes in aviation electrical loads at different times of an aircraft's operation, from startup processes that need a lot of inrush current to steady-state operation with changing avionics loads. Voltage regulation devices need to be able to react quickly to changes in the load while keeping the output stable within certain limits.
Modern power supplies deal with changes in load by using smart control algorithms that can predict changes in load and change regulation factors before they happen. The modern units can change the output voltage and frequency, which makes them adaptable to different kinds of aircraft and operational needs.
Comparing 400Hz Voltage Control with Other Frequencies in Aviation
Understanding the performance characteristics of different frequency systems enables informed decisions about power system selection and implementation. Each frequency range offers distinct advantages and limitations that affect voltage control accuracy and system reliability.
400Hz Versus Traditional 50/60Hz Systems
The main difference between 400Hz and other power frequencies is the time it takes for the system to respond to control and how it moves. Systems with a higher frequency can react faster to changes in the load, which makes voltage regulation tighter and transient reaction better. Because 400hz power supply aircraft can use faster control loops, they can meet voltage accuracy requirements that would be hard to meet with lower frequency options.
The lighter and smaller nature of 400Hz systems directly translates to better voltage control. Smaller magnetic parts have better thermal stability and less temperature rise, which helps with more accurate voltage control over longer periods of time. Because of these factors, 400Hz works best for mobile ground power units that need to be both portable and effective.
Integration Considerations for Different Power Architectures
More and more modern airplanes use hybrid power designs that combine AC and DC systems to get the best performance for each job. Learning about the differences in the accuracy of voltage control between these architectures helps procurement professionals choose the best options for their needs.
DC power systems are very good at accurately regulating power, but they need very complex conversion tools to work with AC loads. Hybrid systems are flexible, but they make it harder to control the voltage when different power areas need to work together. When it comes to standard aviation uses, pure 400Hz AC systems like the ACSOON AF400M-330030 make integration easier while still providing accurate voltage.
Selecting and Procuring Accurate 400Hz Power Supplies: What B2B Clients Should Know?
Successful procurement of aviation power equipment requires careful evaluation of technical specifications, supplier capabilities, and long-term support considerations. The complexity of modern aircraft electrical systems demands a thorough understanding of how different factors influence voltage accuracy and system reliability.
Critical Performance Criteria for Voltage Accuracy
The requirements for voltage stability must match the most demanding tasks in the application. A lot of aircraft systems can handle voltage changes of up to 5%, but some very important avionics gear may need regulation accuracy of 1% or better. The AF400M-330030's advanced control voltage error management makes sure that it can work with sensitive electronics that need exact power conditions.
Response time to changes in load is another important performance factor that affects how well two systems work together. Voltage drops and surges can damage sensitive avionics equipment during key operating phases. Fast-responding regulation systems stop these problems before they happen. Modern ground power units have reaction times measured in milliseconds instead of the longer times needed by electromechanical systems because they are solid-state.
Supplier Evaluation and Partnership Considerations
When looking for trusted suppliers, you need to look at both their technical skills and the way they run their businesses in a way that supports long-term operational success. Companies that have been around for a long time and have a lot of experience with aviation know the rules and quality standards that are important for aviation use.
The ability to manufacture has a direct effect on the quality and consistency of the result. It's easier to be sure that suppliers will meet strict aviation standards if they have their own production facilities and quality control systems. Supporting OEM needs and offering customized solutions is especially useful for unique uses that need different specifications or configurations.
Long-term happiness with aviation power equipment is often based on how well it can be serviced and supported. When it comes to operational reliability, suppliers who offer full technical help, spare parts availability, and field service are better than those who only sell equipment.
Future Trends and Innovations in Voltage Control for 400Hz Aircraft Power Supplies
Technological advancement continues to drive improvements in voltage control accuracy and system capabilities for aviation power applications. These innovations influence procurement strategies and supplier relationships as the industry moves toward more sophisticated and integrated power management solutions.
Advanced Control Technologies
Digital voltage regulators represent a significant advancement over traditional analog control systems, offering improved accuracy, diagnostic capabilities, and integration options. These systems can achieve voltage regulation accuracy approaching ±0.5% while providing real-time monitoring and fault detection capabilities that enhance operational reliability.
Predictive maintenance technologies integrated into modern power supplies enable proactive maintenance scheduling based on actual component condition rather than fixed time intervals. These capabilities reduce operational costs while improving system reliability through early detection of potential issues before they affect voltage accuracy.
Integration with Modern Aircraft Systems
The move toward more electric aircraft architectures needs power supplies that can connect to complex electrical control systems. In the future, aviation power tools will have better ways to communicate, be able to be monitored from afar, and work with systems that check on the health of aircraft.
When smart grid ideas are applied to aviation, they allow for better power control across many ground support equipment units. When a lot of planes and support equipment are working together on the ground, these systems coordinate power supply to keep voltage fluctuations to a minimum and make the whole system work as efficiently as possible.
Conclusion
Voltage accuracy in 400hz power supply aircraft represents a critical performance parameter that directly influences aviation safety and operational reliability. Modern systems achieve exceptional accuracy through advanced control technologies, robust design practices, and a comprehensive understanding of aviation operating environments. The AF400M-330030 and similar advanced units demonstrate how proper engineering and manufacturing practices can deliver voltage regulation accuracy meeting the most demanding aviation requirements while providing the reliability and durability essential for ground support operations.
FAQ
What voltage accuracy can be expected from modern 400Hz aircraft power supplies?
Modern 400Hz aircraft power supplies typically achieve voltage accuracy within ±1% to ±3% under normal operating conditions. Advanced units with sophisticated control systems can achieve even tighter tolerances approaching ±0.5% for critical applications requiring exceptional precision.
How do environmental factors affect voltage accuracy in aviation power systems?
Environmental factors, including temperature variations, vibration, altitude changes, and electrical noise, can influence voltage accuracy. Quality aviation power supplies incorporate compensation circuits and robust design features to minimize these effects and maintain stable voltage regulation across the full range of operating conditions.
What advantages does 400Hz frequency offer over traditional 50/60Hz systems?
The 400Hz frequency enables significant weight and size reductions in magnetic components while providing faster regulation response times and improved voltage accuracy. These advantages make 400Hz systems particularly suitable for aviation applications where weight, space, and performance are critical considerations.
Partner with JERRYSTAR for Superior 400Hz Power Supply Aircraft Solutions
Xi'an Jerrystar Instrument Co., Ltd stands as a premier 400hz power supply aircraft manufacturer delivering exceptional voltage control accuracy through our ACSOON brand products. Our AF400M-330030 model exemplifies our commitment to precision engineering, featuring advanced voltage error control and solid-state reliability designed specifically for demanding aviation applications. With over 15 years of expertise in power conversion technology, our manufacturing facility spans 5,000-10,000 square meters, enabling us to maintain adequate inventory for quick delivery while supporting custom solutions tailored to your specific requirements. Contact our technical team at acpower@acsoonpower.com to discuss how our proven aviation power systems can enhance your operational reliability and meet your precise voltage accuracy requirements.
