Next-Generation 400Hz Power Supply Aircraft Systems Overview

Next-generation 400Hz power supply aircraft systems represent the backbone of modern aviation electrical infrastructure, delivering specialized power conversion solutions that meet the stringent demands of aerospace applications. These advanced power units transform standard ground power into precise 400Hz output, enabling aircraft systems to operate efficiently and reliably. The 400hz power supply aircraft technology has evolved significantly, incorporating solid-state electronics and intelligent control systems that ensure consistent performance across commercial, military, and testing environments. Understanding these sophisticated power conversion systems is essential for procurement professionals seeking reliable solutions for ground support equipment, avionics testing, and aircraft maintenance operations.

Introduction to 400Hz Power Supply in Aircraft

Fundamental Concepts of Aircraft Power Systems

Aircraft electrical systems use a 400Hz frequency standard that differs from ground power networks. Aerospace engineering prioritizes weight reduction and component minimization, leading to this frequency selection. Transformers, inductors, and other magnetic components provide identical performance at 400Hz while taking up less space and weight than 50Hz or 60Hz counterparts.

Modern airplane power architecture uses high-frequency systems to power navigation and cabin illumination systems throughout the electrical distribution network. The aviation industry standardizes 400Hz to assure aircraft system and ground support equipment interoperability worldwide.

Technical Rationale Behind 400Hz Selection

Engineering calculations that balance performance, weight, and dependability led aircraft to adopt 400Hz. Magnetic components can transfer equal power utilizing smaller core materials at higher frequencies, reducing weight in aeronautical applications. Power density increases with frequency selection, allowing more compact electrical systems that boost airplane efficiency.

Aircraft from different manufacturers and operated in different foreign markets are interoperable because aviation standards groups have set 400Hz as the global standard. This standardization simplifies airline and military inventory and maintenance.

Types and Technologies of 400Hz Power Supplies in Modern Aircraft

Rotary Versus Solid-State System Comparison

Current 400Hz power generation uses rotary converters and solid-state frequency converters. Rotary systems use motor-generator sets to mechanically transform input power to the desired frequency, providing robust performance and excellent power handling. These systems perform well in demanding operational settings and surge current applications.

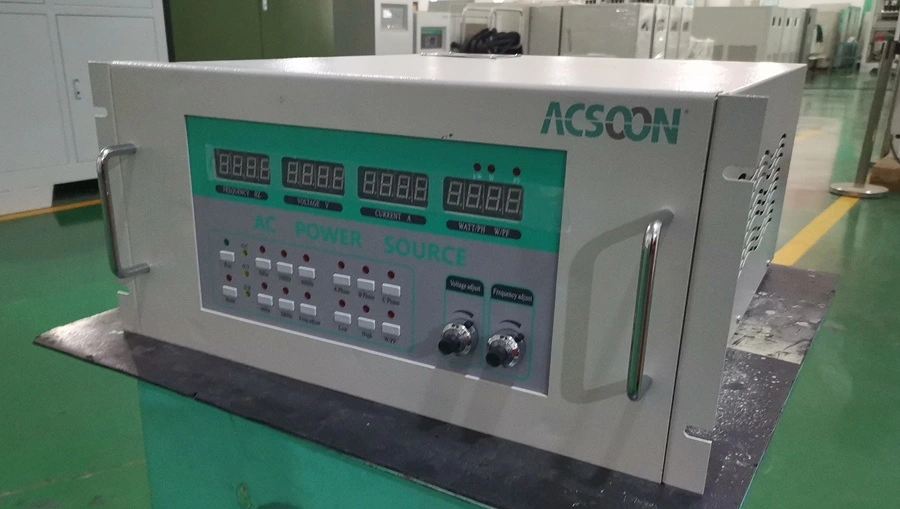

Advanced semiconductors and digital control systems provide accurate frequency and voltage regulation in solid-state frequency converters, the latest power conversion technology. This technology is demonstrated by the ACSOON AF400M-330002, which delivers 2KVA with precision and control flexibility.

Here are the core advantages of solid-state technology:

• Precise Control: Variable input voltage, output voltage, and frequency adjustment capabilities with control voltage error management
• Enhanced Protection: Comprehensive short circuit protection at output terminals with built-in safety systems
• Superior Performance: Crest factor of 1.414±3% ensuring clean power delivery for sensitive avionics equipment
• Mobility Features: Integrated trolley design with IP54 protection grade for demanding operational environments

These technological advantages effectively solve critical power quality challenges in aviation applications, providing stable and reliable electrical power for aircraft systems and testing equipment.

Aerospace Industry Certifications and Standards

Aviation power systems must meet strict international safety, performance, and electromagnetic compatibility standards. These certifications ensure 400hz power supply aircraft meet commercial and military aircraft standards. DO-160 for environmental testing, MIL-STD for military uses, and international aviation authority regulations are important.

Comprehensive testing methodologies assess power quality, harmonic distortion, transient responsiveness, and environmental resilience to verify compliance. Manufacturers must perform consistently under aviation-specific temperature, humidity, and vibration profiles.

Comparative Analysis: 400Hz Power Supply Versus Other Frequencies and Alternatives

Technical Benefits Over Traditional Power Systems

In aerospace applications, 400Hz aircraft power systems outperform 50Hz/60Hz alternatives. Transformers and inductors need 87% less iron core material to perform similarly due to higher frequency operation. This weight reduction boosts fuel economy and payload.

Power quality benefits from 400Hz systems because the higher frequency naturally reduces electrical noise and regulates voltage under dynamic load conditions. Radar systems and electronic warfare equipment use 400Hz systems for power modifications due to their fast reaction.

Commercial and Military Application Requirements

Commercial aviation chooses power systems based on cost, reliability, and maintenance. Airlines need 400Hz ground power units that simplify operations and perform well in various environments. Modern solid-state units meet these needs with their portability and usability.

Military applications require high environmental resilience, electromagnetic hardening, and operational security. Defence contractors and procurement agencies prioritise equipment that functions well in severe environments and can be deployed quickly. Advanced devices like the AF400M-330002 meet these military needs with IP54 protection and sturdy construction.

Procurement Insights: Selecting and Buying 400Hz Power Supplies for Aircraft

Performance Criteria and Reliability Metrics

A successful airplane power system purchase demands meticulous technical specification evaluation that matches operational needs. Power ratings must account for peak demand scenarios and safety margins to prevent system overload during demanding activities.

Voltage control accuracy is another important selection criterion for sensitive avionics equipment, which needs steady power delivery within narrow tolerance bands. Modern solid-state devices regulate better than rotary systems and can be programmed to meet aircraft needs.

Supply Chain Dynamics and Manufacturer Selection

Global aerospace power supply manufacturers have aviation experience. Beyond product specs, procurement managers must assess supplier capabilities, including technical assistance, spare parts inventory, and customization.

With over 15 years of power conversion experience and an emphasis on aviation applications, Xi'an Jerrystar Instrument Co., Ltd. takes a holistic approach to aerospace power supply manufacture. Their ACSOON products meet stringent aerospace quality and reliability standards.

Product reliability and support depend on manufacturing facility capabilities,s including quality management systems and certification compliance. Suppliers with dedicated aerospace production lines and extensive testing ensure product quality.

Future Trends and Optimization in 400Hz Aircraft Power Systems

Emerging Technologies and Advanced Power Electronics

400Hz airplane power systems continue to evolve with wide-bandgap semiconductors, powerful digital control algorithms, and intelligent monitoring systems. Next-generation power converters with higher performance can use silicon carbide and gallium nitride devices, which are more efficient and smaller than silicon-based components.

Strategic Procurement and OEM Partnership Considerations

Successful long-term procurement plans demand manufacturers who invest in technology and customer service. As aircraft systems become more complex, tailored solutions for niche applications become more crucial.

After worldwide interruptions, procurement teams prioritize suppliers with ample inventory and reliable delivery. Manufacturing and strategic inventory management ensure immediate availability.

Company Introduction & Product Services

Xi'an Jerrystar Instrument Co., Ltd stands as a leading manufacturer in the aerospace power supply sector, specializing in comprehensive 400hz power supply aircraft conversion solutions for aviation, military, marine, and laboratory testing applications. Our 15+ years of expertise in power conversion technology have established ACSOON as a trusted brand among aerospace professionals worldwide.

Our facility spans 5,000-10,000 square meters in Xi'an, China, featuring dedicated production lines for aviation and military power systems. This specialized focus enables us to maintain rigorous quality standards while offering the customization capabilities essential for diverse aerospace applications.

The ACSOON AF400M-330002 represents our commitment to next-generation aircraft power solutions, featuring:

• 2KVA power rating with 3-phase 115V/200V output at precise 400Hz frequency
• Solid-state technology with mobile trolley design for operational flexibility
• Variable input/output voltage and frequency capabilities for diverse applications
• IP54 protection grade ensures reliable performance in demanding environments
• Comprehensive protection systems, including short circuit and voltage error control

Our value-added services include custom engineering solutions, accelerated delivery for urgent requirements, and comprehensive technical support throughout the product lifecycle. We maintain adequate inventory levels to address immediate needs while offering OEM partnerships for specialized applications.

Conclusion

Next-generation 400Hz power supply aircraft systems continue evolving to meet the demanding requirements of modern aviation operations. The transition to solid-state technology offers enhanced performance, improved reliability, and greater operational flexibility compared to traditional rotary systems. Successful procurement requires careful evaluation of technical specifications, supplier capabilities, and long-term support commitments. The combination of advanced power electronics, intelligent control systems, and comprehensive protection features positions modern 400Hz units as essential components in aerospace electrical infrastructure, supporting both current operational needs and future technological developments.

FAQ

Why do aircraft use 400Hz instead of standard 50Hz or 60Hz power?

Aircraft employ 400Hz power systems primarily for weight reduction and space efficiency. The higher frequency allows electrical components like transformers and inductors to achieve the same power handling capacity while using significantly less magnetic core material. This results in lighter, more compact components essential for aerospace weight constraints while maintaining excellent power quality for sensitive avionics equipment.

How do you ensure compliance with aviation industry standards?

Compliance verification involves comprehensive testing protocols that evaluate power quality, electromagnetic compatibility, environmental resilience, and safety characteristics. Reputable manufacturers like Jerrystar maintain quality management systems that address standards such as DO-160, MIL-STD specifications, and international aviation authority requirements. Documentation and certification records provide traceability throughout the manufacturing and testing process.

Can 400Hz power supplies be customized for specialized military applications?

Yes, advanced manufacturers offer extensive customization capabilities for specialized military requirements. Customization options include modified voltage outputs, enhanced environmental protection, electromagnetic hardening, and specialized control interfaces. The ACSOON brand supports OEM partnerships that enable tailored solutions for unique operational requirements while maintaining compliance with military specifications.

Partner with JERRYSTAR for Advanced Aircraft Power Solutions

Ready to enhance your aircraft operations with cutting-edge 400Hz power supply aircraft technology? JERRYSTAR delivers proven expertise in aerospace power conversion, backed by 15+ years of specialized experience and comprehensive technical support. Our ACSOON AF400M-330002 units provide the reliability and performance essential for critical aviation applications, from ground support operations to avionics testing and radar equipment validation. Contact our technical specialists at acpower@acsoonpower.com to discuss your specific requirements and discover how our 400hz power supply aircraft manufacturer capabilities can optimize your operational efficiency with custom solutions and rapid delivery.

References

1. Society of Automotive Engineers. "Aerospace Recommended Practice for Aircraft Electrical Power Characteristics and Utilization." SAE International Standards, 2019.

2. Federal Aviation Administration. "Advisory Circular on Aircraft Electrical and Electronic System Lightning Protection." Department of Transportation Technical Publication, 2020.

3. Institute of Electrical and Electronics Engineers. "Standard for Aircraft Electric Systems - 400Hz Power Generation and Distribution." IEEE Aerospace and Electronic Systems Society, 2021.

4. International Civil Aviation Organization. "Standards and Recommended Practices for Aircraft Electrical Systems." ICAO Technical Manual, 2022.

5. Military Handbook. "Power Supply Design Guidelines for Aerospace Applications." Department of Defense Technical Standards, 2020.

6. Aircraft Electronics Association. "Best Practices for Ground Support Equipment Power Systems." AEA Technical Bulletin, 2023.
