How do 400 Hz frequency converters deliver clean, reliable output power?

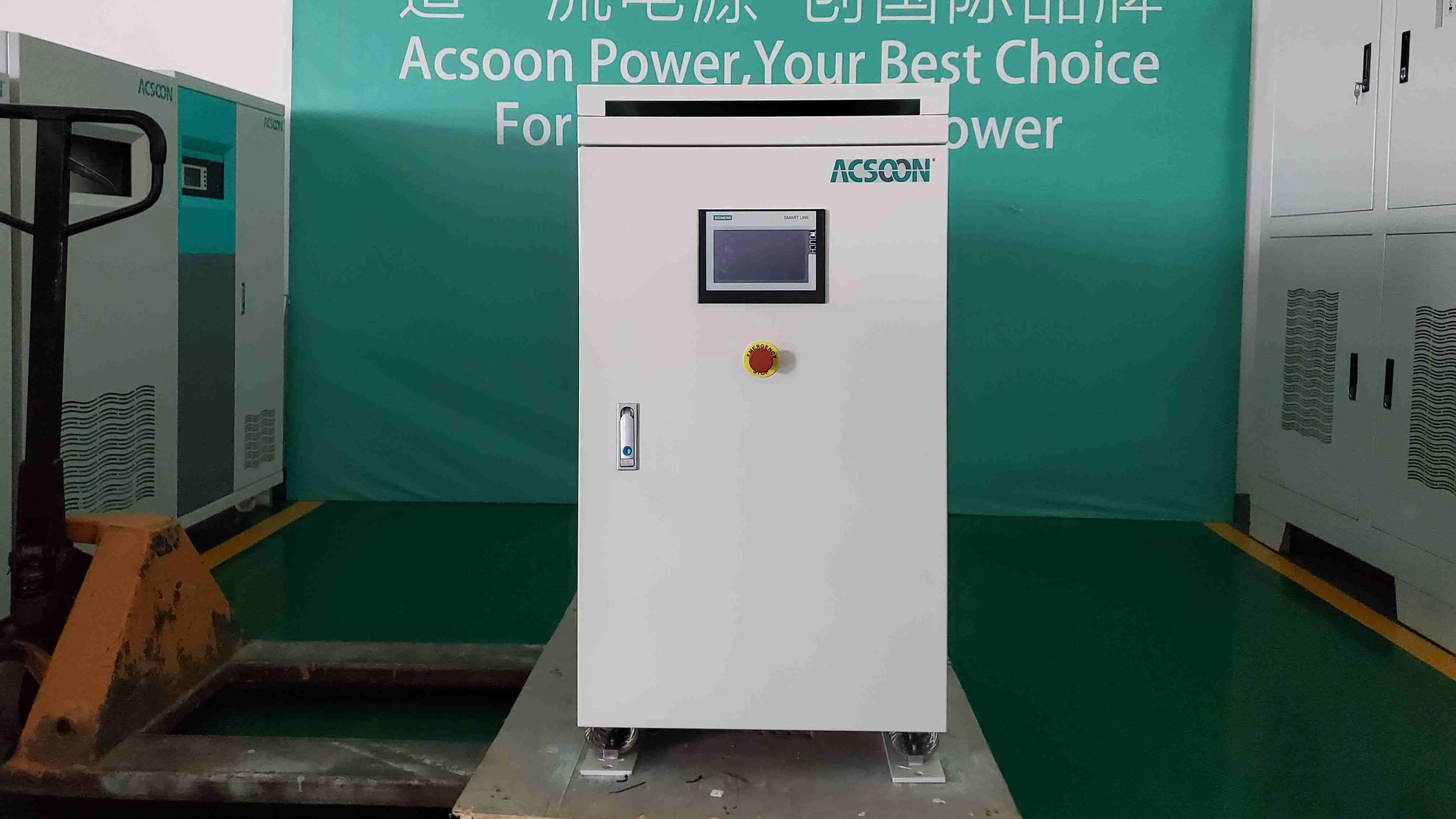

Power that is clean and reliable is needed for many things, and 400 Hz frequency converters are very important for the aviation and sensitive electronic manufacturing equipment businesses. These specialized devices convert standard 50/60 Hz power to precise 400 Hz power, ensuring optimal performance and longevity of connected equipment. There are not enough words to describe how important clean power is. Power source fluctuations or distortions can cause equipment to stop working, be less efficient, or even damage sensitive parts. 400 Hz frequency converters, such as the ACSOON AF400M-330075 model, are designed to address these challenges by providing stable, high-quality power output. With advanced filtering, strong protection, and exact voltage regulation, these converters make sure that the power sent to important systems is always clean and safe. They are rigid enough to meet the needs of current electronics manufacturing and aviation.
What are the key components of a 400 Hz frequency converter?
Input Stage and Rectification
The input stage of a 400 Hz frequency converter is designed to accept a wide range of input voltages and frequencies, typically 3-phase 208V-480V at 50/60 Hz. The converter can be used in many work settings because of this. The input stage incorporates advanced filtering techniques to remove any incoming power disturbances. Following the input stage, the rectification process converts the AC input to DC. High-quality rectifiers are used in 400 Hz frequency converters to ensure efficient and clean conversion, minimizing harmonic distortion. This stage is very important for making sure that the next stage's inverter has a stable DC bus voltage.
Inverter and Output Filtering
The heart of a 400 Hz frequency converter is its inverter stage. Modern converters, like the ACSOON AF400M-330075, utilize advanced semiconductor technology to convert the DC bus voltage back to AC at the desired 400 Hz frequency To make a clean uniform output, this process uses complex pulse-width modulation (PWM) methods. After the inverter step, there is full output filtering that makes the waveform even better by removing any harmonics and making sure there is only a 400 Hz sine wave. This output that has been screened is very important for sensitive equipment used to make electronics that needs stable, accurate power.
Control and Protection Systems
400 Hz frequency converters incorporate advanced control and protection systems to maintain output quality and safeguard both the converter and connected equipment. Microprocessor-based control systems keep an eye on and change how the converter works all the time, making sure it works at its best under all kinds of load situations. Some of these systems, like the ACSOON model, also let you watch and control them from afar using RS232 and RS485 interfaces. Overcurrent, overvoltage, and thermal security are some of the ways that devices are protected. These can be done with both hardware and software. These many safety features make sure that the 400 Hz frequency converter works well and lasts a long time. This makes it perfect for use in sensitive electronic manufacturing settings where reliability is important.
How does a 400 Hz frequency converter maintain power quality?
Voltage Regulation and Stability
Consistent voltage levels are very important for making sure that sensitive electrical equipment works right. 400 Hz frequency converters employ sophisticated voltage regulation techniques to ensure that the output voltage remains stable regardless of input fluctuations or load variations. This is done by keeping an eye on the output voltage all the time and making quick changes to the inverter stage. Advanced models like the ACSOON AF400M-330075 can maintain tight voltage regulation, typically within ±1% of the nominal value. This level of steadiness is important for sensitive equipment used to make electronics, because even small changes in voltage can cause problems with the quality of the equipment or cause it to stop working.
Harmonic Distortion Mitigation
Harmonic distortion can significantly impact the performance and lifespan of electronic equipment. 400 Hz frequency converters are designed to minimize harmonic distortion in their output power. Advanced inverter designs, PWM methods, and output filtering work together to make this possible. The goal is to achieve a Total Harmonic Distortion (THD) of less than 3%, ensuring that the power delivered to sensitive equipment is as clean as possible. By lowering harmonic distortion, 400 Hz frequency converters help keep linked devices from overheating, getting more electromagnetic interference, and working less efficiently.
Transient Response and Load Handling
One important part of keeping power quality is being able to handle transient events and rapid changes in load. 400 Hz frequency converters are engineered to respond quickly to load variations, ensuring that the output voltage and frequency remain stable even during rapid load changes. This is particularly important in applications where equipment may be frequently switched on and off or where load demands can fluctuate significantly. Advanced control algorithms in the converter continuously monitor the load and make instantaneous adjustments to maintain optimal power quality. Features like soft-start further reduce inrush currents, making the power system even more dependable and steady, which is especially important in delicate electronic production environments.
What are the applications and benefits of using 400 Hz frequency converters?
Aviation and Aerospace Industry
The aviation and aerospace industry is one of the primary users of 400 Hz power systems. Aircraft electrical systems are designed to operate at 400 Hz, which allows for the use of smaller and lighter electrical components compared to 50/60 Hz systems. 400 Hz frequency converters are an important part of ground support tools because they give aircraft systems the power they need for maintenance and getting ready for takeoff. Aircraft rely on clean, steady power that meets stringent industry standards, and these converters guarantee it. Ensuring the safety and seamless operation of airports and aerospace facilities globally relies on the dependability and precision of 400 Hz converters.
Sensitive Electronic Manufacturing
In the realm of sensitive electronic manufacturing, 400 Hz frequency converters offer significant advantages. Many precision manufacturing processes require extremely stable and clean power to ensure product quality and consistency. The ACSOON AF400M-330075, for instance, is specifically designed for such applications. The higher frequency makes it easier to precisely control the manufacturing equipment, which leads to better product quality and fewer defects. Because it reduces strain on the electrical components of costly industrial equipment, clean power production also extends the life of such equipment. In this field, using 400 Hz power can boost output, cut down on downtime, and give businesses a competitive edge in the market.
Military and Naval Applications
Strong, dependable power systems that can function in harsh settings are frequently needed for military and naval applications. 400 Hz frequency converters are widely used in these sectors due to their ability to provide stable power in various conditions. These converters are very important to the Navy's weapon, communication, and navigation devices. In military ground applications, 400 Hz power is used for mobile command centers, radar systems, and other sensitive electronic equipment. When limited room and energy are at a premium, 400 Hz systems shine because to their small footprint and great efficiency. In addition, current 400 Hz converters guarantee uninterrupted operation in mission-critical situations thanks to their enhanced protective features and dependability.
Conclusion
A developing number of mission-critical applications depend on the clean, solid control that 400 Hz recurrence converters offer. Underwater, in airplanes, and in military applications—not to mention delicate electronic generation—these converters are ideal due to their dependability, efficiency, and stability. Power quality is ensured by 400 Hz converters by the utilize of cutting-edge innovation in input correction, inverter plan, and yield sifting, as well as complex control and security frameworks. With more and more industrial applications requiring more precise and reliable power supply, the 400 Hz frequency converter market is sure to see further advancements in the near future.
For those seeking high-quality 400 Hz frequency converters, Xi'an Jerrystar Instrument Co., Ltd specializes in ACSOON brand power converters for various applications including aviation, industry, marine, and lab testing. Manufacturing and trading are their key areas of expertise; they provide bespoke solutions and have sufficient stock to ensure fast delivery. Their factory, located at 1688 Chama Avenue, Jinghe New Town, Xixian New District, Xi'an City, Shaanxi Province, China, spans 5,000-10,000 square meters. For more information or inquiries, contact them at acpower@acsoonpower.com.
