What features define a rugged power supply 115 V 400 Hz system?
In the realm of power supply systems, a rugged Power supply 115v 400Hz stands out as a crucial component in various high-performance applications. These specialist power supplies are designed to offer reliable and constant electrical power in challenging conditions, particularly in aerospace, military, and industrial sectors. When compared to conventional commercial power supplies, these systems stand out due to their 115 V output and 400 Hz frequency combination, which offers space, weight, and efficiency benefits. By dissecting a robust Power supply 115v 400Hz system, we may learn more about the features that are so important for critical tasks. Extreme environments can't dampen the performance of these power supplies, thanks to their sturdy construction and improved electrical performance.
What are the key electrical specifications of a 115 V 400 Hz power supply?
Input Voltage and Frequency Requirements
A rugged 115 V 400 Hz power supply system, such as the ACSOON AF400M-330100 model, typically accepts a wide range of input voltages and frequencies. The ability to adjust to diverse power sources in different places and for varied uses depends on this adaptability. For instance, the AF400M-330100 can handle a three-phase input voltage ranging from 208V to 480V at 60Hz. There is no need for further voltage conversion gear because the power supply is versatile enough to be used in a variety of scenarios. These power supplies are great for global operations since they are adaptable to different input voltages, so you can use them anywhere, no matter where you are.
Output Voltage Stability and Frequency Accuracy
One of the defining features of a rugged Power supply 115v 400Hz is its ability to maintain a stable output voltage and precise frequency. The output voltage of 115V must be tightly regulated to ensure the proper functioning of connected equipment. Similarly, the 400 Hz frequency must be accurately maintained, as many aerospace and military systems are designed to operate specifically at this frequency. High-quality Power supply 115v 400Hz units like the AF400M-330100 often boast low harmonic distortion (typically less than 3%) and a pure sine wave output. To charge sensitive electrical equipment without disturbing them or causing any interference that could compromise their performance or reliability, these attributes are essential.
Power Rating and Efficiency Considerations
The power rating of a 115 V 400 Hz power supply is a critical specification that determines its capacity to support connected loads. For example, the AF400M-330100 boasts a substantial 100kVA power rating, making it suitable for powering multiple devices or high-demand systems. Another important factor is efficiency, since these power sources are often used in places where saving energy is important. Modern rugged power supplies are designed to maximize efficiency, converting input power to the required 115 V 400 Hz output with minimal losses. It is especially crucial to decrease heat generation in tight or enclosed places where thermal management can be problematic, and this efficiency not only reduces operational costs but does just that.
How does the physical design contribute to the ruggedness of a 115 V 400 Hz power supply?
Robust Construction and Materials

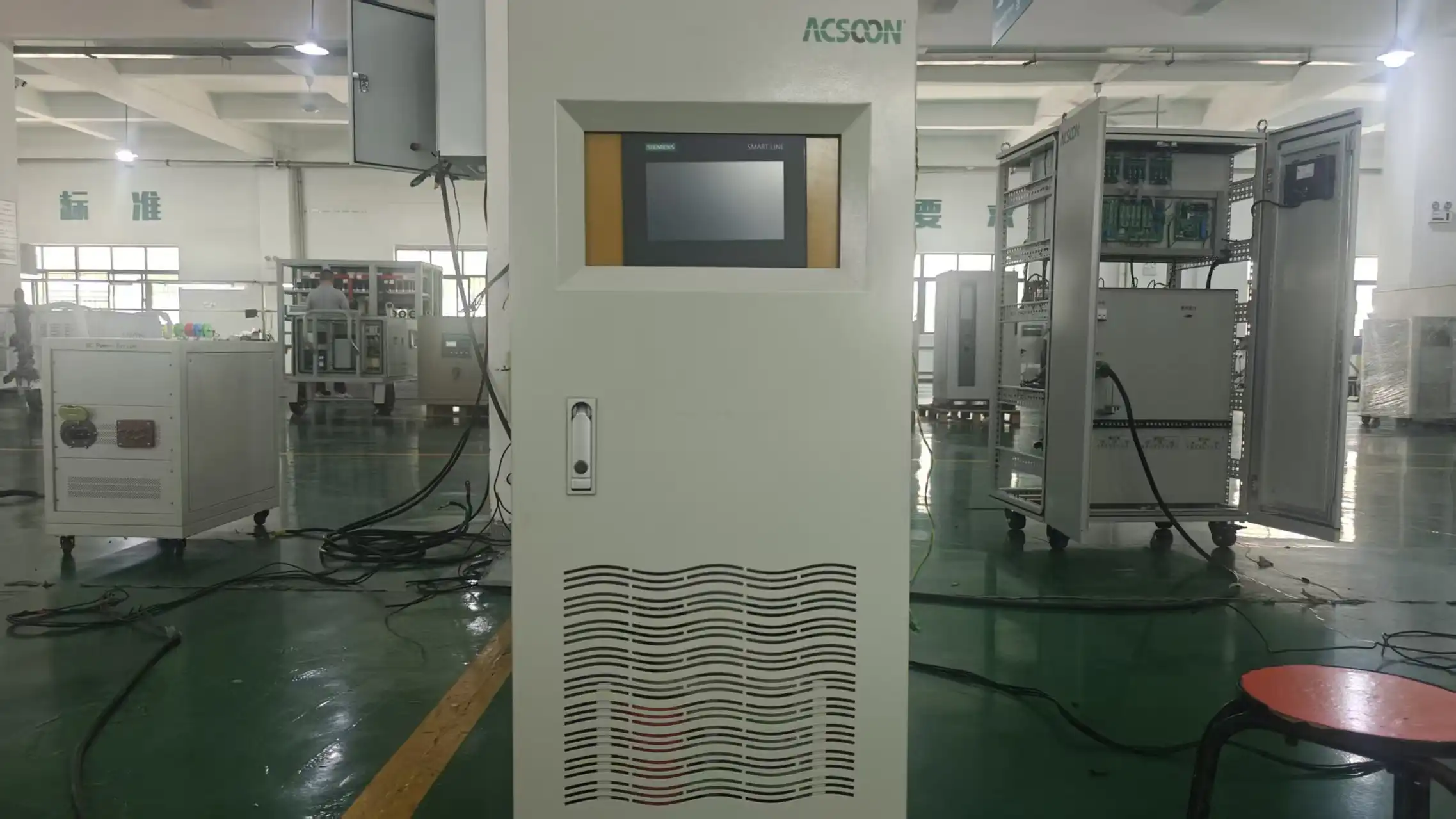

The physical design of a rugged 115 V 400 Hz power supply plays a crucial role in its ability to withstand harsh environments. Most of the time, these units are made of high-quality materials that don't rust or break down easily in harsh conditions. For instance, the AF400M-330100 model features an upright-mounted design with wheels, combining durability with mobility .In order to absorb shocks and safeguard interior components, the chassis is typically constructed of strong metals or reinforced polymers. For use in aircraft or military vehicles, it is crucial that interior components be securely mounted so they do not move about even when subjected to extreme vibration or shock.
Cooling Systems and Thermal Management
Effective thermal management is crucial for maintaining the reliability and longevity of a Power supply 115v 400Hz. Often, these systems have advanced cooling systems built in to get rid of the heat they make while they're working. This may include high-efficiency fans, heat sinks, or even liquid cooling systems in some high-power models. The AF400M-330100 Power supply 115v 400Hz, for example, is designed for silent operation, indicating an efficient cooling system that minimizes noise while maintaining optimal operating temperatures. Proper thermal management not only keeps the Power supply 115v 400Hz internal parts safe, but it also makes it more efficient and reliable, especially in high-temperature settings or situations where it is used all the time.
Environmental Protection and Ingress Rating
A key aspect of ruggedness in 115 V 400 Hz power supplies is their ability to resist environmental factors such as dust, moisture, and particulates. This is typically quantified by an Ingress Protection (IP) rating. For example, the AF400M-330100 has an IP21 rating, indicating protection against objects larger than 12.5 mm and vertically falling water drops. Higher IP ratings may be available for more demanding environments.These power supplies also usually have sealed housings, protective coatings, and special connections to keep outside elements that could damage the electronics inside from getting in. This amount of protection makes sure that the device will work reliably in a wide range of settings, from dusty factories to humid coastal areas.
What advanced features enhance the functionality of modern 115 V 400 Hz power supplies?
EMC Compatibility and Isolation
Modern 115 V 400 Hz power supplies, like the ACSOON AF400M-330100, are designed with advanced electromagnetic compatibility (EMC) features. This ensures that the power supply does not interfere with other electronic equipment and is itself resistant to electromagnetic interference. When a lot of electrical systems are close to each other, like in airplanes or military bases, EMC compatibility is very important. Along with that, a lot of rugged power sources have isolated outputs that protect sensitive equipment even more. This separation helps keep ground loops from happening and can shield linked devices from voltage spikes or other strange electrical events that might happen in the power source or input source.
Monitoring and Control Capabilities
Advanced Power supply 115v 400Hz systems often come equipped with sophisticated monitoring and control capabilities. These features let workers keep a close eye on how the Power supply 115v 400Hz is working and make changes as needed. High-end models often have digital displays, interfaces for remote tracking, and diagnostic systems that are built right in. These features let you keep an eye on output voltage, current, frequency, and other important factors in real time. Some Power supply 115v 400Hz systems may also have programmable parts that let users set limits on power and frequency, set up alarms, or even plan when the system should run. These advanced control options make the Power supply 115v 400Hz more flexible and reliable, so it can be used for many things, from supporting important infrastructure to precise instruments.
Scalability and Parallel Operation
Many modern 115 V 400 Hz power supplies are designed with scalability in mind, allowing for parallel operation to increase overall power capacity. This feature is especially helpful in situations where the power needs may change or grow over time based on the load that is connected. For instance, multiple units of the AF400M-330100 could potentially be configured to work in parallel, providing a higher total power output while maintaining the 115 V 400 Hz specifications. This ability to grow or shrink gives system designers more options and can back up important apps. Parallel operation also lets you "hot-swap" units for repair or upgrades without turning off the power to the connected systems, which is very important in places where continuous operation is needed.
Conclusion
Rugged Power supply 115v 400Hz systems are specialized units designed to meet the demanding requirements of aerospace, military, and industrial applications. Their most important features are strong electrical specs, long-lasting construction, and advanced functions that make sure Power supply 115v 400Hz works reliably in harsh conditions. These power sources have the performance and dependability needed for important tasks. They can handle different input voltages and keep the Power supply 115v 400Hz output stable with low harmonic distortion. We can expect more improvements in efficiency, scalability, and smart control features as technology keeps getting better. This will make Power supply 115v 400Hz even more important for high-performance uses.
For those seeking high-quality 115 V 400 Hz power supplies, Xi'an Jerrystar Instrument Co., Ltd. focuses on ACSOON brand power converters for a wide range of uses, such as in aviation, industry, marine, and lab tests. They focus on selling and making things, and the things they sell include voltage and frequency stabilizers, ground power units, different frequency converters, and 400 Hz static frequency converters. Their 5,000-10,000 square meter facility in Xi'an City, Shaanxi Province, China, allows them to maintain adequate inventory for quick delivery and support custom-made solutions. For more information or inquiries, interested parties can contact them at acpower@acsoonpower.com.
