How Efficient Is a Frequency Converter 50Hz to 400Hz in Real Applications?

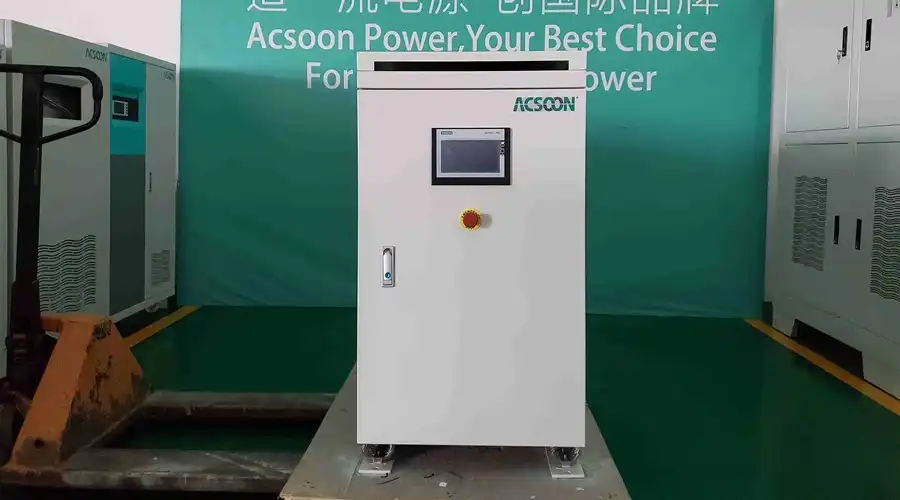

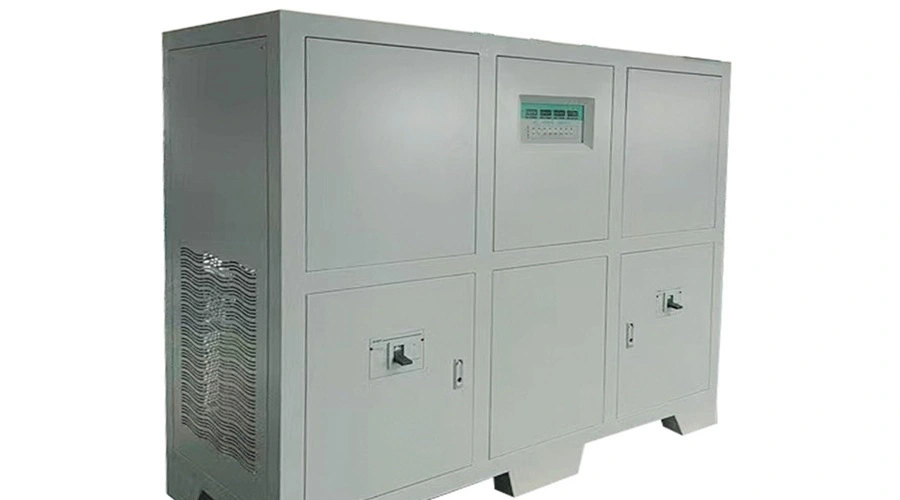

These days, frequency converters are very important in industry and aircraft settings, especially when changing power from normal grid rates to specific high-frequency needs. Many businesses are very interested in how well a frequency converter 50Hz to 400Hz works. These converters are very important in many fields, like industry, flight, and the military, where high-frequency power is needed for technology to work at its best. The ACSOON AF400M-310150 type, which is a 150kVA static frequency converter, is an example of the most advanced technology in this area. This frequency converter, 50Hz to 400Hz can handle a wide range of input voltages (208V–480V) and change frequencies from 50Hz to 400Hz. It is flexible and efficient, which are qualities that current users need. When we talk more about how well these converters work, we'll talk about their benefits, how they can be used, and the technology advances that have made them necessary in today's business world.
What are the Key Factors Affecting the Efficiency of a 50Hz to 400Hz Frequency Converter?
Power Electronics and Semiconductor Technology
The quality and layout of the power electronics parts in a frequency converter 50Hz to 400Hz have a big effect on how well it works. A lot of new semiconductor technology, like high-performance IGBTs (Insulated Gate Bipolar Transistors) or MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors), is needed to cut down on switching losses and make converters work better overall. The ACSOON AF400M-310150 type has cutting-edge power electronics that make sure it works perfectly. With these parts, switching speeds can be faster and on-state resistance can be lower. This means that less power is lost during the frequency conversion process. Using complex control methods and PWM (Pulse Width Modulation) techniques improves the converter's performance even more by making the switching patterns more efficient and lowering the harmonic distortion in the output signal.
Cooling Systems and Thermal Management
Keeping a frequency converter 50Hz to 400Hz working well requires careful control of its heat. As a result of its advanced cooling system, the ACSOON AF400M-310150 model consistently performs well and lasts a long time. Improving effectiveness and extending the life of the converter's parts are both benefits of good temperature control. By keeping heat under control, the converter can handle higher power levels without losing its accuracy. Especially important in situations like moving production lines, which often run continuously with changing loads. While designing a cooling system, it's important to keep size, weight, and noise levels in mind, especially in situations where room is limited or noise levels need to be kept low.
Power Factor Correction and Harmonic Mitigation
Maintaining a high power factor and reducing harmonic distortion are important parts of how well a frequency converter works. The ACSOON AF400M-310150 has advanced power factor correction (PFC) circuits and distortion filters that make sure the input current waveform closely follows the voltage waveform. This gives the power factor a value close to 1. This not only makes the process of converting power more efficient, but it also makes the facilities for the power source less stressed. Some methods, like active or inactive filtering, are used to lower the total harmonic distortion (THD) in both the input and output currents. By lowering harmonics, the converter lowers the losses in linked devices and raises the quality of the power sent to important loads. These features are especially helpful in situations where power quality is very important, like in military and flight systems where equipment dependability is very important.
How Does the Efficiency of a 50Hz to 400Hz Converter Impact Different Industrial Applications?
Aviation and Aerospace Industry
The performance of frequency converters from 50Hz to 400Hz is very important in the aircraft and flight industries. Systems in airplanes usually work at 400Hz, so ground power units have to change regular 50Hz or 60Hz grid power to 400Hz for repair and checks before takeoff. The ACSOON AF400M-310150 is perfect for these uses because it is very reliable and efficient. Due to its ability to work with a broad range of input voltages (208V–480V), it can be used in a variety of airport systems around the world. Low heat production and lower energy costs for airports and planes are two benefits of the converter's high efficiency. This is especially important in small areas like hangars or on board aircraft. The static nature of the converter, compared to rotating converters, also means that it needs less upkeep and is more reliable, which is very important in the extremely demanding flight environment.
Manufacturing and Industrial Processes
How well frequency converters 50Hz to 400Hz work is a big part of how productive and energy-efficient manufacturing and industry processes are as a whole. With a power level of 150kVA, the ACSOON AF400M-310150 works well in places like moving production lines. The higher frequency output (400Hz) lets smaller, lighter motors and generators be used in equipment. This makes machinery that is more compact and efficient. This is especially helpful in fields where room is limited or where weight loss is very important. Because the converter is so efficient, it also uses less energy and costs less to run in settings with ongoing output. Static converters like the AF400M-310150 also offer precise frequency control, which guarantees stable power quality. This is important for keeping product quality high and lowering equipment wear in delicate industrial processes.
Military and Defense Applications
For many uses, the military and defense industry depends on frequency translators that work well between 50Hz and 400Hz. With its sturdy build and IP21 rating for water protection, the ACSOON AF400M-310150 works well in the harsh conditions that are common in military activities. For example, 400Hz power is often used for marine equipment in the military because high-frequency electrical parts are smaller and lighter. The efficiency of the converter is very important in these situations because it affects how much energy the vessel uses overall and how much heat is generated in small areas. In mobile military sites or field operations, the converter's speed means that engines use less fuel, which increases their operating range and makes logistics easier. In mission-critical systems, where power outages or changes could have bad effects, these converters' dependability and efficiency are also very important.
What Technological Advancements Are Improving the Efficiency of 50Hz to 400Hz Frequency Converters?
Digital Control Systems and Smart Monitoring
Adding modern digital control systems to frequency translators 50Hz to 400Hz has made them much more efficient. Advanced microprocessors and digital signal processors (DSPs) are used in modern converters like the ACSOON AF400M-310150 to carry out complicated control methods. These methods let the settings of the converter be changed in real time to get the best efficiency under all kinds of load situations. Smart monitoring tools let you keep an eye on the converter's performance all the time, plan for maintenance, and do tests from afar, so it always works at its best. New technologies have made the converter not only work better, but they have also made it more reliable and easier to maintain, which are very important in industry and aircraft settings where downtime can be very expensive.
Wide Bandgap Semiconductors
More efficient frequency converters 50Hz to 400Hz are being made possible by wide bandgap semiconductors like Silicon Carbide (SiC) and Gallium Nitride (GaN). More breakdown voltage, faster switching speeds, and better heat conductivity are just a few of the better qualities these materials have over regular silicon. It is better for converters like the ACSOON AF400M-310150 to have these new chips built in because they lower switching losses, increase power efficiency, and handle heat better. For higher rates and power levels, this means that the total efficiency is better. It is possible to make smaller converters with wide bandgap semiconductors without lowering their performance. This is especially helpful in places with limited room, like on airplanes or ships.
Energy Recovery and Regenerative Systems
Frequency converters that work between 50Hz and 400Hz are getting better at what they do by adding new energy recovery and recycling systems. These systems collect and use energy that would have been lost during the change process or from the load that is linked. When there are a lot of starts and stops, like on moving production lines, regeneration systems can either feed energy back into the grid or store it for later use. This makes the total energy economy much better. Even though it's not stated that the ACSOON AF400M-310150 has this function, it is a good example of the kind of modern converter that could use these kinds of technologies. These systems not only make the converter more efficient, but they also help cut down on energy costs and make manufacturing settings more environmentally friendly. The combination of energy storage devices like supercapacitors or high-power batteries with these converters is a new trend that promises to make even better use of energy and offer backup power.
Conclusion
The efficiency of frequency converters 50Hz to 400Hz, exemplified by models like the ACSOON AF400M-310150, plays a crucial role in various industrial and aviation applications. Through advancements in power electronics, thermal management, and control systems, these converters offer high performance, reliability, and energy efficiency. Their impact spans across aviation, manufacturing, and military sectors, contributing to improved operational efficiency and reduced energy costs. As technology continues to evolve, with innovations like wide bandgap semiconductors and energy recovery systems, the efficiency and capabilities of these converters are expected to further improve, solidifying their importance in powering critical applications across diverse industries.
For more information on advanced frequency converters and custom power solutions, contact Xi'an Jerrystar Instrument Co., Ltd, specialists in ACSOON brand power converters for aviation, industry, marine, and laboratory testing applications. Reach out to them at acpower@acsoonpower.com to discuss your specific power conversion needs.
FAQ
Q: What is the main advantage of using a 400Hz system over a 50Hz system?
A: 400Hz systems allow for smaller, lighter electrical components, which is crucial in applications like aviation, where weight and space savings are important.
Q: How does the efficiency of a frequency converter impact energy costs?
A: Higher efficiency means less energy is wasted during conversion, leading to lower energy consumption and reduced operational costs.
Q: Can a 50Hz to 400Hz converter be used in reverse?
A: While some converters are designed for bidirectional operation, most 50Hz to 400Hz converters are optimized for one-way conversion and may not efficiently convert 400Hz back to 50Hz.
Q: What maintenance is required for a static frequency converter?
A: Static converters like the ACSOON AF400M-310150 typically require minimal maintenance, mainly involving regular inspections, cleaning, and occasional component replacements as per the manufacturer's guidelines.
Q: How do environmental conditions affect the efficiency of frequency converters?
A: Extreme temperatures, humidity, and dust can impact converter efficiency. Proper installation in controlled environments and adequate cooling systems are crucial for maintaining optimal performance.
