How to Convert 60Hz to 50Hz in Power Systems?

As the world becomes more linked, it's more important than ever to be able to change power between different frequency standards. One usual change is to convert 60Hz to 50Hz, which is needed for businesses and people who use tools in different areas. This process, called frequency conversion, is very important for making sure that electrical gadgets work well with each other in different world markets. Not only is it necessary to know how to convert 60Hz to 50Hz power systems, but it's also a way to grow your business and meet new customers. This post will go into great detail about frequency change, including the steps, tools, and things to think about when you convert 60Hz to 50Hz power. We'll talk about the problems that come up during this conversion process and show how new technologies, like static frequency converters, are changing the way to convert 60Hz to 50Hz power systems.

What are the main methods for converting 60Hz to 50Hz?

Rotary Frequency Converters

Traditionally, rotary frequency changers have been used to change power sources from 60Hz to 50Hz. An input frequency of 60Hz powers a motor connected to a generator that produces the output frequency of 50Hz. Despite being useful, rotating changers have some issues. Usually, they are big, noisy, and need regular upkeep because they have working parts. It depends on the rotating converter; for example, some are 70% to 85% efficient at changing 60Hz to 50Hz. Although these problems exist, rotating converters are still utilized in some situations, especially when a large amount of power is needed.

Static Frequency Converters

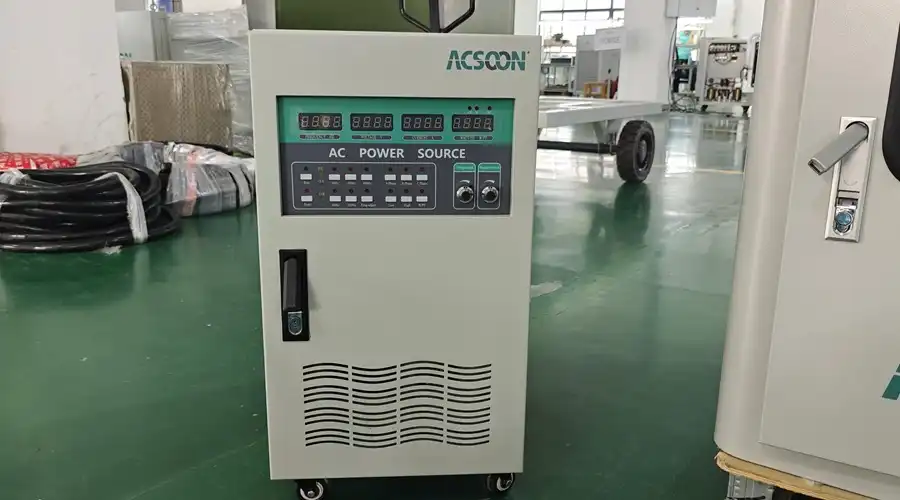

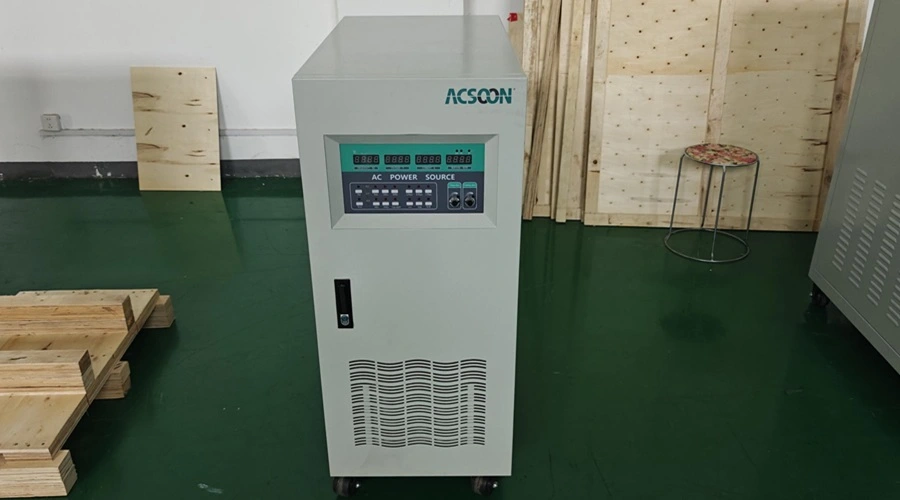

Changing from 60Hz to 50Hz is easier and faster if you use a static frequency converter to convert 60Hz to 50Hz. These solid-state gadgets don't have any parts that come and go. Use power connections to change speeds. An excellent example of a static frequency converter made for this reason is the ACSOON AF60W-330006. It can work with power between 208V and 480V at 60Hz and change it to a stable 50Hz sound. The steady form is better for going from 60Hz to 50Hz because it works better, needs less upkeep, and makes less noise. The AF60W-330006 and other new static converters often have low harmonic distortion and can work with different power sources, so they can be used anywhere in the world.

Motor-Generator Sets

Switching power sources from 60Hz to 50Hz is also possible with motor-generator sets, which are often written as "MG sets." Motors that run on the input frequency (60Hz) are physically connected to generators that make frequencies that are needed (50Hz). Although MG sets work in a way that is similar to rotary converters, they are usually more adaptable and can be made to fit specific needs. In the case of changing from 60Hz to 50Hz, MG sets can be customized to meet the exact power and frequency needed. Similar to rotary converters, though, they need to be maintained because they have moving parts that aren't always as effective as steady options. Selecting between an MG set and a static converter like the ACSOON AF60W-330006 for changing from 60Hz to 50Hz often relies on things like power requirements, placement location, and the nature of the application.

What are the key considerations when selecting a 60Hz to 50Hz converter?

Power Rating and Capacity

One of the most important things to think about when choosing a converter from 60Hz to 50Hz is how much power it has and what it can do. Everything that is hooked up to the converter needs to be strong enough to hold the whole load. One type, ACSOON AF60W-330006, has a power level of 6kVA and can be used for a number of small to medium-sized tasks. Just before you pick a charger, you should know how much power your machine needs. It's not possible to improve the converter and the gear it connects to if the capacity isn't thought through well. It might not work as well, and waste of money to buy an adapter that is too big to change from 60Hz to 50Hz. It's important to think about both the present and the future power needs to make the best choice.

Input and Output Voltage Range

If you want to buy a 60Hz to 50Hz converter, you should also pay attention to the input and output voltage range. Both the available input voltage and the output voltage that your equipment needs must be compatible with the converter that you choose. That being said, the ACSOON AF60W-330006 can take in voltages from 208V to 480V at 60Hz and convert 60Hz to 50Hz, sending out voltages from the same range at 50Hz. People who run businesses in more than one area or who want to grow abroad will benefit the most from this freedom. It is important to think about both the current power needs and possible future needs when changing from 60Hz to 50Hz. It's easier to keep up with changes in your working surroundings when you don't have to buy as many new tools or converters when you have ones with a wide voltage range.

Efficiency and Harmonic Distortion

Efficiency and harmonic distortion are crucial aspects to consider when selecting a 60Hz to 50Hz converter. High efficiency ensures that minimal power is lost during the conversion process, leading to lower operating costs and reduced heat generation. The ACSOON AF60W-330006 boasts high efficiency in its 60Hz to 50Hz conversion, minimizing energy waste. Additionally, low harmonic distortion is essential for maintaining power quality and protecting sensitive equipment. Harmonic distortion can cause issues such as overheating in transformers and motors, increased losses in electrical systems, and interference with electronic devices. When converting from 60Hz to 50Hz, a converter with low harmonic distortion, like the AF60W-330006, ensures that the output power is clean and suitable for a wide range of applications, from industrial machinery to sensitive laboratory equipment.

How does frequency conversion impact equipment performance and lifespan?

Effects on Motor Speed and Torque

Any change from 60Hz to 50Hz can make a motor work much better or worse. The thing that makes most AC engines different is their frequency. This means that many motors slow down by 17%, or 0.833 frequencies, when the frequency drops from 60Hz to 50Hz. People who move things like fans, pumps, and belts don't work as well when you slow them down. The motor might not work as well or have enough power if it slows down. It works better if you use an ACSOON AF60W-330006 or another good frequency converter to get a steady 50Hz output. The motor won't break when the frequency goes from 60Hz to 50Hz because of these steps.

Impact on Electrical Components

Different electrical parts in a system can also be affected when you convert 60Hz to 50Hz. When used at a frequency that is different from what it was designed for, transformers may have more core losses and heat. To keep working at their best at the new frequency, capacitors used for power factor adjustment may need to be adjusted or changed. Circuit switches and other safety devices may need to be checked again to make sure they work right at 50Hz. Many times, these effects are lessened when using a static frequency converter like the ACSOON AF60W-330006 to convert 60Hz to 50Hz because it gives off a clean, stable signal. The whole electrical system should still be checked out, though, to make sure that all of its parts can work safely and effectively at the new frequency.

Long-term Effects on Equipment Lifespan

Before switching from 60Hz to 50Hz, you should think about how the new frequency will affect the long-term life of the equipment. Additionally, there may still be some effects over time even if you use a good tool like the ACSOON AF60W-330006 to change things correctly and avoid issues. A lower frequency might help some motors stay cool for longer. Somewhat more current may be needed for the motor to keep the same output power at the slower speed. This could make it hotter and shorter. It depends on how fast they work, how joints and other parts wear out. When moving from 60Hz to 50Hz, make sure you keep an eye on how well your equipment is working, fix it often, and use a good converter to make the move.

Conclusion

Changing power systems to convert 60Hz to 50Hz is a difficult but necessary task for many companies that do business around the world. Whether rotary converters, static frequency converters like the ACSOON AF60W-330006, or motor-generator sets are used for conversion depends on the needs of the product and how it needs to be run. Power grade, voltage range, effectiveness, and harmonic distortion are some of the most important things to think about. Even though frequency conversion can affect how well and how long something lasts, these effects can be kept to a minimum with good planning and high-quality conversion tools. As the world's power needs change, it will become even more important to have frequency conversion options that work well and are reliable. This will make goods like the ACSOON AF60W-330006 more useful in many fields.

For more information on frequency conversion solutions and the ACSOON brand power converters, please contact Xi'an Jerrystar Instrument Co., Ltd. Specializing in power conversion for aviation, industry, marine, and laboratory testing applications, they offer a range of products including variable frequency converters, 400 Hz static frequency converters, voltage and frequency stabilizers, and ground power units. Their factory, located at 1688 Chama Avenue, Jinghe New Town, Xixian New District, Xi'an City, Shaanxi Province, China, spans 5,000-10,000 square meters. With a focus on aviation and military power systems, they support custom solutions and maintain adequate inventory for quick delivery. For inquiries, please email acpower@acsoonpower.com.

FAQ

Q: What is the main reason for converting 60Hz to 50Hz?

A: The main reason is to ensure compatibility of electrical equipment when operating in different regions with varying power standards.

Q: Can I use a 60Hz appliance in a 50Hz country without a converter?

A: It's not recommended as it can lead to poor performance, overheating, or damage to the appliance.

Q: How efficient are static frequency converters in 60Hz to 50Hz conversion?

A: Modern static frequency converters, like the ACSOON AF60W-330006, are highly efficient, often achieving over 90% efficiency.

Q: Will converting from 60Hz to 50Hz affect the power output of my equipment?

A: Yes, it can reduce motor speed by about 17% and may affect torque, which could impact overall power output.

Q: Are there any risks associated with frequency conversion?

A: If done improperly, risks include equipment damage, reduced efficiency, and increased wear on components.
