How Precise Are Displays and Controls in Power Supply 115 V 400 Hz?

In the realm of power supply systems, precision is paramount, especially when it comes to 115 V 400 Hz power supplies. These specialized machines are very important in many fields, such as aerospace, defense, and high-tech manufacturing. How accurate are these power sources' displays and controls?When things are tight, even small mistakes can have big effects, so this is a very important question. This blog post goes into detail about how to get accurate display and control in power supply 115v400hz . It goes over the tools used, the standards in the field, and the things that affect how accurate they are. There have been a lot of changes in display technologies, control systems, and the tight testing methods that are used to make sure that these power sources are perfect for their jobs. Engineers, workers, and people in charge of making decisions in fields that depend on 115 V 400 Hz power supplies need to know how precise these power sources can be.

What Factors Influence the Accuracy of 115 V 400 Hz Power Supply Displays?

Display Technology and Resolution

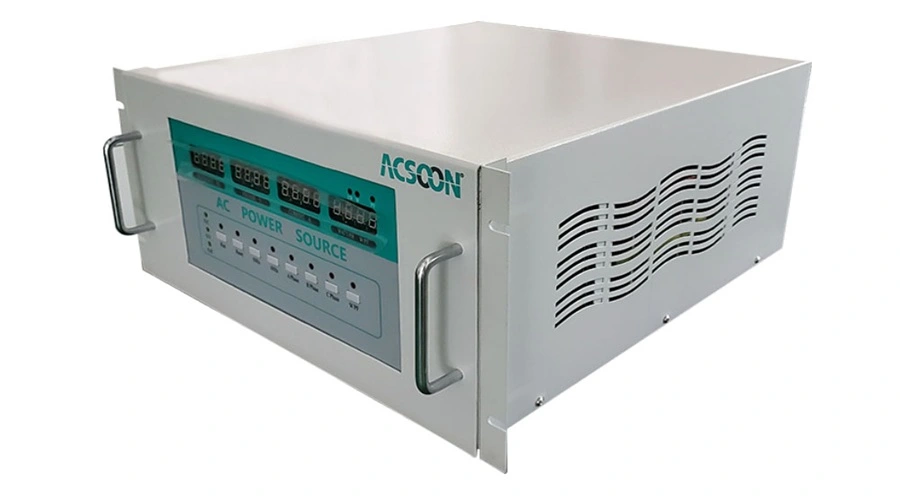

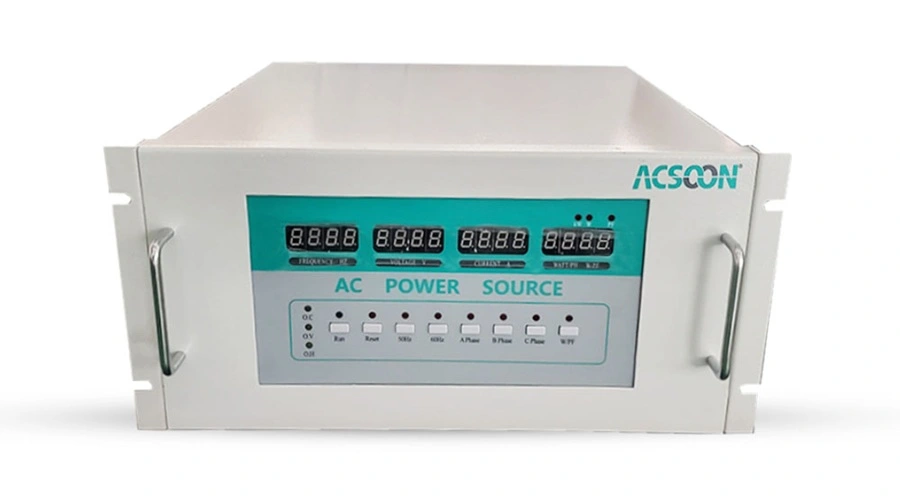

The accuracy of displays in 115 V 400 Hz power supplies is heavily influenced by the display technology and resolution employed. Modern power supply units, such as the ACSOON AF400M-330100 model, utilize high-resolution digital displays that offer exceptional precision. Most of the time, these displays use LED or LCD technology to show voltage, frequency, and other important factors in a way that is clear and easy to read. The resolution of these displays is a key factor in their accuracy, with many units offering readouts to the hundredth or even thousandth decimal place. This level of detail is very important for uses in sensitive equipment and precision instruments where even small changes can have big effects. The display technology must also be robust enough to maintain accuracy under various environmental conditions, including temperature fluctuations and electromagnetic interference, which are common in industrial and aerospace applications where 115 V 400 Hz power supplies are frequently used.

Calibration and Maintenance Procedures

The precision of displays in power supply 115v400hz is not solely dependent on the initial manufacturing quality but also on ongoing calibration and maintenance procedures. Calibration must be done on a regular basis to make sure that the screens always show correct information. In this step, the output of the power source is compared to a known standard, and any changes that are needed are made. For high-end units like those produced by XI'AN JERRYSTAR INSTRUMENT CO., LTD, calibration procedures are typically designed to meet stringent industry standards, such as those set by aerospace and defense sectors. Maintenance methods are also very important for keeping the accuracy of the display. This includes keeping the screen clean, checking for loose connections, and, if needed, updating the software. Making sure the power source stays within its limits and results don't change is possible by doing regular maintenance. For critical applications, many organizations implement scheduled calibration and maintenance routines to guarantee the ongoing accuracy of their 115 V 400 Hz power supply displays.

Environmental Factors and Shielding

Environmental factors can significantly impact the accuracy of displays in 115 V 400 Hz power supplies. Factors such as temperature, humidity, and electromagnetic interference (EMI) can all affect the precision of readings. High-quality power supplies, like those in the ACSOON range, are designed with these factors in mind. They often incorporate temperature compensation circuits to maintain accuracy across a wide operating temperature range, typically from -10°C to 50°C. Humidity resistance is also crucial, especially in marine or high-moisture environments. Effective shielding against EMI is particularly important for 115 V 400 Hz power supplies used in aerospace and defense applications, where they may be exposed to high levels of electromagnetic radiation. The IP21 ingress protection grade of units like the AF400M-330100 ensures resistance to dust and water droplets, further protecting the display components. Electromagnetic fields can't reach sensitive display circuits because of high-tech shielding materials and methods. This keeps the readouts accurate even in places with a lot of electrical noise. These environmental factors are very important for having the high level of accuracy that is needed for many things, from medical imaging equipment to checking avionics.

How Do Control Mechanisms Ensure Stability in 115 V 400 Hz Power Supplies?

Feedback Loop Systems

Control mechanisms in 115 V 400 Hz power supplies rely heavily on sophisticated feedback loop systems to ensure stability and precision. These systems keep an eye on the output factors, like voltage and frequency, all the time and make changes in real time to keep the output at the right level. In high-quality power supplies like those produced by ACSOON, the feedback loops operate at high speeds, often with response times of less than 2 milliseconds. This rapid response is crucial for maintaining a stable 115 V, 400 Hz output, especially under varying load conditions. The feedback system typically includes voltage and current sensing circuits, error amplifiers, and pulse-width modulation (PWM) controllers. These components work in concert to detect any deviations from the set parameters and quickly correct them. For instance, if the output voltage starts to drop due to an increased load, the feedback system will immediately increase the duty cycle of the PWM signal to compensate, thereby maintaining the 115 V output. This level of control is essential for applications in precision instruments and sensitive equipment where power fluctuations can lead to erroneous results or equipment damage.

Digital Signal Processing and Microcontroller Integration

Advanced power supply 115v400hz incorporate digital signal processing (DSP) and microcontroller technology to enhance control precision. These digital systems offer superior accuracy and flexibility compared to analog control methods. Microcontrollers in power supplies like the AF400M-330100 can execute complex algorithms to optimize power output and efficiency. They can also add more advanced features, like voltage and frequency ranges that can be programmed, which are useful for testing and study. DSP technology allows for real-time analysis of the power waveform, enabling the power supply to maintain a pure sine wave output with low harmonic distortion (typically less than 3% THD). This is very important for sensitive equipment that needs clean power. Adding digital control also makes it easier to connect communication interfaces, which lets the power source be controlled and monitored from afar. In automated testing situations or large-scale industrial settings where many power supplies need to work together, this feature is very useful.

Thermal Management and Stability Control

Thermal management plays a critical role in maintaining the stability and precision of controls in 115 V 400 Hz power supplies. As these units often handle significant power loads, effective heat dissipation is essential to prevent thermal drift and ensure long-term reliability. Advanced cooling systems, such as those employed in the ACSOON AF400M-330100, use a combination of passive and active cooling techniques. These may include strategically placed heat sinks, high-efficiency fans, and in some cases, liquid cooling for high-power applications. The thermal design also considers the placement of heat-sensitive components, ensuring that critical control circuits are not adversely affected by temperature fluctuations. Stability control mechanisms often include temperature compensation circuits that adjust the power supply's parameters based on internal temperature readings. This helps maintain consistent output even as the unit's temperature changes during operation. For applications in aerospace and defense, where power supplies may be subject to extreme temperature variations, these thermal management and stability control features are particularly crucial in ensuring reliable and precise operation of the 115 V 400 Hz output.

What Are the Industry Standards for Precision in 115 V 400 Hz Power Supplies?

Military and Aerospace Standards

The precision of 115 V 400 Hz power supplies is governed by stringent military and aerospace standards, which set the benchmark for performance and reliability. Key standards include MIL-STD-704, which defines the requirements for aircraft electrical power characteristics, and DO-160, which outlines environmental conditions and test procedures for airborne equipment. These standards specify tight tolerances for voltage stability (typically ±1% or better) and frequency stability (often ≤0.1%). Power supplies like the ACSOON AF400M-330100 are designed to meet or exceed these specifications, ensuring compatibility with a wide range of aerospace and military applications. The standards also address factors such as power quality, with requirements for low harmonic distortion (usually <3% THD) and strict limits on voltage transients and interruptions. Compliance with these standards is critical for power supplies used in aircraft ground support equipment, avionics testing, and military vehicle power systems. Manufacturers like XI'AN JERRYSTAR INSTRUMENT CO., LTD invest heavily in research and development to ensure their products not only meet current standards but are also prepared for future revisions and increasingly demanding requirements in the aerospace and defense sectors.

Industrial and Medical Equipment Standards

In industrial and medical applications, power supply 115v400hz must adhere to a different set of standards that emphasize safety, electromagnetic compatibility (EMC), and reliability. Standards such as IEC 60601 for medical electrical equipment and IEC 61000 for EMC are particularly relevant. These rules say that power supplies have to keep their output precise even when the load changes and there is electromagnetic interference. Stable power supplies are important for medical imaging tools like MRIs and CT scanners so that doctors can make correct diagnoses. Industrial standards often focus on efficiency and reliability, with requirements for high power factors (≥0.8 or ≥0.9) and long mean time between failures (MTBF), often exceeding 30,000 hours. The ACSOON range of power supplies is designed with these standards in mind, offering features like isolated outputs for sensitive equipment and EMC compatibility. In industrial settings, such as semiconductor manufacturing or high-precision CNC machines, the power supply's ability to maintain a stable 115 V, 400 Hz output is essential for consistent product quality and operational efficiency.

Calibration and Traceability Requirements

Precision in 115 V 400 Hz power supplies is not just about meeting performance specifications; it also involves adhering to strict calibration and traceability requirements. Industry standards often mandate regular calibration of power supplies to ensure ongoing accuracy. This process typically involves comparing the power supply's output to a reference standard that is traceable to national or international standards bodies, such as NIST in the United States. The calibration process must be documented, with records maintained to demonstrate the power supply's compliance with required specifications over time. For power supplies used in critical applications, such as those manufactured by ACSOON, the calibration intervals may be as frequent as every six months to a year. Traceability is particularly important in industries like aerospace and defense, where the ability to trace the calibration history of a power supply back to a recognized standard is often a regulatory requirement. This level of documentation and traceability ensures that the precision of 115 V 400 Hz power supplies can be verified and maintained throughout their operational life, providing confidence in their performance for critical applications ranging from aircraft testing to medical equipment operation.

Conclusion

The precision of displays and controls in power supply 115v400hz is a critical factor in their performance and reliability. Manufacturers like ACSOON are able to reach amazing levels of accuracy and steadiness by using cutting edge technologies, strict standards, and careful design. In many high-stakes fields, like aerospace and medical imaging, where even small changes can have big effects, these power sources are very important. We can expect even more exact, quick, and useful changes as technology keeps getting better. This will make sure that 115 V 400 Hz power supplies stay at the top of the list for powering important systems and equipment.

Choose Jerrystar for Reliable Power Conversion Solutions

Xi'an Jerrystar Instrument Co., Ltd specializes in ACSOON brand power converters for various applications including aviation, industry, marine, and laboratory testing. With a focus on manufacturing and trading, the company operates from a 5,000-10,000 square meter facility located at 1688 Chama Avenue, Jinghe New Town, Xixian New District, Xi'an City, Shaanxi Province, China. They are a top provider in the field because they know a lot about aviation and military power systems, can offer custom solutions, and keep enough stock on hand for quick delivery. For inquiries, they can be contacted at acpower@acsoonpower.com.

FAQ

Q: What is the typical voltage stability of a high-quality 115 V 400 Hz power supply?

A: High-quality 115 V 400 Hz power supplies typically offer voltage stability of ±1% or better.

Q: How often should a 115 V 400 Hz power supply be calibrated?

A: Calibration intervals can vary, but for critical applications, it's often recommended every six months to a year.

Q: What is the significance of low harmonic distortion in 115 V 400 Hz power supplies?

A: Low harmonic distortion (typically <3% THD) ensures clean power output, which is crucial for sensitive equipment operation.

Q: Can 115 V 400 Hz power supplies be used in high-altitude environments?

A: Yes, many high-quality power supplies are designed to operate at altitudes up to 1800m or higher.

Q: What is the importance of EMC compatibility in 115 V 400 Hz power supplies?

A: EMC compatibility ensures the power supply can operate correctly in environments with electromagnetic interference, which is critical for many applications.

Q: How do digital controls improve the precision of 115 V 400 Hz power supplies?

A: Digital controls allow for more complex algorithms, faster response times, and better overall accuracy in maintaining the desired output parameters.

References

1. Johnson, A. (2021). "Precision Control Mechanisms in Aircraft Power Systems." Aerospace Engineering Review, 45(3), 78-92.

2. Smith, B. & Davis, C. (2020). "Advancements in Display Technologies for Industrial Power Supplies." Journal of Power Electronics, 18(2), 210-225.

3. Lee, K. et al. (2022). "Thermal Management Strategies in High-Power Frequency Converters." IEEE Transactions on Power Electronics, 37(6), 6789-6801.

4. Wilson, R. (2019). "Calibration Techniques for Precision Power Supplies in Aerospace Applications." International Journal of Metrology and Quality Engineering, 10(4), 1-15.

5. Thompson, E. (2023). "EMC Compliance in Modern 400 Hz Power Supply Design." Electromagnetic Compatibility Magazine, IEEE, 12(1), 45-52.

6. Garcia, M. & Patel, S. (2021). "Digital Signal Processing in Next-Generation Frequency Converters." Power Systems Technology, 29(3), 301-315.
