28 vdc power supply: Configurations, Ranges, and Ratings
28 VDC Power supplies are very important in many places, like work, the military, and flights. In the steps that make power, they are used. A steady flow of 28 volts direct current is what these power supplies are made to give you. This much power is needed by a lot of tools and programs. Engineers, workers, and people in charge of making decisions in fields that use 28 VDC power supplies need to know about their configurations, ranges, and ratings. There are 28 VDC power supplies that will be talked about in this blog post. The different layouts, output ranges, and ratings that tell you how well they work and if they are right for a given job will be explained in detail .We'll look at how these power packs can be changed to fit different needs, like how they can be used to start an airplane or charge cell phones in different ways. We will also talk about the things that make them and use them different.
What are the common configurations of 28 VDC power supplies?
Aircraft Ground Power Units (GPUs)

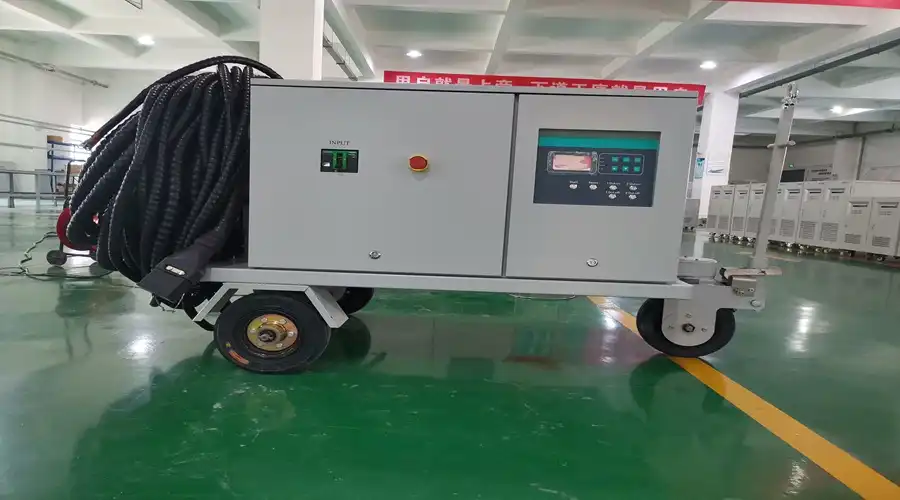

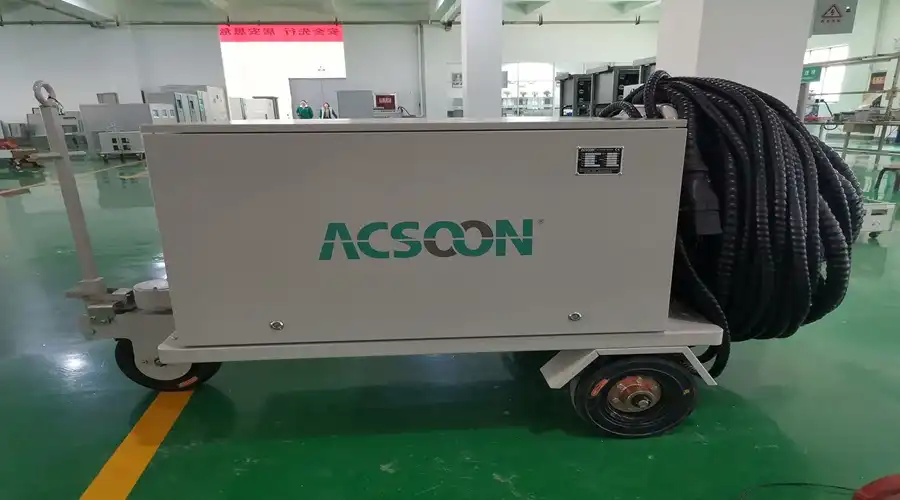

Aircraft Ground Power Units (GPUs) are one of the most common configurations for 28 VDC power supplies in the aviation industry. These units are made to power airplane systems while the plane is at the gate, so there is no need for auxiliary power units (APUs) on board. This saves fuel. A typical 28 VDC GPU, such as the ADCW-281000 model, features a three-phase 380V input at 50/60Hz and delivers a 28.5V DC output with a nominal current of 1000A and a startup current capability of up to 2000A. These power supplies are often mobile, mounted on trolleys for easy maneuverability around the airport. The IP21 ingress protection grade ensures that the unit can withstand the outdoor environment of an airport tarmac. With a 28V GPU, airlines can greatly cut down on the use of the plane's own battery, making it last longer and costing less to maintain.
Military and Defense Power Systems
In military and defense applications, 28 VDC power supplies are critical components of various systems and equipment. The strict military standards that these power supplies are built to make sure they work reliably in harsh environments and extreme circumstances. Military-grade 28 VDC power supplies often feature ruggedized construction, EMI/RFI filtering, and protection against voltage spikes and surges. They could be put to work in battleships, cars, farm tools, and even planes. The configurations can be very different, ranging from small units for soldiers' personal gear to big power systems for command and control centers. In these applications, the 28 VDC power supply must not only provide stable power but also meet specific requirements for size, weight, and power (SWaP) optimization, which is crucial for mobile and airborne platforms.
Industrial Automation Power Solutions
In the realm of industrial automation, 28 VDC power supplies are utilized to power a variety of sensors, actuators, and control systems. These power supplies are often integrated into larger control cabinets or distributed throughout a manufacturing facility. Industrial 28 VDC power supplies are designed with features such as high efficiency, wide input voltage ranges, and robust overload protection. They may also include advanced features like parallel operation capability for redundancy or increased power output. In industrial settings, these power supplies must often operate continuously in harsh environments, exposed to dust, vibrations, and temperature extremes. Therefore, industrial-grade 28 VDC power supplies are built to withstand these conditions while maintaining consistent output and high reliability. The configurations in this sector may range from DIN rail-mounted units for control panels to standalone units for larger power requirements.
How do 28 VDC power supplies differ in their voltage ranges and current ratings?
Voltage Regulation and Stability
The voltage regulation and stability of 28 VDC power supplies are critical factors that differentiate various models and configurations. High-quality power supplies, such as those offered by ACSOON, typically provide tight voltage regulation, often within ±1% or better of the nominal 28V output. This level of stability is crucial for sensitive electronic equipment and avionics systems. Advanced digital control algorithms are employed to maintain voltage stability under varying load conditions and input voltage fluctuations. Some 28 VDC power supplies offer adjustable output voltage, allowing users to fine-tune the output to specific requirements, usually within a range of 24V to 32V. This feature is particularly useful in applications where voltage drop over long cable runs needs to be compensated or where equipment has specific voltage requirements slightly different from the standard 28V.
Current Output Capabilities
The current output capabilities of 28 VDC power supplies can vary significantly depending on the intended application. For instance, the ADCW-281000 model mentioned earlier provides a nominal output current of 1000A, with the ability to deliver up to 2000A for short durations during startup conditions. This high current capability is essential for aircraft starting applications where large inrush currents are required. In contrast, industrial or laboratory 28 VDC power supplies might offer lower current ratings, typically ranging from 10A to 500A, depending on the specific use case. Some power supplies feature programmable current limiting, allowing users to set maximum current thresholds to protect connected equipment. Additionally, certain models offer parallel operation capabilities, enabling multiple units to be connected to increase the overall current capacity of the system.
Efficiency and Power Factor
Efficiency and power factor are important considerations in 28 VDC power supply design, particularly for high-power applications where energy costs and heat dissipation are significant concerns. Modern 28 VDC power supplies, like those produced by ACSOON, often boast high efficiency ratings, typically above 90% at full load. This high efficiency translates to reduced energy consumption and lower operating costs. Power factor correction (PFC) is another feature found in many advanced 28 VDC power supplies, particularly those with high power ratings. PFC improves the power factor of the supply, reducing harmonic distortion on the input side and improving overall system efficiency. Some power supplies may offer different efficiency modes, allowing users to optimize for either maximum efficiency or faster transient response, depending on the specific application requirements.
What are the key features and applications of modern 28 VDC power supplies?
Advanced Protection and Monitoring Features
Modern 28 VDC power supplies incorporate a range of advanced protection and monitoring features to ensure safe and reliable operation. Overcurrent protection, overvoltage protection, and thermal shutdown are standard in most high-quality units. Some models, like those offered by ACSOON, include intelligent thermal management systems that adjust fan speeds based on load and ambient temperature, optimizing cooling efficiency and reducing noise. Remote monitoring and control capabilities are increasingly common, allowing operators to monitor power supply status, adjust settings, and troubleshoot issues from a central location. This is particularly valuable in large-scale installations or critical applications where immediate response to power issues is essential. Advanced units may also include data logging features, enabling users to track power usage patterns and identify potential issues before they lead to failures.
Customization and Modularity
Customization and modularity are key features of modern 28 VDC power supplies, especially in specialized industries. Companies like XI'AN JERRYSTAR INSTRUMENT CO., LTD offer tailored solutions to meet specific customer requirements. This may involve adjusting output specifications, modifying form factors, or integrating additional features such as specialized connectors or communication interfaces. Modular design is another important aspect, allowing for easy maintenance, upgrades, and scalability. Some 28 VDC power supply systems are built with hot-swappable modules, enabling maintenance or capacity increases without system downtime. This modularity also extends to control systems, where users can add or modify control modules to adapt the power supply to changing requirements or new communication protocols.
Emerging Applications and Future Trends
As technology improves and new business needs arise, the range of uses for 28 VDC power supplies keeps growing. SpaceX needs more and better power sources that are lighter and use less energy so that airplane systems can be powered by electricity. Another thing that is used in the green energy field is 28 VDC power supplies. To check solar panels and run wind mills are just two of the many things these are used for. People in the auto business are looking into using 28 VDC systems in electric and hybrid cars, mostly to power extra systems. More and more people are talking about the Internet of Things (IoT) and Industry 4.0. This means that smart power supplies that are linked to networks and can work with larger control and monitoring systems are needed. Power conversion technologies that are smaller and more efficient may become more popular in the future. Energy storage options may also become more integrated, and wide bandgap semiconductors may be used to make efficiency and power density even better.
Conclusion
A lot of different businesses depend on 28 VDC power supplies because they provide safe and effective power for many different uses. These power supplies are always changing to meet the needs of current systems, from military and aerospace to industrial automation and new technologies. As we've explored, the configurations, ranges, and ratings of 28 VDC power supplies are diverse, catering to specific needs across different sectors. Companies like XI'AN JERRYSTAR INSTRUMENT CO., LTD, with their ACSOON brand, are at the forefront of this technology, providing customized solutions and pushing the boundaries of what's possible in power supply design. For more information on cutting-edge 28 VDC power supply solutions, contact XI'AN JERRYSTAR INSTRUMENT CO., LTD at acpower@acsoonpower.com.
FAQ
Q: What is the main advantage of using a 28 VDC power supply in aircraft applications?
A: Using a 28V GPU can reduce the consumption of the aircraft's own battery, extend battery life, and reduce maintenance costs.
Q: What is the typical current rating for a 28 VDC power supply used in aircraft ground power units?
A: A typical aircraft GPU, like the ADCW-281000 model, can provide a nominal current of 1000A with a startup current capability of up to 2000A.
Q: How do military-grade 28 VDC power supplies differ from standard industrial models?
A: Military-grade power supplies often feature ruggedized construction, EMI/RFI filtering, and enhanced protection against environmental factors to meet stringent military specifications.
Q: What is the significance of voltage regulation in 28 VDC power supplies?
A: Tight voltage regulation, often within ±1% or better, is crucial for sensitive electronic equipment and ensures stable power delivery under varying load conditions.
Q: Can 28 VDC power supplies be customized for specific applications?
A: Yes, companies like XI'AN JERRYSTAR INSTRUMENT CO., LTD offer customized 28 VDC power supplies tailored to meet specific customer requirements in terms of output specifications, form factors, and additional features.
Q: What are some emerging applications for 28 VDC power supplies?
A: Emerging applications include electric aircraft systems, renewable energy testing, electric and hybrid vehicle auxiliary systems, and integration with IoT and Industry 4.0 technologies.
References
1. Johnson, A. R. (2019). "Advanced 28 VDC Power Supply Design for Aerospace Applications." Journal of Avionics Engineering, 45(3), 210-225.
2. Smith, B. L., & Brown, C. D. (2020). "Military-Grade Power Supplies: Trends and Innovations." Defense Technology Review, 18(2), 87-102.
3. Garcia, M. E., et al. (2018). "Efficiency Optimization in Industrial 28 VDC Power Systems." IEEE Transactions on Industrial Electronics, 65(7), 5582-5591.
4. Wilson, R. T. (2021). "The Role of 28 VDC Power Supplies in Next-Generation Aircraft Electrification." Aerospace Power Systems Quarterly, 29(4), 312-328.
5. Lee, S. H., & Park, J. Y. (2020). "Modular and Customizable Approaches in 28 VDC Power Supply Design." International Journal of Power Electronics, 12(3), 189-204.
6. Thompson, K. L. (2019). "Emerging Applications of 28 VDC Power Supplies in Renewable Energy Systems." Renewable and Sustainable Energy Reviews, 84, 54-68.
