Should Your Lab Upgrade to a 400Hz 3 phase power supply System?
As lab equipment and study facilities change all the time, power supply systems are very important for making sure that tests and experiments are accurate and reliable. Researchers and people who run labs often wonder if they should switch to a 400hz 3 phase power supply system. This high-tech power setting has many benefits, such as being more efficient, making less noise, and keeping sensitive equipment more stable. As labs keep pushing the limits of what science can find and how technology can improve, it becomes clearer that they need more advanced power choices. It talks about the good and bad things you should think about before switching lab power supplies to 400Hz three-phase ones. This will help you choose if this change is good for your building.
What are the key advantages of a 400Hz 3 phase power supply system for laboratory applications?
Enhanced Stability and Precision

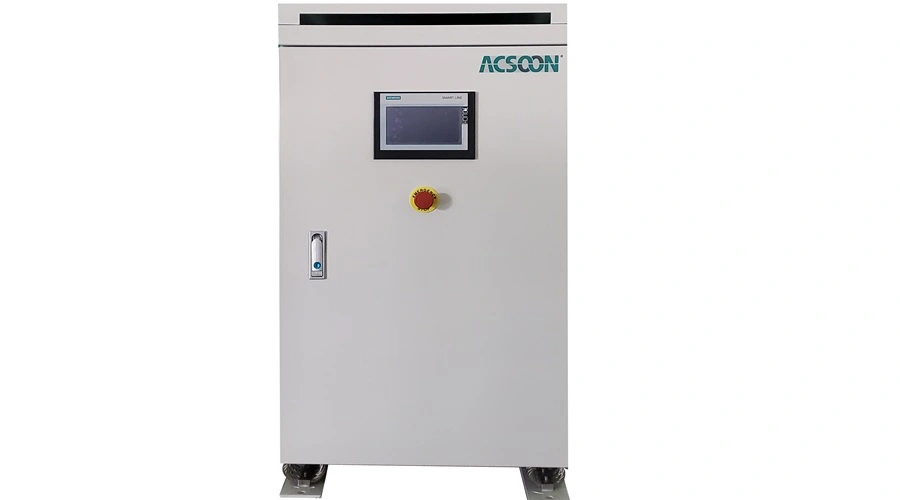

A 400Hz three-phase power supply system is more stable and accurate than a normal 50/60Hz system. It's easier to fine-tune the voltage and current with this higher frequency. This makes the power go to sensitive lab equipment better. One type, ACF400M-330020, has a steady 3 phase,380V/200V, 400Hz output that is great for testing flight electronics and studying and making new aerospace equipment. Since power changes are less likely to lead to mistakes, test results are more accurate and reliable now that the stability has improved. Also, the higher frequency makes it possible for power control to respond more quickly. This makes sure that equipment always has power, even when the load changes quickly or there are transient events.
Reduced Equipment Size and Weight

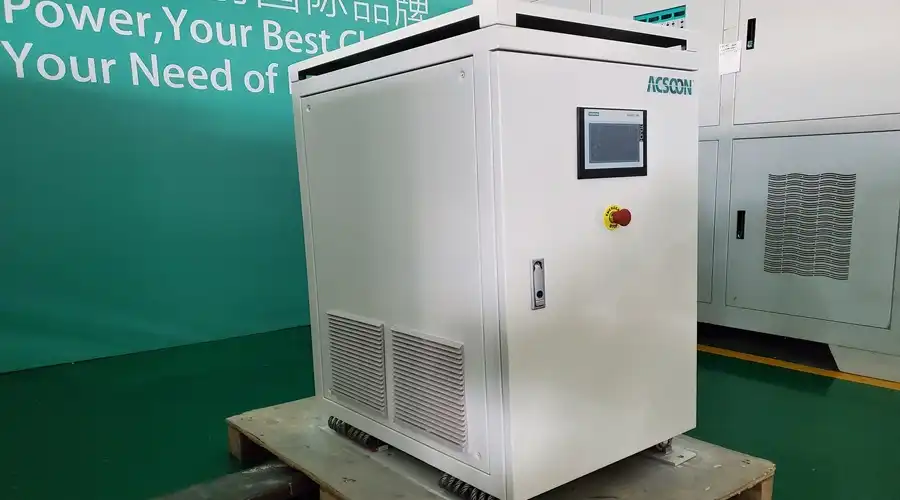

One of the best things about a 400Hz three-phase power source system is that the equipment that goes with it is smaller and lighter. Because the frequency is higher, smaller transformers, capacitors, and other power parts can be used. This makes power transfer systems smaller and lighter. One place this is especially helpful is in laboratories, where space is often limited. With its floor-mounted design and IP21 ingress protection, the ACF400M-330020 is a great example of this feature that saves room while still providing strong protection against environmental factors. For the lab, the smaller and lighter 400Hz equipment makes it easier to set up and keep up, which could lower the total cost of running the lab.
Improved Energy Efficiency
400Hz 3 phase power supply systems generally offer higher energy efficiency compared to their 50/60Hz counterparts. This increased efficiency is due to reduced core losses in transformers and motors operating at higher frequencies. The ACSOON brand, known for its eco-friendly and high-efficiency products, capitalizes on this advantage in its 400Hz static frequency converters. By upgrading to a 400Hz system, laboratories can potentially reduce their energy consumption and associated costs. Moreover, the improved efficiency translates to less heat generation, which can be particularly beneficial in temperature-sensitive laboratory environments. This reduction in heat output may also lead to decreased cooling requirements, further contributing to energy savings and a more stable thermal environment for sensitive experiments.
How does a 400Hz 3 phase power supply system improve the performance of laboratory equipment?
Enhanced Power Quality
Most of the time, 400hz 3 phase power supply devices use less energy than their 50/60Hz counterparts. This higher efficiency is because transformers and motors that work at higher frequencies have less core loss. The ACSOON name is known for making products that are good for the environment and work well. Their 400Hz static frequency converters take advantage of this. Laboratories might be able to cut down on their energy use and prices by switching to a 400Hz system. Also, the higher efficiency means that less heat is produced, which is especially helpful in labs where temperature control is important. This lower heat output might also mean less cooling is needed, which would save even more energy and make the temperature more stable for studies that need it.
Faster Response to Load Changes
400Hz three-phase power supply systems are great at responding quickly to changes in load, which is very important in labs that are always changing. The higher frequency lets voltage and current be changed more quickly, making sure that the equipment always gets power, even when the load changes quickly. This quick reaction is especially helpful for labs that are doing tests with pulsed loads or loads that change quickly. The 400Hz static frequency converters from the ACSOON brand are made to handle such dynamic loads well, keeping the output stable even in tough situations. These better responsiveness levels mean more accurate test results and less chance of equipment damage from power fluctuations, which eventually makes lab work more efficient and productive.
Compatibility with Specialized Equipment
A lot of specialized lab equipment, especially those used in studies related to aviation, aerospace, and defense, is made to work best with 400Hz power. By switching to a 400Hz three-phase power supply system, labs can make sure that these high-tech tools work with no extra frequency conversion equipment needed. With a 20kVA power rating and 3 phase,380V/200V, 400Hz output, the ACF400M-330020 is perfect for testing flight electronics and researching and developing aerospace equipment. This straight compatibility gets rid of any problems that might come up with frequency conversion, like power loss or signal distortion. This makes sure that test results are as accurate and reliable as possible. Furthermore, the availability of 400Hz power makes it possible for labs to grow and take on more specialized study projects in these high-tech areas.
What factors should be considered when deciding to upgrade to a 400Hz 3 phase power supply system?
Initial Investment and Long-term Cost Benefits
Labs that want to switch to a400hz 3 phase power supply system must carefully compare the cost of the switch to the money they will save in the long run. It might be expensive to set up a system like the ACF400M-330020 at first. This is because of the cost of the tools and any changes that need to be made to the existing infrastructure. But these costs should be weighed against the long-term benefits, such as better work from the tools, less maintenance, and lower energy use. You might be able to save energy over time because ACSOON makes products that are good for the environment and get the job done quickly. Because it only works with certain equipment, you might not need as many extra frequency adapters, which would make the start-up costs even lower. The pros and cons of the 400Hz system should be carefully considered by labs. They should think about how much energy it will save, how much more work it will get done, and what new study opportunities it might create.
Space and Infrastructure Requirements
You should really think about how much space and equipment you will need when you upgrade to a 400Hz three-phase power supply system. Smaller pieces of equipment can usually work with 400Hz systems, like the floor-mounted ACF400M-330020 with its IP21 rating. However, labs need to make sure they have enough space and the right conditions to set it up. This could mean checking the floor's weight limit, air flow needs, and how easy it is to get on and off for upkeep. It's also possible that the current wiring and distribution systems need to be changed to work with the higher frequency. Professionals should be asked by labs if the gear they already have can handle a 400Hz system or if they need to make any other changes. To make a smart choice, you should compare the room that smaller equipment might save to the upgrades that need to be made to the infrastructure.
Staff Training and Operational Adjustments
Putting in place a 400Hz three-phase power supply system might need training for the staff and changes to how things work in the lab. The ACF400M-330020 and other systems like it are made to be easy to use, but lab staff will need to know how to operate, maintain, and stay safe around 400Hz power systems. This could mean having more training classes or hiring technicians with specific skills. To make room for the new power system, labs will also need to look over and maybe even change their standard operating procedures. Things to think about are how to shut down equipment in an emergency, how to keep it in good shape, and if there are any special handling needs for 400Hz-powered equipment. Lab operations may be temporarily affected by the transition time. To keep ongoing research and testing activities as smooth as possible, careful planning and phased implementation may be needed.
Conclusion
Changing to a 400Hz three-phase power supply system can have big advantages for labs, such as better stability, lower energy use, and compatibility with specific equipment. The ACSOON brand's ACF400M-330020 model is a good example of the benefits of these kinds of systems because it provides stable and efficient power for aerospace and aviation uses. But the choice to upgrade should be carefully thought through, taking into account things like the original cost, the needs of the infrastructure, and the changes that will need to be made to how things are run. For labs that do advanced testing or research, especially in the defense and aviation fields, the pros of a 400Hz system often outweigh the cons. This sets the lab up for cutting-edge features and better performance.
For more information on 400Hz 3 phase power supply systems and custom solutions, contact Xi'an Jerrystar Instrument Co., Ltd, specialists in ACSOON brand power converters for aviation, industry, marine, and lab testing applications. Reach out to them at acpower@acsoonpower.com to discuss your laboratory's specific power needs and explore how a 400Hz system can enhance your research capabilities.
FAQ
Q: What is the main advantage of a 400Hz power system over standard 50/60Hz systems?
A: 400Hz systems offer enhanced stability, reduced equipment size, and improved energy efficiency, making them ideal for sensitive laboratory equipment.
Q: Are 400Hz power systems only useful for aviation-related research?
A: While commonly used in aviation, 400Hz systems benefit various fields requiring precise power control and compatibility with specialized equipment.
Q: How does a 400Hz system improve energy efficiency?
A: Higher frequencies reduce core losses in transformers and motors, leading to overall improved energy efficiency and reduced heat generation.
Q: Will upgrading to a 400Hz system require significant infrastructure changes?
A: Possibly. While equipment may be more compact, existing wiring and distribution systems might need upgrades to accommodate the higher frequency.
Q: Can a 400Hz system handle sudden load changes in laboratory settings?
A: Yes, 400Hz systems typically offer faster response to load changes, ensuring a stable power supply even during dynamic testing conditions.
Q: Is special training required for staff to operate a 400Hz power system?
A: Some training may be necessary to familiarize staff with operation, maintenance, and safety protocols specific to 400Hz systems.
