What Are the Limitations of a Manual Variable AC Source?

For a long time, manual variable AC sources were the standard for power supply and electrical testing.  Users have some control over the AC power output with these devices since they may manually modify the voltage and frequency. However, as technology advances and demands for precision increase, the limitations of manual variable AC sources become more apparent. Industries that rely on alternating current (AC) power sources include engineers, technicians, and decision-makers that need to know the limits of these conventional power supplies so they can optimize testing and power supply procedures and make educated choices regarding equipment updates.  Issues with quick modifications, possible safety problems, and the limits of accuracy are explored in this blog article.

Precision vs. Control: Accuracy Limitations in Manual Variable AC Power Supplies

Inherent Human Error in Manual Adjustments

Manual variable AC sources, while versatile, are inherently prone to human error during adjustments. When operators manually set voltage or frequency levels, even small discrepancies can lead to significant inaccuracies in output. This limitation becomes particularly problematic in applications requiring high precision, such as sensitive electronic testing or calibration processes. The variable AC source's accuracy is directly tied to the operator's skill and attention to detail, which can vary greatly. Furthermore, factors like fatigue or distraction can exacerbate these inaccuracies, potentially leading to inconsistent results across multiple tests or production runs.

Limited Resolution in Analog Controls

Many manual variable AC sources utilize analog controls, which offer limited resolution in adjustments. This constraint means that fine-tuning to exact voltage or frequency values can be challenging, if not impossible. The granularity of control is often insufficient for applications demanding precise power settings. In contrast, digital variable AC sources, like the ACSOON AF60W-110006 model, provide much finer resolution and accuracy. These digital systems can offer precise voltage regulation within a wide range, such as 110V-240V, with minimal deviation. The limited resolution of manual sources can lead to discrepancies in test results or inconsistencies in power-sensitive equipment performance.

Difficulty in Maintaining Stable Output

Maintaining a stable output over extended periods is another significant challenge for manual variable AC sources. Environmental factors, such as temperature fluctuations or mechanical wear on components, can cause drift in the output parameters. Without automated compensation mechanisms, these changes often go unnoticed until they significantly impact the powered equipment or test results. This instability is particularly problematic in applications requiring consistent power over long durations, such as endurance testing or powering critical systems. Advanced static frequency converters, like those offered by ACSOON, incorporate features to ensure stable output, reducing energy consumption and maintenance costs associated with frequent recalibrations.

Why Manual AC Sources Struggle with Rapid Voltage/Frequency Changes?

Slow Response Time to Manual Inputs

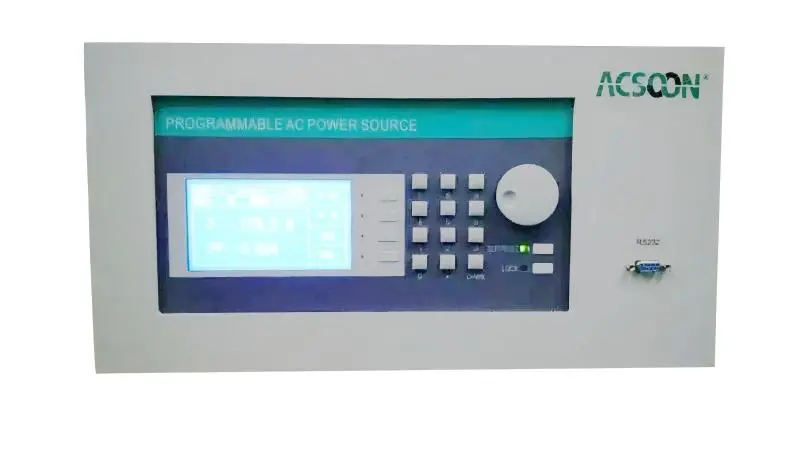

One of the most significant limitations of manual variable AC sources is their slow response time to input changes. When an operator needs to adjust voltage or frequency, the process involves physically manipulating controls, which takes time. This delay can be critical in applications requiring quick power adjustments, such as simulating real-world power fluctuations or testing equipment under varying conditions. The manual nature of these adjustments makes it virtually impossible to replicate rapid, precise changes in power parameters. In contrast, advanced static frequency converters like the AF60W-110006 can respond almost instantaneously to digital commands, allowing for swift and accurate changes in output characteristics.

Inability to Program Complex Waveforms

Manual variable AC sources are severely limited in their ability to generate complex waveforms or sequences of voltage and frequency changes. Modern testing often requires intricate power profiles that simulate various real-world scenarios or stress equipment in specific ways. These complex patterns are beyond the capabilities of manual systems, which can typically only provide basic sine wave outputs with limited adjustability. The inability to program and reproduce complex waveforms consistently restricts the use of manual AC sources in advanced testing environments, particularly in industries like aerospace or automotive, where simulating diverse power conditions is crucial for product validation.

Challenges in Synchronization with Other Equipment

Synchronizing manual variable AC sources with other test equipment or data acquisition systems presents significant challenges. In many testing scenarios, precise timing of power changes in relation to other parameters or events is crucial. Manual sources lack the ability to interface with external systems or respond to programmed triggers, making such synchronization nearly impossible. This limitation can lead to inaccurate test results or the inability to conduct certain types of complex, coordinated tests. Advanced systems like the ACSOON AF60W-110006, with features such as digital displays and flexible regulation, offer much better integration capabilities, allowing for synchronized operation with other test equipment and data logging systems.

Safety Risks of Manual Adjustment: Overvoltage and Overcurrent Concerns

Potential for Accidental Overvoltage

One of the most critical safety concerns with manual variable AC sources is the potential for accidental overvoltage. Human error in adjusting voltage levels can lead to supplying equipment with voltages beyond their rated capacities. This oversight can result in catastrophic damage to the device under test or even pose safety risks to operators. The manual nature of adjustment means there's no automatic safeguard against such errors. In contrast, advanced static frequency converters like the AF60W-110006 often include built-in protection mechanisms against overvoltage, significantly reducing this risk. These modern systems can be programmed with upper limits and incorporate fail-safe features to prevent dangerous voltage spikes.

Overcurrent Risks Due to Manual Misconfi

uration Similar to overvoltage risks, manual variable AC sources are susceptible to overcurrent situations due to incorrect configuration. Operators may inadvertently set current limits too high or fail to adjust them properly for different loads. This oversight can lead to excessive current flow, potentially damaging both the power source and the connected equipment. The lack of automated protection in manual systems means that overcurrent conditions might persist unnoticed, increasing the risk of equipment failure or electrical fires. Modern variable AC sources, such as those in the ACSOON range, typically include sophisticated overcurrent protection features, automatically limiting current to safe levels and alerting operators to potentially dangerous conditions.

Lack of Real-time Monitoring and Alerts

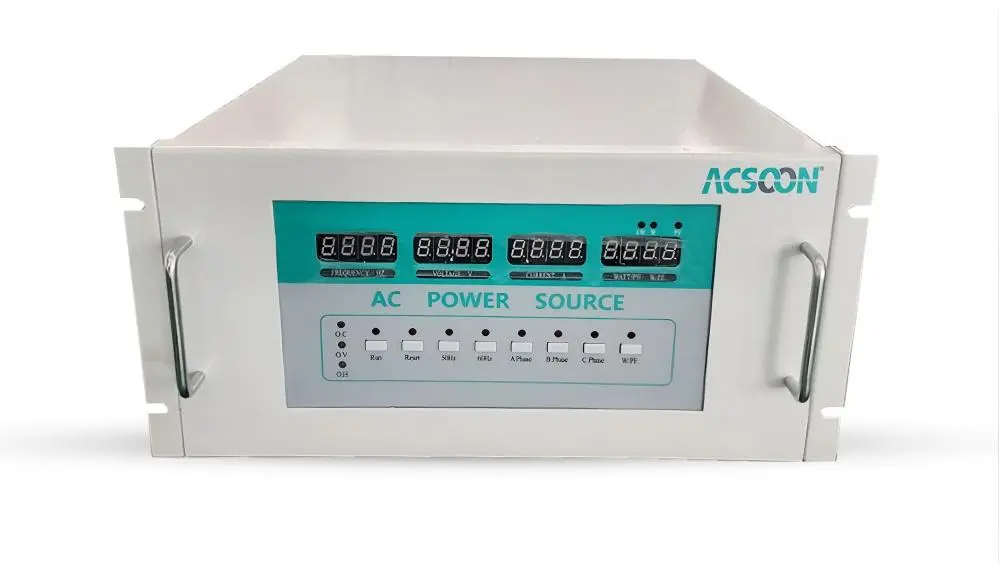

Manual variable AC sources often lack comprehensive real-time monitoring and alert systems. This deficiency means that potentially dangerous conditions may go unnoticed until it's too late. Without continuous monitoring of output parameters and automatic shutdown capabilities, these systems rely entirely on operator vigilance to prevent safety incidents. In contrast, advanced static frequency converters like the AF60W-110006 come equipped with features such as LED or LCD digital displays showing voltage, current, power factor, and operational status. These real-time monitoring capabilities, coupled with automatic alert systems, significantly enhance safety by providing immediate feedback and triggering protective measures when abnormal conditions are detected.

Conclusion

In conclusion, manual variable AC sources have had their uses, but in today's technological world, their shortcomings in accuracy, responsiveness, and safety features are showing.  There has to be a more sophisticated solution since it is difficult to manage fast changes, get precise and steady outputs, and make sure there are thorough safety precautions. As industries evolve, the transition to sophisticated static frequency converters and programmable AC sources, like those offered by ACSOON, becomes not just beneficial but often necessary. Modern power supply and testing applications rely on these systems because they are more accurate, flexible, and safe than manual sources.

For more information on advanced AC power solutions and static frequency converters, please contact Xi'an Jerrystar Instrument Co., Ltd. Specializing in ACSOON brand power converters for aviation, industry, marine, and lab testing applications, they offer a range of products including variable frequency converters, 400 Hz static frequency converters, voltage and frequency stabilizers, and ground power units. As a manufacturer and trading company with a factory located at 1688 Chama Avenue, Jinghe New Town, Xixian New District, Xi'an City, Shaanxi Province, China, they provide custom solutions and maintain adequate inventory for quick delivery. For inquiries, please email acpower@acsoonpower.com.
