What Maintenance Is Required for Power Supply 115 V 400 Hz Units?

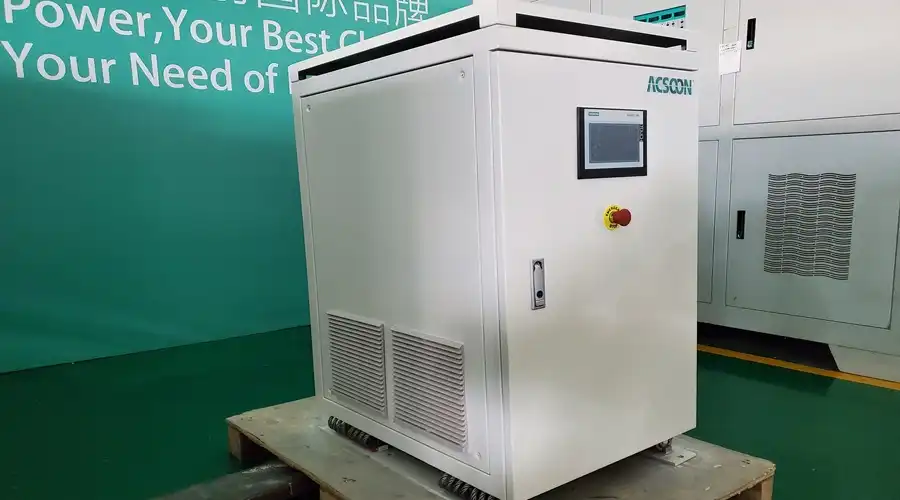

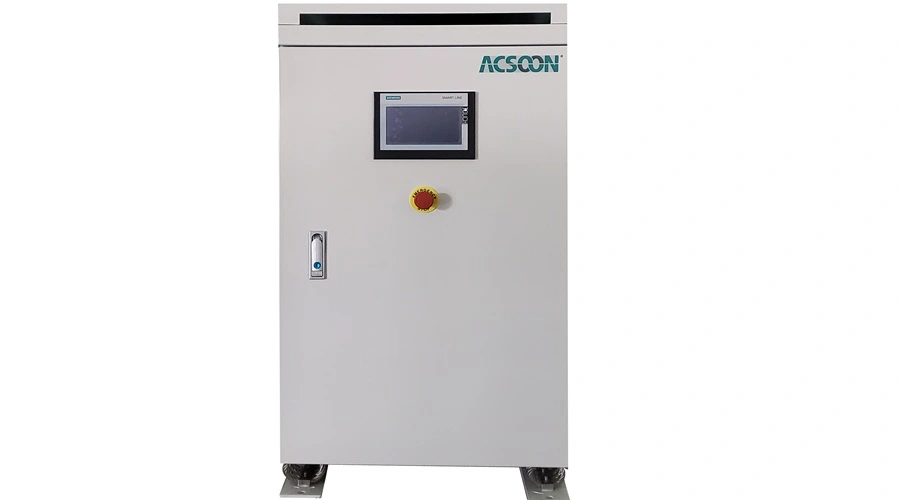

A lot of different fields need power supply units that work at 115 V and 400 Hz. In space, the military, and some other places, these are very important. Regular upkeep is needed to make sure that these units work well, are reliable, and last a long time. Proper maintenance of power supply 115v400hz units is essential for preventing unexpected failures, minimizing downtime, and maintaining the safety and efficiency of the systems they support. The ACSOON AF400M-330100 model will be used as an example to talk about the upkeep steps that need to be taken for these power supply units .The most important things to do to take care of it are to check on it often, clean it, replace parts, and see how well it works. Keep the tools they've bought safe with these care tips. It will also make the power source units last longer and give them better output quality all the time.
What Are the Key Components to Inspect in a 115 V 400 Hz Power Supply Unit?
Cooling System Maintenance
The cooling system is a crucial component of any power supply 115v400hz unit, especially in models like the AF400M-330100. The cooling system needs to be checked and fixed on a regular basis to keep it from burning and working at its best. The fans, heat sinks, and air screens need to be checked and cleaned as part of this. Over time, dust and other particles can build up, making the cooling less effective and possibly even breaking parts. It's recommended to use compressed air or a soft brush to remove any buildup. Take a look at the fan parts for any damage and fix it if you see any. Proper cooling system maintenance not only extends the life of the power supply but also helps maintain its efficiency and output quality.
Capacitor Health Check
Power supply 115v400hz units depend on capacitors to work, and the state of these parts can have a big effect on how well the units work overall. Regular visual inspections should be conducted to check for signs of bulging, leaking, or discoloration, which may indicate capacitor degradation. In the AF400M-330100 model, the capacitors are designed for long-term reliability, but they can still be affected by factors such as temperature and usage patterns. It's important to measure the capacitance and equivalent series resistance (ESR) of critical capacitors periodically. If any capacitors show signs of deterioration or are nearing the end of their expected lifespan, they should be replaced promptly to prevent potential failures and maintain the power supply's output stability.
Input and Output Connection Inspection
The input and output connections of a power supply 115v400hz unit are crucial for its proper functioning and safety. Regular inspection of these connections is necessary to ensure they remain secure and free from corrosion or damage. For the AF400M-330100 model, which handles significant power ratings of 100kVA, the integrity of these connections is particularly important. Check all terminal blocks, connectors, and cables for any signs of looseness, fraying, or heat damage. Tighten any loose connections and replace any damaged components immediately. Pay special attention to the grounding connections, as they are critical for safety and EMC compatibility. Proper maintenance of input and output connections helps prevent voltage fluctuations, reduces the risk of electrical faults, and ensures the consistent delivery of the required 115V, 400Hz output.
How Often Should Performance Testing Be Conducted on 115 V 400 Hz Power Supplies?
Output Voltage and Frequency Verification
Regular performance testing of power supply 115v400hz units is crucial to ensure they continue to meet the required specifications. For the AF400M-330100 model, which provides a single-phase 115V, 400Hz output, it's recommended to verify the output voltage and frequency at least quarterly. This testing should include measurements under various load conditions to ensure stability. Use calibrated test equipment to measure the output voltage, confirming it remains within the specified ±1% tolerance. Similarly, verify that the frequency stability is maintained at ≤0.1%. These tests help identify any drift in performance that may occur over time due to component aging or environmental factors. Regular verification ensures that the power supply continues to provide the pure sine wave output with low harmonic distortion (＜3%) required for sensitive equipment in aerospace and precision instrument applications.
Load Testing and Efficiency Measurement
Load testing is an essential aspect of maintaining power supply 115v400hz units like the AF400M-330100. This should be conducted at least semi-annually to ensure the unit can handle its rated capacity and maintain efficiency. During load testing, gradually increase the load to the unit's full rated capacity of 100kVA, monitoring voltage stability, frequency, and waveform quality throughout the process. Additionally, measure the unit's efficiency, which should be ≥85% as per specifications. This testing helps identify any degradation in performance that may not be apparent during normal operation. It's also an opportunity to verify the unit's overload capacity, ensuring it can handle 125% load for 60 seconds and 150% for 30 seconds as specified. Regular load testing helps prevent unexpected failures during critical operations and ensures the power supply can meet the demands of its intended applications.
EMC and Isolation Testing
Electromagnetic Compatibility (EMC) and isolation are critical features of power supply 115v400hz units, especially in applications involving sensitive equipment. For the AF400M-330100 model, which boasts EMC compatibility and isolated output, periodic testing of these features is essential. EMC testing should be conducted annually to ensure the unit continues to meet relevant standards and does not generate excessive electromagnetic interference. This includes both conducted and radiated emissions tests. Isolation testing, which verifies the effectiveness of the galvanic isolation between input and output, should also be performed annually. This test helps ensure the safety and reliability of the power supply, particularly in applications where electrical isolation is crucial. Regular EMC and isolation testing help maintain the power supply's compatibility with sensitive equipment and its ability to operate safely in various environments.
What Preventive Maintenance Steps Can Extend the Lifespan of a 115 V 400 Hz Power Supply?
Regular Cleaning and Environmental Control
Implementing a regular cleaning routine is crucial for maintaining power supply 115v400hz units like the AF400M-330100. Dust and debris can accumulate on components, reducing cooling efficiency and potentially causing short circuits. Establish a monthly cleaning schedule using compressed air, anti-static brushes, and appropriate cleaning solutions for electrical components. Pay special attention to air intake and exhaust areas, ensuring they remain unobstructed. Additionally, controlling the environmental conditions where the power supply operates is essential. Maintain the operating temperature within the specified range of -10°C to 50°C, and keep humidity levels in check to prevent condensation. If the unit is used in environments below 1800m altitude, as specified, no additional measures are needed. However, for higher altitudes, consider derating or additional cooling. Proper environmental control helps prevent premature component failure and ensures the power supply maintains its efficiency and reliability over time.
Firmware and Software Updates
While the AF400M-330100 is primarily a hardware device, many modern power supply 115v400hz units incorporate digital control systems and may have firmware or software components. Regularly checking for and applying any available updates is an important aspect of preventive maintenance. These updates can improve performance, add new features, or address potential security vulnerabilities. Establish a procedure to check for updates at least quarterly, and always review the release notes to understand the changes and their potential impact on your specific application. When applying updates, follow the manufacturer's guidelines carefully, and if possible, test the update on a non-critical unit first. Keeping the firmware and software up to date helps ensure that the power supply continues to operate at peak efficiency and remains compatible with any connected systems or monitoring equipment.
Periodic Component Replacement
Certain components in power supply 115v400hz units have a limited lifespan and should be replaced periodically to prevent failures and maintain optimal performance. For the AF400M-330100 model, which has a high MTBF of 30,000 hours, component replacement may be less frequent but still necessary. Electrolytic capacitors, for example, typically have a lifespan of 5-10 years and should be replaced proactively. Cooling fans may need replacement every 3-5 years, depending on usage and environmental conditions. Keep a log of component ages and schedule replacements based on manufacturer recommendations and your specific operating conditions. When replacing components, use only high-quality parts that meet or exceed the original specifications. This proactive approach to component replacement can significantly extend the overall lifespan of the power supply unit, reduce unexpected downtime, and ensure consistent performance over time.
Conclusion
Proper maintenance of power supply 115v400hz units is crucial for ensuring their longevity, reliability, and performance. By implementing a comprehensive maintenance program that includes regular inspections, performance testing, and preventive measures, operators can maximize the lifespan of their power supply units and minimize the risk of unexpected failures. The ACSOON AF400M-330100 model, with its robust design and advanced features, serves as an excellent example of a high-quality power supply that benefits from diligent maintenance. Remember that while these maintenance guidelines provide a solid foundation, always refer to the manufacturer's specific recommendations for your power supply model to ensure optimal care and performance.
For more information on ACSOON brand power converters and their applications in aviation, industry, marine, and lab testing, contact Xi'an Jerrystar Instrument Co., Ltd. As a leading manufacturer and trading company specializing in variable frequency converters, 400 Hz static frequency converters, voltage and frequency stabilizers, and ground power units, we offer custom solutions and quick delivery from our 5,000-10,000 square meter factory located at 1688 Chama Avenue, Jinghe New Town, Xixian New District, Xi'an City, Shaanxi Province, China. Reach out to us at acpower@acsoonpower.com for expert advice and support.
FAQ
Q: How often should I clean my 115 V 400 Hz power supply unit?
A: It's recommended to clean your power supply unit monthly, focusing on air intakes, exhausts, and internal components to prevent dust buildup and maintain cooling efficiency.
Q: What are the signs that a capacitor in my power supply needs replacement?
A: Look for visual signs such as bulging, leaking, or discoloration. Also, monitor for decreased performance or increased ripple in the output.
Q: Can environmental factors affect the performance of my 115 V 400 Hz power supply?
A: Yes, factors like temperature, humidity, and altitude can impact performance. Maintain the unit within specified operating conditions for optimal performance.
Q: How often should I conduct full load testing on my power supply?
A: Full load testing should be conducted at least semi-annually to ensure the unit can handle its rated capacity and maintain efficiency.
Q: Are firmware updates necessary for my power supply unit?
A: If your unit has firmware, it's important to check for updates quarterly. Updates can improve performance, add features, or address security issues.
Q: What's the typical lifespan of a 115 V 400 Hz power supply unit with proper maintenance?
A: With proper maintenance, high-quality units like the ACSOON AF400M-330100 can operate reliably for 10-15 years or more, depending on usage and environmental conditions.
