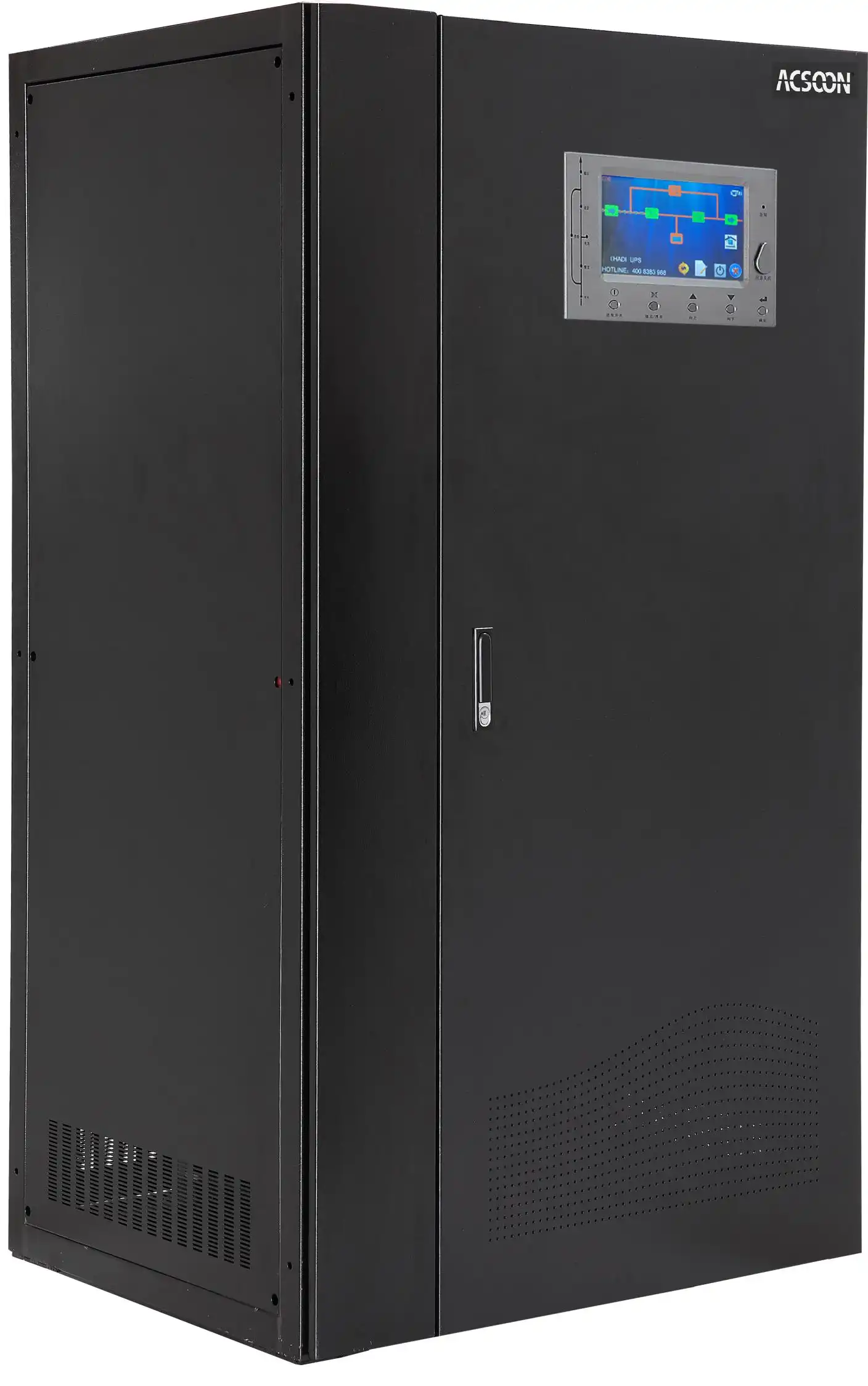

30kVA Online UPS for Critical Single-Phase Loads
2. UPS Topology: Online double conversion for continuous power conditioning.
3. Phase Configuration: Three-phase input, single-phase output.
4. Input:210–487VAC; 47–53Hz or 57–63Hz.
5. Output Voltage: Selectable 208 / 220 / 230 / 240VAC, ±1%.
6. Output Waveform: Pure sine wave.
7. Transfer Time: 0 ms from mains to battery during online operation.
8. Battery & Monitoring: Long-run battery configuration available; RS-232 monitoring, with other communication options subject to confirmation.
9. Applications:Server rooms, industrial control systems, telecommunications equipment, laboratories and security systems.Brand: ACSOON; Model: APSW-310030.
- Product Description
30kVA Online UPS for Critical Single-Phase Loads
ACSOON APSW-310030 | Three-Phase Input | 30kVA / 24kW
A UPS quotation is only useful when it matches the load, site supply and backup-time requirement. The ACSOON APSW-310030 is an online double-conversion UPS for projects that have a three-phase input supply and need to protect single-phase equipment.
It is rated at 30kVA / 24kW, with selectable 208V, 220V, 230V or 240VAC single-phase output. If you are comparing suppliers, the checks below will help you request a configuration that fits your project.
Request a Configuration & Quote
Send your load list, site voltage and required backup time for a UPS and battery configuration review.
Datasheet
Check These 4 Points Before Buying
| Purchasing question | APSW-310030 information | What you should confirm |
|---|---|---|
| Is the capacity sufficient? | 30kVA / 24kW rated output | Running load, peak load and planned capacity margin |
| Does the phase arrangement match? | Three-phase input, single-phase output | Site wiring and the phase required by your equipment |
| Does the output voltage match? | 208 / 220 / 230 / 240VAC ±1% | Equipment nameplate voltage and selected UPS output setting |
| How much backup time is needed? | Battery configuration depends on the project | Actual load and required runtime in minutes or hours |
If your protected equipment needs a three-phase output, state this in your inquiry. The APSW-310030 specification lists a single-phase output.
Where Buyers Use This UPS
| Project | Equipment commonly considered for protection | Main buying concern |
|---|---|---|
| Server room | Servers, storage and network switches | Enough time to shut down safely or bridge to generator power |
| Industrial control system | PLC cabinets, control computers and monitoring devices | Correct load sizing and continuity during an outage |
| Telecommunications site | Network and communications equipment | Runtime and monitoring requirements |
| Laboratory | Compatible instruments and data-acquisition systems | Output voltage and power quality requirements |
| Security system | Surveillance, access control and related equipment | Which circuits must stay powered |
These are potential applications, not a substitute for checking each device’s electrical requirements.
What Does the APSW-310030 Offer?
The APSW-310030 uses an online double-conversion design. During normal online operation, the inverter supplies the protected load. The supplied specification lists a 0 ms mains-to-battery transfer time, pure sine wave output and ±1% output voltage regulation.
For procurement teams, the practical benefit is a clearer basis for comparing offers: you can check the UPS rating, phase arrangement, voltage selection and battery proposal against the same project requirements.
| Feature | Why it matters when comparing quotations |
|---|---|
| 30kVA / 24kW rating | Makes both apparent-power and active-power limits visible |
| Online double conversion | Identifies the operating topology you are purchasing |
| Three-phase input, single-phase output | Helps prevent an incorrect phase configuration |
| 0 ms mains-to-battery transfer | States the specified transfer performance in online operation |
| Pure sine wave output | Helps you assess compatibility with sensitive electronic loads |
| Selectable output voltage | Allows the specified output to match compatible equipment requirements |
| Long-run battery configuration | Lets runtime be planned around the actual load rather than an assumed standard duration |
APSW-310030 Specifications for Supplier Comparison
| Parameter | Specification |
|---|---|
| Model | ACSOON APSW-310030 |
| UPS type | Online double conversion |
| Rated capacity | 30kVA / 24kW |
| Input/output phase | Three-phase input / single-phase output |
| Input voltage range | 210–487VAC |
| Input frequency range | 47–53Hz or 57–63Hz |
| Output voltage selections | 208 / 220 / 230 / 240VAC ±1% |
| Output waveform | Pure sine wave |
| Mains-to-battery transfer time | 0 ms |
| Output power factor | 0.8 |
| Relative humidity | 0–90%, non-condensing |
| Communication | RS-232; confirm optional interfaces for the quoted configuration |
Specification review: Battery arrangement, dimensions, overload performance and optional communication interfaces should be confirmed on the current model-specific datasheet and quotation before purchase.
How to Compare 30kVA UPS Quotations
Two offers labeled “30kVA UPS” may include different battery systems and accessories. Ask each supplier to state the following in writing.
| Item to compare | Question to ask |
|---|---|
| UPS rating | Is the quoted rating 30kVA and 24kW? |
| Topology | Is the quoted unit online double conversion? |
| Phase arrangement | Is it three-phase input and single-phase output? |
| Output setting | Which output voltage will be configured? |
| Batteries | What battery quantity, capacity and cabinet arrangement are included? |
| Runtime | At what load is the quoted backup time calculated? |
| Monitoring | Which ports or network-management options are included? |
| Scope of supply | Are batteries, cabinet, cables and other accessories included or quoted separately? |
| Documents | Can the supplier provide a model-specific datasheet and connection information? |
A runtime figure without its corresponding load and battery configuration is difficult to compare. Ask for those assumptions alongside the quoted minutes.
UPS Main Features
Online Double-Conversion Design: Continuously supplies the protected load through the inverter, helping reduce the effect of input voltage disturbances.
30kVA / 24kW Rated Capacity: Clearly defined apparent and active power ratings help buyers assess their load requirements.
Three-Phase Input, Single-Phase Output: Suitable for projects with a three-phase site supply and critical single-phase equipment.
0 ms Mains-to-Battery Transfer: The specified online operating mode maintains output during a utility power interruption.
Pure Sine Wave Output: Provides a clean AC waveform for compatible electronic and control equipment.
Selectable Output Voltage: 208V, 220V, 230V or 240VAC output options, with ±1% voltage regulation.
Wide Specified Input Range: Accepts 210–487VAC input within the conditions stated in the supplied product specification.
Battery Configuration Options: Backup time can be planned around the project’s actual load and required runtime.
Status Display and Monitoring: LCD operating information and RS-232 communication; confirm optional interfaces when specifying the order.
Why Choose the APSW-310030?
Continuous online power conditioning
The APSW series uses an online double-conversion architecture. The inverter supplies the protected load during normal operation, helping maintain a stable output as the input supply changes within the specified operating range.
30kVA capacity with a clearly stated 24kW limit
Both figures matter when selecting a UPS. 30kVA is the apparent-power rating; 24kW is the listed active-power rating. Check both against the combined running and peak demands of the equipment to be protected.
Pure sine wave, selectable single-phase output
The specification lists 208V, 220V, 230V and 240VAC output selections, with ±1% voltage regulation. Confirm the selected output voltage against the actual load nameplates and site distribution design.
Battery configuration for project runtime
The supplied specification lists a long-run battery configuration for this model. The number and capacity of batteries, cabinet arrangement and required runtime should be confirmed against the project load rather than assumed from a standard package.
LCD-based operating information
The APSW series description lists a large LCD for checking operating status and settings. Confirm the exact display and communication-port arrangement on the 30kVA unit before ordering.
UPS Application Areas
Server Rooms and IT Infrastructure: Provides backup power for servers, storage devices, network switches and other critical single-phase IT loads.
Industrial Automation: Supports PLC cabinets, control computers, monitoring equipment and production control systems during power interruptions.
Telecommunications: Helps maintain power to communication and network equipment where continuity is required.
Laboratories and Test Facilities: Supplies pure sine wave power to compatible instruments, data-acquisition systems and control PCs.
Security and Building Systems: Provides backup for selected surveillance, access-control and building-management equipment.
Commercial Facilities: Protects essential IT and control equipment while staff perform a controlled shutdown or a generator starts.
Our Services
Quality Control
- AVR Function Test: Each unit is tested to verify correct boosting and bucking operation across the specified input voltage range.
- Transfer Time & Waveform Analysis: The switch to battery mode is measured to ensure speed and that output waveform remains clean and stable.
- Battery Calibration & Load Test: Internal batteries are calibrated and tested under load to verify rated runtime.
- Full System Burn-in: A final operational test under cyclic load conditions ensures reliability before packaging.
R&D Results
Enhanced AVR Transformer Design: Developed a more efficient and compact multi-tap transformer for wider input range and faster correction.
Advanced Battery Management: Implemented precise charging algorithms to maximize battery lifespan and health.
Intelligent Fan Control: Engineered a temperature-based fan control system for quiet operation during normal use and effective cooling during extended backups.
Unified Management Software: Created simple, cross-platform software for battery runtime monitoring, event logging, and automatic shutdown.
Packaging and Transportation
Retail-Ready Packaging: Units are boxed in high-quality cardboard with molded foam inserts, suitable for retail or direct shipment.
Complete Accessory Inclusion: Package includes user manual, communication cables, installation CD/software, and warranty card.
Clear Safety & Setup Information: Packaging and quick-start guides feature clear multilingual instructions for safe installation.
Standard & Express Shipping: Available through common carriers with reliable tracking to businesses and institutions worldwide.
After‑Sales Service
We offer a 24-month warranty on the UPS and a 12-month warranty on the batteries. Support includes online resources, software downloads, and accessible technical support via email and phone.
Qualification Certification
ISO 9001:2015 Certified manufacturing;CE, RoHS Compliant; Tested to IEC 62040 Standards for UPS performance and safety.
FAQ |
|---|
Frequently Asked Buying QuestionsIs this a line-interactive UPS?No. The supplied APSW series document identifies an online double-conversion design. Specify that topology when requesting or comparing quotations. Does the APSW-310030 output 380V?No. 380V describes the nominal three-phase input context. The supplied specification lists a single-phase 208 / 220 / 230 / 240VAC output. Is 30kVA the same as 30kW?No. This model is rated at 30kVA / 24kW. Check your load against both ratings. How long will it power my equipment?That depends on the connected load and the selected batteries. Provide the load and required runtime so the battery configuration can be calculated. Can I use it for three-phase equipment?The APSW-310030 specification lists a single-phase output. If the protected equipment needs three-phase power, request a suitable three-phase-output model. Are batteries included in the UPS price?The supplied specification does not define what is included in a particular offer. Ask the supplier to itemize the UPS, batteries, battery cabinet and accessories in the quotation. What should I send to get an accurate quotation?Send an equipment list or total running load, peak load if applicable, site input voltage and frequency, required output voltage, backup time, installation country and monitoring needs. Request a UPS Configuration & QuoteTell us what must remain powered and for how long. Xi’an Jerrystar Instrument Co., Ltd. can review your requirements and prepare a configuration proposal for the ACSOON APSW-310030 or advise on a more suitable model if your phase or capacity requirements differ. Inquiry checklist: Equipment list · Running kW/kVA · Peak load · Input voltage · Output voltage · Backup time · Installation country · Monitoring requirements |
