APSW-310030 30kVA Online Double Conversion UPS
2. UPS Topology: Online double conversion for continuous power conditioning.
3. Phase Configuration: Three-phase input, single-phase output.
4. Input:210–487VAC; 47–53Hz or 57–63Hz.
5. Output Voltage: Selectable 208 / 220 / 230 / 240VAC, ±1%.
6. Output Waveform: Pure sine wave.
7. Transfer Time: 0 ms from mains to battery during online operation.
8. Battery & Monitoring: Long-run battery configuration available; RS-232 monitoring, with other communication options subject to confirmation.
9. Applications:Server rooms, industrial control systems, telecommunications equipment, laboratories and security systems.Brand: ACSOON; Model: APSW-310030.
- Product Description

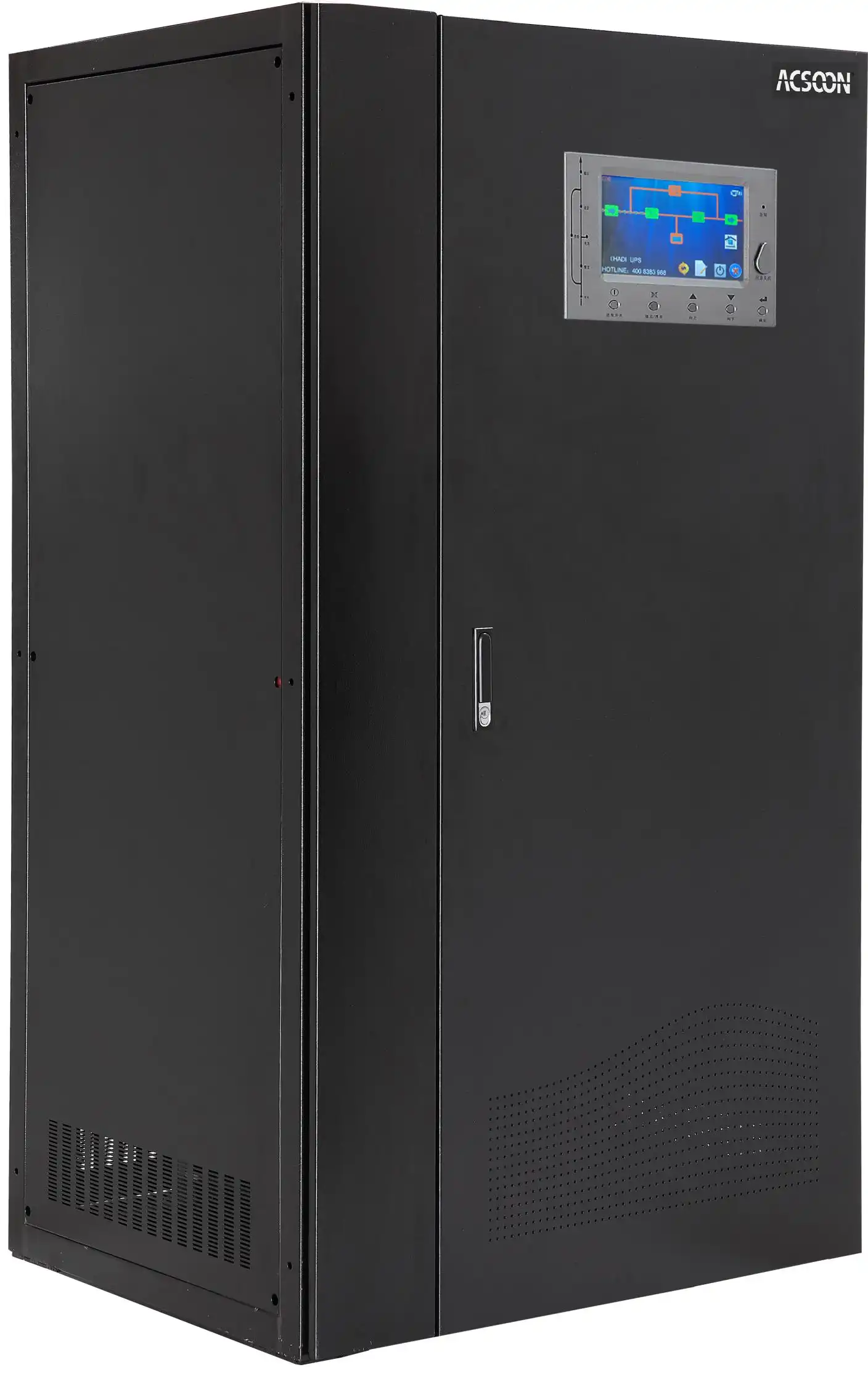

ACSOON APSW-310030 30kVA Online Double Conversion UPS
30kVA / 24kW | Three-Phase Input, Single-Phase Output | Pure Sine Wave | 0 ms Transfer Time
Protect servers, industrial controls and other critical single-phase loads when the incoming three-phase supply is interrupted or unstable. The APSW-310030 is a high-frequency online UPS designed for continuous power conditioning and battery-backed operation. Its online double-conversion design supplies the load through the inverter during normal operation, with a specified 0 ms transfer time from mains to battery mode.
Request a Configuration & Quotation
Send us your load list, site input voltage, required backup time and installation country. We will help check the UPS and battery configuration for your project.
Datasheet
| Item | APSW-310030 |
|---|---|
| UPS topology | Online double conversion |
| Rated capacity | 30kVA / 24kW |
| Phase configuration | Three-phase input, single-phase output |
| Input voltage range | 210–487VAC, as listed in the supplied specification |
| Input frequency range | 47–53Hz or 57–63Hz |
| Output voltage selections | 208 / 220 / 230 / 240VAC ±1% |
| Output waveform | Pure sine wave |
| Mains-to-battery transfer time | 0 ms |
| Output power factor | 0.8 |
| Battery configuration | Long-run model: 16 batteries; 16–20 optional, subject to configuration confirmation |
| Monitoring | RS-232; USB and SNMP options should be confirmed for the ordered configuration |
Configuration note: This is a three-phase-in, single-phase-out model. If your equipment requires a three-phase output, include that requirement in your inquiry so the correct UPS model can be selected.
What Problems Can This UPS Help Solve?
| Site problem | Why it matters | How an online UPS helps |
|---|---|---|
| Power interruption | Servers, controllers or network equipment may shut down without warning | Battery power continues to support the inverter during a mains outage |
| Voltage dips and fluctuations | Sensitive loads may reset or behave unpredictably | Double conversion supplies a regulated AC output within the UPS operating conditions |
| Critical loads sharing an unstable supply | Multiple essential devices depend on one power source | A correctly sized UPS provides a dedicated protected supply |
| Insufficient time for a controlled shutdown | Data and processes may be lost when utility power fails | A properly specified battery system provides time for shutdown or generator startup |
| Unclear project sizing | A “30kVA” label alone does not describe the usable load or backup duration | The stated 24kW output rating and project battery calculation give buyers a clearer starting point |
The UPS protects equipment within its rated capacity and specified operating conditions. Backup duration depends on battery selection, load and battery condition; it is not determined by the 30kVA rating alone.
Typical Applications
| Application | Loads to evaluate | Key purchasing question |
|---|---|---|
| Server rooms and small data centers | Servers, storage and network switches | What are the measured running load and required shutdown time? |
| Industrial automation | PLC cabinets, control computers and monitoring systems | Are the protected loads single-phase, and what is their peak demand? |
| Telecommunications | Network, communications and monitoring equipment | Is local or network-based UPS monitoring required? |
| Laboratories | Instruments, control PCs and data-acquisition systems | What output voltage does each instrument require? |
| Security and building systems | Access control, surveillance and control equipment | Which circuits must remain powered during an outage? |
| Commercial and institutional facilities | Selected essential IT and control loads | Is battery runtime needed for shutdown or for generator startup? |
For medical, safety-critical or other regulated installations, the complete electrical design and applicable local requirements must be assessed before specifying a UPS.
APSW-310030 Technical Specifications
| Category | Parameter | Supplied specification |
|---|---|---|
| Capacity | Rated output | 30kVA / 24kW |
| System | Phase | Three-phase input / single-phase output |
| Input | Voltage range | 210–487VAC |
| Input | Frequency range | 47–53Hz or 57–63Hz |
| Input | Power factor | 0.99 at rated voltage and 100% load, as stated in the supplied table |
| Output | Voltage | 208 / 220 / 230 / 240VAC ±1% |
| Output | Frequency | Synchronized with input in mains mode; battery-mode setting to be confirmed from the final datasheet |
| Output | Power factor | 0.8 |
| Output | Waveform | Pure sine wave |
| Output | Mains-to-battery transfer | 0 ms |
| Battery | Long-run configuration | 16 batteries; 16–20 optional, subject to confirmation |
| Environment | Relative humidity | 0–90%, non-condensing |
| Management | Communication | RS-232; confirm optional USB / SNMP availability for this model |
UPS Main Features
Online Double-Conversion Design: Continuously supplies the protected load through the inverter, helping reduce the effect of input voltage disturbances.
30kVA / 24kW Rated Capacity: Clearly defined apparent and active power ratings help buyers assess their load requirements.
Three-Phase Input, Single-Phase Output: Suitable for projects with a three-phase site supply and critical single-phase equipment.
0 ms Mains-to-Battery Transfer: The specified online operating mode maintains output during a utility power interruption.
Pure Sine Wave Output: Provides a clean AC waveform for compatible electronic and control equipment.
Selectable Output Voltage: 208V, 220V, 230V or 240VAC output options, with ±1% voltage regulation.
Wide Specified Input Range: Accepts 210–487VAC input within the conditions stated in the supplied product specification.
Battery Configuration Options: Backup time can be planned around the project’s actual load and required runtime.
Status Display and Monitoring: LCD operating information and RS-232 communication; confirm optional interfaces when specifying the order.
Why Choose the APSW-310030?
Continuous online power conditioning
The APSW series uses an online double-conversion architecture. The inverter supplies the protected load during normal operation, helping maintain a stable output as the input supply changes within the specified operating range.
30kVA capacity with a clearly stated 24kW limit
Both figures matter when selecting a UPS. 30kVA is the apparent-power rating; 24kW is the listed active-power rating. Check both against the combined running and peak demands of the equipment to be protected.
Pure sine wave, selectable single-phase output
The specification lists 208V, 220V, 230V and 240VAC output selections, with ±1% voltage regulation. Confirm the selected output voltage against the actual load nameplates and site distribution design.
Battery configuration for project runtime
The supplied specification lists a long-run battery configuration for this model. The number and capacity of batteries, cabinet arrangement and required runtime should be confirmed against the project load rather than assumed from a standard package.
LCD-based operating information
The APSW series description lists a large LCD for checking operating status and settings. Confirm the exact display and communication-port arrangement on the 30kVA unit before ordering.
UPS Application Areas
Server Rooms and IT Infrastructure: Provides backup power for servers, storage devices, network switches and other critical single-phase IT loads.
Industrial Automation: Supports PLC cabinets, control computers, monitoring equipment and production control systems during power interruptions.
Telecommunications: Helps maintain power to communication and network equipment where continuity is required.
Laboratories and Test Facilities: Supplies pure sine wave power to compatible instruments, data-acquisition systems and control PCs.
Security and Building Systems: Provides backup for selected surveillance, access-control and building-management equipment.
Commercial Facilities: Protects essential IT and control equipment while staff perform a controlled shutdown or a generator starts.
Our Services
Quality Control
- AVR Function Test: Each unit is tested to verify correct boosting and bucking operation across the specified input voltage range.
- Transfer Time & Waveform Analysis: The switch to battery mode is measured to ensure speed and that output waveform remains clean and stable.
- Battery Calibration & Load Test: Internal batteries are calibrated and tested under load to verify rated runtime.
- Full System Burn-in: A final operational test under cyclic load conditions ensures reliability before packaging.
R&D Results
Enhanced AVR Transformer Design: Developed a more efficient and compact multi-tap transformer for wider input range and faster correction.
Advanced Battery Management: Implemented precise charging algorithms to maximize battery lifespan and health.
Intelligent Fan Control: Engineered a temperature-based fan control system for quiet operation during normal use and effective cooling during extended backups.
Unified Management Software: Created simple, cross-platform software for battery runtime monitoring, event logging, and automatic shutdown.
Packaging and Transportation
Retail-Ready Packaging: Units are boxed in high-quality cardboard with molded foam inserts, suitable for retail or direct shipment.
Complete Accessory Inclusion: Package includes user manual, communication cables, installation CD/software, and warranty card.
Clear Safety & Setup Information: Packaging and quick-start guides feature clear multilingual instructions for safe installation.
Standard & Express Shipping: Available through common carriers with reliable tracking to businesses and institutions worldwide.
After‑Sales Service
We offer a 24-month warranty on the UPS and a 12-month warranty on the batteries. Support includes online resources, software downloads, and accessible technical support via email and phone.
Qualification Certification
ISO 9001:2015 Certified manufacturing;CE, RoHS Compliant; Tested to IEC 62040 Standards for UPS performance and safety.
FAQ |
|---|
Before publishing a finalized datasheet: The source document repeats columns and contains ambiguous entries for battery-mode frequency, overload duration, battery voltage and dimensions. Those values should be checked against the current APSW-310030 factory datasheet. They have intentionally not been converted into firm promises here. How to Specify the Right UPS for Your ProjectList every protected load. Record each device’s running watts or VA and any startup or peak demand. Confirm the electrical arrangement. APSW-310030 takes a three-phase input and supplies a single-phase output. State the site voltage and the required output voltage. Choose a realistic runtime. Specify whether you need time for a controlled shutdown, a generator to start, or continued operation. Check installation conditions. Provide the ambient temperature, available space, cable-entry requirements and local electrical standard. Define monitoring needs. State whether local status, computer connection or network monitoring is required. Request the final configuration drawing. Confirm the battery arrangement, dimensions, connection details and included accessories before purchase. Example of capacity screeningA project with a 17kW measured running load falls below this model’s listed 24kW active-power rating. That observation alone does not establish suitability: the buyer must still check peak load, VA demand, runtime, installation conditions and an appropriate engineering margin. Frequently Asked QuestionsIs APSW-310030 a line-interactive UPS?No. The supplied APSW documentation describes an online double-conversion UPS. “Line-interactive” and “online double conversion” describe different operating topologies, so the two terms should not be used as interchangeable product labels. Does “380V UPS” mean it outputs 380V?Not for this model. 380V refers to the nominal three-phase input context. The supplied specification lists a single-phase 208 / 220 / 230 / 240VAC output. Confirm the final input wiring and selected output voltage on the approved project datasheet. What is the difference between 30kVA and 24kW?The supplied specification rates the UPS at 30kVA apparent power and 24kW active power, corresponding to an output power factor of 0.8. When sizing a UPS, compare your load against both limits. How long will the UPS run during a power cut?Runtime cannot be stated accurately without the battery configuration and actual load. Tell us the required minutes or hours and provide a load list so the battery system can be specified. Is the transfer time really zero?The supplied specification states 0 ms mains-to-battery transfer time for online operation. Any operating modes, bypass behavior and site-specific switching requirements should be checked in the approved configuration. Can it supply three-phase equipment?The APSW-310030 is listed as three-phase input and single-phase output. Equipment that requires a three-phase output needs a different configuration or model. Can it be used with a generator?Generator compatibility requires a review of generator capacity, voltage and frequency behavior, grounding and the UPS input requirements. Provide the generator details for project assessment. Is an external battery cabinet included?The supplied document refers to a long-run battery configuration but does not establish what is included in a particular quotation. Specify whether you need batteries and a cabinet, then confirm the bill of materials. What information should I send for a quotation?Please provide the load list, total running kW and kVA if known, peak demand, site input voltage and frequency, required output voltage, backup time, installation country and monitoring requirements. A single-line diagram is helpful for larger projects. Request a Project ConfigurationNeed a 30kVA online UPS for a server room, industrial control system or other critical single-phase load? Send your electrical requirements to Xi’an Jerrystar Instrument Co., Ltd. for a model and battery configuration review. Suggested inquiry button: Request UPS Configuration & Quote |
