Frequency Voltage Regulator

1.Power Capacity: 10KVA to 1000KVA industrial range
2.Input Voltage: 380V ±25% three-phase
3.Output Voltage: 380V ±1% stabilized output

4.Frequency Range: 45Hz-65Hz input, 50Hz/60Hz output
5.Response Time: <15ms for voltage correction
6.Efficiency Rating: ≥98% with advanced regulation technology
7.Key Applications: Industrial automation, precision manufacturing, medical facilities

8.Brand: ACSOON (support OEM)
9.Cooling System: Intelligent temperature-controlled cooling.

Send Inquiry Download

Product Description

Frequency Voltage Regulator | Dual Regulation Power Stabilization System

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the advanced Frequency Voltage Regulator, designed to provide comprehensive power conditioning for critical applications. Our Frequency Voltage Regulator combines both voltage stabilization and frequency regulation in a single system, ensuring optimal power quality for sensitive equipment and industrial processes.

Technical Specification

PARAMETER	SPECIFICATION
INPUT
Voltage	380V ±25%
Frequency	45Hz-65Hz
Phase	Three-phase + Neutral
OUTPUT
Voltage	380V ±1%
Frequency	50Hz/60Hz ±0.5%
Regulation	Automatic voltage and frequency
PERFORMANCE
Efficiency	≥98% at full load
Response Time	<15ms for voltage correction
PROTECTION
Input	Over/under voltage, frequency out of range
Output	Overload, short circuit, over temperature
ENVIRONMENTAL
Operating Temperature	-10°C to 45°C
Protection Grade	IP21 (IP54 optional)

Frequency Voltage Regulator Main Features

High reliability and availability
Galvanically isolated,low harmonic distortion
Isolated output transformer,suit for any unbalance loads.
Every single phase can be used independently
Thoroughly proven advanced
SPWM and IGBT technology
Pure sine wave,sinusoidal output

Why Choose ACSOON Frequency Voltage Regulator?

ACSOON Frequency Voltage Regulator offers comprehensive advantages for power quality management:

Dual Regulation: Simultaneous voltage and frequency stabilization

High Precision: ±1% voltage accuracy and ±0.5% frequency stability

Rapid Response: <15ms correction speed for immediate stabilization

Wide Input Range: Handles significant voltage and frequency variations

Smart Monitoring: Digital display with real-time parameter monitoring

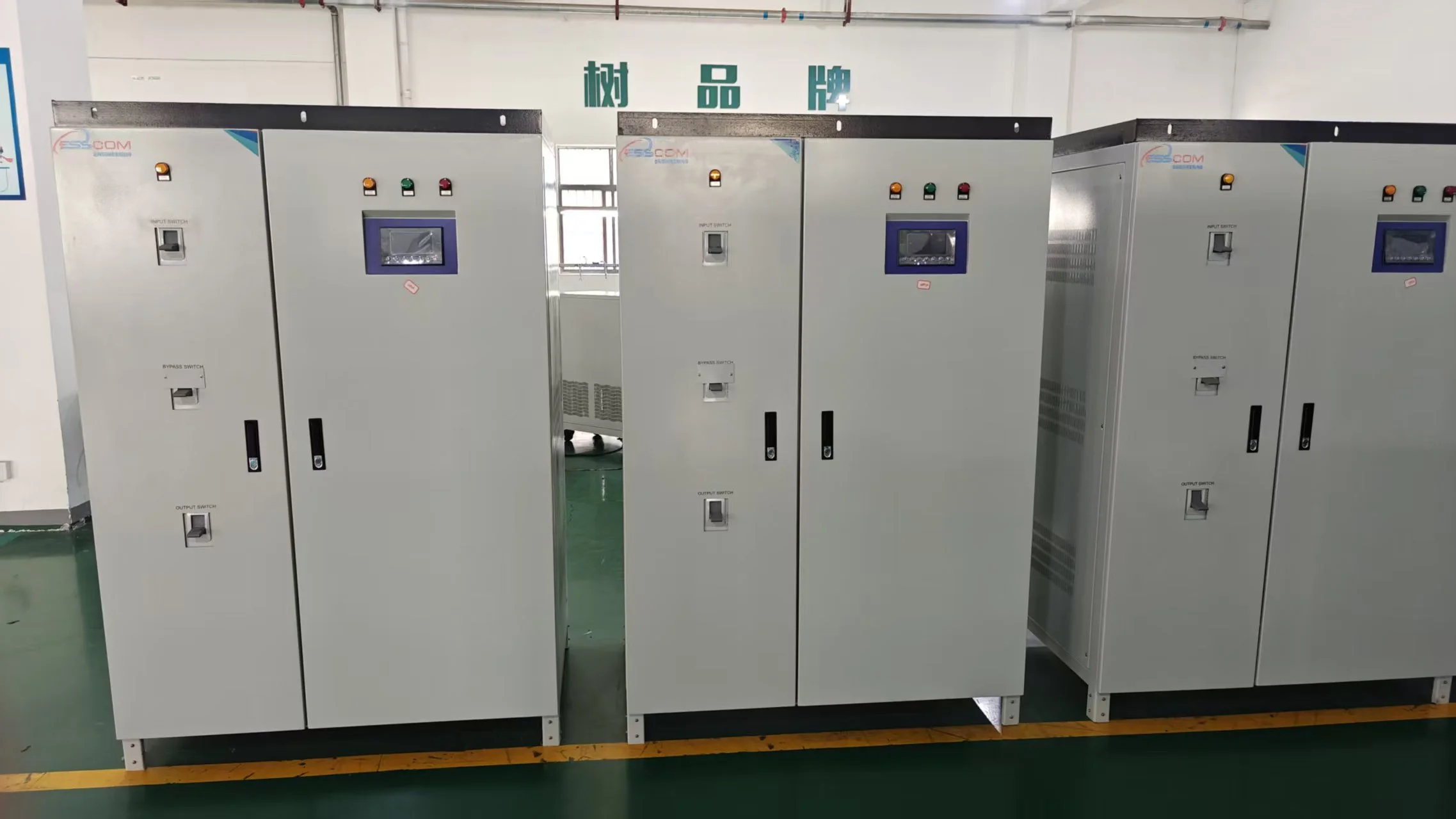

Application Areas

Our Frequency Voltage Regulator serves critical functions across various sectors:

Industrial Manufacturing: Production lines and precision machinery

Medical Facilities: Hospital equipment and diagnostic systems

Data Centers: Server rooms and IT infrastructure

Telecommunications: Network equipment and communication systems

Research Laboratories: Scientific instruments and testing equipment

Broadcast Stations: Broadcasting and transmission equipment

Our Services

Quality Control

Each Frequency Voltage Regulator undergoes rigorous quality validation:

Performance testing under various input conditions

Environmental testing for specified temperature range

Safety certification to international standards

Load testing with different equipment types

Final calibration and performance verification

R&D Results

Our technical innovations in Frequency Voltage Regulator technology include:

Advanced digital control algorithms for precise regulation

Enhanced power conversion efficiency

Smart load detection and automatic adjustment

Reduced electromagnetic interference

Modular design for easy maintenance

Packaging and Transportation

We ensure secure delivery of every Frequency Voltage Regulator:

Industrial-grade packaging with reinforced protection

Custom packaging for different capacity models

Complete documentation including installation guides

Global logistics support with tracking services

After-Sales Service

We provide comprehensive support for all Frequency Voltage Regulator installations:

Technical assistance for system integration

Installation guidance and commissioning support

Maintenance services and performance optimization

Remote diagnostics and troubleshooting

Operator training programs

Qualification Certification

FAQ
Q1: What is the advantage of combined voltage and frequency regulation?
A: Combined regulation ensures complete power quality management, protecting equipment from both voltage fluctuations and frequency variations that can cause malfunctions or damage.
Q2: Can your Frequency Voltage Regulator handle generator power sources?
A: Yes, our regulators are specifically designed to stabilize power from generators which often have voltage and frequency variations.
Q3: What types of equipment benefit most from your Frequency Voltage Regulator?
A: Sensitive electronic equipment, precision machinery, medical devices, and any equipment requiring stable power quality benefit greatly from our dual regulation system.
Q4: How does your regulator maintain stability during power grid fluctuations?
A: Advanced digital control systems continuously monitor input parameters and make instantaneous corrections to maintain stable output.
Q5: What is the installation requirement for your Frequency Voltage Regulator?
A: Installation requires adequate space for ventilation, proper grounding, and compliance with local electrical regulations for industrial equipment.

Contact Us

For frequency voltage regulator solutions or technical specifications: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
