Industrial power supply
Power: Single-phase output: 1kVA, 2kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA, 75kVA, 100kVA, 150kVA, 200kVA; Three-phase output: 1kVA–2000kVA available, series scalable for customized industrial applications
Input: 110V / 120V / 220V / 230V / 240V single-phase input, 208V / 380V / 400V / 415V / 440V / 480V three-phase input, ±15% voltage tolerance, 50Hz / 60Hz compatible input, frequency tolerance 40–70Hz
Key specs: ±1% FS voltage regulation & stability, ±0.1% FS frequency stability, isolated output transformer design, crest factor 1.414±0.1, THD <3% (linear load), input power factor ≥0.8, efficiency ≥85%
Applications: Aircraft avionics testing, aviation ground support simulation, MRO maintenance workshops, aerospace laboratory power supply, radar and communication equipment testing
Features: IGBT + SPWM technology, pure sine wave output, isolated transformer design, multi-protection system (over-voltage / over-current / over-temperature / short circuit), real-time LED display (V/A/Hz/W/PF), compact industrial metal enclosure
Brand: ACSOON AF400M Series (Xi’an Jerrystar Instrument Co., Ltd., 15+ years aviation power experience, 1-year warranty, OEM/ODM available, designed and manufactured in Xi’an, China)
- Product Description

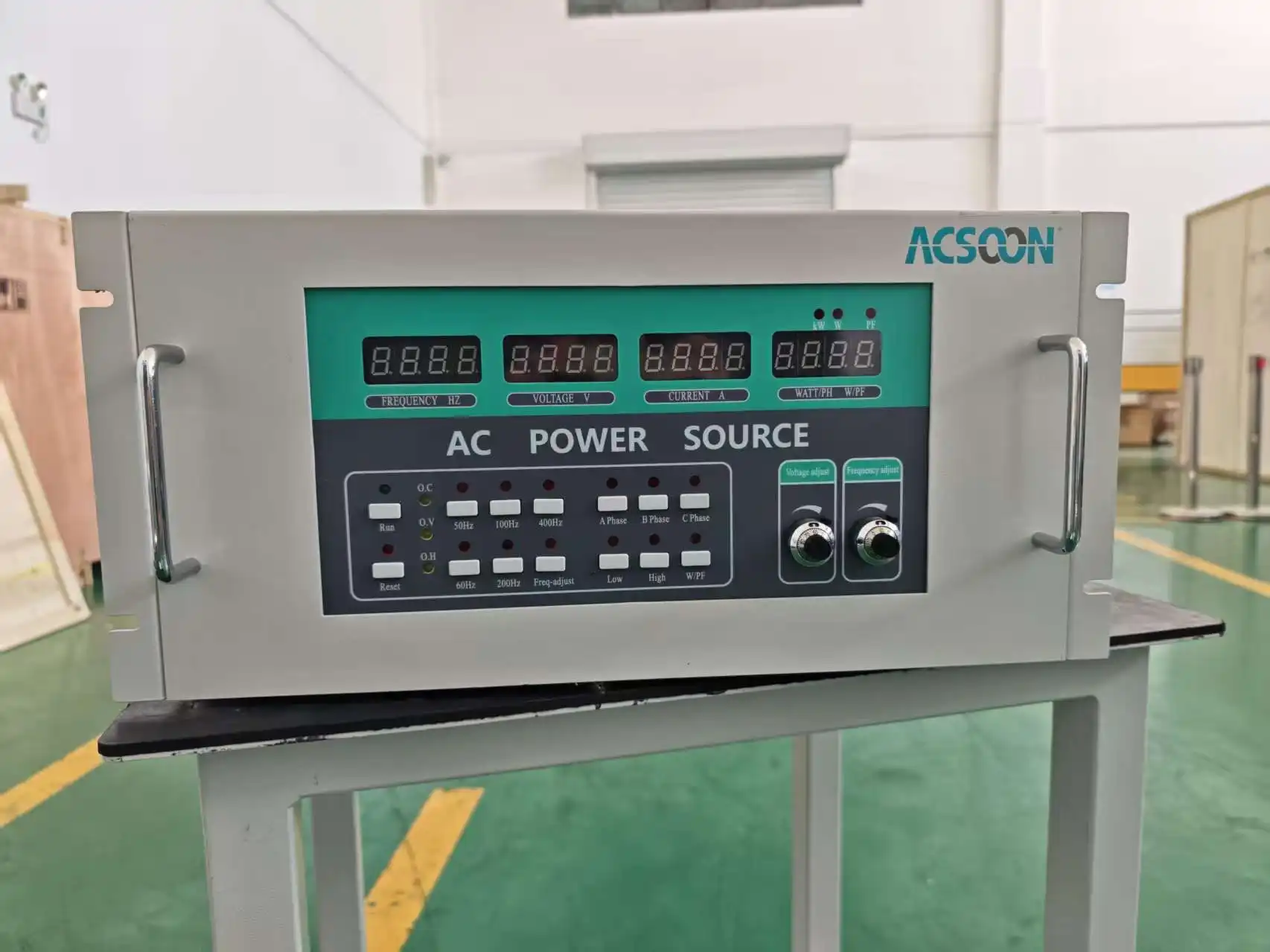

ACSOON AF60W Static Frequency Converter | Programmable AC Power Supply with Pure Sine Wave Output
Reliable Variable Frequency Power Supply for Aviation, Testing Laboratories and Industrial Applications
ACSOON AF60W Series Static Frequency Converter is a high-performance programmable AC power supply designed to convert standard utility power into stable variable voltage and frequency output.
It provides clean pure sine wave AC power with adjustable voltage and frequency, helping global manufacturers, laboratories, aviation MRO companies and equipment suppliers solve power compatibility problems caused by different electrical standards worldwide.
With advanced IGBT + SPWM technology, isolated output transformer design and multiple protection systems, AF60W delivers reliable AC power for equipment testing, aerospace applications, imported equipment operation and industrial verification.
Solve Global Power Compatibility Problems with One Flexible AC Power Solution
Different countries use different voltage and frequency standards, which creates challenges for international equipment manufacturers and users.
Common problems include:
1. Imported Equipment Cannot Work Properly
Industrial machines, testing equipment and electrical products designed for another country may fail due to:
- Different voltage standards
- 50Hz / 60Hz frequency mismatch
- Unstable grid conditions
- Harmonic distortion problems
2. Testing Requires Adjustable Power Conditions
Manufacturers need to simulate different electrical environments before exporting products.
Traditional grid power cannot provide:
- Adjustable frequency
- Adjustable voltage
- Clean sine wave output
- Repeatable testing conditions
3. Sensitive Equipment Requires Stable Power Quality
Aircraft avionics, communication systems and laboratory instruments require:
- Low harmonic distortion
- Stable voltage
- Stable frequency
- Electrical isolation protection
ACSOON AF60W Solution
AF60W Static Frequency Converter provides a programmable AC power source that allows users to simulate worldwide electrical environments.
It converts available mains power into controlled AC output:
✔ Variable voltage output
✔ Variable frequency output
✔ Pure sine wave waveform
✔ Low THD power quality
✔ Single phase and three phase solutions
✔ Custom power capacity available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Static Frequency Converter / AC Power Supply |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 110V / 120V / 220V / 230V / 240V AC |
| Output Phase | Single Phase / Split Phase / Three Phase |
| Voltage Adjustable Range | 0-150V (L-N), 0-300V (L-N), 0-260V (L-L), 0-520V (L-L) |
| Frequency Range | 45Hz-200Hz Adjustable |
| Power Capacity | 1kVA-2000kVA |
| Voltage Regulation | ±1% FS |
| Frequency Stability | ±0.1% FS |
| THD | <3% @ Linear Load |
| Crest Factor | 1.414±0.1 |
| Efficiency | ≥85% |
| Input Voltage | 110V/120V/220V/230V/240V Single Phase; 208V/380V/400V/415V/440V/480V Three Phase |
| Input Frequency | 50Hz / 60Hz |
| Display | Voltage / Current / Frequency / Power Factor / Power |
| Cooling | Industrial Cooling System |
If you need it,Contact us at Email: acpower@acsoonpower.com
Why Choose ACSOON AF60W Static Frequency Converter?
1. Pure Sine Wave Output for Sensitive Equipment
AF60W generates clean sinusoidal AC power with THD <3% under linear load conditions.
Benefits:
- Protects sensitive electronic equipment
- Improves measurement accuracy
- Reduces waveform interference
2. Wide Voltage and Frequency Adjustment Range
One power supply supports multiple global electrical standards.
Output options:
- 110V
- 120V
- 220V
- 230V
- 240V
Frequency:
- 45Hz–200Hz adjustable
- Customized frequency available
3. Industrial Isolation Transformer Design
The isolated output transformer provides:
- Electrical isolation
- Better load compatibility
- Improved equipment protection
- Suitable for unbalanced loads
4. Flexible Power Range for Different Applications
AF60W series supports:
Single phase:
1kVA to 200kVA
Three phase:
1kVA to 2000kVA
OEM customization available for special projects.
5. Designed for Long-Term Industrial Operation
Features include:
- IGBT power conversion technology
- Real-time LED monitoring
- Over voltage protection
- Over current protection
- Over temperature protection
- Short circuit protection
AF60M Static Frequency Converter Application Areas
Aviation & Aerospace Testing
AF60W provides stable AC power for:
- Aircraft avionics testing
- Aircraft electrical equipment testing
- Aviation laboratory power supply
- Aerospace component verification
- Ground support equipment simulation
MRO Maintenance Workshops
Used by aircraft maintenance organizations for:
- Avionics repair testing
- Aircraft equipment maintenance
- Power system verification
- Component troubleshooting
Industrial Equipment Testing
Suitable for:
- Imported equipment testing
- Motor and pump testing
- Transformer testing
- Electrical product export verification
Laboratory & R&D Applications
Provides controlled power environments for:
- Product development
- Electrical research
- Compliance testing
- Engineering laboratories
AF60W vs Traditional Frequency Converter Comparison
| Feature | ACSOON AF60W | Traditional Frequency Converter |
|---|---|---|
| Output waveform | Pure sine wave | Modified waveform possible |
| THD | <3% | Higher distortion possible |
| Frequency adjustment | 45-200Hz | Limited range |
| Voltage adjustment | Wide adjustable range | Usually fixed |
| Isolation transformer | Available | Usually unavailable |
| Testing application | Excellent | Limited |
| Sensitive equipment support | Yes | Not recommended |
| Custom power solution | Available | Limited |
Designed for Global Equipment Manufacturers and Professional Users
AF60W is widely suitable for companies requiring reliable power conversion solutions:
Equipment Manufacturers
Need to test products for different countries?
AF60W helps simulate:
- European power standards
- North American power standards
- Aviation electrical environments
- Marine electrical systems
Aviation Companies
Need stable AC power for aircraft maintenance?
AF60W provides:
- Clean power output
- Adjustable frequency
- Reliable testing conditions
Laboratories
Need programmable AC sources?
AF60W supports:
- R&D testing
- Product validation
- Electrical performance analysis
🏭 Why Choose ACSOON Systems
Professional Power Electronics Manufacturer
ACSOON (Xi'an Jerrystar Instrument Co., Ltd.) specializes in AC power supply, static frequency converter, aircraft ground power unit and industrial power solutions.
Advantages:
✔ 19+ years aviation power experience
✔ OEM / ODM manufacturing capability
✔ Industrial production facility in Xi’an, China
✔ Engineering support for customized projects
✔ Complete after-sales service support
Custom Solutions Available
Every application has different power requirements.
Contact ACSOON engineers for customized solutions:
✔ Customized voltage output
✔ Customized frequency range
✔ Customized capacity
✔ Rack-mounted design
✔ Industrial cabinet design
✔ Aviation-specific power solutions
Request Technical Consultation & Quotation
Looking for a reliable Static Frequency Converter Manufacturer?
Send your requirements:
- Input voltage
- Output voltage
- Required frequency
- Power capacity
- Application equipment
Our engineers will recommend the suitable AC power solution.
Get AF60W technical datasheet and quotation today.
ABOUT US
·28,698+ long-term repeat clients globally with stable repeat orders
·19+ years domestic & export manufacturing experience for aviation ground power equipment
·7,000+ sq.m modern production factory
·24/7 customer service:＜30 mins quick response + lifetime after-sales support
·60+ independent patented technologies
·Certified as China National High-Tech Enterprise
·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification
Long Standing
Customer
Over 19 years
experience
Factory Area
7/24H
High-Quality
Efficiency Service
📩 Get Price / Technical Consultation
👉 Request datasheet
👉 Get recommended configuration
👉 Send aircraft or test load requirement
Response within 24 hours by engineering team.
Our Services
Quality Control
- Every unit tested – 2 hours at 80% load. Check for overheating.
- Output verified – Voltage accuracy at five set points. Record kept.
- Isolation test – 2kV between input and output for 1 minute. No breakdown.
- Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.
R&D Results
- Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
- Transformer – Used a standard toroid instead of custom wound. Still meets specs.
- Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
- User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.
Packaging and Transportation
- Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
- Included – Power cord (1.5m), output cable with universal socket, printed quick start.
- Manual – One sheet of paper. Double‑sided. No USB.
- Pallet – 8 units per pallet for dealers.
After‑Sales Service
- 1‑year warranty – Return to Xi'an for repair. Parts and labor.
- Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
- Email support – We answer within one business day. Simple questions only.
Qualification Certification
- CE – LVD and EMC tested.
- ISO 9001:2015 – Our Xi'an facility.
- RoHS – Compliant.
FAQ
Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.
Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.
Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.
Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.
Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.
Q6:How can I get more details?
A:Click here.Send inquiry get price and specification.
