AF60W 2kVA Frequency Converter
Power: Single-phase output: 1kVA, 2kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA, 75kVA, 100kVA, 150kVA, 200kVA; Three-phase output: 1kVA–2000kVA available, series scalable for customized industrial applications
Input: 110V / 120V / 220V / 230V / 240V single-phase input, 208V / 380V / 400V / 415V / 440V / 480V three-phase input, ±15% voltage tolerance, 50Hz / 60Hz compatible input, frequency tolerance 40–70Hz
Key specs: ±1% FS voltage regulation & stability, ±0.1% FS frequency stability, isolated output transformer design, crest factor 1.414±0.1, THD <3% (linear load), input power factor ≥0.8, efficiency ≥85%
Applications: Aircraft avionics testing, aviation ground support simulation, MRO maintenance workshops, aerospace laboratory power supply, radar and communication equipment testing
Features: IGBT + SPWM technology, pure sine wave output, isolated transformer design, multi-protection system (over-voltage / over-current / over-temperature / short circuit), real-time LED display (V/A/Hz/W/PF), compact industrial metal enclosure
Brand: ACSOON AF400M Series (Xi’an Jerrystar Instrument Co., Ltd., 15+ years aviation power experience, 1-year warranty, OEM/ODM available, designed and manufactured in Xi’an, China)
- Product Description

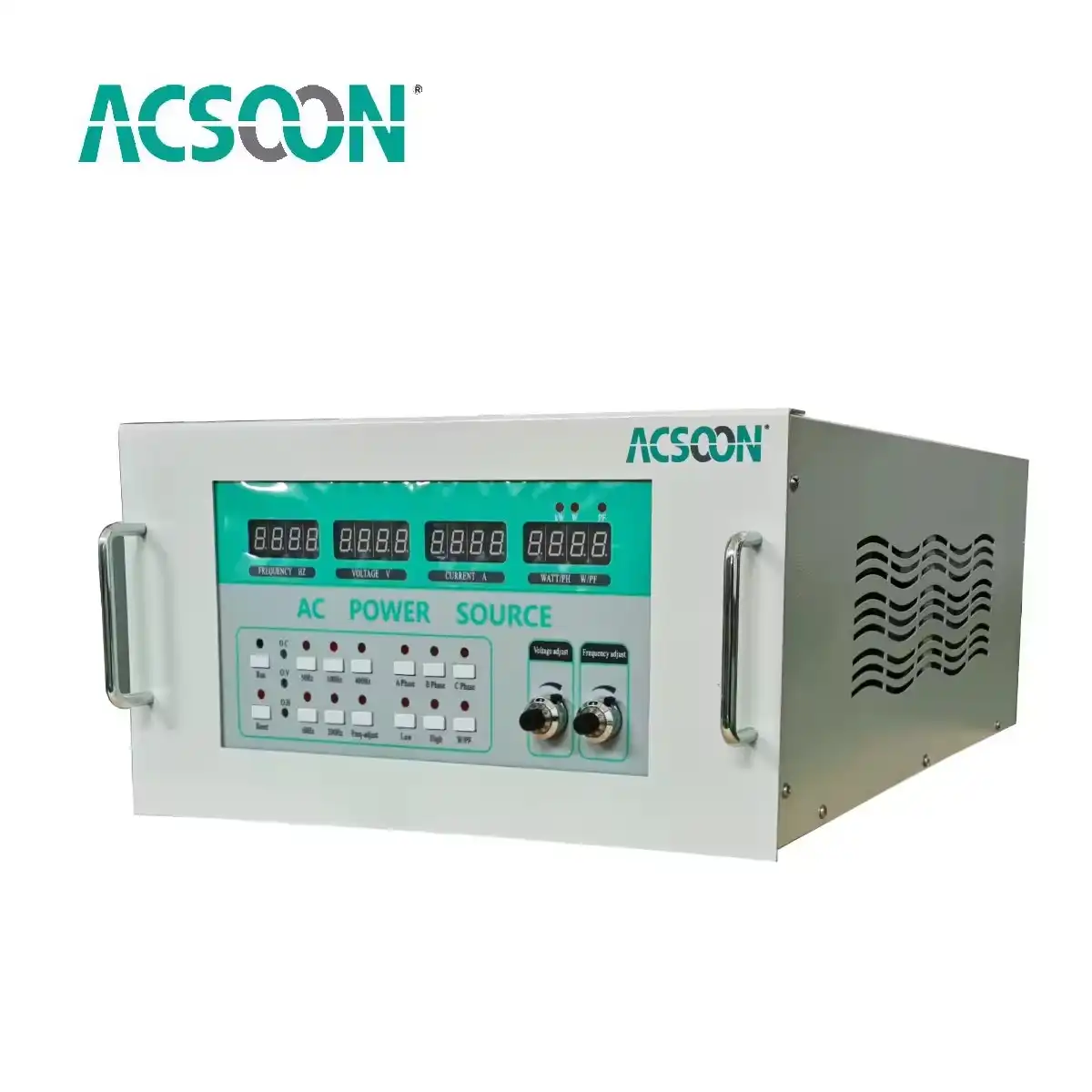

ACSOON AF60W 2kVA Frequency Converter | Pure Sine Wave AC Power Supply
Programmable Static Frequency Converter for Testing & Industrial Applications
ACSOON AF60W 2kVA Frequency Converter is a programmable AC power supply designed to provide stable and clean AC power for equipment testing, laboratories, aviation maintenance and industrial applications.
It converts standard utility power into adjustable voltage and frequency output, helping users solve power compatibility problems caused by different countries' electrical standards.
With pure sine wave output, isolated transformer design and IGBT + SPWM technology, AF60W provides reliable power for sensitive electronic equipment and precision testing systems.
Solve Global Power Compatibility Problems with One Flexible AC Power Solve Your Power Compatibility Problems
Different countries have different voltage and frequency standards. Imported equipment may face:
- 50Hz / 60Hz frequency mismatch
- Unstable power supply
- Incorrect voltage requirements
- Poor waveform quality affecting equipment performance
AF60W 2kVA Frequency Converter provides:
✔ Adjustable voltage and frequency output
✔ Pure sine wave AC power
✔ Stable testing environment
✔ Low harmonic distortion power supply
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AF60W 2kVA Frequency Converter |
| Rated Power | 2kVA |
| Output Voltage | 110V / 120V / 220V / 230V / 240V AC |
| Output Phase | Single Phase |
| Frequency Range | 45Hz-200Hz Adjustable |
| Output Waveform | Pure Sine Wave |
| Voltage Regulation | ±1% FS |
| Frequency Stability | ±0.1% FS |
| THD | <3% Linear Load |
| Efficiency | ≥85% |
| Input Voltage | 110V/120V/220V/230V/240V |
| Input Frequency | 50Hz / 60Hz |
If you need it,Contact us at Email: acpower@acsoonpower.com
Key Features
✔ Pure sine wave output, THD <3%
✔ Frequency adjustable 45Hz-200Hz
✔ Voltage adjustable output
✔ ±1% voltage stability
✔ ±0.1% frequency stability
✔ Isolated output transformer design
✔ IGBT + SPWM technology
✔ Over voltage / over current / over temperature protection

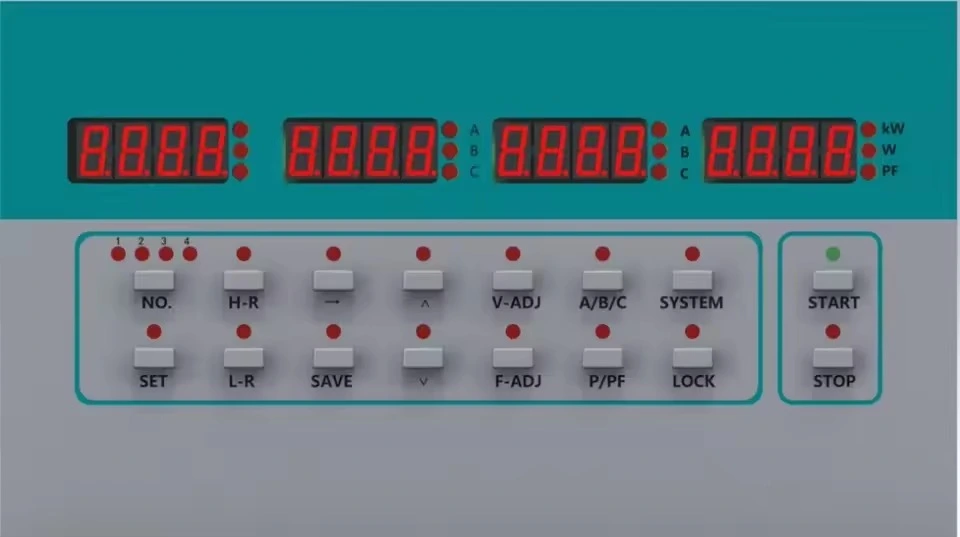

✔ Real-time LED display (V/A/Hz/W/PF)
AF60M Static Frequency Converter Application Areas
Aircraft & Avionics Testing
- Aircraft electronic equipment testing
- Aviation maintenance
- Ground support equipment simulation
Laboratory & R&D
- Product development
- Electrical testing
- Quality inspection
Industrial Equipment Testing
- Imported equipment verification
- Motors and electrical products testing
- International export testing
AF60W vs Traditional Frequency Converter Comparison
| Feature | ACSOON AF60W | Traditional Frequency Converter |
|---|---|---|
| Output waveform | Pure sine wave | Modified waveform possible |
| THD | <3% | Higher distortion possible |
| Frequency adjustment | 45-200Hz | Limited range |
| Voltage adjustment | Wide adjustable range | Usually fixed |
| Isolation transformer | Available | Usually unavailable |
| Testing application | Excellent | Limited |
| Sensitive equipment support | Yes | Not recommended |
| Custom power solution | Available | Limited |
🏭 Why Choose ACSOON Systems
ACSOON (Xi’an Jerrystar Instrument Co., Ltd.) is a professional manufacturer of AC power supplies, static frequency converters and aviation power solutions.
✔ 19+ years power electronics experience
✔ OEM / ODM customization available
✔ Professional technical support
✔ Industrial manufacturing capability
✔ Designed and manufactured in Xi’an, China
Get AF60W technical datasheet and quotation today.
ABOUT US
·28,698+ long-term repeat clients globally with stable repeat orders
·19+ years domestic & export manufacturing experience for aviation ground power equipment
·7,000+ sq.m modern production factory
·24/7 customer service:＜30 mins quick response + lifetime after-sales support
·60+ independent patented technologies
·Certified as China National High-Tech Enterprise
·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification
Long Standing
Customer
Over 19 years
experience
Factory Area
7/24H
High-Quality
Efficiency Service
Custom Solution & Quotation
Need a reliable 2kVA Frequency Converter Manufacturer?
Contact ACSOON for:
✔ Technical datasheet
✔ Customized voltage/frequency solution
✔ OEM cooperation
✔ Project quotation
📩 Get Price / Technical Consultation
Response within 24 hours by engineering team.
Our Services
Quality Control
- Every unit tested – 2 hours at 80% load. Check for overheating.
- Output verified – Voltage accuracy at five set points. Record kept.
- Isolation test – 2kV between input and output for 1 minute. No breakdown.
- Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.
R&D Results
- Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
- Transformer – Used a standard toroid instead of custom wound. Still meets specs.
- Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
- User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.
Packaging and Transportation
- Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
- Included – Power cord (1.5m), output cable with universal socket, printed quick start.
- Manual – One sheet of paper. Double‑sided. No USB.
- Pallet – 8 units per pallet for dealers.
After‑Sales Service
- 1‑year warranty – Return to Xi'an for repair. Parts and labor.
- Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
- Email support – We answer within one business day. Simple questions only.
Qualification Certification
- CE – LVD and EMC tested.
- ISO 9001:2015 – Our Xi'an facility.
- RoHS – Compliant.
FAQ
Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.
Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.
Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.
Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.
Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.
Q6:How can I get more details?
A:Click here.Send inquiry get price and specification.
Contact Us
For technical specifications or global solutions for the AF60W 2kVA Frequency Converter: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
