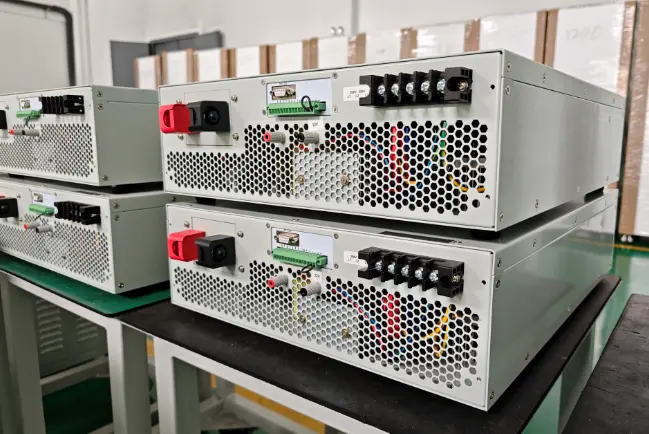

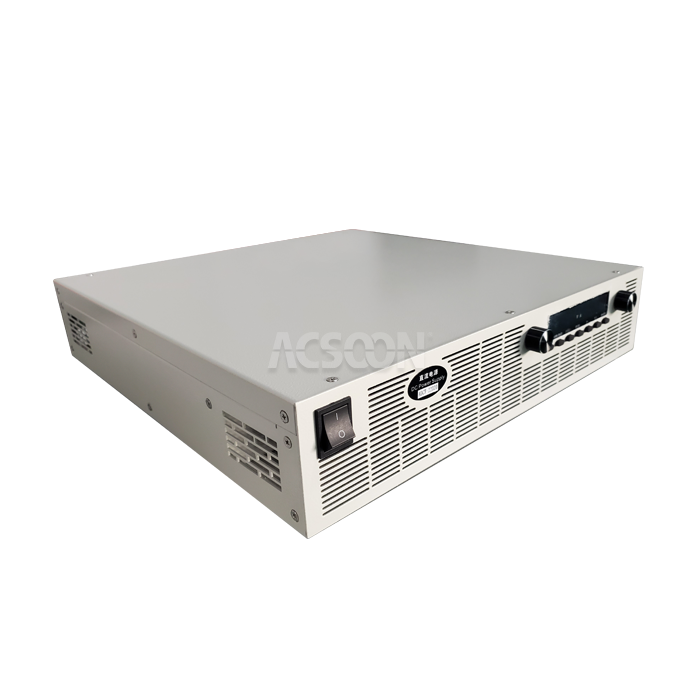

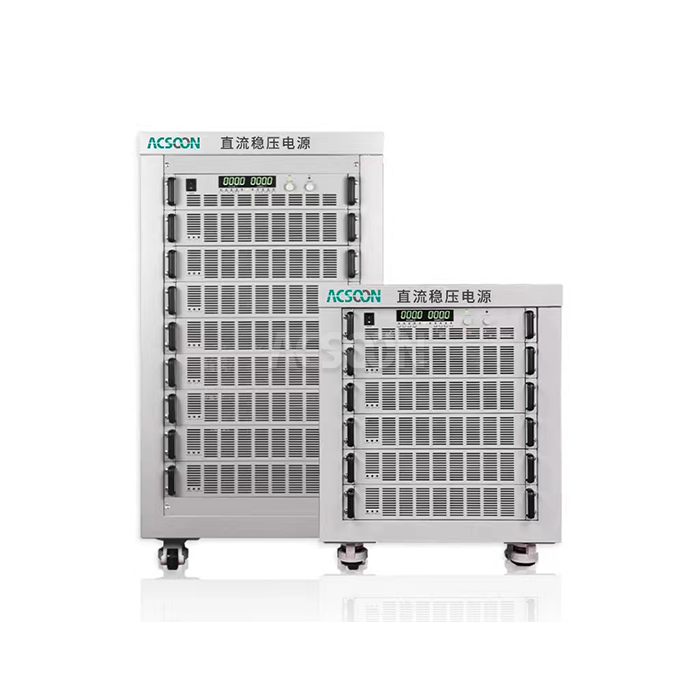

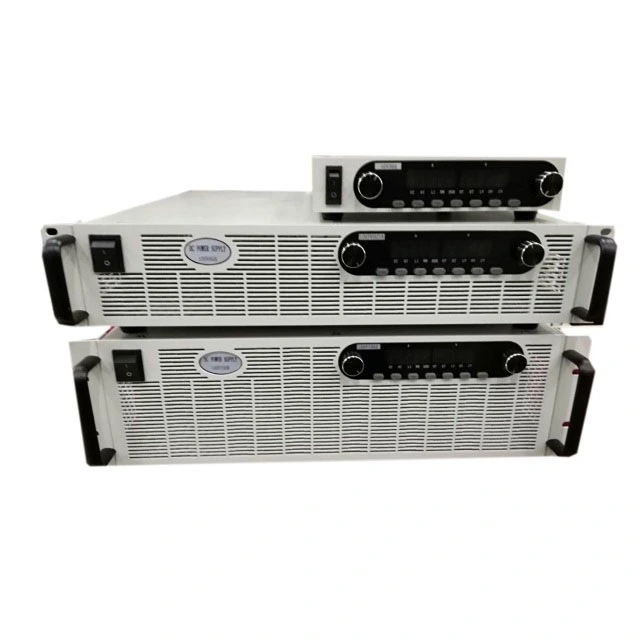

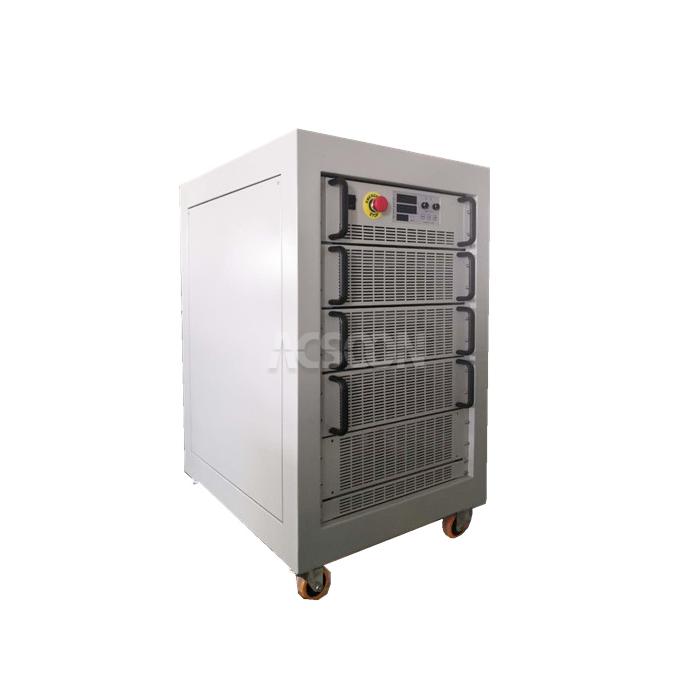

Adjustable DC Power Supply for Laboratory
2.Power Rating: 80kVA
3.Input Voltage & Frequency: 3 Phase 380V, 60HZ
4.Output Voltage & Frequency: 3×200V, 400HZ
5.Type: Solid state GPU, floor mounted
6.Ingress Protection Grade: IP21
7.Applications: aviation R&D and military equipment
8.Brand: ACSOON (support OEM)
9.Features: multiple history events memorized in record.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD offers the high-precision Adjustable DC Power Supply for Laboratory, engineered to meet the exacting demands of research and development. This bench-top or rack-mount unit provides clean, stable, and fully programmable DC power, essential for testing circuits, powering prototypes, and characterizing electronic components with accuracy and reliability.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON ADC Series |
| Input | Voltage: 1-Phase 220V or 3-Phase 380V ±10% Frequency: 50Hz / 60Hz |
| Output | Voltage: 0 - Nominal Rated Voltage (e.g., 0-60V, 0-600V) adjustable Current: 0 - Nominal Rated Current adjustable Power: 1kW, 2kW, 5kW, 10kW, 15kW, 30kW, etc. |
| Regulation | Voltage Stability (Line/Load): ≤ ±0.5% FS Current Stability (Line/Load): ≤ ±0.5% FS |
| Ripple & Noise | ≤ 0.5% RMS (of nominal value) |
| Display Accuracy | Voltage: ±0.5% FS, Current: ±0.5% FS |
| Efficiency | ≥85% (Typical) |
| Cooling | Forced Air (Temperature-controlled fan) |
| Protections | Over Voltage (OVP), Over Current (OCP), Short Circuit, Over Temperature |
| Interface | RS232 / RS485, Analog Programming (0-5V/10V, 4-20mA) optional |
| Operating Temp. | -10°C to 50°C |
Adjustable DC Power Supply for Laboratory Main Features
- Wide Adjustment Range: Voltage and current adjustable from zero to the rated maximum with fine resolution.
- Remote Sense Compensation: Dedicated terminals to compensate for voltage drop in load leads, ensuring accurate voltage at the DUT.
- Dual Display: Simultaneous digital readout of both output voltage and current, as well as output power.
- Advanced Communication: Equipped with RS232/RS485 supporting SCPI and Modbus protocols for automated test system integration.
Why Choose ACSOON Adjustable DC Power Supply for Laboratory?
- High Precision & Stability: Excellent line and load regulation (±0.5%), low ripple, and minimal drift ensure repeatable test results.
- Full Programmability: Allows preset voltage/current limits, remote control via interfaces (RS232/RS485), and optional analog programming.
- Comprehensive Protection: Built-in safeguards (OVP, OCP, Short Circuit, Over Temp) protect both the supply and the device under test (DUT).
- User-Friendly Operation: Intuitive front panel with LCD display, tactile controls, and clear menu structure for easy setup.

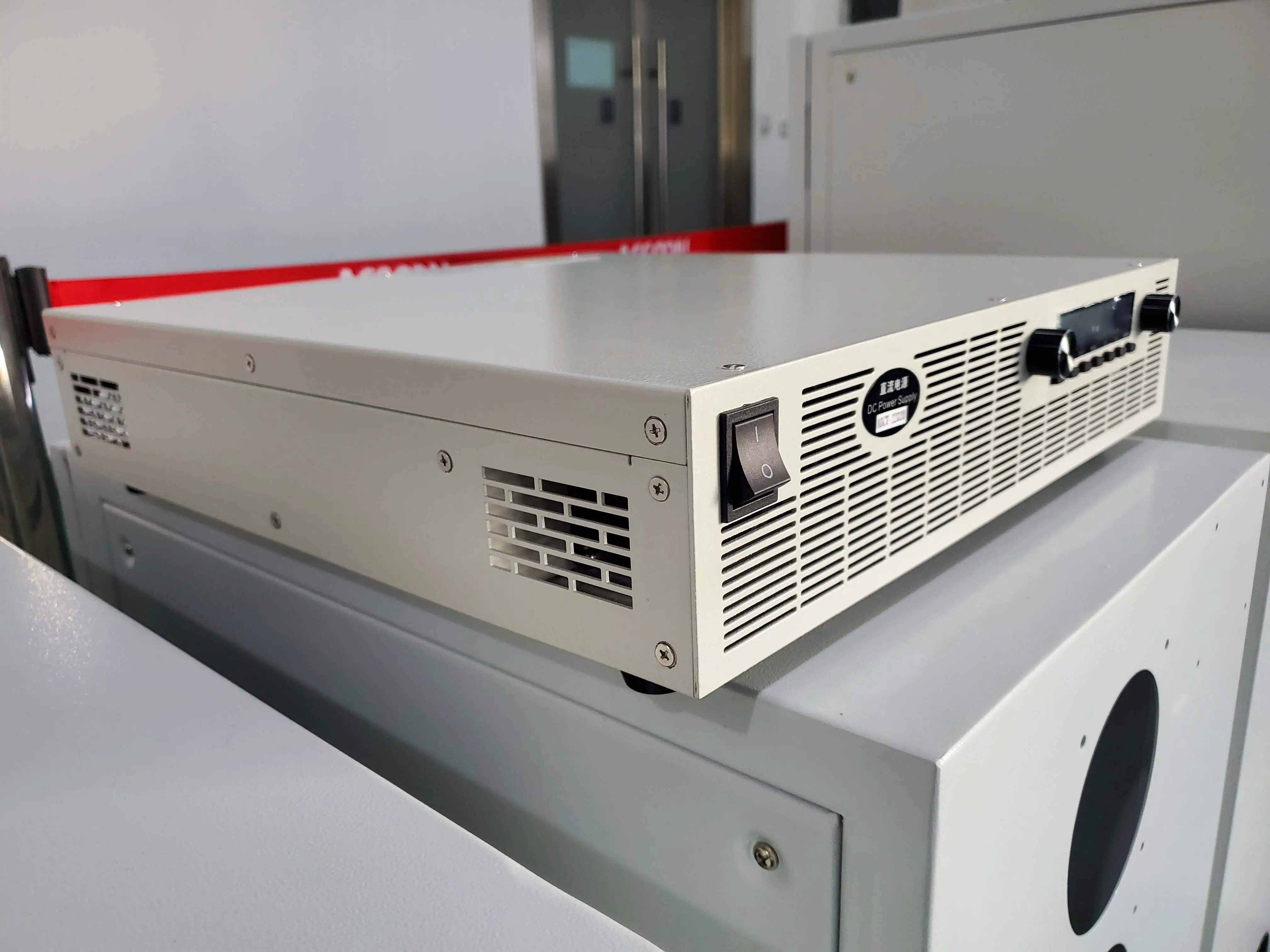

Adjustable DC Power Supply for Laboratory Application Areas
- University & Research Labs: Fundamental tool for teaching electronics and conducting advanced research on power systems and materials.
- PCB & Circuit Design: Powering and debugging prototype boards, testing ICs, and validating circuit performance under different supply conditions.
- Sensor & Battery Testing: Providing precise voltage/current profiles for characterizing sensors, charging circuits, and battery cells.
- Quality Assurance & Calibration: Serving as a stable reference source for calibrating meters and testing finished electronic products.
Our Services
Quality Control
- Pre-Assembly Testing: Critical components like IGBTs, capacitors, and transformers are individually tested before assembly.
- Calibration & Performance Test: Each unit is fully calibrated. Output accuracy, stability, ripple, and transient response are verified against specs.
- Aging Test: Units undergo a powered burn-in period to identify and eliminate early-life failures.
- Functional Safety Check: All protection features (OVP, OCP) are rigorously tested to ensure they trigger correctly under fault conditions.
R&D Results
Advanced Control Loop: Developed proprietary control algorithms for fast transient response and exceptional stability under dynamic loads.
Low-Noise Design: Implemented optimized filtering and layout techniques to minimize output noise and ripple, critical for sensitive analog circuits.
Thermal Management: Engineered an efficient cooling system with smart fan control to balance noise and heat dissipation for quiet lab operation.
Software Integration: Created robust communication firmware supporting standard SCPI commands for seamless integration with LabVIEW, Python, and other test software.
Packaging and Transportation
Secure Packaging: Unit is placed in a foam-insulated cardboard carton or wooden crate for higher-power models to prevent transit damage.
Accessories Included: All standard accessories (power cord, user manual, test certificate) are packed alongside the main unit.
Clear Labeling: External packaging is clearly marked with model number, handling instructions, and orientation arrows.
Global Logistics: We work with reliable carriers to ensure safe and timely delivery worldwide.
After‑Sales Service
We provide an 18-month warranty, comprehensive technical documentation, responsive email/phone support, and access to firmware updates and spare parts.
Qualification Certification
ISO 9001:2015 Certification: Our manufacturing process adheres to internationally recognized quality management standards;CE Compliance: The product is designed and tested to meet applicable EU safety and EMC directives;Calibration Certificate: A test report detailing the unit's output performance against its specifications is provided.
FAQ |
|---|
| Q1: What is the key advantage of a laboratory-grade adjustable DC power supply? |
| A: It offers high precision, stability, and clean output (low noise/ripple), which are essential for obtaining accurate and repeatable measurements in research and development, unlike a basic power supply. |
| Q2: Can I control this power supply with my computer for automated testing? |
| A: Yes. With its built-in RS232/RS485 interface and support for SCPI/Modbus protocols, you can easily integrate it into automated test setups using common programming languages. |
| Q3: What does "Remote Sense" do and when is it needed? |
| A: Remote sense wires measure the voltage directly at the load terminals, compensating for any drop in the output cables. This is crucial when high current flows through long cables, ensuring the set voltage is precisely delivered to your device. |
| Q4: Is it safe to use for testing unknown or potentially faulty circuits? |
| A: Yes. The built-in Over-Current Protection (OCP) and Short-Circuit Protection allow you to set a current limit. If the load draws too much current, the supply will safely limit the output to your set value, protecting your circuit. |
| Q5: Can the output be turned on/off remotely? |
| A: Yes, remote on/off control can be achieved either through the digital communication interface or via the optional analog control port. |
