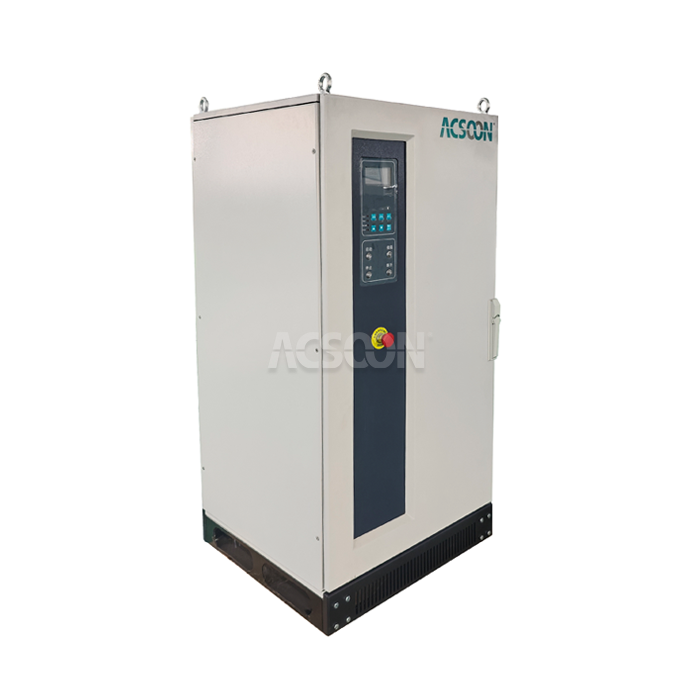

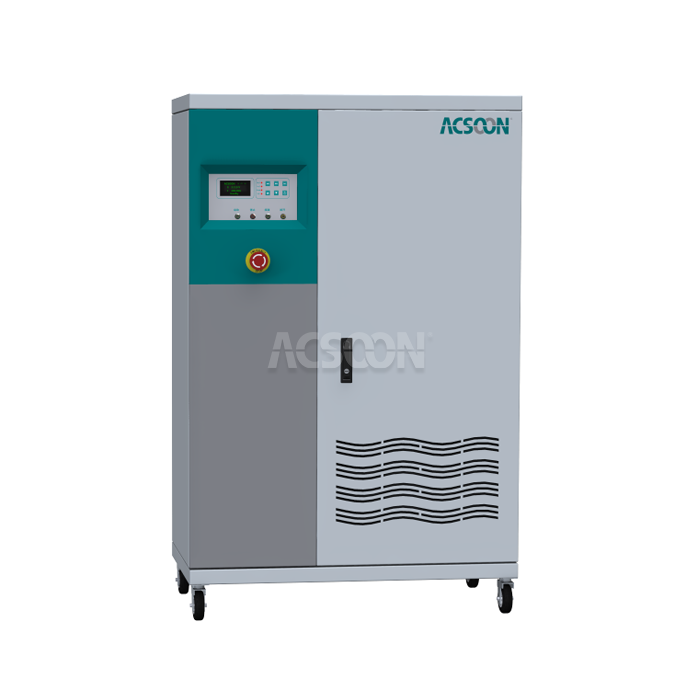

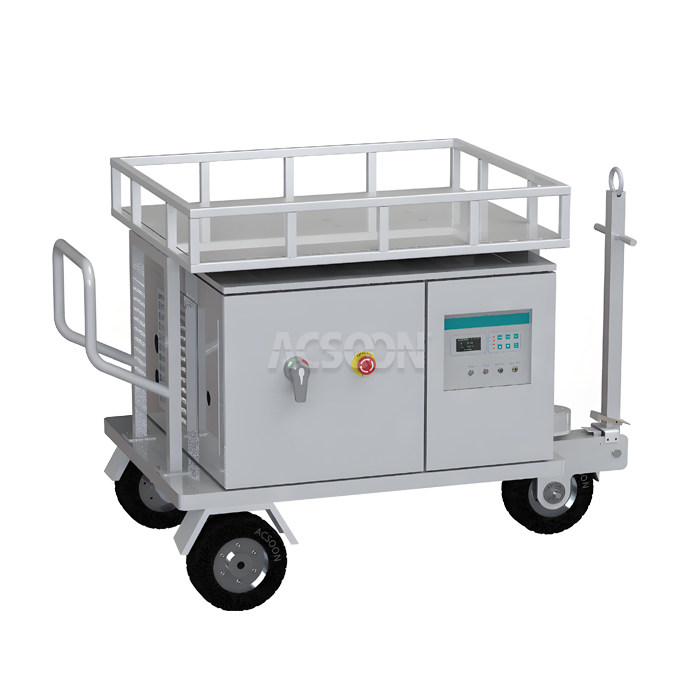

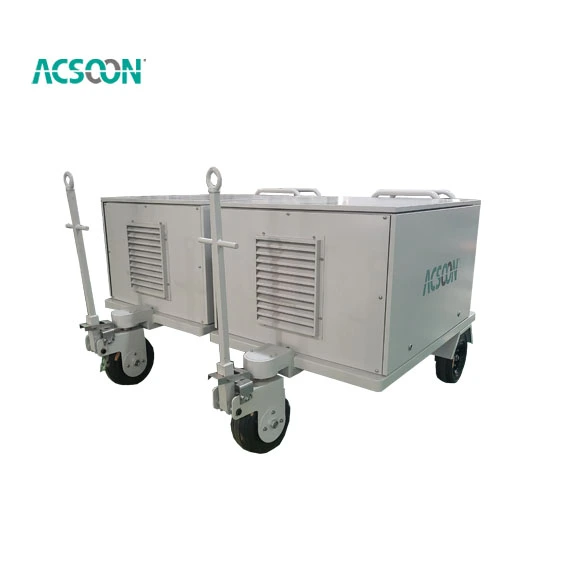

115V 400Hz Aircraft GPU
1.Rated Power: Available from 30 kVA to 180 kVA.
2.Technology: Solid-State Static Frequency Converter with 12-pulse rectification & SPWM.
3.Input: Compatible with global 3-phase mains (208V-480V, 50/60Hz).
4.Output: Precise 115V/200V, 400Hz, three-phase, four-wire AC power.
5.Core Application: External power for aircraft ground operation, engine start, and systems testing.
6.Key Advantages: High efficiency, pure sine wave, auto voltage compensation, military-grade interlock.
7.Brand: ACSOON (support OEM).
2.Technology: Solid-State Static Frequency Converter with 12-pulse rectification & SPWM.
3.Input: Compatible with global 3-phase mains (208V-480V, 50/60Hz).
4.Output: Precise 115V/200V, 400Hz, three-phase, four-wire AC power.
5.Core Application: External power for aircraft ground operation, engine start, and systems testing.
6.Key Advantages: High efficiency, pure sine wave, auto voltage compensation, military-grade interlock.
7.Brand: ACSOON (support OEM).
- Product Description
115V 400Hz Aircraft GPU | Solid-State Ground Power Unit for Aviation Maintenance & Testing
XI'AN JERRYSTAR INSTRUMENT CO., LTD designs and manufactures premium 115V 400Hz Aircraft GPU systems. As a critical piece of ground support equipment, this GPU provides clean, stable, and reliable 400Hz power required by modern aircraft during maintenance, testing, and turnarounds. Engineered for durability and strict compliance with aviation standards, it ensures safe and efficient operations in hangars and on the apron.
Technical Summary
| Parameter | Specification |
|---|---|
| Input (AC) | |
| Phases | Three Phase |
| Voltage | 208V, 380V, 400V, 415V, 440V, 480V (±15%) |
| Frequency | 50Hz / 60Hz (40-70Hz range) |
| Power Factor | ≥ 0.9 |
| Output (AC) | |
| Phases | Three Phase, Four Wire (3Ph+4W) |
| Voltage | 115V / 200V (L-L), adjustable 100-130V (L-N) |
| Frequency | 400 Hz (Nominal) |
| Stability | Voltage: ±1%; Frequency: ±0.01% |
| Performance | |
| Efficiency | ≥ 93% |
| THD | < 2% (Linear Load) |
| General | |
| Display | VFD for V, A, Hz, kW, PF, Status |
| Protection | OCP, OVP, SCP, OTP, Phase Loss |
| Overload | 125% (10 min), 150% (60s) |
| Enclosure | IP54 (Standard) |
| Operating Temp. | -20°C to +50°C |
| Standards | MIL-STD-704F, GJB181A, ISO6858 |
115V 400Hz Aircraft GPU Main Features
- Solid-state static frequency converter technology for high reliability.
- Auto voltage compensation (0-10V) ensures ideal voltage at the aircraft connector.
- Three-phase, four-wire output (115V L-N / 200V L-L).
- Fast response and excellent line/load regulation.
- Comprehensive protection: Over Current, Over Voltage, Short Circuit, Over Temperature.
- Strong overload capacity: 125% for 10 minutes, 150% for 60 seconds.
- Low acoustic noise (<65 dB at 1m) and eco-friendly operation.
Why Choose ACSOON 115V 400Hz Aircraft GPU?
- The ACSOON 115V 400Hz Aircraft GPU is built for uncompromising performance and safety in aviation environments. Key benefits include:
- Precision Power Quality: Delivers a pure sine wave output with low distortion (<2% THD) and excellent voltage stability (±1%), protecting sensitive avionics.
- Superior Reliability & Efficiency: High-efficiency design (≥93%) ensures lower operating costs and heat generation, backed by a robust 50,000-hour MTBF.
- Enhanced Safety Features: Integrated 28VDC military interlock, comprehensive fault protection, and an IP54 enclosure for all-weather operation.
- Smart Operation & Diagnostics: Features a self-diagnostic system with error codes, event logging, and a clear digital display for simplified maintenance.
- Proven Compliance: Meets critical standards including MIL-STD-704F, GJB181A, and ISO6858.
Application Areas
- The 115V 400Hz Aircraft GPU is essential for a wide range of aviation ground support activities:
- Aircraft Maintenance Hangars: Primary power source for system checks, component testing, and overnight servicing.

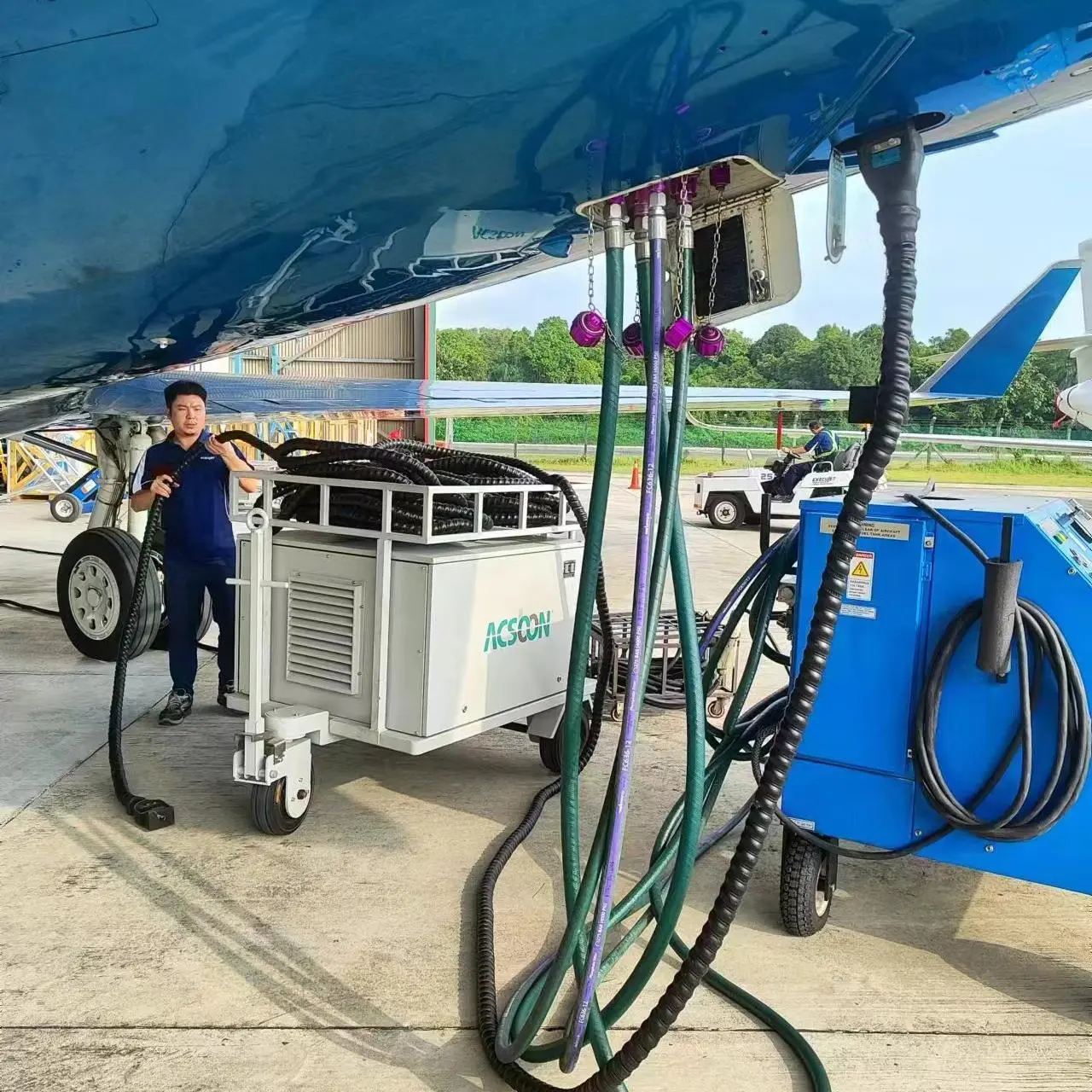

- Apron / Ramp Operations: Providing power for pre-flight checks, engine start, and cabin systems during turnarounds.
- Military Airbases: Supporting fighter jets, transport planes, and other military aircraft requiring MIL-STD compliant power.
- MRO (Maintenance, Repair, Overhaul) Facilities: Powering aircraft during extensive maintenance and modification work.
- Aerospace Manufacturing & Testing: Used in final assembly lines and test beds for new aircraft.
- Bridge-Mounted Installations: Can be configured for installation under passenger boarding bridges for convenient gate power.
Our Services
01

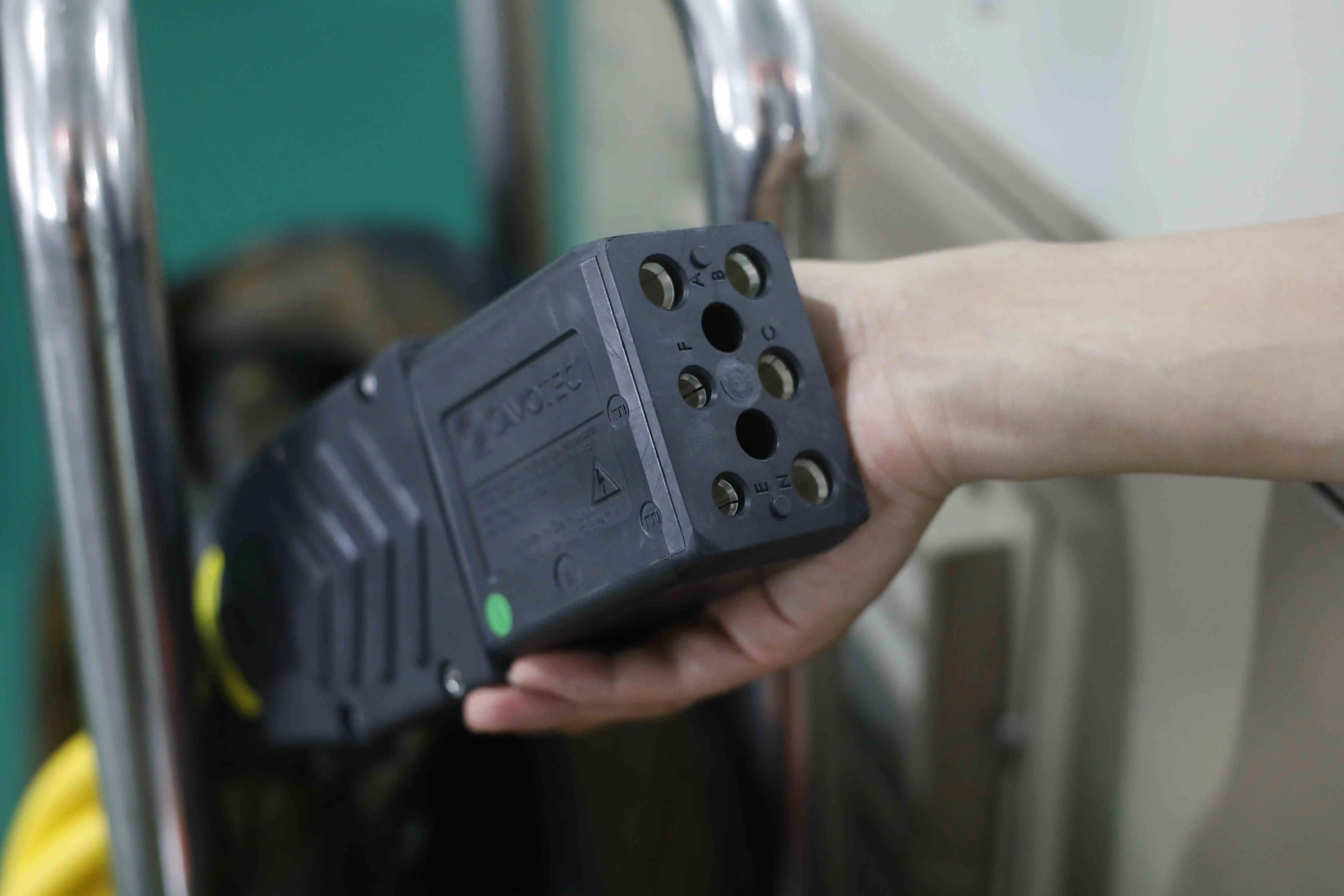

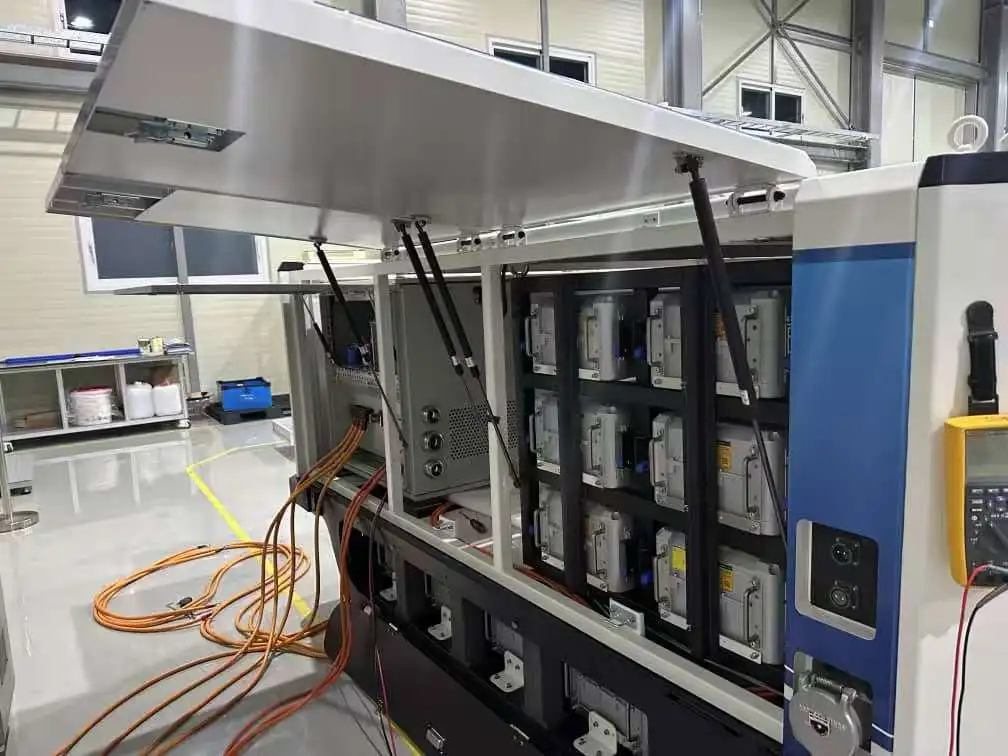

Quality Control
- Each 115V 400Hz Aircraft GPU is subject to a rigorous validation process:
- Incoming inspection of key components like IGBT modules and transformers.
- Full-load burn-in testing at rated and overload conditions.
- Waveform analysis to verify THD and purity of the 400Hz sine wave.
- Safety and protection interlock functional testing.
- Final performance certification against stated specifications and aviation standards.
02

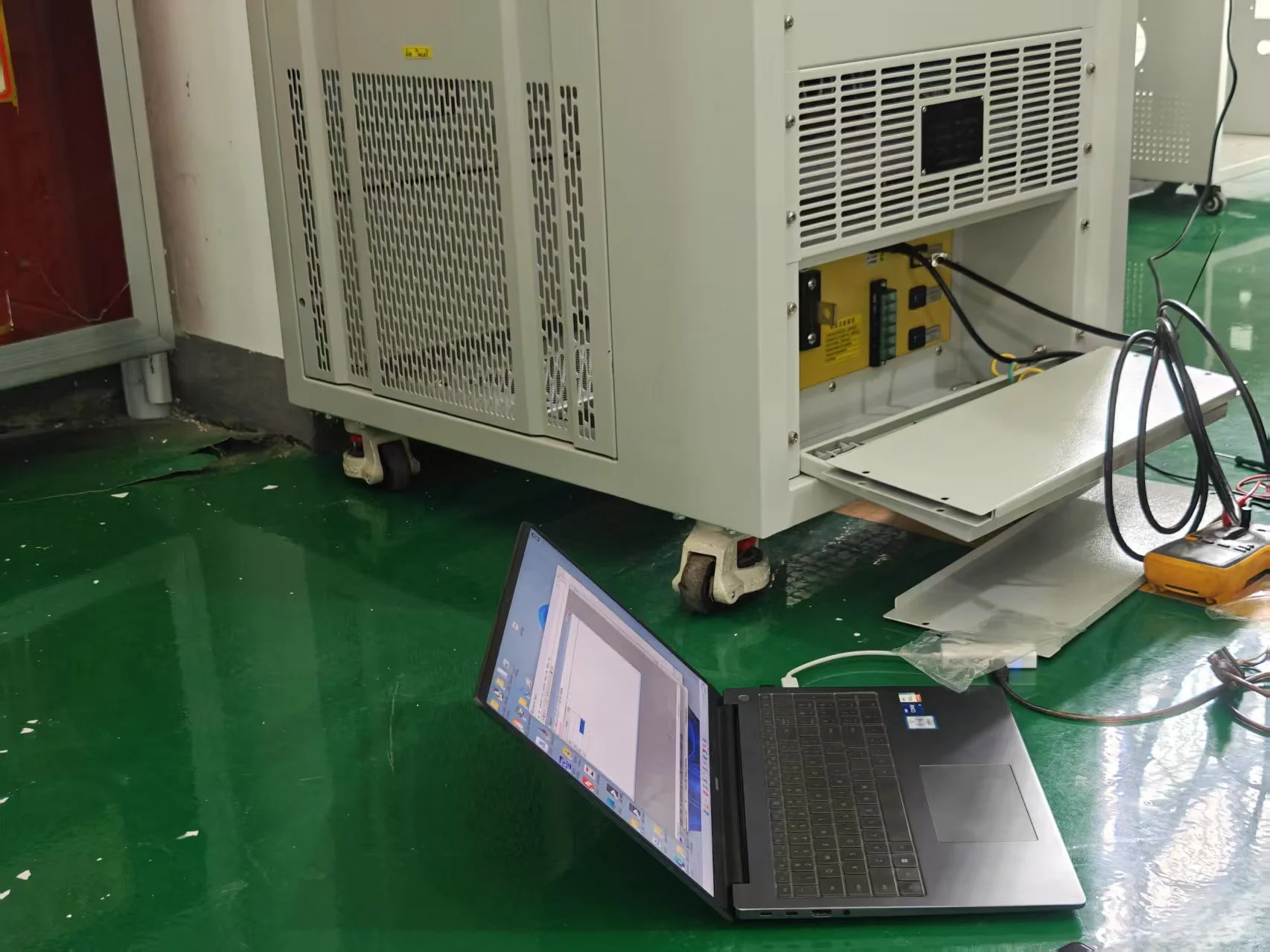

R&D Results
- Our R&D focus continuously improves the 115V 400Hz Aircraft GPU:
- Advanced DSP control for enhanced waveform accuracy and dynamic response.
- Optimized cooling system design for reliable operation in high ambient temperatures.
- Development of compact, modular designs for easier installation and servicing.
03
Packaging and Transportation
- Unit is housed in a robust, IP54 steel cabinet, optionally mounted on a towable trolley.
- Securely packed in a custom wooden crate with anti-vibration and moisture-proof measures.
- Shipped with comprehensive documentation, including manuals, test reports, and certificates.
04

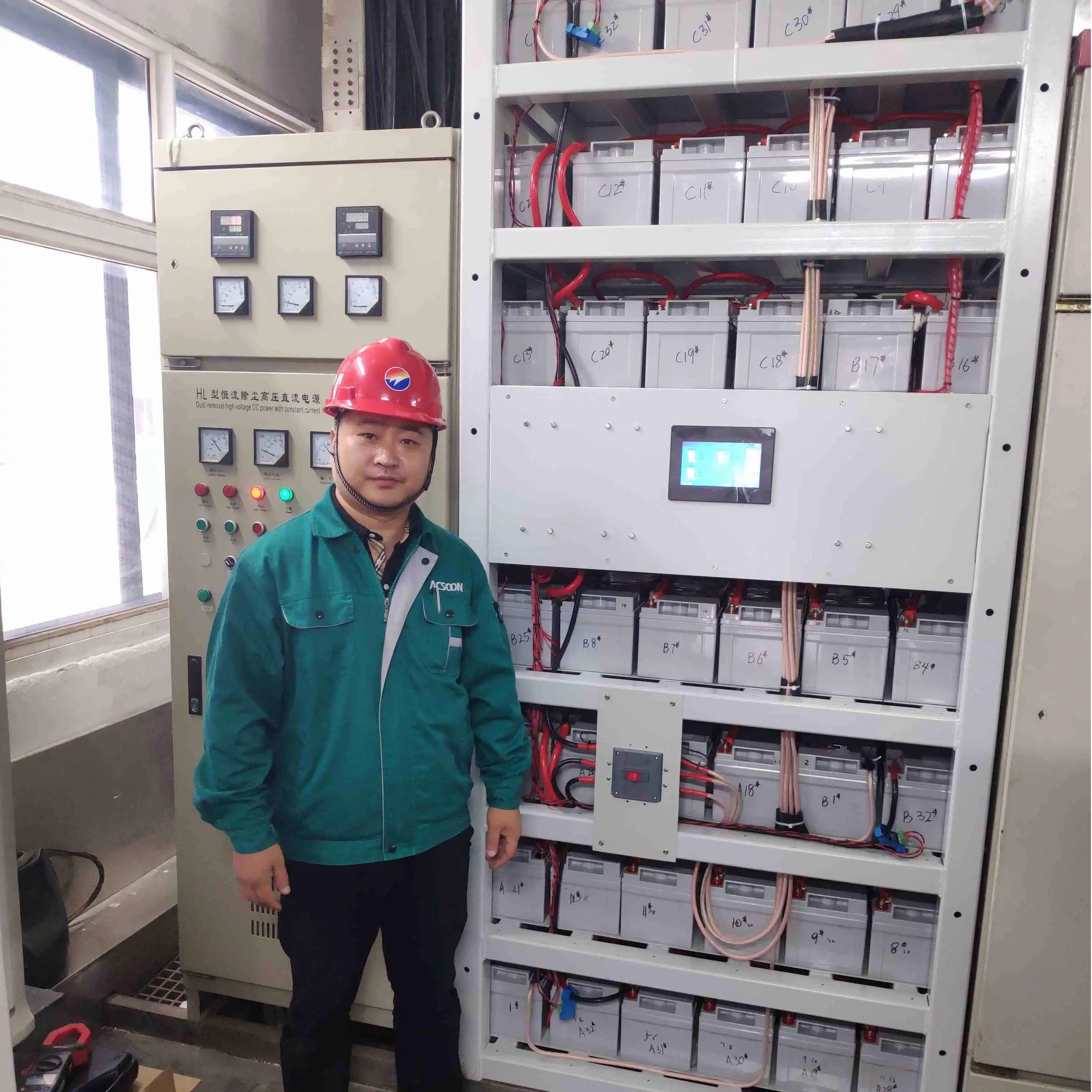

After-Sales Service
- Comprehensive 18-month warranty.
- Global technical support network.
- Availability of spare parts and repair modules.
- On-site service and maintenance training available upon request.

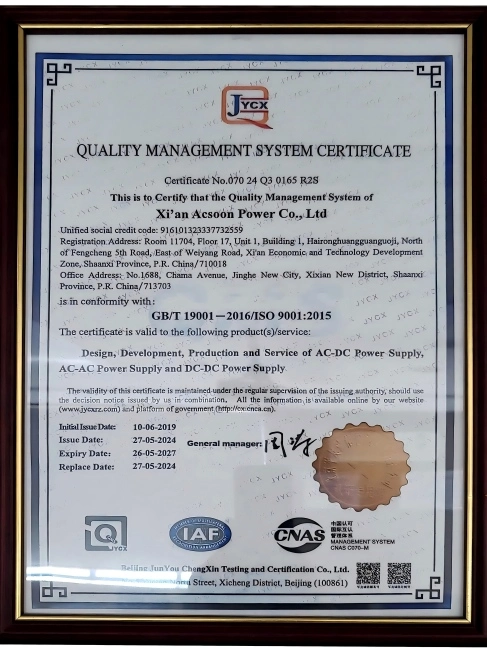

Qualification Certification
Our production and the 115V 400Hz Aircraft GPU are designed to comply with:MIL-STD-704F (Aircraft Electric Power Characteristics)；GJB572A-2006, GJB181A-2003 (Chinese Military Standards)；ISO6858 (Aircraft ground support electrical supplies)；CE Marking (EMC Directive)
FAQ |
|---|
| Q1: What does "GPU" stand for in this context? |
| A1: GPU stands for Ground Power Unit. It is a mobile or stationary unit that supplies electrical power to an aircraft on the ground. |
| Q2: Why is 400Hz power required for aircraft? |
| A2: 400Hz AC power is the international standard for most commercial and military aircraft because it allows for lighter and more efficient electrical components in the aircraft's systems. |
| Q3: Can this GPU be used for both commercial and military aircraft? |
| A3: Yes. The ACSOON GPU is designed to meet the power quality specifications (like MIL-STD-704F) common to both sectors, making it versatile for various aircraft types. |
| Q4: What is the purpose of the auto voltage compensation feature? |
| A4: It automatically adjusts the output voltage to account for voltage drop in the output cable, ensuring the aircraft receives the correct voltage (115V) at its connector regardless of cable length. |
| Q5: Is remote monitoring possible? |
| A5: Yes, models are typically equipped with RS232/RS485 communication ports for integration into airport ground power monitoring systems. |
Contact Us
For technical specifications or customized 115V 400Hz Aircraft GPU solutions: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
