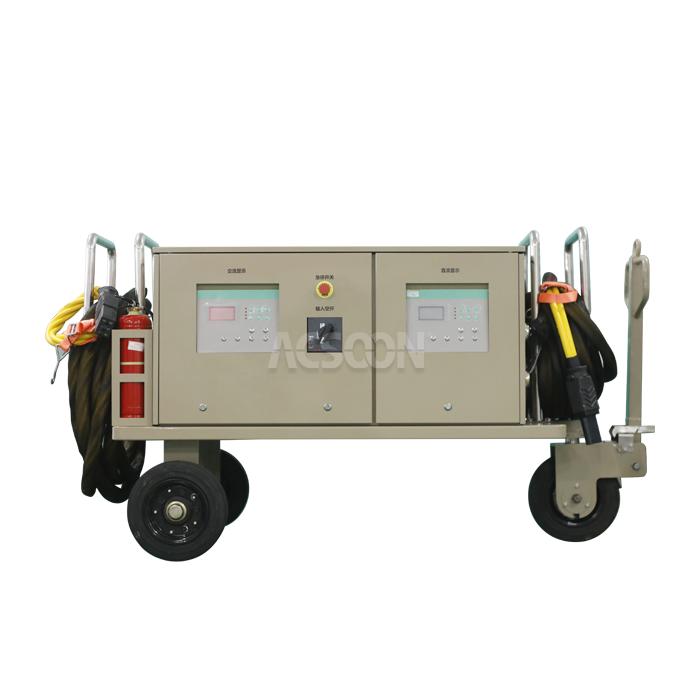

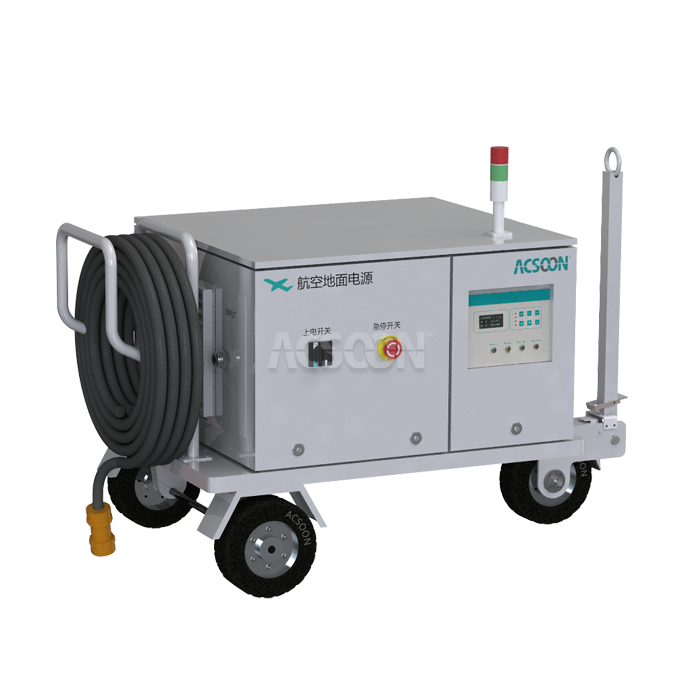

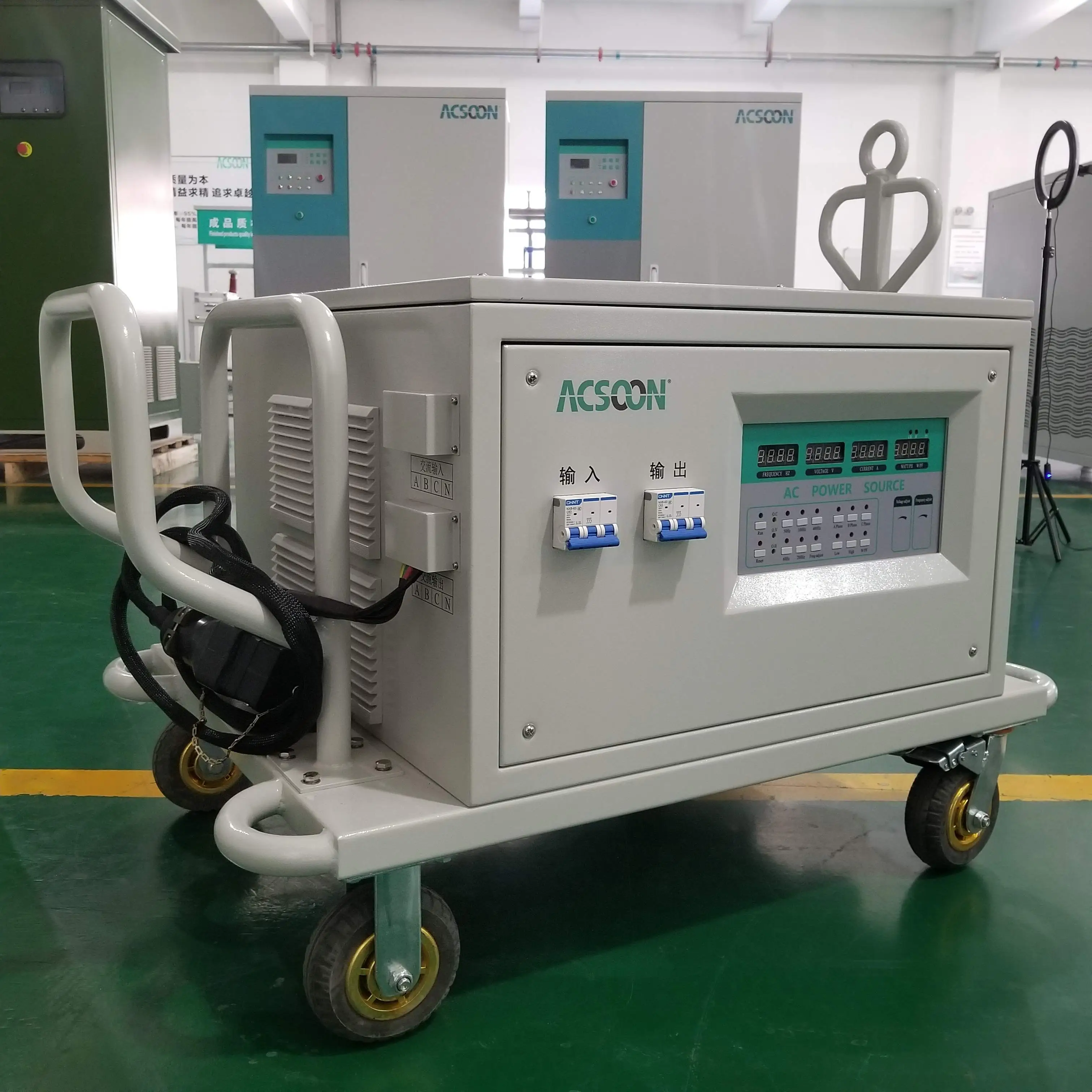

Airfield GPU Cart
2.Mounting: Compact towable cart with pneumatic tires and swivel casters
3.Input: 380‑480V three‑phase, 50/60Hz ±15% (grid or generator)
4.Compliance: MIL‑STD‑704F, ISO6858
5.Applications: Line maintenance, ramp operations, cargo loading, backup for pit‑fed gates
6.Key features: Built‑in manual cable reel, fork pockets, sealed IP54 enclosure
7.Brand: ACSOON (1‑year warranty, built in Xi’an).
- Product Description
Sometimes a fixed pit isn't practical. You have multiple parking spots, or you're doing line maintenance away from the gate. That's where the Airfield GPU Cart comes in. It's a 60kVA solid‑state GPU on a compact towable chassis. Hook it to a tug or a pickup, pull it wherever you need 400Hz power, plug into any 400V outlet, and you're running.We kept it simple. No complex programming. Just voltage trim and output on/off. The cart is narrow enough to fit between parked aircraft. The manual cable reel keeps the ramp tidy. It's built for daily shunting, not for permanent installation.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400 Series |
| Model Number | GPU400‑330060T |
| Input | 3‑phase 380V/400V/415V/440V/480V ±15%, 50/60Hz |
| Output | 115V/200V 400Hz ±0.01%, 60kVA continuous |
| Voltage THD | <2% at linear load |
| Voltage Regulation | ±1% FS |
| Frequency Stability | ≤0.01% FS |
| Efficiency | ≥92% |
| Overload | 150% for 60 seconds |
| Cable reel | Manual, 25m, NATO plug |
| Chassis | Welded steel, 2 fixed casters + 2 swivel with brakes |
| Protections | Over‑voltage, over‑current, short circuit, over‑temp |
| Compliance | MIL‑STD‑704F, ISO6858 |
If you need it,Contact us at Email: acpower@acsoonpower.com
Airfield GPU Cart Main Features
- Manual cable reel – 25m of 400Hz cable. Crank to retract. No motor to fail.
- Fork pockets – If you don't want to tow it, a forklift can move it.
- Weather sealed – IP54. Rain, snow, ramp wash – no problem.
- Auto voltage compensation – Adjusts output for cable drop. The aircraft gets the right voltage.
Why Choose ACSOON Airfield GPU Cart?
- Move it yourself – Tow bar and pneumatic tires. One person can position it.
- Compact – Narrow chassis fits through standard service doors. No special permits.
- Same power as pit units – 60kVA, 400Hz, clean sine wave. No compromise.
- Simple to operate – One output button, one voltage dial. Ground crew learns in five minutes.
Airfield GPU Cart Application Areas
- Line maintenance – Park it next to the aircraft, run avionics checks and systems tests.
- Cargo ramps – No fixed power at freighter stands. This cart moves with the load.
- Backup for pit failures – Keep one on standby. If a pit GPU goes down, roll this in.
- General aviation FBOs – Power visiting turboprops and light jets without building infrastructure.
Our Services
Quality Control

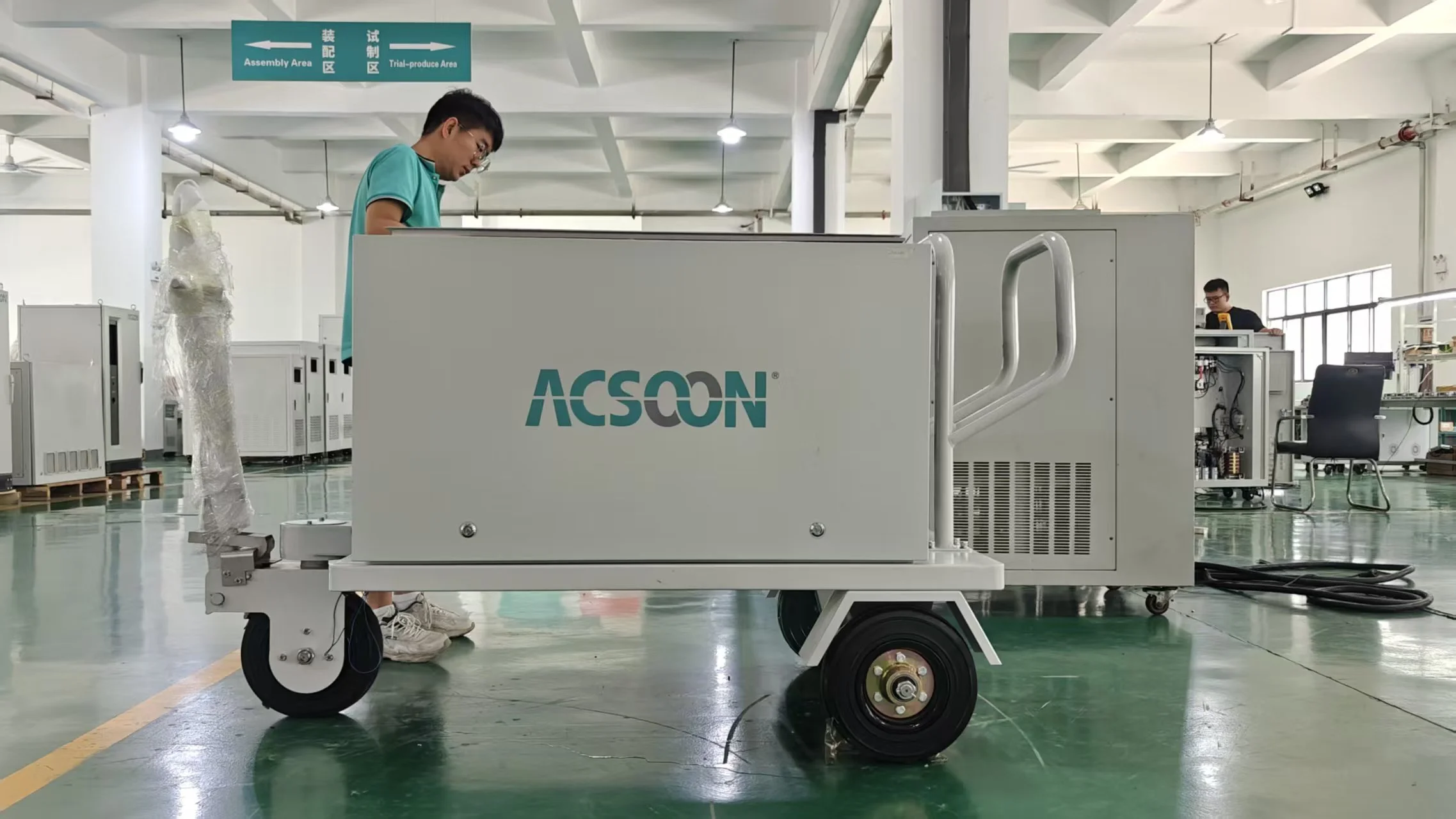

Every unit road tested – Towed around the factory yard for 20 minutes. Check welds, tires, brakes.
Electrical burn‑in – 2 hours at 60kVA, then 90kVA for 60 seconds.
Cable reel cycle – Extend and retract 50 times. No jams, no loose connections.
Final human sign‑off – Someone inspects every weld, bolt, and label.
R&D Results
Caster choice – First version had small hard wheels. Too hard to turn. Switched to larger pneumatic casters. Much easier.
Tow bar attachment – Original was a fixed tongue. Got in the way when hand‑pushing. Changed to removable tow bar with a pin.
Cable reel crank – Customers wanted a folding crank handle. Added one. Stores flat against the side.
Ground lug placement – Moved to the front. Easier to reach without crawling under the cart.
Packaging and Transportation
Shipped from Xi'an – Cart secured to a flat skid with straps. Fits in a 20ft container.
Cable reel already mounted – No assembly. Just unstrap and roll off.
Documentation – Laminated quick guide, full manual on USB, tire pressure label.
Extra – Spare fuse for the input breaker included.
After‑Sales Service
1‑year warranty – Covers electronics and mechanical parts. Tires are consumable.
Spare parts (fan, IGBTs, caster wheels) kept in Xi'an. Ship express.
Email support – We'll help you troubleshoot. Include photos of any damage.
Qualification Certification
CE – Electrical safety and EMC;MIL‑STD‑704F – Output tested. Report available;ISO 9001:2015 – Our Xi'an facility.
FAQ |
|---|
| Q1: Can I tow this with a regular car? |
| A: Yes, but a car is overkill. A golf cart or small tug works fine. The cart weighs about what a loaded golf cart does. The tow bar accepts a standard 50mm ball. |
| Q2: Does it need a three‑phase outlet? |
| A: Yes, 400V three‑phase, 63A. If you only have single‑phase, we have a 28V DC cart. This is 400Hz AC. |
| Q3: How long is the input power cable? |
| A: Standard is 5m with a 63A CEE plug. You can order a longer cable (10m or 15m) – specify when ordering. |
| Q4: Can I leave it outside in the rain? |
| A: Yes, IP54 rated. It can sit on the ramp in weather. But don't leave it in a puddle – raise the cart on the parking brake if standing water is likely. |
| Q5: Lead time from Xi'an? |
| A: 4‑5 weeks. We build the cart chassis in batches. Ask sales if we have one ready. |
