Containerized 400Hz GPU

1.Output: 90kVA or 180kVA, 115V/200V 400Hz, three‑phase
2.Mounting: ISO 20ft container, fully weatherproof and lockable
3.Input: 380‑480V three‑phase, 50/60Hz ±15% (or optional diesel generator inside)
4.Compliance: MIL‑STD‑704F, ISO6858
5.Applications: Temporary military airfields, disaster response, mining camps, event air shows
6.Key features: Forklift pockets, crane lift points, integrated cable reel, plug‑and‑play
7.Brand: ACSOON (1‑year warranty, built in Xi’an).

Send Inquiry Download

Product Description

Sometimes you need ground power somewhere that doesn't have a permanent gate

mining airstrips

disaster zones

military bases

Solution: All-in-one 400Hz power station built into a 20ft standard shipping container.

Sometimes you need ground power somewhere that doesn't have a permanent gate. A forward operating base. A disaster zone. A mining airstrip. You could ship a standard GPU on a pallet, but then you've got a loose unit that needs shelter, cabling, and security.The Containerized 400Hz GPU solves that. It's a complete 90kVA or 180kVA 400Hz power station built inside a standard 20ft shipping container. The unit is bolted to the floor. The input and output cables come out through armored ports. There's a work light, a small panel for controls, and lockable doors. Drop it off a truck, connect the aircraft, turn it on.We've supplied these to military logistics units, oil exploration companies, and event organizers. They like that it's self‑contained. No extra shelter. No worries about weather or theft.

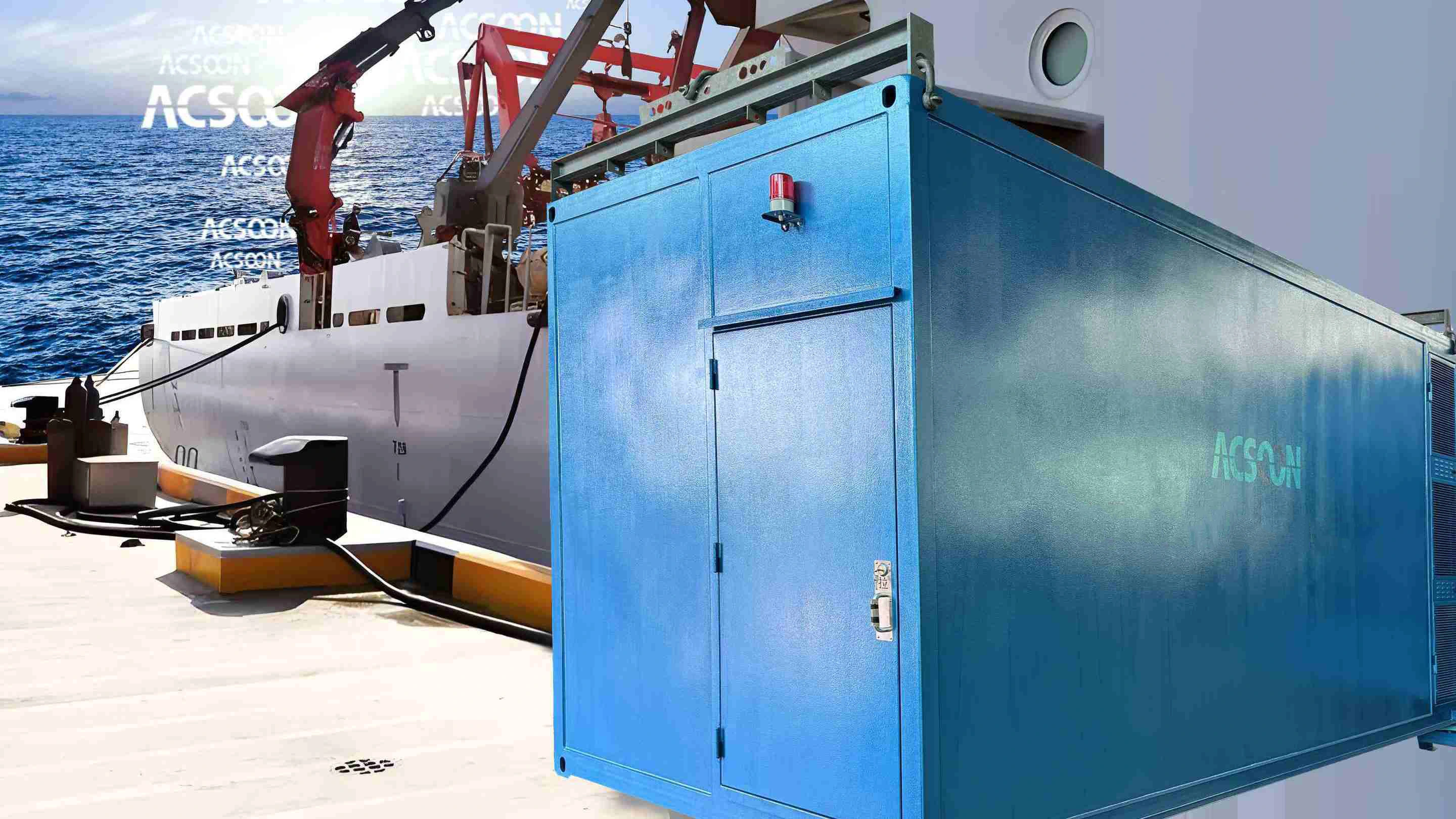

Containerized 400Hz GPU

Sturdy bolted structure with armored cable ports
Equipped with work light, control panel & lockable doors
Quick deployment: Truck delivery → Aircraft connection → One-click startup
Weather & theft resistant, fully self-contained
Trusted by military, oil exploration and event teams for temporary outdoor power supply.

Parameter	Specification
Model Series	ACSOON GPU400‑C Series
Model Number	GPU400‑330090 (90kVA)
Output	115V/200V 400Hz, 90kVA or 180kVA
Container	20ft ISO, steel, lockable doors
Input	3‑phase 400V/480V ±15%, 50/60Hz (customer supplies cable)
Cable reel	Manual, 30m, NATO plug
Protections	Over‑voltage, over‑current, short circuit, over‑temp
Compliance	MIL‑STD‑704F

Factory Advantages

28,698+ long-term repeat clients globally with stable repeat orders.
19+ years domestic & export manufacturing experience for aviation ground power equipment
7,000+ sq.m modern production factory
24/7 customer service:＜30 mins quick response + lifetime after-sales support
60+ independent patented technologies
Certified as China National High-Tech Enterprise
Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification
```

```

28,698+

Long Standing Customer

19+

Over 19 Years Experience

7,000㎡

Factory Areas

30min

7/24h

High-Quality

Efficiency Service

Integrated cable reel – Manual crank, 30m of 400Hz cable with NATO plug. Stowed inside when not in use.

Internal service panel – Voltmeter, ammeter, frequency display, start/stop. Accessible with the doors closed (small window).

Environmental control – Small heater for cold climates (optional). Passive ventilation standard.

Input connection – Heavy‑duty cam‑type panel mount on the outside. No loose cables flapping.

Ready to go – Everything inside. Just hook up input power and the aircraft cable.

Weather‑proof – Standard shipping container doors and seals. Rain, dust, snow – no problem.

Easy to move – Fork pockets, crane lift rings. Fits on a flatbed or in a ship's hold.

Secure – Lockable doors. Internal lights for night work.

Military expeditionary airfields – Set up a 400Hz gate in a few hours. Pack it up when you leave.

Disaster relief – After an earthquake or hurricane, airports lose fixed infrastructure. Drop this container nearby.

Mining and oil airstrips – No permanent buildings? No problem. This is its own building.

Air shows and temporary events – Need power for a static display 727? Roll this out on the grass.Our Services

OUR SERIVES

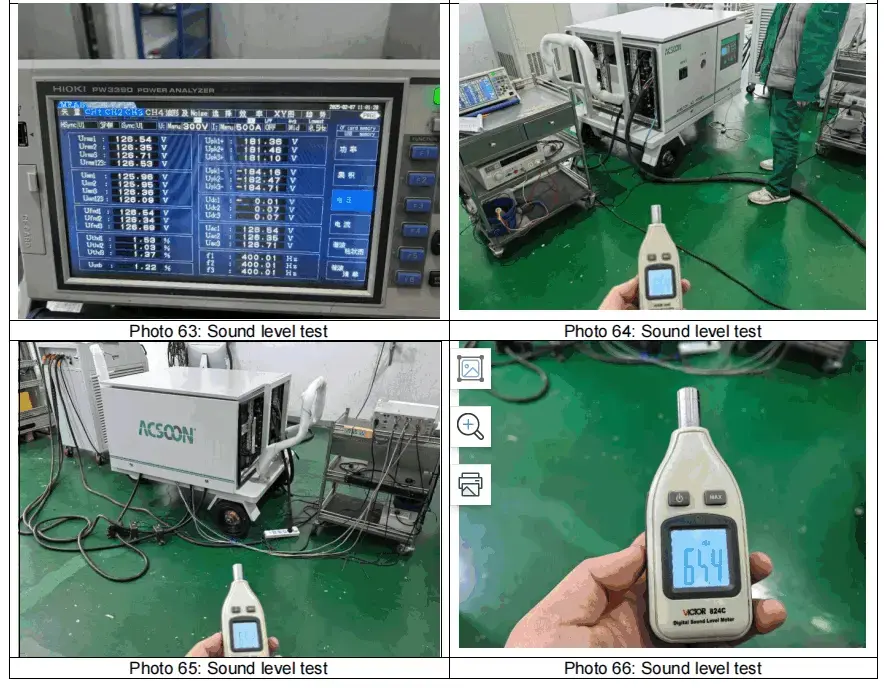

Quality Control

Container modified in‑house – We cut ports, mount the GPU, test the seal.
Water spray test – Doors closed, hose from all sides. No leaks inside.
Forklift test – Lifted on fork pockets, carried 50m. No shifting.
Full electrical burn‑in – Same as standard GPU: 2 hours at full load.

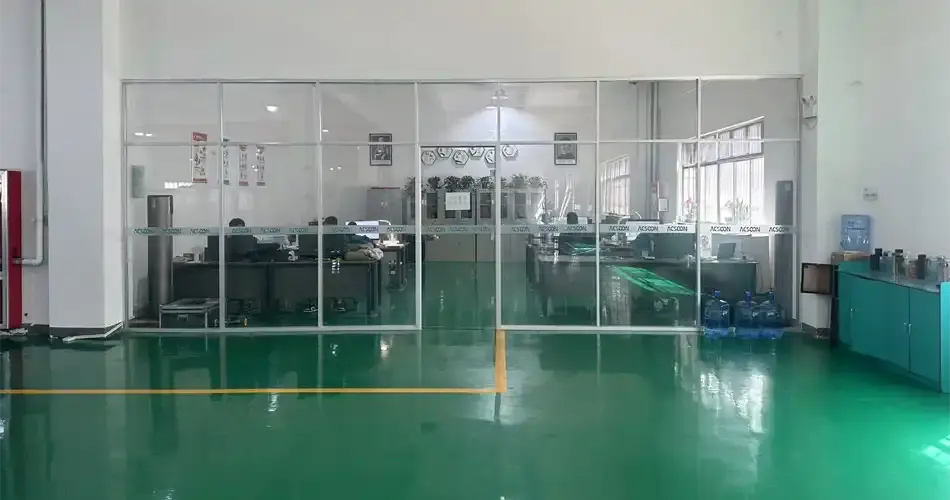

R&D Results

Customer feedback – A military unit asked for a way to see the display without opening the doors. Added a small window with a cover.
Cable reel position – First version had the reel near the door. Cables got tangled. Moved to the back wall. Much better.
Heater placement – Added a thermostat and heater after a unit in Alaska froze up. Now standard for cold regions.
Lighting – Installed LED work lights inside. Powered from the GPU input. No separate battery

Packaging and Transportation

Shipped from Xi'an – As a standard 20ft container. Can go by truck, rail, or ship.
No extra crating – The container is the crate.
Included – Output cable reel, input pigtail (5m), spare set of door seals.
Documentation – Laminated quick guide glued to the inside of the door. Full manual on USB

After‑Sales Service

1‑year warranty – Covers the GPU and container modifications. Doors and seals not covered (wear items).
Spare parts (IGBTs, fans, cable reel) kept in Xi'an.
Email support – We'll help you troubleshoot over email. Include photos

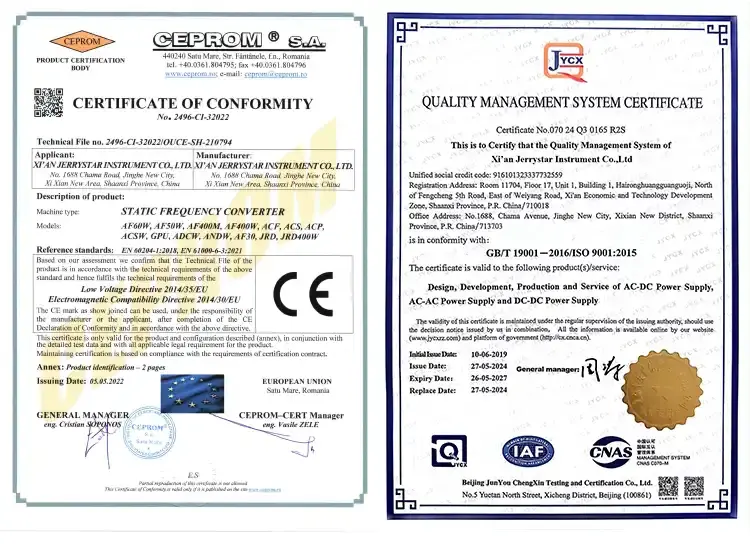

Qualification Certification

CE – Electrical components.
ISO 9001:2015 – Our Xi'an facility.
Container CSC plate – Certified for shipping.

Q1: Does the container have its own generator?
A: Not standard. This unit needs external three‑phase power. We can add a diesel generator inside – ask about the GPU400‑330090‑CG. That's a generator plus GPU inside the same container.

Q2: Can I stack another container on top?
A: No. The roof is modified for cable ports. Not rated for stacking weight.

Q3: How do I connect input power?
A: There's a cam‑type panel on the outside. Your electrician connects a cable from your generator or grid. We don't supply the input cable – length varies by site.

Q4: Can I airlift it?
A: Yes, it has crane lift rings. The empty container plus GPU weighs under what a CH‑47 can lift. Check your aircraft's load limit.

Q5: Lead time from Xi'an?
A: 8‑10 weeks. Container modifications take time. We keep one 90kVA unit in stock for emergencies – ask sales.

Q6:How can I get more details?

Q6:Click here.Send inquiry get specifications and price and more.
