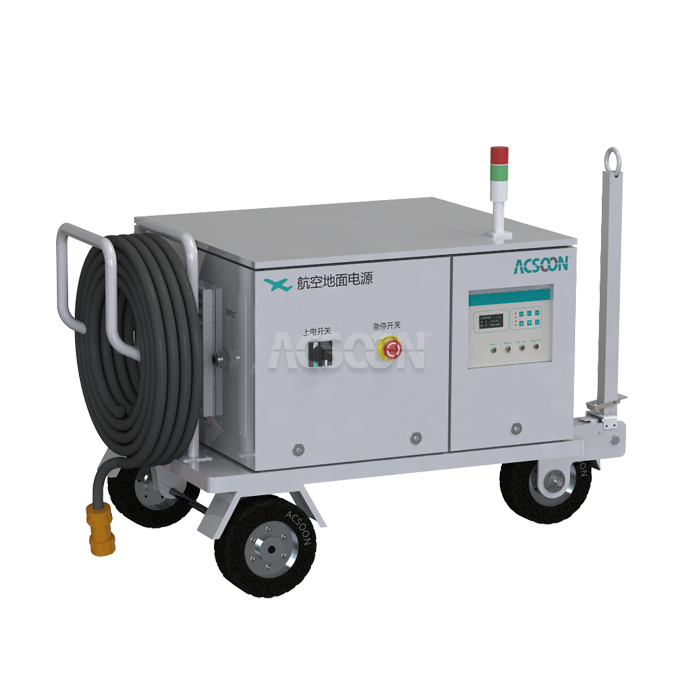

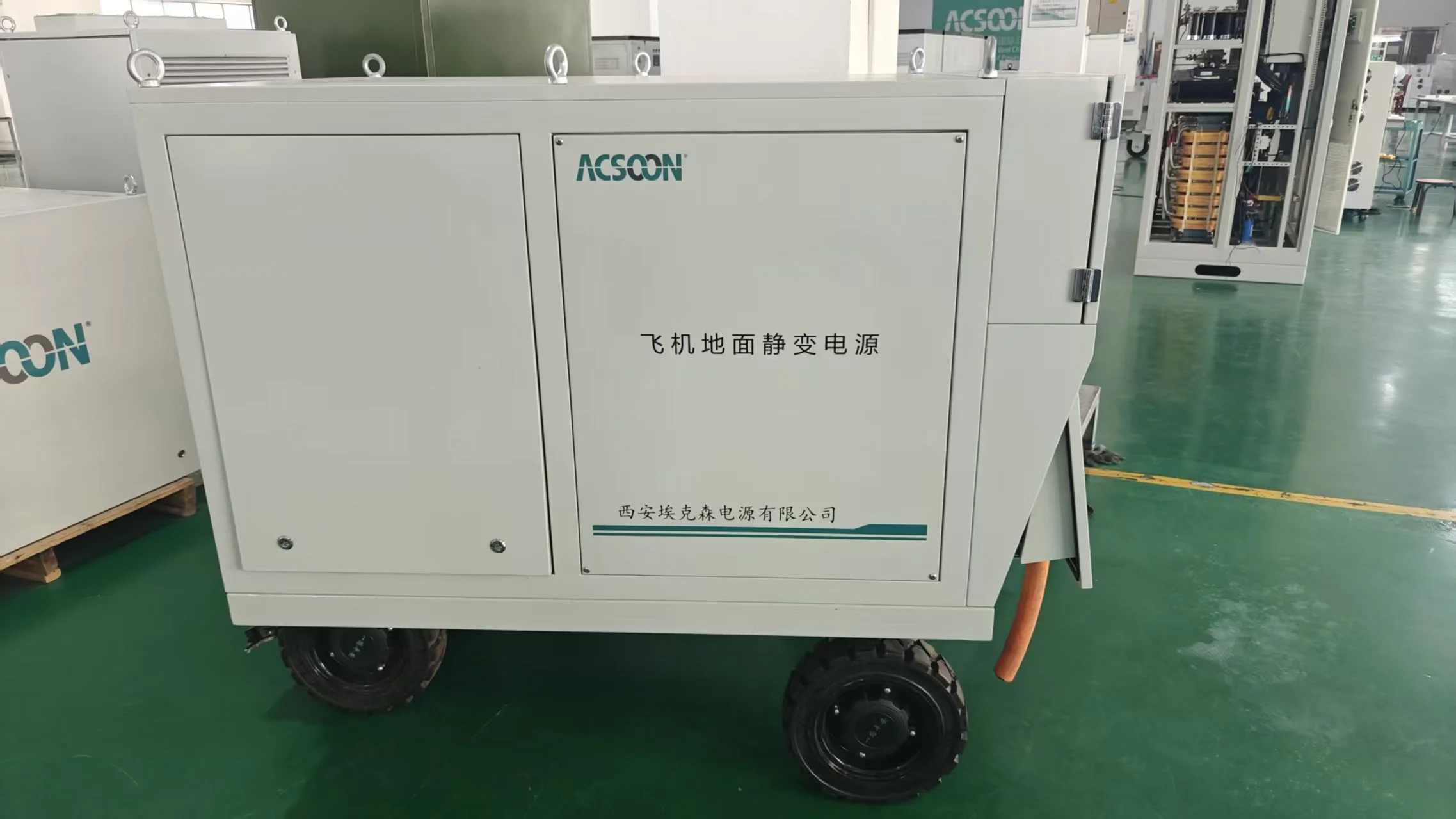

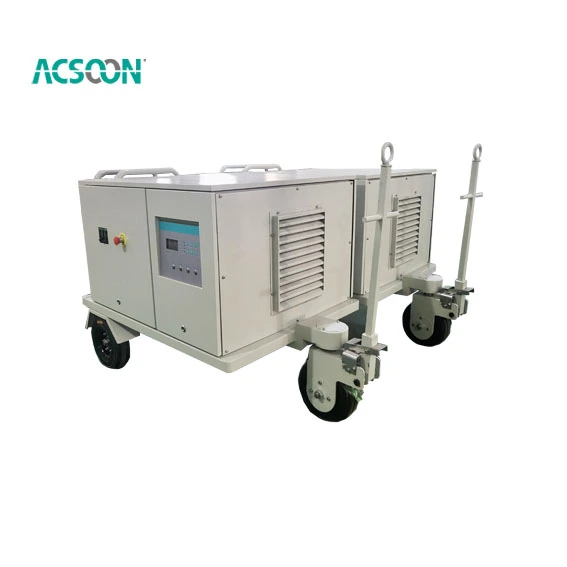

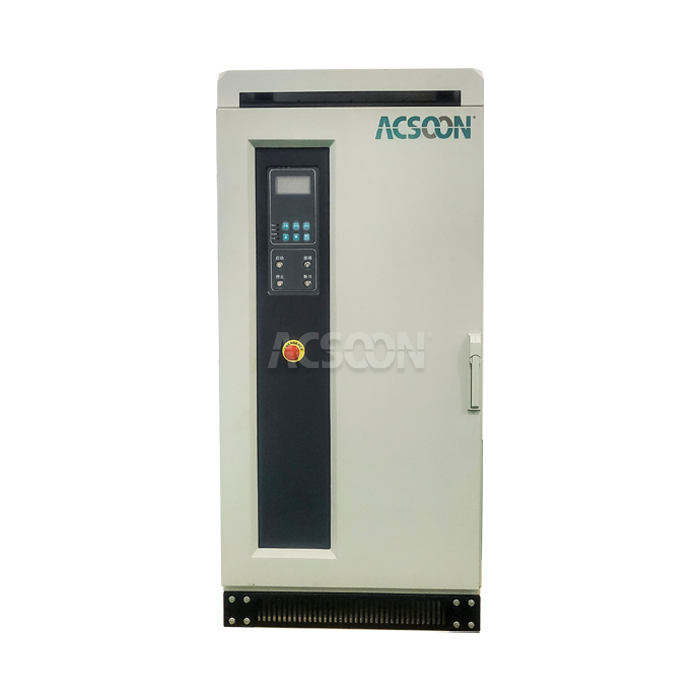

GPU AC 120KVA
2.Output Specification: 115V/200V 400Hz, three-phase four-wire system
3.Input Power: 400-480V, three-phase, 50Hz/60Hz industrial supply
4.Voltage Stability: ±1% under varying load conditions
5.Frequency Precision: ±0.01% crystal-controlled accuracy
6.Key Applications: Wide-body aircraft, commercial aviation, maintenance operations
7.Core Features: Pure sine wave output, mobile trolley design, aircraft-grade connectors
8.Brand: ACSOON (support OEM)
9.Compliance Standards: MIL-STD-704F, ISO 6858, IATA AHM requirements
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the high-performance GPU AC 120KVA, engineered to meet the demanding power requirements of wide-body aircraft and commercial aviation operations. Our GPU AC 120KVA delivers reliable 400Hz AC power with exceptional stability, making it the ideal solution for aircraft ground power supply during maintenance, testing, and turnaround operations.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
GPU AC 120KVA Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON GPU AC 120KVA?
ACSOON GPU AC 120KVA offers superior advantages for commercial aviation ground support:
High Power Capacity: 120KVA output suitable for wide-body aircraft and high-demand applications
Advanced Power Quality: Pure sine wave output with THD<2% for sensitive aircraft systems
Robust Mobility: Heavy-duty towable design with aviation-grade components
Intelligent Control: Digital monitoring with automatic voltage compensation and fault diagnostics
All-Weather Reliability: IP54 protection for operation in various environmental conditions
Application Areas
Our GPU AC 120KVA serves critical functions in commercial aviation:
Wide-body Aircraft: Power supply for Boeing 777, Airbus A330, A350, and similar aircraft
Commercial Airports: Gate operations and turnaround services for large aircraft
Maintenance Facilities: Hangar operations and extensive maintenance procedures
Cargo Operations: Power supply for large freighter aircraft
Aircraft Testing: Engine run-up and system testing requirements
Emergency Support: Backup power for critical aircraft operations
Our Services
Quality Control
Each GPU AC 120KVA undergoes comprehensive aviation-grade testing:
Component-level testing and validation to aviation standards
Full-load performance testing with simulated aircraft loads
Environmental testing for extreme operating conditions
Safety system verification and certification
Final operational readiness validation
R&D Results
Our technical innovations in GPU AC 120KVA technology include:
Enhanced power conversion efficiency through advanced topology
Improved thermal management for continuous high-power operation
Smart load detection and automatic power adjustment
Reduced electromagnetic interference for cleaner power output
Modular design for easy maintenance and component replacement
Packaging and Transportation
We ensure secure delivery of every GPU AC 120KVA:
Aviation-grade packaging with reinforced protection
Custom shipping solutions for international airport delivery
Complete documentation including compliance certificates
Professional logistics coordination for large equipment
After-Sales Service
We provide comprehensive support for all GPU AC 120KVA installations:
24/7 technical support for aviation operations
On-site commissioning and operator training
Preventive maintenance programs and performance optimization
Remote diagnostics and troubleshooting support
Global spare parts availability and technical assistance
Qualification Certification
FAQ |
|---|
| Q1: What aircraft types are specifically designed for your GPU AC 120KVA? |
| A: Our unit is ideal for wide-body aircraft including Boeing 777, 787, Airbus A330, A350, and other large commercial aircraft requiring high-power 400Hz ground supply. |
| Q2: How does your GPU AC 120KVA handle multiple aircraft systems simultaneously? |
| A: With 120KVA capacity, our unit can power multiple aircraft systems including avionics, lighting, and environmental systems concurrently. |
| Q3: What safety features are incorporated in your GPU AC 120KVA? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, thermal overload protection, and aircraft-grade safety interlocks. |
| Q4: Can your GPU AC 120KVA operate in extreme airport environments? |
| A: Yes, our units are designed for operation in temperatures from -20°C to 50°C with IP54 protection for all-weather reliability. |
| Q5: What is the typical deployment time for your GPU AC 120KVA at aircraft? |
| A: With optimized mobility and quick-connect systems, our units can be operational within 3-5 minutes of arrival at aircraft. |
