Ground Power Unit (gpu) Pesawat AC
2.Power Capacity: 60KVA to 150KVA, optimal for commercial aircraft
3.Input Power: 380V-480V, three-phase, 50Hz/60Hz industrial supply
4.Voltage Stability: ±1% under varying load conditions
5.Frequency Precision: ±0.01% with digital frequency control
6.Primary Applications: Commercial aircraft ground operations, airport gate services
7.Key Features: Mobile trolley design, aircraft-grade connectors, weatherproof construction
8.Brand: ACSOON (support OEM)
9.Compliance Standards: MIL-STD-704F, ISO6858, aviation safety standards.
- Product Description
Ground Power Unit (gpu) Pesawat AC | Aircraft AC Ground Power Supply System
XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-performance Ground Power Unit (gpu) Pesawat AC systems for commercial aviation applications. Our Ground Power Unit (gpu) Pesawat AC provides reliable 400Hz AC power for aircraft ground operations, delivering clean and stable power that meets the stringent requirements of modern commercial aircraft during turnaround, maintenance, and boarding procedures.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
Ground Power Unit (gpu) Pesawat AC Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Ground Power Unit (gpu) Pesawat AC?
ACSOON Ground Power Unit (gpu) Pesawat AC systems offer exceptional advantages for aviation ground operations:
Aircraft-Grade Power Quality: Pure sine wave output with THD<2% for sensitive aircraft systems
Enhanced Mobility: Heavy-duty trolley with all-terrain wheels for airport operations
Intelligent Control System: Auto voltage compensation and self-diagnosis with error code display
Weather Resistant Design: IP54 protection for reliable operation in various weather conditions
Rapid Connection: Standard aircraft plugs for quick and secure aircraft connection

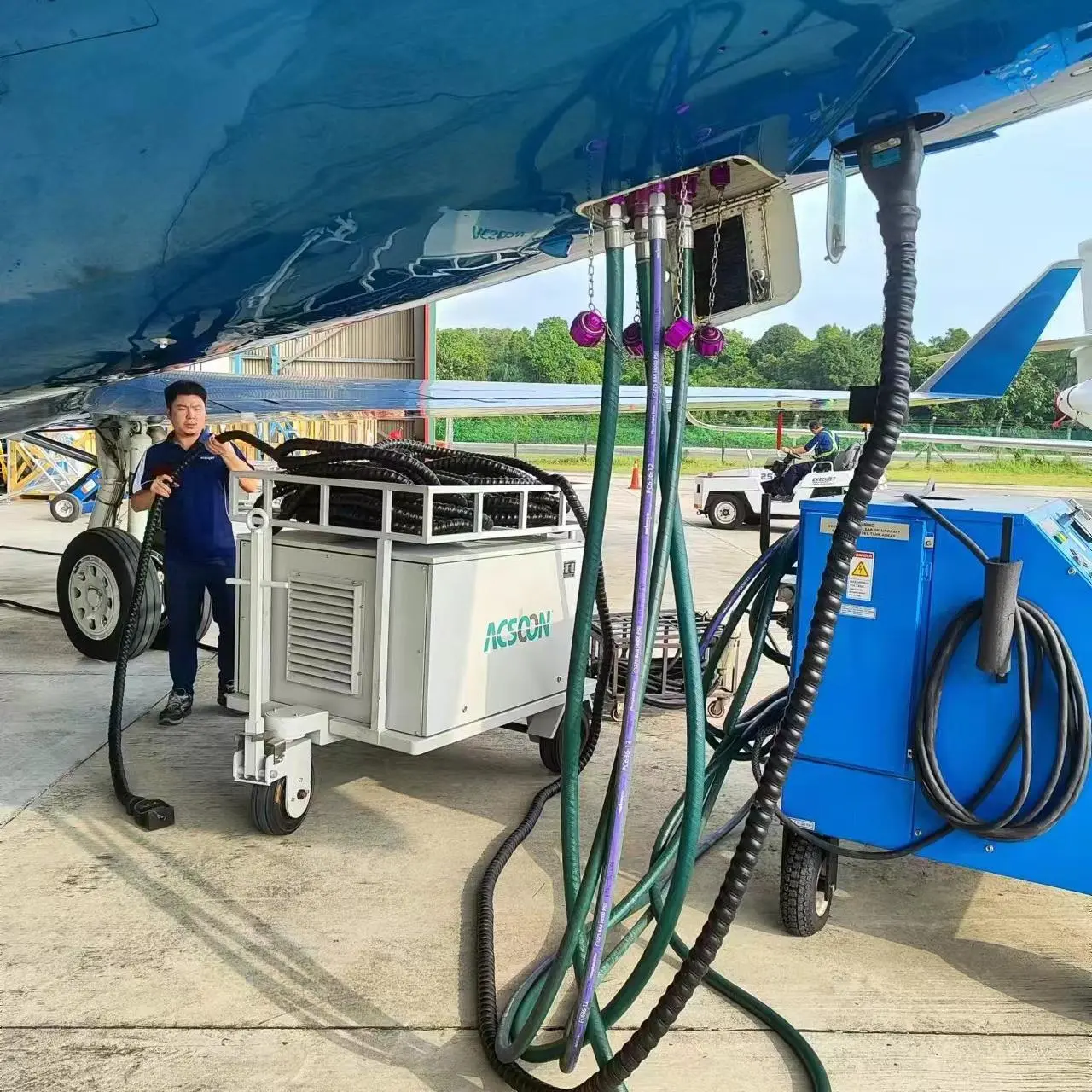

Application Areas
Our Ground Power Unit (gpu) Pesawat AC serves essential functions in commercial aviation operations:
Airport Gate Operations: Aircraft power during passenger boarding and turnaround procedures
Maintenance Hangars: Power supply for aircraft maintenance and system verification
Cargo Operations: Ground power for freighter aircraft during loading operations
Aircraft Testing: Avionics testing and system validation procedures
Regional Airports: Compact power solutions for regional airport operations
Emergency Support: Backup power for aircraft in emergency situations
Our Services
Quality Control
Each Ground Power Unit (gpu) Pesawat AC undergoes comprehensive aviation-grade quality assurance:
Aviation-grade component selection and rigorous testing
Full-power endurance testing with simulated aircraft loads
Environmental testing for extreme temperature and humidity conditions
Vibration and shock testing for mobile operation durability
Final certification against international aviation standards
R&D Results
Our technical innovations in Ground Power Unit (gpu) Pesawat AC technology include:
Enhanced power conversion efficiency through advanced IGBT technology
Improved thermal management for continuous full-load operation
Smart monitoring algorithms for predictive maintenance capabilities
Reduced acoustic noise for improved airport working environment
Modular power architecture for flexible capacity requirements
Packaging and Transportation
We ensure secure delivery of every Ground Power Unit (gpu) Pesawat AC system:
Heavy-duty export crating with reinforced corner protection
Custom foam inserts for component protection during transit
Complete documentation including operation manuals and certificates
Global logistics support with specialized aviation equipment handling
After-Sales Service
We provide comprehensive support for all Ground Power Unit (gpu) Pesawat AC installations:
24/7 technical support for critical airport operations
On-site operator training and maintenance workshops
Scheduled maintenance programs and performance optimization
Software updates with enhanced functionality
Worldwide spare parts network for minimum downtime
Qualification Certification
FAQ |
|---|
| Q1: What aircraft types are compatible with your Ground Power Unit (gpu) Pesawat AC? |
| A: Our systems are compatible with most commercial aircraft including Boeing and Airbus models that require 115V/200V 400Hz ground power. |
| Q2: How quickly can your Ground Power Unit (gpu) Pesawat AC be deployed at aircraft? |
| A: With mobile trolley design and quick-connect aircraft plugs, our units can be operational within 2-3 minutes of arrival at aircraft. |
| Q3: What safety features are included in your Ground Power Unit (gpu) Pesawat AC? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, thermal overload protection, and safety interlocks. |
| Q4: Can your Ground Power Unit (gpu) Pesawat AC operate in extreme weather conditions? |
| A: Yes, our units feature IP54 protection and are tested for operation in temperatures from -20°C to 50°C with humidity resistance. |
| Q5: What is the typical maintenance schedule for your Ground Power Unit (gpu) Pesawat AC? |
| A: We recommend quarterly inspections and annual comprehensive maintenance, with detailed schedules provided in our operation manuals. |
