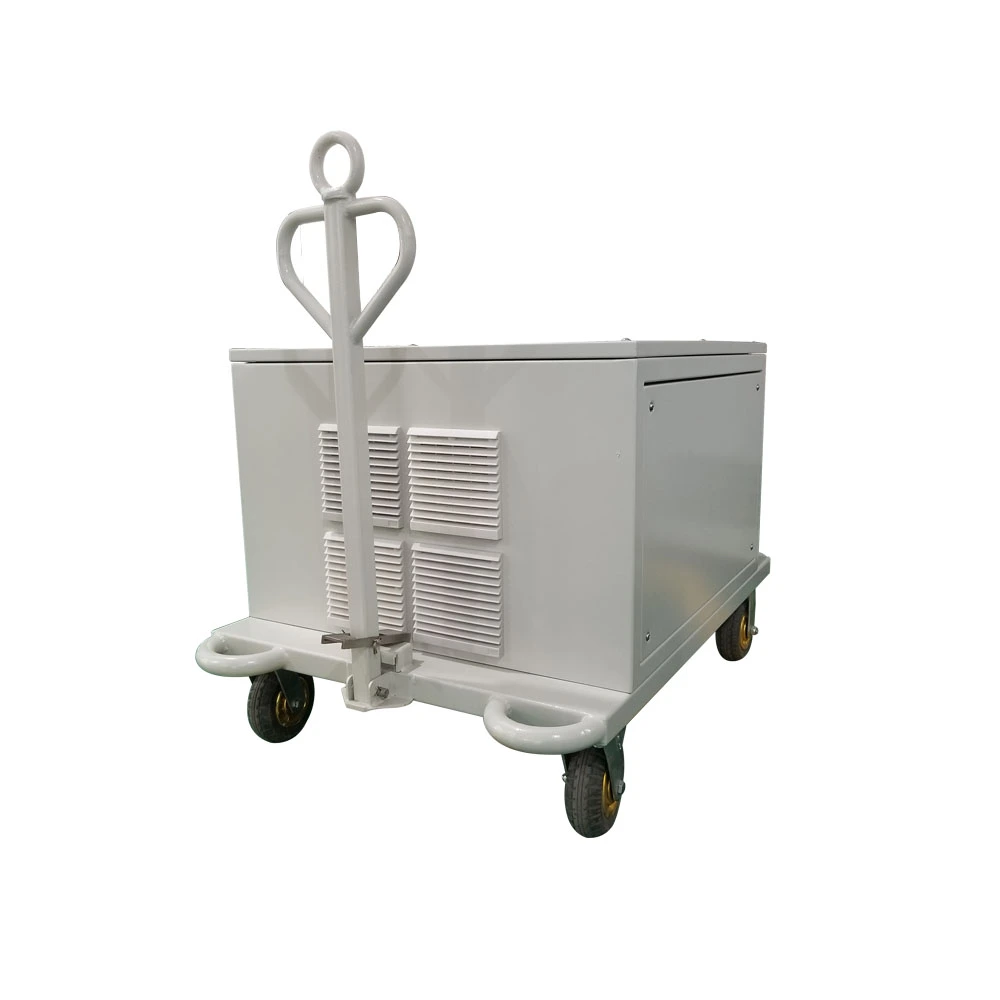

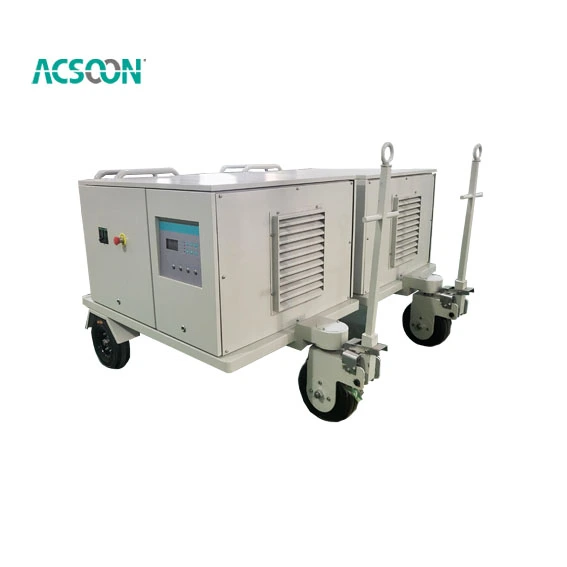

High-Density Ground Power Unit
2.Technology: Compact solid-state frequency conversion
3.Input: 3-phase 400VAC ±15%, 50/60Hz auto-sensing
4.Footprint: Optimized space utilization design
5.Key Applications: Space-constrained airports, mobile operations, compact hangars
6.Key Features: High power density; space-efficient; lightweight design; easy transport
7.Brand: ACSOON (high-density configurations available)
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures innovative high-density ground power units that deliver maximum power in minimal space. Our advanced compact design provides full 400Hz power performance while optimizing space utilization, making it ideal for airports with limited space, mobile operations, and facilities where space efficiency is critical.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA - 180kVA |
| Input Voltage | 200-440VAC (L-L) ±20% |
| Output Voltage | 200/208Vac, 0-520VAC (L-L) |
| Frequency | Input: 40-70HZ, Output: 400HZ (300-500HZ adjustable) |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| VTHD | <2% |
| Overload Capacity | 125% for 10min, 150% for 60s, 200% for 30s, 400% for 1s |
| Noise Level | <65dB within one meter |
| Mean Time Between Failure | 30,000H |
ACSOON High-Density Ground Power Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON High-Density Ground Power Units?
ACSOON delivers superior space efficiency without compromising performance:
Space Optimized: Maximum power in minimum footprint
Full Performance: Complete 400Hz power capability
Lightweight Design: Easy to maneuver and position
Efficient Layout: Smart component arrangement
Flexible Deployment: Multiple installation options
Application Areas
Our high-density ground power units are essential for:
Space-Constrained Airports: Limited apron space operations
Mobile Operations: Rapid deployment requirements
Compact Hangars: Space-efficient maintenance facilities
Military Deployment: Field operation constraints
Temporary Setups: Space-limited temporary operations
Business Aviation: Compact FBO facilities
Emergency Response: Space-critical emergency operations
Urban Airports: Space-optimized urban environments
Details display
Quality Assurance
Each high-density ground power unit undergoes comprehensive testing:
- Space efficiency validation
- Thermal management verification
- Performance in confined spaces
- Reliability testing
- Safety certification
Technical Features
Our high-density ground power unit incorporates:
Compact power conversion technology
Space-optimized component layout
Efficient thermal management
Lightweight construction
Easy access design
Packaging and Delivery
We ensure space-efficient packaging:
Compact packaging design
Easy handling features
Worldwide shipping services
Installation guidance
After-Sales Service
High-density support package includes:
Technical support services
Maintenance programs
Parts availability
Training services
Repair support
Certifications
FAQ |
|---|
| Q1: What are the main benefits of high-density ground power units? |
| A: Space savings, full performance, and flexible deployment in constrained areas. |
| Q2: How much space is saved compared to standard units? |
| A: Significantly reduced footprint while maintaining full power output. |
| Q3: What about performance in compact design? |
| A: Full 400Hz power performance maintained in high-density layout. |
| Q4: How is heat management handled? |
| A: Advanced compact cooling system ensures optimal thermal performance. |
| Q5: Are installation options flexible for tight spaces? |
| A: Yes, multiple mounting and placement options for space-constrained areas. |
Contact Information
For technical specifications or high-density solutions: acpower@acsoonpower.com ,or submit your requirements using the form at the bottom of our website.
