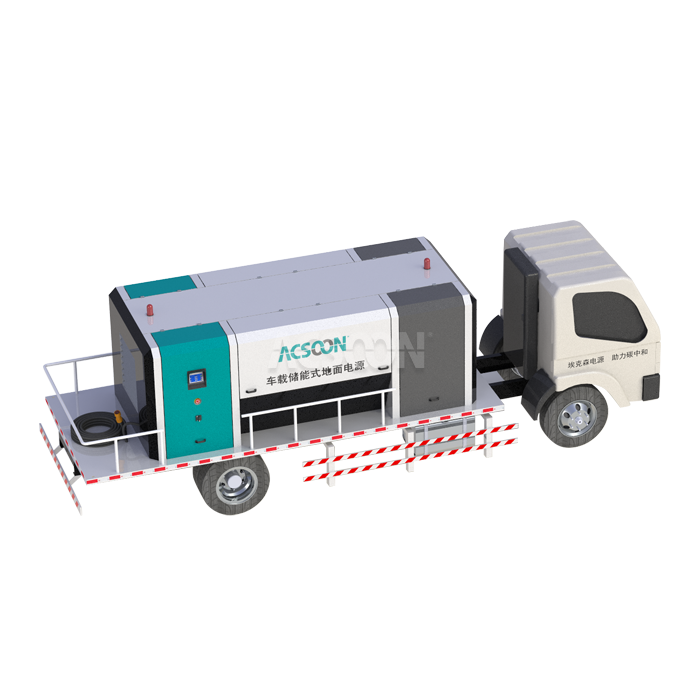

Hybrid GPU with Battery Backup
2.Technology: Solid-State Static Frequency Converter with Lithium-Ion Battery Energy Storage
3.Input: 3-Phase, 400V/480V, 50/60Hz (Grid or Generator)
4.Output: 115V/200V, 400Hz, MIL-STD-704 Compliant, Zero-Emission Operation
5.Applications: Green Airports, Noise-Sensitive Gates, Peak Shaving, Emergency Backup
6.Core Features: Battery-Powered Operation, Grid Independence, Ultra-Quiet Mode, Fast Charging
7.Brand: ACSOON (Custom Battery Capacity Available).
- Product Description

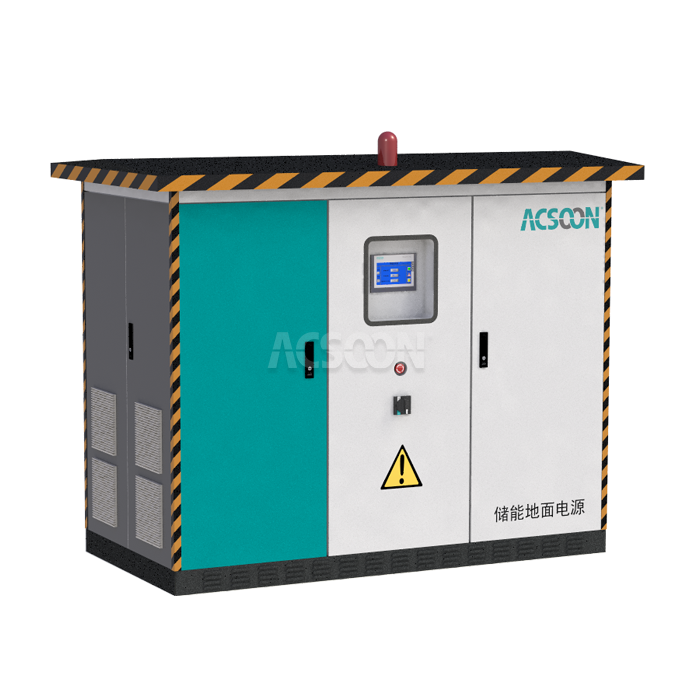

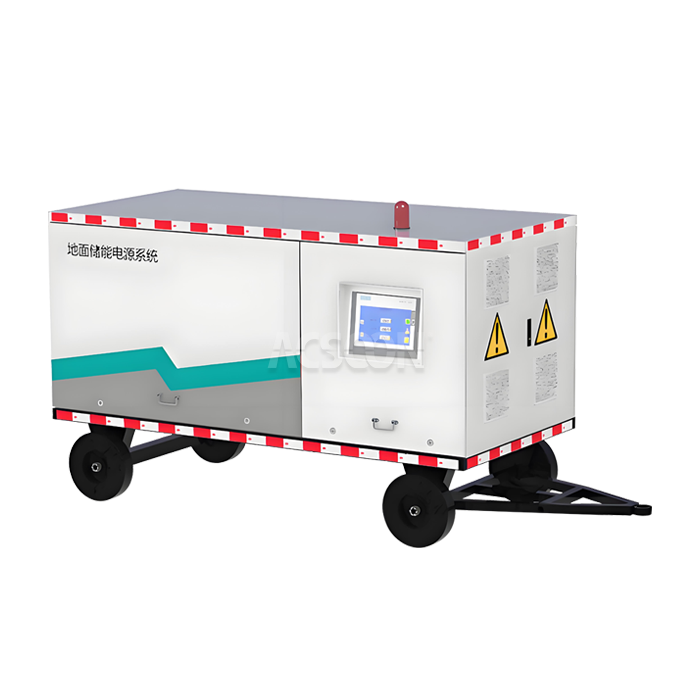

Hybrid GPU with Battery Backup | Zero-Emission 400Hz Ground Power Unit
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the innovative Hybrid GPU with Battery Backup, a next-generation ground power solution designed for environmentally conscious airports. This advanced unit combines a high-efficiency static frequency converter with integrated lithium-ion battery storage, enabling clean, quiet, and emission-free 400Hz power delivery. It can operate from the grid or independently from its battery, reducing peak demand, lowering carbon footprint, and providing reliable power even during grid outages.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400-Hybrid Series |
| Model Number | GPU400-330090-H |
| Input | 3-Phase 400V/480V ±15%, 50/60Hz |
| AC Output | Voltage: 115V/200V, 400Hz Power: 90kVA / 120kVA THD: <2% @ linear load |
| Battery Type | Lithium-Ion (LFP) |
| Battery Capacity | 50 kWh (Customizable) |
| Runtime | Up to 2 hours @ 50% load |
| Compliance | MIL-STD-704F, ISO 6858 |
| Efficiency | ≥93% (Grid Mode) |
| Cooling | Forced Air |
| Control | Touchscreen HMI with Energy Monitoring |
| Protections | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Enclosure | Weatherproof Cabinet, IP54 Rated |
Hybrid GPU with Battery Backup Main Features
- Integrated Lithium-Ion Battery: High-energy-density battery provides up to 2 hours of continuous operation (depending on load).
- Intelligent Energy Management: Automatically switches between grid and battery for optimal efficiency and cost savings.
- Fast Charging Capability: Recharges fully in under 2 hours using standard airport power.
- Seamless Transfer: Zero-break transition between grid and battery ensures uninterrupted power to the aircraft.
Why Choose ACSOON Hybrid GPU with Battery Backup?
- Zero-Emission Operation: Battery-powered mode eliminates engine noise and exhaust emissions, ideal for indoor or noise-sensitive gates.
- Peak Shaving & Energy Savings: Charges during off-peak hours and supplies power during peak demand, reducing electricity costs.
- Grid Independence: Provides uninterrupted ground power during grid failures or when aircraft are parked at remote stands without utility connection.
- Ultra-Quiet Performance: Silent battery mode enhances working conditions on the ramp and meets strict airport noise regulations.

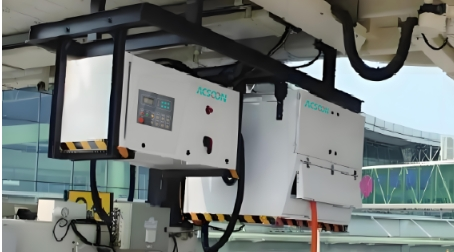

Hybrid GPU with Battery Backup Application Areas
- Green Airport Initiatives: Supporting sustainability goals with emission-free ground power at passenger gates.
- Noise-Sensitive Communities: Operating quietly during nighttime hours to comply with local noise ordinances.
- Remote Stands & Temporary Gates: Providing full GPU capability without requiring permanent electrical infrastructure.
- Emergency Backup: Ensuring critical aircraft operations continue during utility power outages.
Our Services
Quality Control
Battery Safety Testing: Cells and packs undergo rigorous testing for thermal runaway, overcharge, and short-circuit protection.

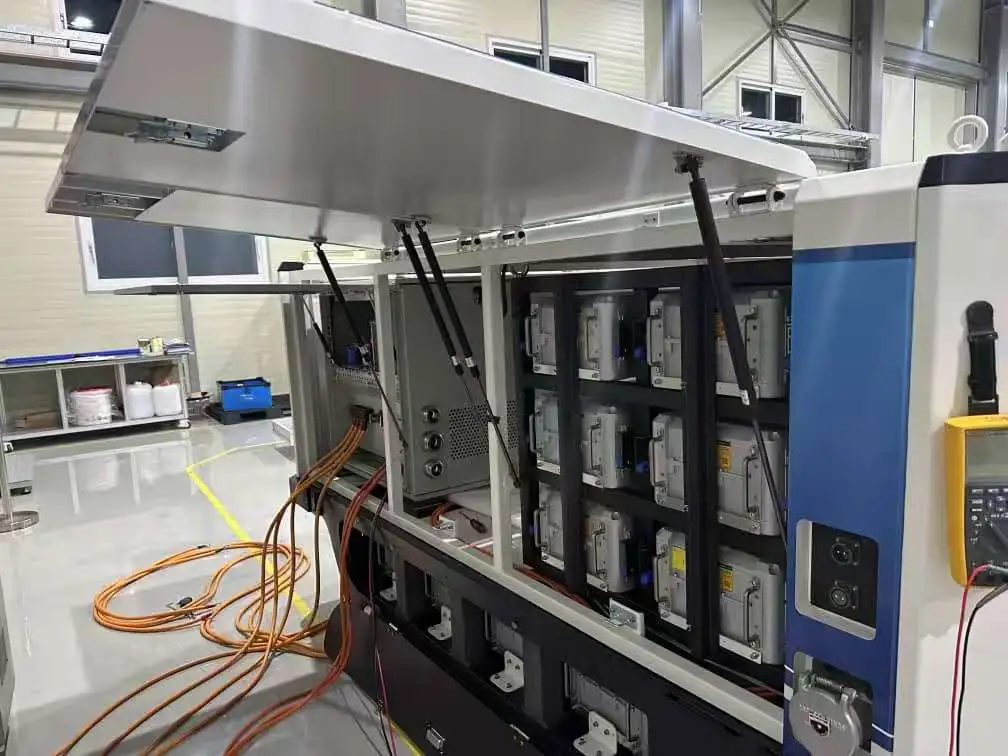

Full-System Integration Test: Complete unit tested under simulated load with grid and battery modes cycled repeatedly.
Energy Management Validation: Software algorithms verified for optimal charging, discharge, and transition logic.
Final Functional Audit: All protections, displays, and communication interfaces are thoroughly tested.
R&D Results
Advanced Battery Management System (BMS): Developed proprietary BMS for real-time monitoring, balancing, and safety.
Hybrid Power Control Algorithm: Engineered seamless grid-battery transition with <10ms transfer time.
Thermal Management for Battery: Optimized cooling design maintains battery temperature for maximum life and performance.
Remote Monitoring Platform: Created cloud-based interface for fleet energy management and predictive maintenance.
Packaging and Transportation
Specialized Battery Packaging: Battery system shipped separately in compliance with UN3480/UN3481 regulations.
Secure Crating: Main unit shipped in reinforced wooden crate with shock-absorbent padding.
Complete Documentation: Includes battery safety data sheets, installation manual, and compliance certificates.
Global Logistics: Coordinated shipping with hazardous goods handling and customs clearance.
After‑Sales Service
We offer a 24-month warranty on the converter and 5-year warranty on the battery (pro-rated). Support includes remote monitoring, battery health reporting, and on-site service contracts.
Qualification Certification
ISO 9001:2015 Certified manufacturing quality system; CE, UN38.3 Certified for battery transport; MIL-STD-704F Compliance for aircraft power; Factory Acceptance Test Report provided.
FAQ |
|---|
| Q1: How long can the battery power an aircraft? |
| A: Runtime depends on the aircraft's power draw. With a 50 kWh battery, a 90kVA load (approx. 72kW) would last about 40 minutes. Typical gate operations use less power, extending runtime to 1-2 hours. |
| Q2: How is the battery charged? |
| A: The battery charges automatically from the grid input when the unit is not supplying power. It can also be charged from a standard 400V/50A outlet for remote deployment. |
| Q3: What happens when the battery is depleted? |
| A: The unit seamlessly switches to grid power if available. If no grid is present, it will shut down gracefully with low-battery alarm to prevent deep discharge. |
| Q4: Is this GPU suitable for all aircraft types? |
| A: Yes, it provides standard 115V/200V 400Hz power compliant with MIL-STD-704, suitable for narrow-body, wide-body, and regional aircraft. |
| Q5: What is the environmental benefit? |
| A: By using stored energy during peak times and enabling zero-emission operation, it reduces CO2 emissions, eliminates |
