Regional Jet GPU
2.Technology: Solid-State Static Frequency Converter with 12-Pulse Rectifier
3.Input: 3-Phase, 400V/480V, 50/60Hz Airport Grid
4.Output: 115V/200V, 400Hz, MIL-STD-704 Compliant
5.Applications: CRJ Series, Embraer E-Jets, ATR, Dash 8, and Other Regional Aircraft
6.Core Features: Compact Design, High Efficiency, Quiet Operation, Easy Maneuverability
7.Brand: ACSOON (Cart or Fixed Installation Available).
- Product Description

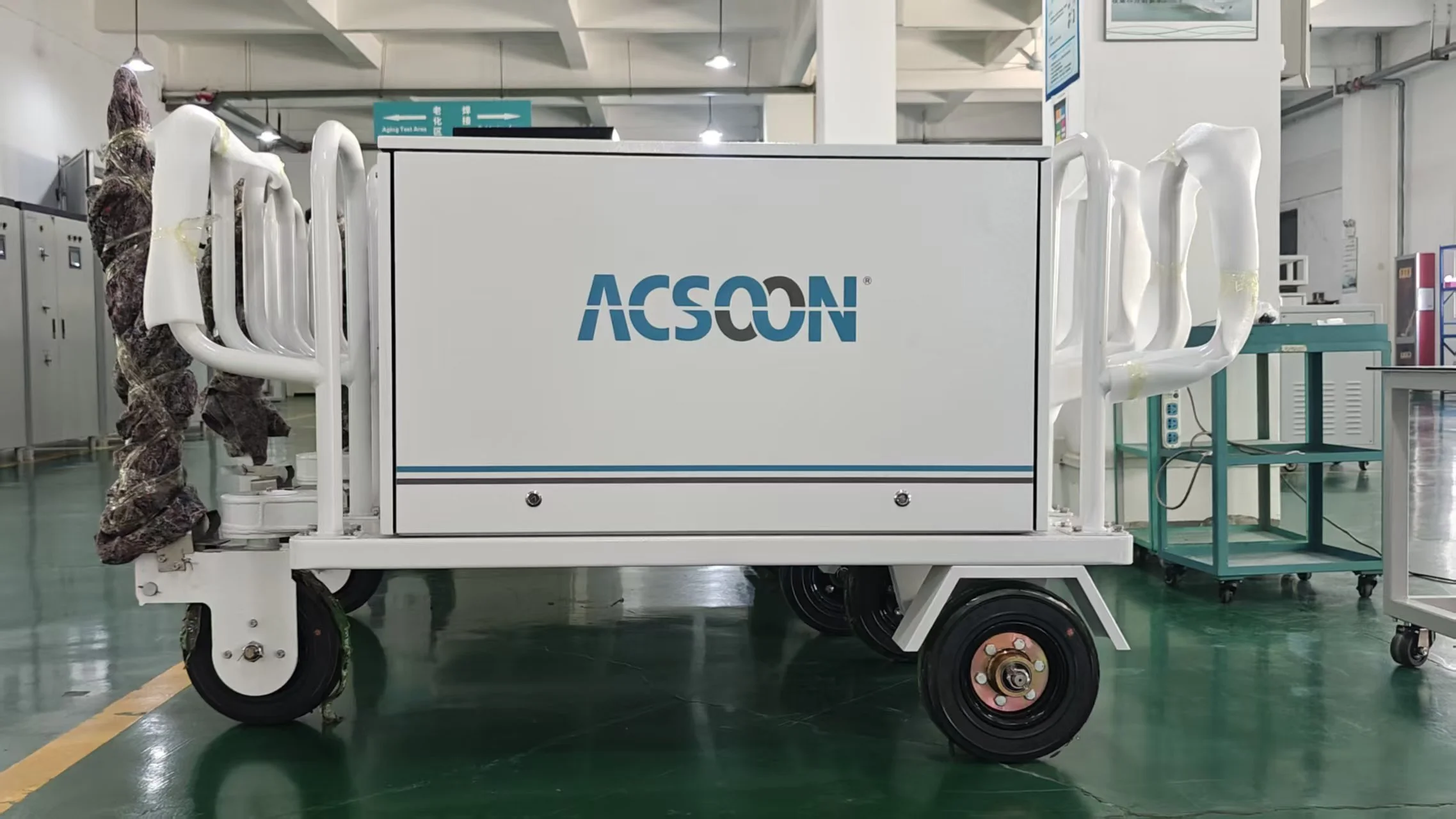

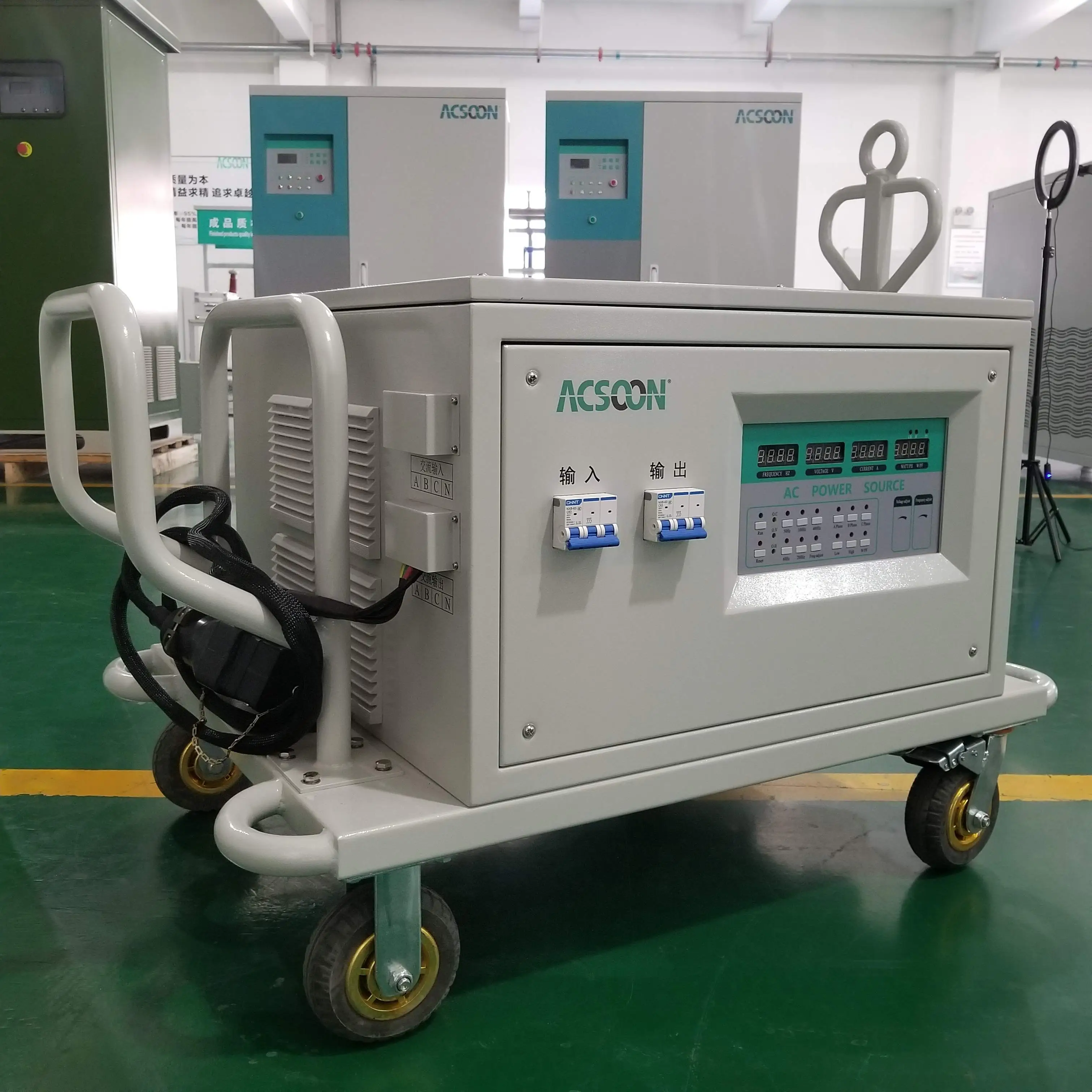

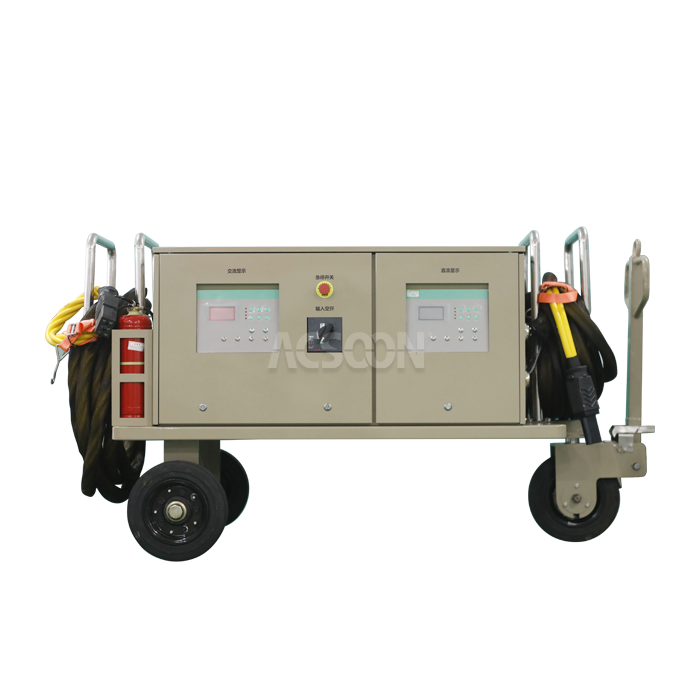

Regional Jet GPU | 400Hz Ground Power for Regional & Commuter Aircraft
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the Regional Jet GPU, a compact and efficient ground power solution designed specifically for the regional and commuter aircraft market. This 400Hz static frequency converter delivers clean, stable power perfectly matched to the requirements of popular regional jets and turboprops. Its smaller footprint and quiet operation make it ideal for regional airports, FBOs, and maintenance facilities serving CRJ, Embraer, ATR, and Dash 8 fleets.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400 Series |
| Model Number | GPU400-330060 (60kVA) |
| Input | 3-Phase 400V/480V ±15%, 50/60Hz |
| Output | Voltage: 115V/200V, 400Hz Power: 60kVA (90kVA optional) THD: <2% @ linear load |
| Compliance | MIL-STD-704F, ISO 6858 |
| Efficiency | ≥93% |
| Cooling | Forced Air (IP54 protected fans) |
| Control | VFD Display with Keypad Operation |
| Protections | Over Voltage, Over Current, Short Circuit, Phase Loss, Over Temperature |

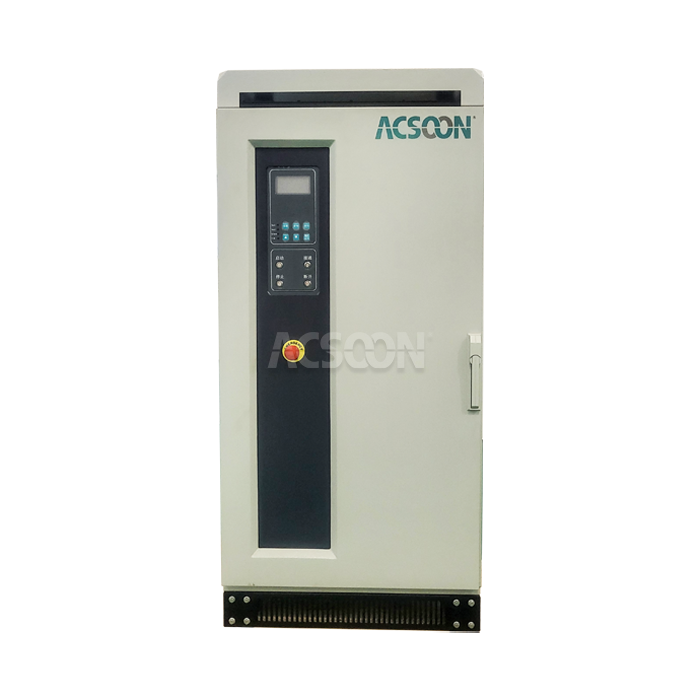

| Enclosure | Compact Cart or Free-standing Cabinet, IP54 Rated |
| Dimensions (Cart) | Length: 1400mm, Width: 800mm, Height: 1200mm |
Regional Jet GPU Main Features
High Efficiency 12-Pulse Design: Reduces input harmonics and improves energy efficiency.
User-Friendly Interface: Simple controls and clear VFD display for easy operation by ground crew.
Rugged Construction: IP54-rated enclosure protects against weather and ramp debris.
Comprehensive Safety: Full protection against over-voltage, over-current, short circuit, and over-temperature.
Why Choose ACSOON Regional Jet GPU?
Optimized for Regional Aircraft: Power ratings (60-90kVA) precisely match the needs of regional jets and turboprops, avoiding over-specification.
Compact & Maneuverable: Smaller footprint and lighter weight than larger GPUs, ideal for space-constrained regional ramps.
Quiet Operation: Enhanced acoustic design minimizes noise, suitable for noise-sensitive airports and overnight operations.
Proven Reliability: Built with the same robust technology as our larger GPUs, ensuring dependable performance.
Regional Jet GPU Application Areas
Regional Airports: Primary ground power for daily operations of regional airline fleets.
FBOs Serving Corporate & Regional Traffic: Supporting a mix of business jets and regional aircraft.
Regional Airline Maintenance Bases: Providing reliable power for line maintenance and overnight checks.
Cargo Operators: Powering regional freighter aircraft during loading and unloading.
Our Services
Quality Control
Full-Power Load Testing: Each unit undergoes extended testing at 60kVA and 75kVA (125% overload) to verify performance.
MIL-STD Waveform Validation: Output waveform purity and voltage accuracy are verified against MIL-STD-704F.
Environmental Sealing Test: IP54 enclosure is tested for dust and water spray resistance.
Final Functional Audit: All controls, displays, and protection circuits are thoroughly tested and documented.
R&D Results
Compact Power Density: Achieved smaller footprint through optimized component layout and efficient cooling.
Low-Noise Engineering: Developed acoustic damping and fan speed control for quiet operation.
Regional Fleet Analysis: Researched power requirements of popular regional aircraft to ensure perfect match.
Modular Service Design: Key components are easily accessible for quick maintenance and repair.
Packaging and Transportation
Compact Export Crating: Unit is secured in a wooden crate sized for efficient shipping.
Complete Installation Kit: Includes cables, connectors, and user manual.
Comprehensive Documentation: Pack contains test reports, compliance certificates, and warranty information.
Global Logistics: Coordinated delivery to regional airports worldwide.
After‑Sales Service
We offer a 24-month warranty, 24/7 technical support, and guaranteed availability of spare parts.
Qualification Certification
ISO 9001:2015 Certified manufacturing；CE Marked for European market；MIL-STD-704F Certified for aircraft ground power；Factory Acceptance Test Report provided.
FAQ |
|---|
| Q1: Which aircraft models can this GPU support? |
| A: It supports most regional jets and turboprops including Bombardier CRJ series, Embraer E-Jets (170/175/190/195), ATR 42/72, Dash 8 Q Series, and similar aircraft requiring 60-90kVA 400Hz power. |
| Q2: Is this unit available as a towable cart? |
| A: Yes, it is available in both compact cart configuration for ramp mobility and fixed installation for gate or hangar use. |
| Q3: What is the noise level compared to larger GPUs? |
| A: Thanks to its optimized cooling and acoustic design, it operates significantly quieter than larger units, typically below 65 dB(A) at 1 meter. |
| Q4: Can it be used for both day and night operations? |
| A: Absolutely. Its low noise profile makes it suitable for nighttime operations in noise-sensitive communities. |
| Q5: What maintenance is required? |
| A: Regular visual inspections and air filter cleaning are recommended. Annual performance verification is suggested for optimal reliability. |
