How Does a 400hz Power Supply Aircraft Support Safe Operations?
With its small size and lightweight design, a 400 Hz power supply aircraft is ideal for use in aviation settings, guaranteeing safe operations. Aircraft weight has a direct correlation to fuel efficiency and payload capacity, making this particular frequency all the more important. As a result, transformers and motors can function at substantially reduced sizes, up to 70% lighter than typical 60Hz systems. The reliable operation of vital avionics, navigational instruments, and safety equipment is ensured during each phase of flight by these high-frequency systems, which minimize electromagnetic interference and provide a constant voltage output. This ultimately protects passengers and crew.
Understanding 400Hz Power Supply in Aircraft
Power grids on land are very different from the electrical systems used by modern aircraft. Aviation has adopted a higher frequency standard that changes the way onboard equipment works, in contrast to buildings and factories that run on 50Hz or 60Hz.
Why Does Aviation Adopt a 400Hz Frequency?
The rationale for selecting 400Hz is based on engineering and physical considerations. Transformers and motors with magnetic cores use less material to produce the same amount of power when the frequency increases. The link between frequency and component size creates a strong benefit: equipment becomes substantially lighter and smaller. Commercial and military aircraft operational success is defined by criteria like range, cargo capacity, and fuel economy, all of which are directly impacted by weight savings.
Core Components and Power Distribution
An aircraft's electrical design consists of several interdependent parts. Jet engine generators supply the initial electricity, which distribution buses then distribute to different systems. A three-phase setup of 115V phase-to-neutral (or 200V phase-to-phase) powers all of the electronics in the galley and the cockpit. Power quality is constant during the flight thanks to advanced inverters and frequency converters, even when engine speeds change from stage to stage.
Technical Principles Behind High-Frequency Power
When electrical components operate at higher frequencies, they require less magnetic material and fewer copper windings. For the same amount of electricity, a transformer running at 400Hz instead of 60Hz requires about one-seventh the core volume. The entire aviation power standard is based on this basic electrical engineering idea, which allows for the installation of sophisticated electrical systems without sacrificing aircraft performance.
Advantages of 400Hz Power Supply for Safe Aircraft Operations
Safety in aviation depends on reliable electrical systems that perform flawlessly under demanding conditions. High-frequency power supplies deliver multiple operational benefits that directly enhance flight safety.
Weight Reduction and Fuel Economy
The weight of each part on board an airplane is carefully measured. Since moving to 400Hz technology, electrical equipment—which accounts for a considerable amount of total weight—has been able to undergo tremendous reductions. Generators, motors, and transformers optimized for this frequency are significantly lighter than their 60Hz equivalents while maintaining the same level of performance. Reduced fuel usage leads to lower operating expenses for airlines, resulting in substantial economic benefits over thousands of flight hours.
Enhanced Reliability and Voltage Stability
Electrical interference can compromise sensitive avionics and navigation systems. The 400Hz standard helps mitigate these risks through cleaner power delivery and reduced harmonic distortion. Modern solid-state frequency converters maintain voltage regulation within tight tolerances, preventing fluctuations that could disrupt critical instruments. This stability proves especially valuable during high-stress flight phases such as takeoff, landing, or emergency maneuvers when equipment must perform without hesitation.
Compliance with Aerospace Standards
Aviation authorities globally impose strict regulations on electrical systems. Hardware needs to be able to endure electromagnetic fields, high and low temperatures, vibration, and variations in altitude. For a 400Hz power supply to work with a wide variety of aircraft and missions, manufacturers make sure they adhere to aerospace regulations and military requirements (MIL-STD-704). By adhering to these standards, new equipment can be easily integrated while safety margins are preserved.
Technical Specifications and Maintenance Best Practices
Procurement decisions require a thorough understanding of performance parameters and long-term operational considerations. The ACSOON GPU-330030 model from JERRYSTAR exemplifies the technical capabilities available in modern aviation power equipment.
Critical Performance Parameters

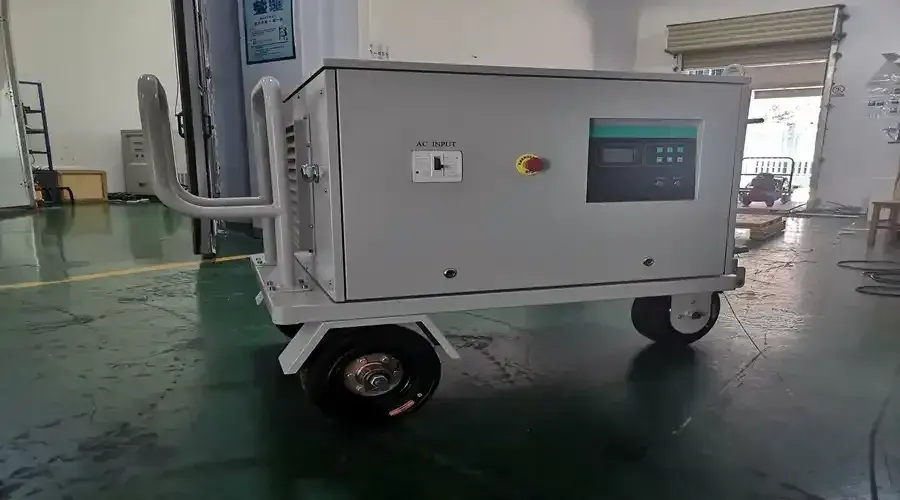

This 30kVA converter takes regular three-phase utility power (380V, 50Hz) and turns it into exact three-phase 115V/200V, 400Hz, which is compatible with aircraft systems. The solid-state design improves reliability and maintenance by eliminating moving parts, which previous rotary converters had. This device is perfect for outdoor ramp operations because it is protected to IP54 requirements, which means it resists dust and water penetration. Compatibility with nonlinear loads commonly found in modern avionics is guaranteed by the crest factor specification of 1.414±3%.
Routine Inspection and Preventive Maintenance
When well-maintained, power equipment lasts longer and incurs less expensive downtime. Check physical deterioration, loose connections, and insufficient ventilation clearances visually once a month. Technicians perform electrical testing quarterly to verify the output voltage, frequency stability, and functionality of the protection feature. Thermal imaging can detect problems before they lead to breakdowns. Verification of calibration, evaluation of internal components, and recording of performance should all be part of a thorough annual inspection by trained technicians.
Troubleshooting Common Issues
Instead of trying to run 60Hz equipment directly, ground power units that convert the utility supply to 400Hz are a far better option. Problems with the control circuit or old components are common causes of output voltage variations. Feedback sensor issues or power stage malfunctions can cause frequency instability. Component deterioration, increased ambient temperature, or blocked airflow are common causes of overheating. Original Equipment Manufacturer (OEM) replacement parts are the only way to keep your warranty valid and your vehicle running to its factory specs.
Comparing 400Hz Power Supply Solutions for Aircraft Procurement
Selecting appropriate power equipment involves evaluating multiple factors beyond initial purchase price. Decision-makers must consider total lifecycle costs, technical performance, and supplier capabilities.
Performance Comparison with Standard Frequencies
Instead of trying to run 60Hz equipment directly, ground power units that convert the utility supply to 400Hz are a far better option. Using normal frequency power on a 400 Hz power supply aircraft systems meant for 400 Hz will cause malfunctions or damage. 60Hz transformers and motors are unsuitable for aircraft due to their weight penalties. Reduced size and weight are driving factors in onboard system design, which also helps mobile ground support equipment.
Evaluating Manufacturer Quality and Support
When developing new products, top manufacturers draw on decades of experience in the aerospace industry. Thales, Honeywell, and Hamilton Sundstrand are just a few of the companies that have worldwide support networks and substantial certification portfolios. When evaluating vendors, procurement teams should consider the testing capacity, quality management system, and infrastructure for after-sales service. Manufacturers have widely varying lead times, especially when it comes to bespoke configurations. The availability of spare parts and the conditions of the warranty have a direct bearing on operational readiness.
Customization and Inventory Considerations
While the products in the standard catalog work well for most uses, more specialized missions often call for individualized solutions. Modifications to the interface, frequency fluctuation, and voltage range meet specific operational needs. Manufacturers who offer complete customization capabilities enable equipment optimization for individual aircraft types or mission profiles, giving them a competitive advantage. Differentiating responsive suppliers from those with lengthy delivery dates is maintaining sufficient inventory for immediate procurement needs.
Applications and Real-World Impact of 400Hz Power in Aerospace
High-frequency power systems enable functionality across diverse aircraft systems and support equipment. Understanding these applications helps procurement professionals appreciate the technology's strategic importance.
Mission-Critical Avionics and Instrumentation
Stable, clean electrical power is essential for the operation of all electronics in the cockpit, including displays, flight computers, navigation systems, and communication gear. These delicate devices may rely on the 400Hz standard, which reduces the likelihood of electromagnetic interference and keeps signals intact. The accuracy of radar systems relies on exact power characteristics, which means that power quality is a direct factor in mission success. To guarantee compatibility and dependability, testing facilities use comparable 400Hz sources to check equipment performance before installation.
Ground Support Equipment Applications

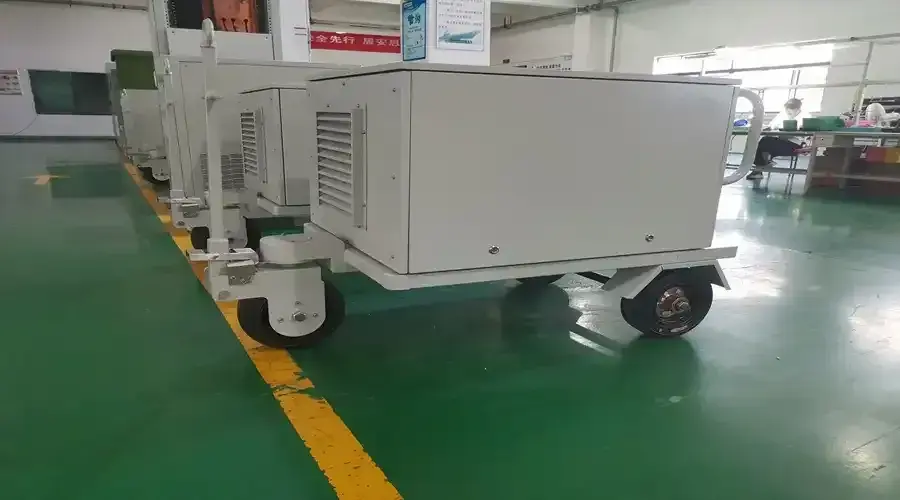

400 Hz power supply aircraft maintenance and pre-flight preparation are facilitated by ground power units such as the ACSOON GPU-330030, in addition to devices that are airborne. Auxiliary power unit shutdown helps preserve fuel and reduces noise when airplanes are parked at gates or in hangars; these units receive external power. The moveable trolley design allows for versatile positioning around different types of aircraft. To ensure electrical consistency from the production floor to the flight line, avionics manufacturers employ the same power supplies for production testing.
Emerging Technology Trends
Solid-state power conversion technology continues advancing, offering improved efficiency and reduced maintenance compared to legacy systems. Digital control platforms provide sophisticated monitoring capabilities, predictive maintenance alerts, and remote diagnostics. Hybrid and electric aircraft introduce new power system architectures, but the 400Hz standard remains relevant for compatibility with existing support infrastructure. Procurement strategies must anticipate these developments while maintaining operational capability with current aircraft fleets.
Conclusion
The 400 Hz power supply aircraft standard represents a fundamental enabler of modern aviation safety and efficiency. Through weight reduction, enhanced reliability, and precise voltage control, these specialized systems support critical operations across commercial, military, and industrial aerospace applications. Technical specifications, proper maintenance practices, and informed procurement decisions ensure that electrical infrastructure meets demanding aviation requirements. As technology advances toward solid-state solutions and digital controls, the core principles of high-frequency power remain essential. Organizations prioritizing equipment quality, supplier responsiveness, and customization capability position themselves for operational success in an evolving aerospace landscape.
FAQ
Why does aviation use 400Hz instead of standard 60Hz power?
The higher frequency allows magnetic components to achieve the same performance with significantly less core material. Transformers and motors designed for 400Hz weigh up to 70% less than equivalent 60Hz equipment, which is essential in weight-sensitive aircraft applications where fuel efficiency and payload capacity directly impact operational economics.
Can standard 60Hz motors operate on 400Hz power supplies?
Standard motors designed for 60Hz will experience excessive inductive reactance and heat generation when supplied with 400Hz power, likely causing rapid failure. Equipment must be specifically designed and rated for the operating frequency. This incompatibility necessitates dedicated ground support equipment when servicing aircraft.
What maintenance intervals do 400Hz power supplies require?
Monthly visual inspections, quarterly electrical performance testing, and annual comprehensive evaluations provide appropriate maintenance coverage. Actual requirements vary based on utilization intensity, environmental conditions, and manufacturer recommendations. Preventive maintenance programs significantly extend equipment life and reduce unexpected failures that disrupt operations.
How do 400Hz systems integrate with modern aircraft designs?
New aircraft continue adopting the 400Hz standard for compatibility with existing ground infrastructure and equipment inventories. Even advanced hybrid and electric aircraft incorporate 400Hz distribution systems for avionics and auxiliary equipment. Standardization across the industry creates interoperability benefits that outweigh potential advantages of alternative frequencies.
Partner with JERRYSTAR for Reliable 400Hz Power Supply Aircraft Solutions
JERRYSTAR specializes in precision-engineered frequency conversion technology for aviation, military, and industrial applications. Our ACSOON brand GPU-330030 represents over 15 years of experience delivering reliable 400 Hz power supply aircraft equipment to demanding customers worldwide. As both a manufacturer and supplier, we maintain adequate inventory for rapid deployment while offering comprehensive customization capabilities for specialized requirements. The 30kVA solid-state unit features variable input voltage compatibility, precise output control, and IP54 environmental protection—engineered specifically for ground support operations and laboratory testing environments. Our commitment to quality ensures compliance with international aviation standards, backed by responsive technical support and genuine replacement parts availability. Contact our team at acpower@acsoonpower.com to discuss your specific power conversion requirements and discover why procurement professionals trust JERRYSTAR for mission-critical applications.
