What Is the Standard 115 VAC 400 Hz AC Power Supply Used For?
The standard AC power supply 115 vac 400 hz is an important power source for military, aerospace, and specific industrial uses that need high-frequency AC power. Instead of the normal 60 Hz power systems in homes, 400 Hz power sources work better for airplane electrical systems, avionics equipment, and precision testing instruments. For aircraft ground support, military operations, and high-precision manufacturing settings where power quality directly affects mission-critical performance, these units are a must-have. They provide stable, reliable power conversion that meets strict flight standards like MIL-STD-704.
Understanding the Core Technology Behind 400 Hz Power Systems
For strong technical reasons, the aviation and military businesses adopted 400 Hz frequency standards many years ago. Higher frequency power makes it possible for transformers and other electrical parts to be smaller and lighter, which is very important when every pound counts in airplane design. When compared to 60 Hz systems, the 400 Hz standard cuts the size of the magnetic core that is needed by about 85%. This means that the entire electrical distribution network in an airplane will be much lighter.
115 VAC three-phase configurations at 400 Hz are used in modern airplane power systems. These rules make sure that different kinds of planes, from commercial jets to armed fighters, can work together. Electrical problems can put flight safety and task success at risk, so the architecture of the aviation power system needs to be very reliable.
Through advanced static conversion methods, frequency converter technology changes 50/60 Hz grid power into a precise 400 Hz output. Tight voltage control (within ±1%) is what these systems do. They also filter out electrical noise that could mess up sensitive avionics gear.
Essential Applications of 115 VAC 400 Hz Power Supplies
Aircraft Ground Power Units and Pre-Flight Systems
Airplane ground control units speak to the most obvious application of 400 Hz control innovation at airplane terminals around the world. These frameworks give basic electrical control to flying machine amid ground operations, disposing of the requirement to run costly fly motors or auxiliary power units (APUs) while stopped at gates.
Modern flying machines require significant electrical control for cabin lighting, natural control frameworks, route hardware, and traveler services. A normal wide-body flying machine requests 90-180 kVA of 400 Hz control amid ground operations. Ground control units must convey this control with uncommon steadiness to anticipate hardware harm or operational disruptions.
The AF400M-330200 embodies this application superbly, conveying 200 kVA of dependable control change. Its three-phase 208V-480V input adaptability suits different worldwide control benchmarks, whereas the fixed-mounted arrangement guarantees strong execution in demanding air terminal situations with IP21 security against natural dangers.
Avionics Testing and Simulation Equipment
For thorough avionics testing protocols, aerospace manufacturers and maintenance facilities depend on 400 Hz power a lot. Before being installed, every part of an airplane goes through a lot of tests that make sure the power sources exactly match the conditions in the cockpit. In testing labs, different flight situations are simulated, ranging from normal operations to emergencies that require very good power conditioning.
Power modules for avionics handle important flying data, navigation signals, and communication systems. For these sensitive electronics to work right during tests, they need clean, stable power. Any changes in voltage or frequency can lead to false test results, which could jeopardize flight safety certifications.
Reliable 400 Hz power supplies are very helpful for aircraft training equipment. Flight simulations make realistic cockpits where pilots can practice for different situations without having to pay for real planes to run. These systems need stable, constant power to keep up true training conditions that meet the rules for pilot certification programs.
Military Defense and Radar Applications
Because of harsh working environments and mission-critical applications, military power supply needs are higher than commercial ones. Radar systems, communication networks, and electronic warfare gear all rely on 115 VAC inverter systems that work perfectly in the worst conditions.
Mobile command centers use portable AC power sources to keep computers and messaging working in faraway places. These portable systems need to work reliably in a wide range of climates and locations, while also being able to work with sensitive military electronics without causing any electromagnetic interference.
When used in the navy, ac power supply 115 vac 400 hz transformer systems have to deal with special problems, like corrosion from salt water, shaking, and big changes in temperature. For radar and navigation systems on ships to stay ready for long trips, they need power that doesn't go out.
High-Precision Manufacturing and Quality Control
For precision machining and automated assembly systems, 400 Hz power is being used more and more in industrial production. High-frequency AC power makes it possible for CNC machines, robotic systems, and quality inspection tools with accuracy tolerances measured in microns to have more accurate motor control.
Stable 400 Hz power is needed for automated test systems in electronics manufacturing to make sure that the products work well before they are shipped. The power conditioning units in these systems have to be very reliable because they have to keep test conditions the same during thousands of daily output cycles.
400 Hz devices are used in research and development labs to test materials, make prototypes, and make sure they are compliant. Universities and corporate research sites buy these systems to help develop aerospace and defense products by simulating how they would work in the real world.
Aerospace Component Manufacturing and Assembly
Shuttle and adjacent fabricating offices require specialized control frameworks that coordinate the electrical characteristics of their final working situations. Numerous shuttle frameworks work on 400 Hz control due to weight and productivity preferences in space applications.
Clean room situations require control frameworks with predominant electrical commotion sifting capabilities. Semiconductor fabrication and exactness gathering operations cannot endure electrical obstructions that might disturb sensitive components or sully products.
Quality affirmation methods in aviation manufacturing include broad electrical testing of components under recreated working conditions. These tests require exact control conveyance that matches real airplane determinations to guarantee component unwavering quality all through their operational life expectancy.
Marine and Offshore Power Systems
More and more, offshore drilling sites and marine vessels use 400 Hz power to run specialized equipment. Power systems that can handle harsh marine conditions and still work reliably are needed for these activities.
400 Hz electrical equipment is smaller, which is good for shipboard power systems. Because ships have limited space, the ability to reduce weight and size with higher frequency power is very useful for naval builders and marine engineers.
For aircraft carrier operations and upkeep, port facilities and shipyards need 400 Hz power. When military aircraft carriers dock for repairs, maintenance, or crew changes, these shore-based systems help keep operations going.
Laboratory Testing and Research Applications
400 Hz power is used in scientific study facilities for testing equipment that needs exact electrical conditions. In order to simulate real working conditions, 400 Hz power is often required for materials testing, environmental simulation, and component validation.
Calibration labs keep 400 Hz power systems running so that electrical measuring tools used in the defense and aircraft industries can be sure they are accurate. These places offer traceable testing services that make sure that measurements are correct all along the supply chain.
Universities with aerospace engineering programs buy 400 Hz power systems so that students can use standard tools in the field. These investments in education help future engineers get ready for jobs in aerospace, military, and other high-tech fields.
Technical Specifications and Performance Standards

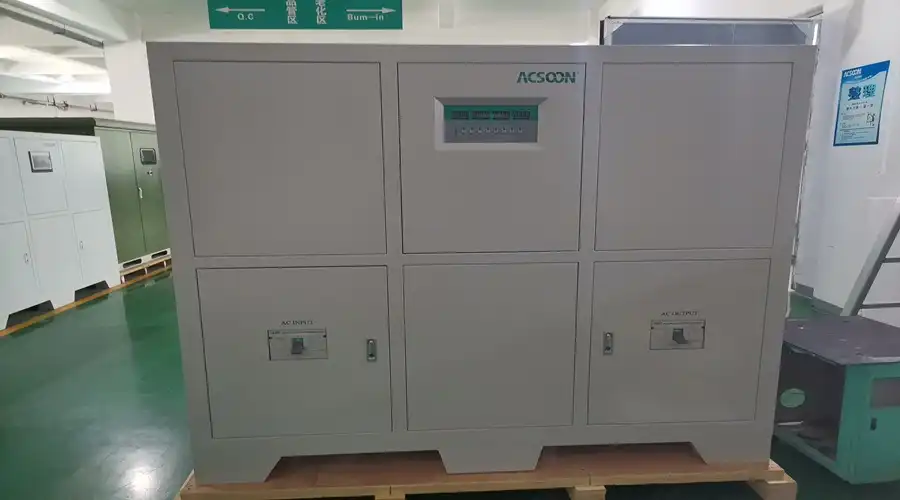

The AF400M-330200 is an example of modern static frequency converter technology made for tough uses. This 200 kVA unit can accept a wide range of input voltages, from 208V to 480V at normal 50/60 Hz frequencies. This gives you a lot of installation options for different power standards around the world.
The output specifications give you exact three-phase power at 208V to 480V and 400 Hz frequency, and they are very stable. The static frequency converter design doesn't use any rotating parts, so it's more reliable over time and requires less upkeep than motor-generator alternatives.
IP21 ingress protection makes sure that equipment works reliably in tough conditions while still being easy to get to for regular repair. This level of protection is good for most indoor industrial uses because it stops solid items bigger than 12 mm and water drops falling straight down.
Advantages of Choosing Quality 400 Hz Power Solutions
Unwavering quality remains the fundamental concern for aviation electrical conveyance frameworks. Quality ac power supply 115VAC 400Hz control supplies experience broad testing and approval methods to guarantee steady execution under different working conditions. These frameworks must work immaculately since electrical failures in basic applications can have serious consequences.
Customization capabilities permit producers to tailor control frameworks for particular application prerequisites. Distinctive mounting arrangements, assurance levels, and yield characteristics empower ideal arrangements for one-of-a-kind establishment challenges and execution specifications.
Compliance with industry benchmarks like MIL-STD-704 guarantees compatibility with existing airplane electrical frameworks and streamlines integration strategies. These benchmarks characterize satisfactory voltage control, recurrence steadiness, and consistent twisting limits that control supplies must meet.
Technical bolster and quick conveyance capabilities have become significant variables when selecting control supply accomplices. Aviation and defense applications regularly include tight venture plans and cannot accommodate expanded lead times for basic electrical components.
Conclusion
The standard ac power supply 115 vac 400 hz power source is very important in high-precision industrial, military, marine, and aerospace settings that need to convert power in a reliable and stable way. From supporting airplanes on the ground to high-tech testing labs, these specialized power systems make it possible for important tasks that need to be done quickly and reliably. Engineers can choose the best solutions that meet strict industry standards and safety requirements while also being effective in a wide range of uses and technical needs when they understand these factors.
FAQ
What makes 400 Hz power different from standard household electricity?
Standard household electricity operates at 50 or 60 Hz frequency, while 400 Hz power delivers significantly higher frequency that enables smaller, lighter electrical components. This frequency difference requires specialized equipment designed specifically for 400 Hz operation and cannot use standard household electrical devices.
Why do aircraft use 115 VAC at 400 Hz instead of other voltages?
Aircraft electrical systems evolved to use 115 VAC at 400 Hz because this combination provides optimal weight savings while maintaining adequate power delivery capabilities. The higher frequency reduces transformer and motor sizes significantly, while 115 VAC offers sufficient voltage for most aircraft electrical loads without excessive safety concerns.
Can I use a standard frequency converter for 400 Hz applications?
Standard frequency converters designed for variable frequency drives typically cannot provide the precise voltage regulation and low harmonic distortion required for aerospace applications. Specialized 400 Hz converters like the AF400M-330200 include additional filtering and regulation circuits necessary for sensitive avionics equipment.
What maintenance requirements apply to 400 Hz power systems?
Static frequency converters require minimal maintenance compared to motor-generator alternatives. Routine maintenance typically involves cleaning cooling components, checking electrical connections, and verifying output parameters. Most systems include diagnostic capabilities that monitor performance and alert operators to potential issues.
How do I determine the correct power rating for my application?
Power rating selection depends on the total electrical load, including starting currents for motors and peak demands from connected equipment. Engineering analysis should include load calculations with appropriate safety margins to ensure reliable operation under all expected conditions.
What safety considerations apply to 400 Hz power installations?
Safety considerations for 400 Hz installations mirror standard electrical safety practices with additional attention to proper grounding and electromagnetic compatibility. Personnel working with these systems require appropriate training on high-frequency electrical hazards and applicable safety procedures.
Ready to Source Reliable 400 Hz Power Solutions from JERRYSTAR?
JERRYSTAR combines over 15 years of manufacturing expertise with comprehensive customization capabilities to deliver exceptional ac power supply 115VAC 400Hz solutions for your critical applications. Our ISO 9001-certified production processes and extensive inventory ensure rapid delivery of high-quality power conversion equipment that meets stringent aerospace and military specifications. Whether you need standard configurations or custom-engineered solutions, our experienced team provides responsive technical support throughout your project lifecycle. Contact our specialists at acpower@acsoonpower.com to discuss your specific requirements with a trusted ac power supply 115VAC 400Hz manufacturer.
