Why Choose a 115 VAC 400 Hz AC Power Supply for Aviation？
Aviation systems demand precision, reliability, and efficiency in every component, particularly when it comes to power supply solutions. An ac power supply 115VAC 400Hz represents the industry standard for aircraft electrical systems, delivering the specialized frequency requirements essential for avionics, lighting systems, and critical onboard equipment. This higher frequency standard, compared to traditional 50/60 Hz systems, enables lighter, more compact power solutions that enhance aircraft performance while maintaining the stringent safety and reliability standards required in aerospace applications.

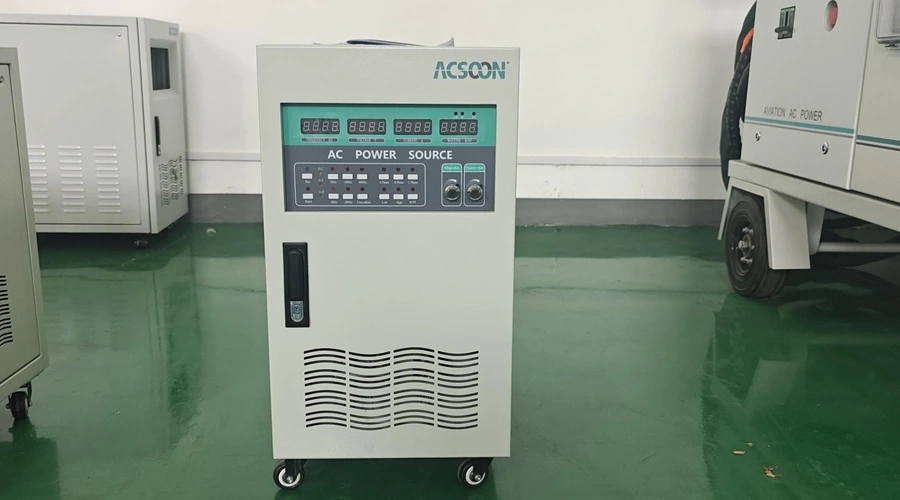

Understanding 115 VAC 400 Hz AC Power Supply
Technical Specifications and Design Principles
A 115 VAC 400 Hz power supply works at a much higher frequency than regular electrical systems, which makes it useful for aerospace uses. The higher frequency makes it possible for transformers and other electrical parts to be much smaller and lighter. This is very important in aircraft design, where less weight means better fuel economy and lower operating costs.
The 400 Hz frequency standard came about because the aviation industry had to find a way to balance the need for high electrical efficiency with limits on weight. At this frequency, magnetic parts need less material to produce the same amount of power. This makes power systems about 50% lighter than their 60 Hz versions. In business aviation, this weight loss is especially important because every pound saved adds up to better fuel economy over thousands of flight hours.
Static Frequency Converter Technology
Static frequency converters, like the ACSOON AF400M-330035 model, are very important for modern airplane ground support operations. They reliably change 35kVA of power. When these units are connected to standard ground power sources, they can take in 3-phase 208V–480V at 50/60 Hz and change them to the normal AC power supply 115VAC 400Hz output required for airplanes. The static design gets rid of the need for rotating parts, which cuts down on upkeep and boosts reliability in tough working conditions.
The AF400M-330035 has an IP21 ingress protection grade, which means it will work reliably in normal hangar and repair settings. Solid objects bigger than 50 mm and water dripping vertically are protected by this level of protection. This makes it good for indoor aircraft repair facilities where the weather can change.
Comparing 115 VAC 400 Hz with Other Power Supplies
Frequency Advantages in Aircraft Systems
A comparison of 400 Hz and standard 60 Hz systems shows big differences in how well they work when looking at power supply options for aviation uses. Because the frequency is higher, power transformers can use smaller magnetic cores, which makes them lighter and smaller. Because of this size reduction, plane designers can use more room for passenger areas, cargo, or fuel storage.
Another important benefit of 400 Hz devices is their high power density. Because the frequency is higher, electrical parts can give the same amount of power in packages that are 30–40% smaller than the same designs made for 60 Hz. This need to be small is especially important in airplanes, where every cubic inch of room is valuable.
Efficiency and Thermal Management
Because of how they handle heat, 400 Hz power sources work better in aircraft environments. When you run at a higher frequency, the magnetic parts get smaller, which lowers core losses and makes the whole system more efficient. This increase in efficiency means less heat is being made, which makes thermal control easier in areas of an airplane with limited cooling.
When it comes to efficiency, 400 Hz electrical systems in aviation usually get between 92 and 95%, while 60 Hz systems get between 85 and 90%. This improvement in efficiency lowers the electrical load on airplane generators, which saves fuel and makes the generators last longer.
Key Applications and Use Cases in Aviation
Aircraft Training Systems and Ground Support
One of the most difficult tasks for 115 VAC 400 Hz power supplies is to power aircraft training equipment. For training simulators to exactly mimic how an airplane's electrical system works, they need precise power characteristics. This makes sure that pilot training works well in real flight operations. The ACSOON AF400M-330035 is designed to work with airplane training systems that don't have an engine or an APU. It provides stable 400 Hz power for a wide range of avionics training scenarios.
Ground power units that use 400 Hz conversion let planes' electrical systems work while they're stopped at gates, providing an AC power supply of 115 VAC 400 Hz without having to run extra power units. This feature cuts down on airports' fuel use, noise, and pollution while keeping all electrical functions for boarding passengers, moving cargo, and performing system repair.
Avionics and Critical Systems Integration
For best performance, modern avionics rely on stable 400 Hz power. To stay accurate and dependable, flight management systems, navigation equipment, and contact radios all need precise frequency control. Changes in power or frequency can mess up navigation, interfere with communication, or even cause the whole system to fail during critical flight stages.
Power supplies that meet MIL-STD-704 standards are needed for military aviation uses because they have strict requirements. These standards make sure that the power quality, voltage regulation, and frequency stability are maintained even in the most difficult operational circumstances, such as high-G maneuvers, temperature changes, and areas with electromagnetic interference.
Maintenance and Testing Operations
Portable 400 Hz power sources are needed for airplane maintenance to turn on systems while they are being tested and fixed on the ground. Maintenance teams use these power supplies to make sure that avionics work, that instruments are calibrated, and that all systems are checked thoroughly without having to start the engines or auxiliary power units.
Accurate 400 Hz power sources are used in testing labs for aerospace component development to mimic the electrical environments of real airplanes. This feature makes sure that when new parts and systems are put into operating aircraft, they work reliably, which lowers the risk of failures while the plane is in use.
Procurement Insights for Global B2B Clients
Supplier Evaluation and Quality Assurance
People who are in charge of buying aviation power systems have to judge suppliers on more than just the price of the original purchase. Manufacturing certifications, quality control systems, and compliance with aerospace standards are basic things that any supplier must have in order to be considered. ISO 9001 certification makes sure that production processes are always the same, and AS9100 certification is only for aerospace quality standards.
Reliability in the supply chain is especially important for mission-critical uses where power system failures could cause problems with operations or safety. Long-term providers with a history of success in the aerospace market can give you more confidence in the quality of their products and their ability to provide ongoing support.
Customization Capabilities and Technical Support
Customized power solutions are often needed for aviation uses to work with certain aircraft interfaces, environmental conditions, or operational needs. Suppliers that have their own engineering teams can change standard products or make totally new ones to meet the needs of a specific project. This adaptability is very important when adding power systems to current planes or making new airplane platforms.
Technical support goes beyond just delivering the product; it also includes installation advice, help with commissioning, and ongoing support for upkeep. Suppliers with global service networks can provide quick help no matter where the operations are located, which is very important for international air travel.
Cost Considerations and Value Analysis
Total cost of ownership gives a more complete picture of power system investments, even though beginning procurement costs are important. Long-term operational costs are affected by how well something uses energy, how often it needs maintenance, and how reliable it is in terms of function. Power supplies with higher efficiency, such as those providing an AC power supply of 115 VAC 400 Hz, usually have higher prices, but they pay for themselves in lower running costs over their lifetime.
Carrying costs and availability needs must be balanced in inventory management methods. Critical aviation applications can't wait for replacement parts for long periods of time, so the supplier's ability to produce and keep a large inventory are important factor in choosing them.

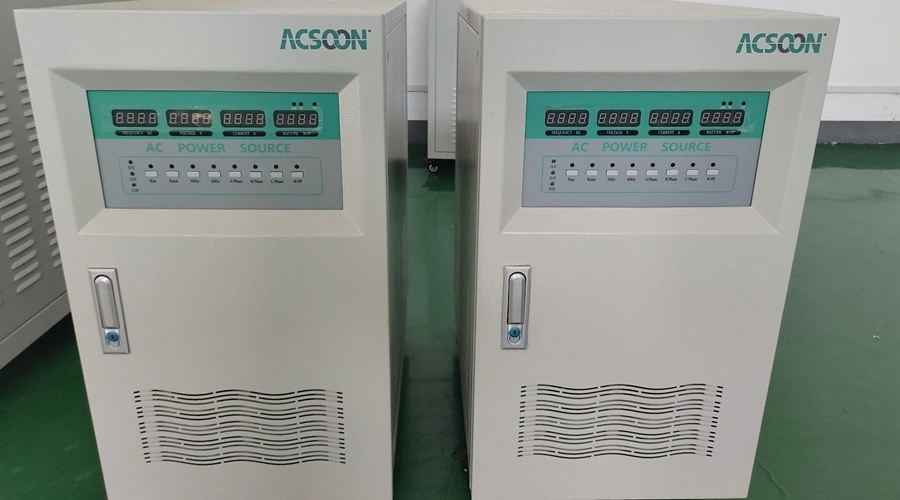

Why Choose JERRYSTAR for 115 VAC 400 Hz Power Supplies
Comprehensive Product Portfolio and Manufacturing Excellence
Xi'an Jerrystar Instrument Co., Ltd. brings over 15 years of specialized expertise in power conversion technology to the aviation market. Our ACSOON brand represents a commitment to precision engineering and reliable performance in demanding aerospace applications. The company's manufacturing facility, spanning 5,000-10,000 square meters in Xi'an, China, combines advanced production capabilities with rigorous quality control processes.
Our product development focuses on aviation and military power systems ensures deep understanding of industry requirements and regulatory compliance. Each power supply undergoes comprehensive testing to verify performance characteristics, environmental tolerance, and long-term reliability before shipment to customers.
Advanced Engineering and Customization Services
JERRYSTAR's engineering team provides comprehensive customization services to address specific customer requirements. Whether adapting standard products for unique applications or developing entirely new solutions, our technical capabilities support complex project demands. The AF400M-330035 model exemplifies this approach, offering a fixed-mounted static frequency converter specifically optimized for aircraft training applications.
Our design philosophy emphasizes modular construction and serviceability, enabling efficient maintenance and repair operations. Component accessibility and standardized interfaces simplify service procedures, reducing downtime and maintenance costs for operators.
Quality Assurance and Compliance Standards
ISO 9001 certification governs all manufacturing processes at JERRYSTAR, ensuring consistent product quality and continuous improvement. Our quality management system addresses every aspect of product development, from initial design reviews through final inspection and testing. This comprehensive approach minimizes defects and ensures reliable performance in critical applications.
Compliance with international aviation standards, including MIL-STD-704 for military applications, demonstrates our commitment to meeting stringent industry requirements. Regular audits and certifications maintain compliance status and ensure ongoing adherence to evolving regulatory standards.
Global Support and Service Network
JERRYSTAR maintains a strong international presence to support customers worldwide. Our technical support team provides responsive assistance for installation, commissioning, and troubleshooting requirements. This global reach ensures that customers receive timely support regardless of their operational location.
Adequate inventory levels enable rapid delivery for both standard products and urgent replacement requirements. This inventory strategy recognizes the critical nature of aviation applications where system downtime can result in significant operational and financial impacts.
Conclusion
Selecting the appropriate power supply technology represents a critical decision in aviation system design and procurement. The ac power supply 115VAC 400Hz standard offers compelling advantages in weight reduction, space efficiency, and overall system performance compared to conventional alternatives. These benefits translate directly to improved operational efficiency and reduced costs over the equipment lifecycle. JERRYSTAR's ACSOON product line delivers these advantages through proven engineering, rigorous quality control, and comprehensive customer support. Our commitment to aviation market requirements ensures reliable power solutions that meet the demanding standards of modern aerospace applications.
FAQ
Q: What makes 400 Hz power supplies essential for aviation applications?
A: Aviation systems require 400 Hz power because this higher frequency enables significantly lighter and more compact electrical components compared to standard 50/60 Hz systems. The weight savings are crucial for aircraft fuel efficiency, while the compact design allows more efficient use of limited aircraft space for critical systems and passenger areas.
Q: How does the ACSOON AF400M-330035 support aircraft training operations?
A: The AF400M-330035 provides stable 35kVA power conversion specifically designed for aircraft training systems without engine and APU operation. This capability allows comprehensive avionics training using actual aircraft electrical loads while maintaining ground-based power supply flexibility and safety.
Q: What compliance standards apply to aviation power supplies?
A: Aviation power supplies must meet various standards, including MIL-STD-704 for military applications, FAA regulations for commercial aviation, and international safety standards. These requirements ensure power quality, electromagnetic compatibility, and operational safety in demanding aerospace environments.
Q: What customization options are available for specialized applications?
A: JERRYSTAR offers extensive customization service,s including modified electrical specifications, custom enclosures, specialized interfaces, and application-specific features. Our engineering team works closely with customers to develop solutions that meet unique operational requirements while maintaining compliance with relevant aviation standards.
Q: How do maintenance requirements compare between different power supply technologies?
A: Static frequency converters like the AF400M-330035 require minimal maintenance due to their solid-state design with no rotating components. This contrasts favorably with motor-generator sets that require regular mechanical maintenance, lubrication, and component replacement, resulting in a lower total cost of ownership.
Partner with JERRYSTAR for Your Aviation Power Supply Requirements
JERRYSTAR stands ready to support your aviation power system requirements with proven ac power supply 115VAC 400Hz solutions designed for critical aerospace applications. Our ACSOON brand represents over 15 years of engineering excellence and manufacturing expertise in specialized power conversion technology. As a leading ac power supply 115VAC 400Hz manufacturer, we combine comprehensive customization capabilities with responsive global support to deliver solutions that exceed customer expectations. Contact our technical team at acpower@acsoonpower.com to discuss your specific requirements and discover how JERRYSTAR's proven reliability and engineering excellence can enhance your aviation operations.
