Line-Interactive UPS
2.Technology: Line-Interactive with Automatic Voltage Regulation (AVR)
3.Input: 90-280VAC, 50/60Hz (Wide Input Range)
4.Output: 230VAC or 120VAC, Regulated Sine Wave
5.Applications: Network Equipment, POS Systems, Workstations, Medical Devices, Security Systems
6.Core Features: AVR Corrects Minor Fluctuations, Fast Transfer to Battery, High Efficiency
7.Brand: ACSOON (Tower or Rackmount Form Factors).
- Product Description

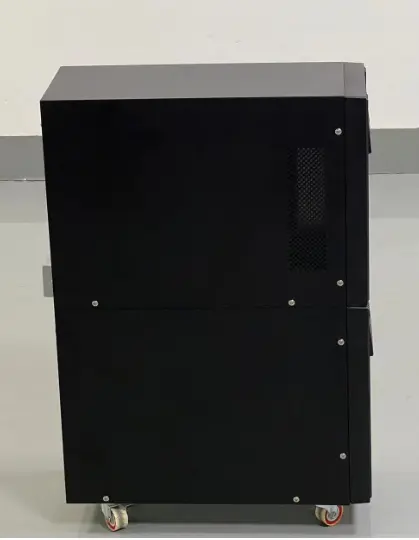

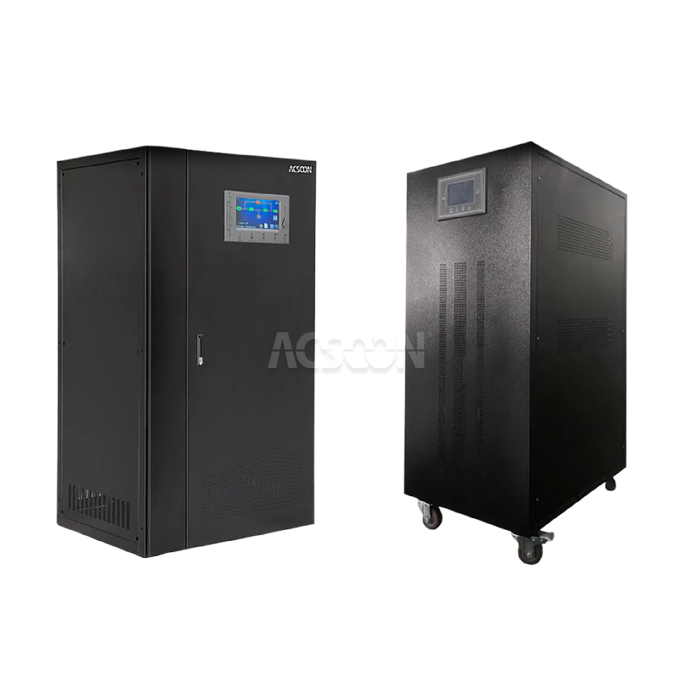

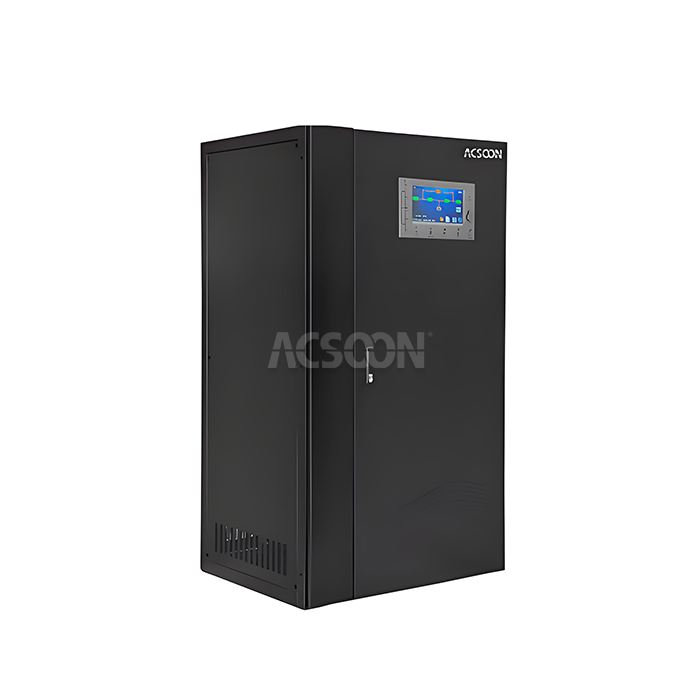

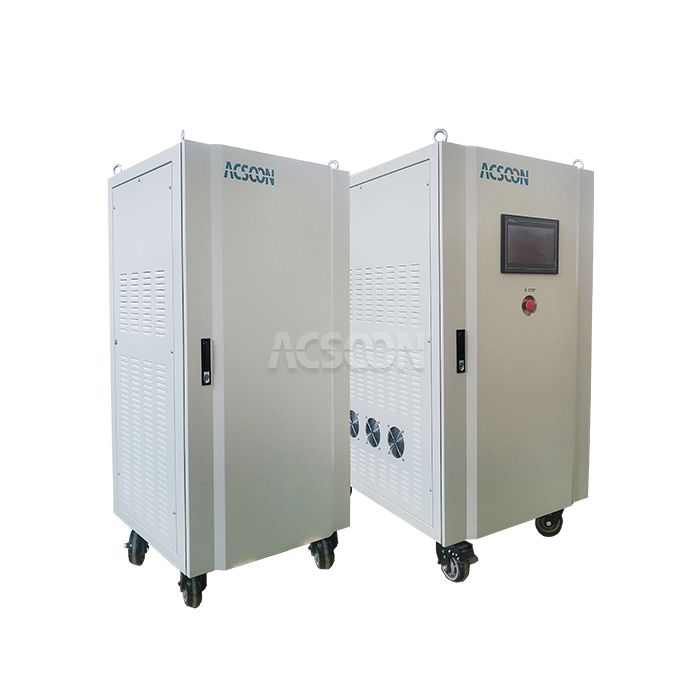

Line-Interactive UPS | AVR Protection with Battery Backup
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the reliable Line-Interactive UPS, offering enhanced power protection for a wide range of sensitive electronic equipment. This UPS provides automatic voltage regulation (AVR) to correct minor power fluctuations without using battery power, combined with seamless battery backup for outages. It is an ideal, cost-effective solution for protecting servers, networking gear, and critical devices where clean, stable power is essential.
Datasheet
| Parameter | Specification |
|---|---|
| Topology | Line-Interactive with AVR |
| Input Voltage | 90-280VAC, 50/60Hz |
| Output Voltage | 230VAC ±3% (or 120VAC) |
| Power Rating | 1kVA, 2kVA, 3kVA, 5kVA, 10kVA |
| Transfer Time | <10ms (typical) |
| Battery Runtime | 5-10 minutes at full load (extendable with battery packs) |
| Efficiency | >95% (in line mode) |
| Communication | USB, RS232, Dry Contacts (optional) |
| Form Factor | Tower or Rackmount (2U) |
Line-Interactive UPS Main Features
- Automatic Voltage Regulation (AVR): Corrects under-voltage (brownouts) and over-voltage conditions in real-time.
- Fast Transfer Switching: Switches to battery power in milliseconds (typically 2-10ms) during a blackout or severe voltage drop.
- Pure Sine Wave Output: Delivers clean, stable sine wave power in both line and battery modes, compatible with all loads.
- Communication & Management: USB/RS232 ports for monitoring and graceful shutdown of connected systems via included software.
Why Choose ACSOON Line-Interactive UPS?
- Intelligent Voltage Regulation: Built-in AVR stabilizes high/low voltage without depleting the battery, extending battery life and providing continuous protection.
- Optimal Balance of Performance & Cost: Offers superior protection to basic standby UPS models at a more accessible price point than full online systems.
- High Operating Efficiency: Consumes less energy in normal mode compared to double-conversion UPS, reducing electricity costs.
- User-Friendly & Reliable: Simple setup, clear LCD status display, and robust design ensure dependable operation with minimal maintenance.

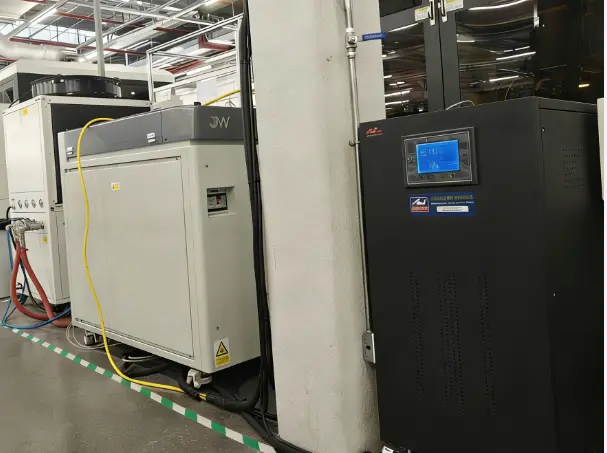

Line-Interactive UPS Application Areas
- Small Business Servers & Networks: Protecting file servers, network switches, routers, and storage devices.
- Retail & Hospitality: Safeguarding point-of-sale (POS) systems, digital signage, and reservation computers.
- Professional Workstations: Securing design, engineering, and financial workstations from data loss.
- Medical & Laboratory Devices: Providing backup for diagnostic equipment, analyzers, and monitoring systems.
Our Services
Quality Control
- AVR Function Test: Each unit is tested to verify correct boosting and bucking operation across the specified input voltage range.
- Transfer Time & Waveform Analysis: The switch to battery mode is measured to ensure speed and that output waveform remains clean and stable.
- Battery Calibration & Load Test: Internal batteries are calibrated and tested under load to verify rated runtime.
- Full System Burn-in: A final operational test under cyclic load conditions ensures reliability before packaging.

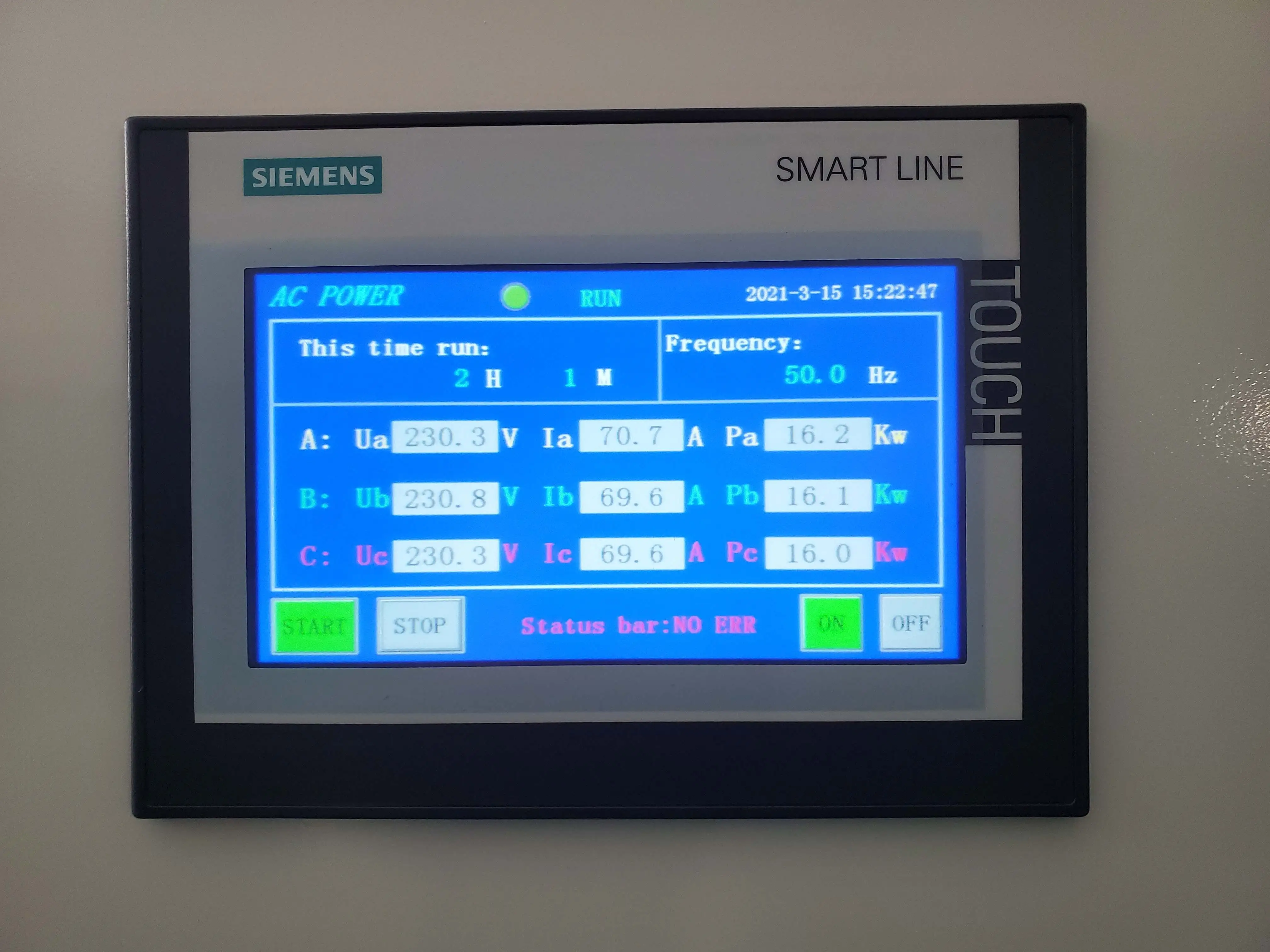

R&D Results
Enhanced AVR Transformer Design: Developed a more efficient and compact multi-tap transformer for wider input range and faster correction.
Advanced Battery Management: Implemented precise charging algorithms to maximize battery lifespan and health.
Intelligent Fan Control: Engineered a temperature-based fan control system for quiet operation during normal use and effective cooling during extended backups.
Unified Management Software: Created simple, cross-platform software for battery runtime monitoring, event logging, and automatic shutdown.
Packaging and Transportation
Retail-Ready Packaging: Units are boxed in high-quality cardboard with molded foam inserts, suitable for retail or direct shipment.
Complete Accessory Inclusion: Package includes user manual, communication cables, installation CD/software, and warranty card.
Clear Safety & Setup Information: Packaging and quick-start guides feature clear multilingual instructions for safe installation.
Standard & Express Shipping: Available through common carriers with reliable tracking to businesses and institutions worldwide.
After‑Sales Service
We offer a 24-month warranty on the UPS and a 12-month warranty on the batteries. Support includes online resources, software downloads, and accessible technical support via email and phone.
Qualification Certification
ISO 9001:2015 Certified manufacturing;CE, RoHS Compliant; Tested to IEC 62040 Standards for UPS performance and safety.
FAQ |
|---|
| Q1: What is the main advantage of a Line-Interactive UPS over a Standby (Offline) UPS? |
| A: The key advantage is the Automatic Voltage Regulation (AVR). A Line-Interactive UPS corrects common high/low voltage conditions without switching to battery, preserving battery life for actual blackouts. A Standby UPS only offers surge protection and battery backup, leaving equipment exposed to damaging voltage fluctuations. |
| Q2: When should I choose a Line-Interactive over an Online (Double Conversion) UPS? |
| A: Choose a Line-Interactive UPS for environments with generally stable power but occasional brownouts, surges, or short outages (e.g., typical office settings). Choose an Online UPS for critical loads exposed to very poor power quality, frequent long outages, or where zero transfer time is mandatory (e.g., data centers, medical ICU). |
| Q3: Can it handle the inrush current of a laser printer or motor? |
| A: For large laser printers, pumps, or motors, it is recommended to plug them directly into a wall outlet, not the UPS. The high inrush current can overload the UPS. The UPS should be dedicated to sensitive electronic loads like computers and networking equipment. |
| Q4: How do I know when to replace the batteries? |
| A: The UPS software will typically warn of a weak battery. Generally, batteries last 3-5 years. A noticeable reduction in calculated or actual backup runtime is the main indicator for replacement. |
| Q5: Can multiple UPS units be connected to one server? |
| A: It is not recommended to cascade or daisy-chain UPS units. A single UPS of appropriate capacity should be used. For powering multiple devices, use a UPS with sufficient outlets and total power (kVA/VA) rating. |
