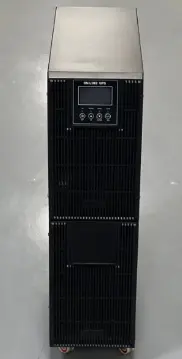

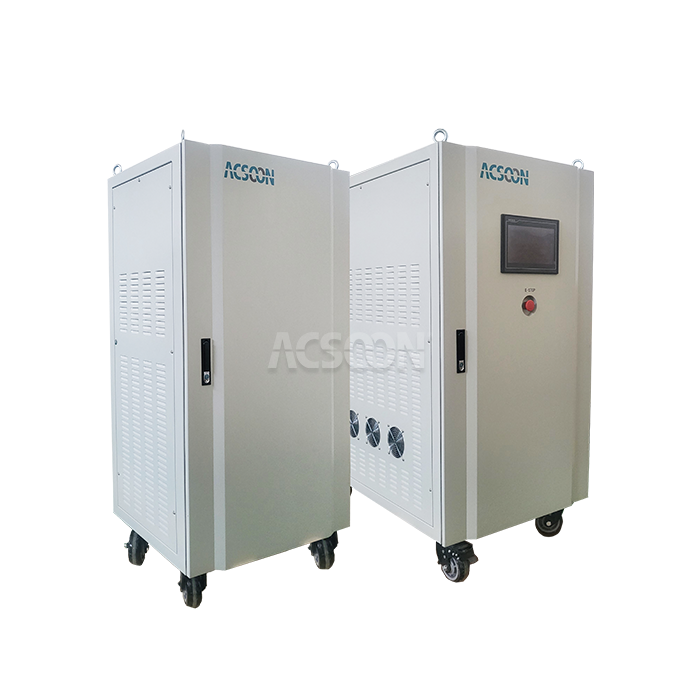

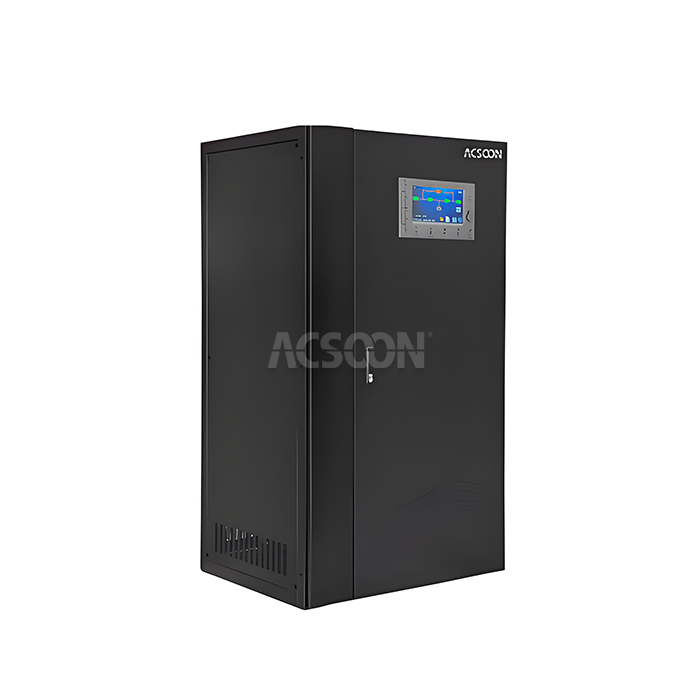

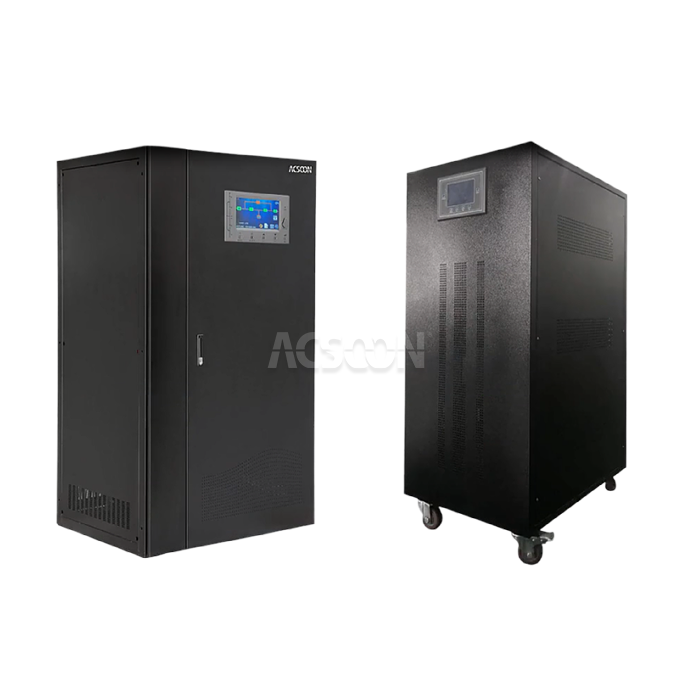

Modular Rackmount UPS System
1.Power Range: 3kVA to 20kVA per module, scalable to 100kVA+
2.Technology: True Online Double Conversion with Hot-Swap Modules
3.Input: 200-240VAC, Single Phase, 50/60Hz
4.Output: 230VAC, Pure Sine Wave, Zero Transfer Time
5.Applications: Network Closets, Server Rooms, Edge Computing, Telecom, Industrial Control
6.Core Features: Hot-Swap Power & Battery Modules, High Power Density, Easy Vertical Scalability
7.Brand: ACSOON (Configurable for 19" or 23" Racks).
2.Technology: True Online Double Conversion with Hot-Swap Modules
3.Input: 200-240VAC, Single Phase, 50/60Hz
4.Output: 230VAC, Pure Sine Wave, Zero Transfer Time
5.Applications: Network Closets, Server Rooms, Edge Computing, Telecom, Industrial Control
6.Core Features: Hot-Swap Power & Battery Modules, High Power Density, Easy Vertical Scalability
7.Brand: ACSOON (Configurable for 19" or 23" Racks).
- Product Description
Modular Rackmount UPS System | Scalable Uninterruptible Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the innovative Modular Rackmount UPS System, engineered for dynamic IT and industrial environments where space is limited and uptime is critical. This scalable system combines true online double conversion protection with a modular, hot-swappable design, allowing you to easily increase power capacity or runtime as your needs grow without taking the critical load offline.
Datasheet
| Parameter | Specification |
|---|---|
| Topology | True Online Double Conversion |
| Input | Voltage: 200-240VAC Single Phase Frequency: 50/60Hz Auto-sensing |
| Output | Voltage: 230VAC ±1% Capacity: 3kVA, 6kVA, 10kVA per module Waveform: Pure Sine Wave |
| Scalability | Up to 4 or 6 modules in parallel in one chassis |
| Battery | Hot-swappable intelligent battery modules; Standard 5-10 min runtime |
| Efficiency | >93% (Online), >97% (Eco Mode) |
| Communication | SNMP, USB, RS232, Dry Contacts |
| Form Factor | 3U or 4U Rackmount Chassis |
Modular Rackmount UPS System Main Features
- Hot-Swap Module Design: Power modules and intelligent battery modules can be added or removed while the system is operating.
- True Online Double Conversion: Provides complete isolation from all grid anomalies with zero transfer time to battery.

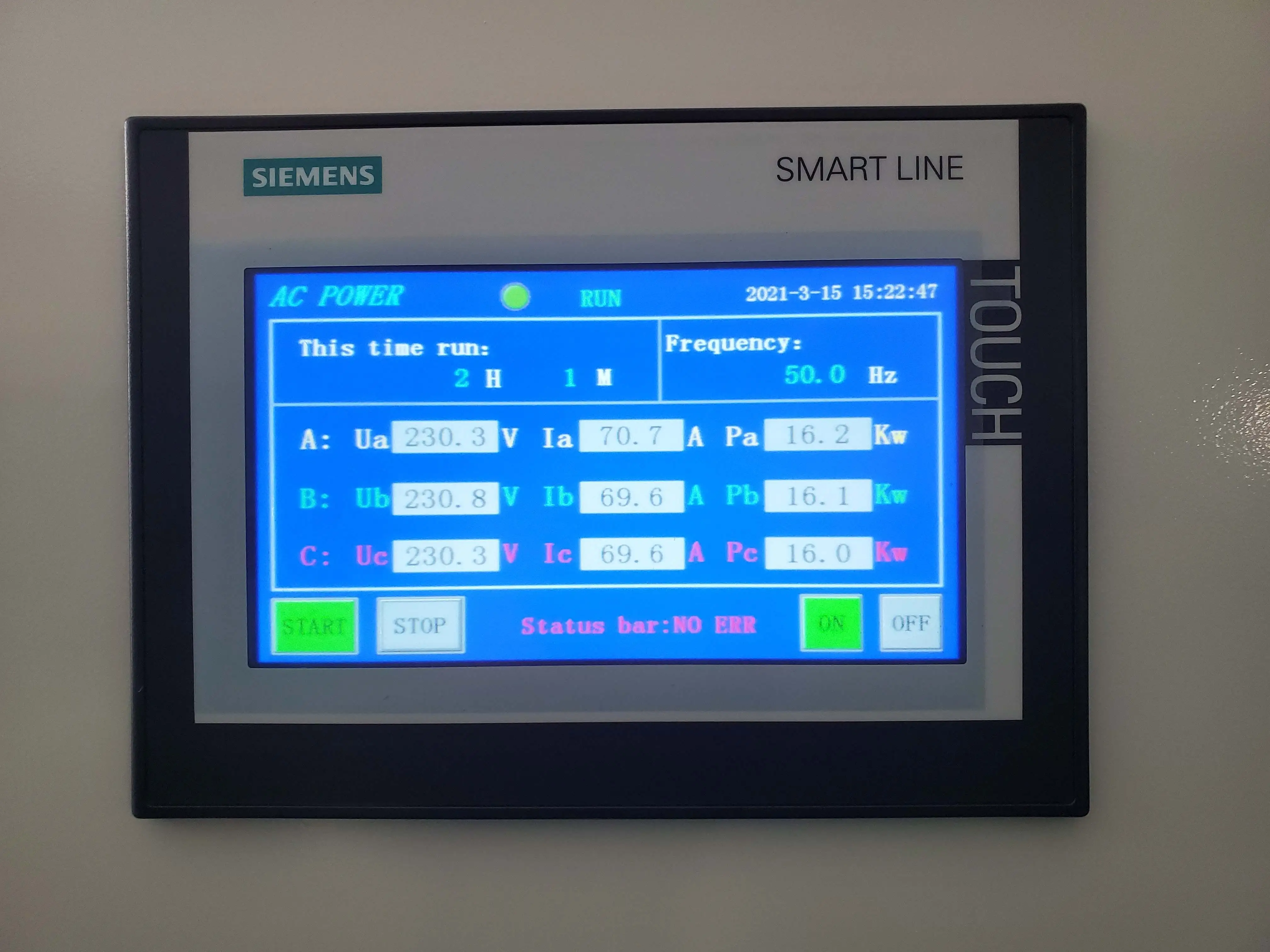

- Advanced LCD Display & Management: Intuitive interface for system monitoring, configuration, and integration via SNMP, USB, or RS232.
- High Efficiency Mode: Features an advanced ECO mode that offers high efficiency during normal operation while maintaining full online protection.
Why Choose ACSOON Modular Rackmount UPS System?
- Easy Growth & Investment Protection: Start with what you need now and add power or battery modules later without replacing the entire system.
- Maximum Availability & Serviceability: Hot-swappable modules allow for maintenance, upgrades, or replacement without system shutdown.
- High Power Density: Delivers more kVA per rack unit (RU), saving valuable space in server racks and enclosures.
- Predictable Management: Built-in intelligence provides clear status of each module, simplifying monitoring and capacity planning.

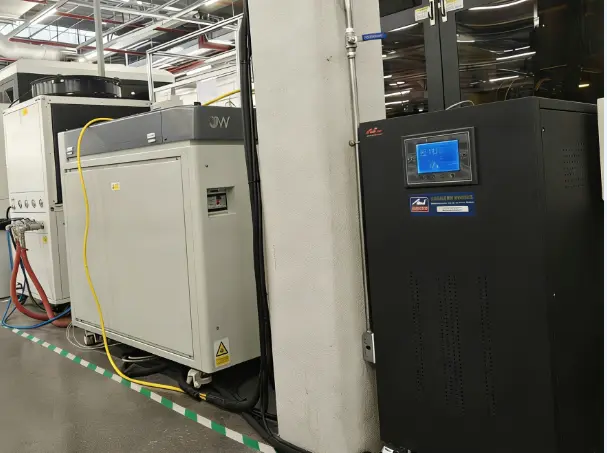

Modular Rackmount UPS System Application Areas
- IT Server Rooms & Data Centers: Protecting racks of servers, storage, and network equipment with scalable, reliable power.
- Edge Computing & Micro Data Centers: Ideal for compact, remote locations requiring robust power protection in a standard rack form factor.
- Telecommunications: Providing clean, backup power for 5G nodes, network switches, and transmission equipment.
- Industrial Automation Racks: Safeguarding PLCs, HMIs, and control systems installed in industrial rack enclosures.
Our Services
01
Quality Control
- Module-Level Burn-in: Each power and battery module undergoes individual performance and stress testing before system integration.
- Full System Integration Test: The complete chassis with multiple modules is tested under combined and shifting load scenarios.
- Hot-Swap Functionality Verification: The process of removing and inserting modules under load is rigorously tested to ensure seamless operation.
- Communication & Software Validation: All management interfaces and firmware are tested for stability and correct reporting of module status.
02
R&D Results
- Advanced Current Sharing Technology: Developed a precise digital current-sharing algorithm to ensure perfect load balance between parallel power modules.
- Intelligent Battery Management per Module: Each battery module has its own monitoring and management system for optimal health and runtime prediction.
- Compact Thermal Design: Engineered a high-efficiency, low-noise cooling system that fits within the tight confines of a rackmount chassis.
- Modular System Firmware: Created robust firmware that automatically recognizes new modules and reconfigures system capacity without manual intervention.
03
Packaging and Transportation
- Rack-Safe Packaging: The chassis and modules are packed separately in shock-absorbent, rack-sized boxes for protection.
- Clear Module Identification: Each module is clearly labeled, and packaging includes a map for easy identification and installation.
- Complete Rack Integration Kit: Includes necessary rails, cables, documentation, and management software on a USB drive.
- Global IT Logistics: Shipped via carriers experienced in handling sensitive electronic IT equipment with full tracking.
04
After‑Sales Service
- We offer a 2-year warranty on the system, extended warranties available for batteries. Support includes firmware updates, 24/7 technical assistance, and expedited shipping for replacement modules.
Qualification Certification
CE Certifications: For global market access and safety compliance;ISO 9001:2015 Certified Production;Designed to meet IEC 62040 Standards for UPS performance and safety.
FAQ |
|---|
| Q1: What is the main advantage of a modular UPS over a traditional tower UPS? |
| A: Scalability and Serviceability. A modular UPS allows you to increase power capacity by adding modules and enables maintenance without downtime, whereas a traditional unit is a fixed capacity and requires a complete bypass for service. |
| Q2: Can I mix different power module sizes (e.g., 3kVA and 6kVA) in one chassis? |
| A: No. For stable current sharing and system control, all power modules in a single chassis must be of the same kVA rating. However, you can use battery modules of different capacities to customize runtime. |
| Q3: How does the system handle a failing power module? |
| A: The system controller will detect the fault, signal an alarm, and seamlessly transfer the failing module's load to the remaining healthy modules within the chassis, maintaining power to the critical load. |
| Q4: Is this suitable for three-phase power applications? |
| A: This specific system model is designed for single-phase input and output. We offer separate three-phase modular UPS systems for larger three-phase loads. |
| Q5: What is the typical installation process? |
| A: It is designed for standard 19" racks. Installation involves mounting the chassis, installing the power and battery modules, connecting input power and output loads, and configuring the system via the LCD panel. |
Contact Us
For technical specifications or global solutions for the Modular Rackmount UPS System: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
