Medical Equipment Voltage Stabilizer
1.Power Range: 1kVA to 300kVA (Single & Three Phase)
2.Technology: High-Precision Servo Motor Controlled AVR (Automatic Voltage Regulator)
3.Input: 1-Phase 160V-250V or 3-Phase 304V-456V (±20%), 50/60Hz
4.Output: Stable 220V or 380V/400V/415V, with ±1% to ±2% accuracy
5.Applications: Hospitals, Diagnostic Labs, Medical Imaging Centers, Dental Clinics
6.Core Features: High Regulation Accuracy, Silent Operation, Zero Waveform Distortion, Built-in Bypass
7.Brand: ACSOON (OEM/ODM Supported).
2.Technology: High-Precision Servo Motor Controlled AVR (Automatic Voltage Regulator)
3.Input: 1-Phase 160V-250V or 3-Phase 304V-456V (±20%), 50/60Hz
4.Output: Stable 220V or 380V/400V/415V, with ±1% to ±2% accuracy
5.Applications: Hospitals, Diagnostic Labs, Medical Imaging Centers, Dental Clinics
6.Core Features: High Regulation Accuracy, Silent Operation, Zero Waveform Distortion, Built-in Bypass
7.Brand: ACSOON (OEM/ODM Supported).
- Product Description

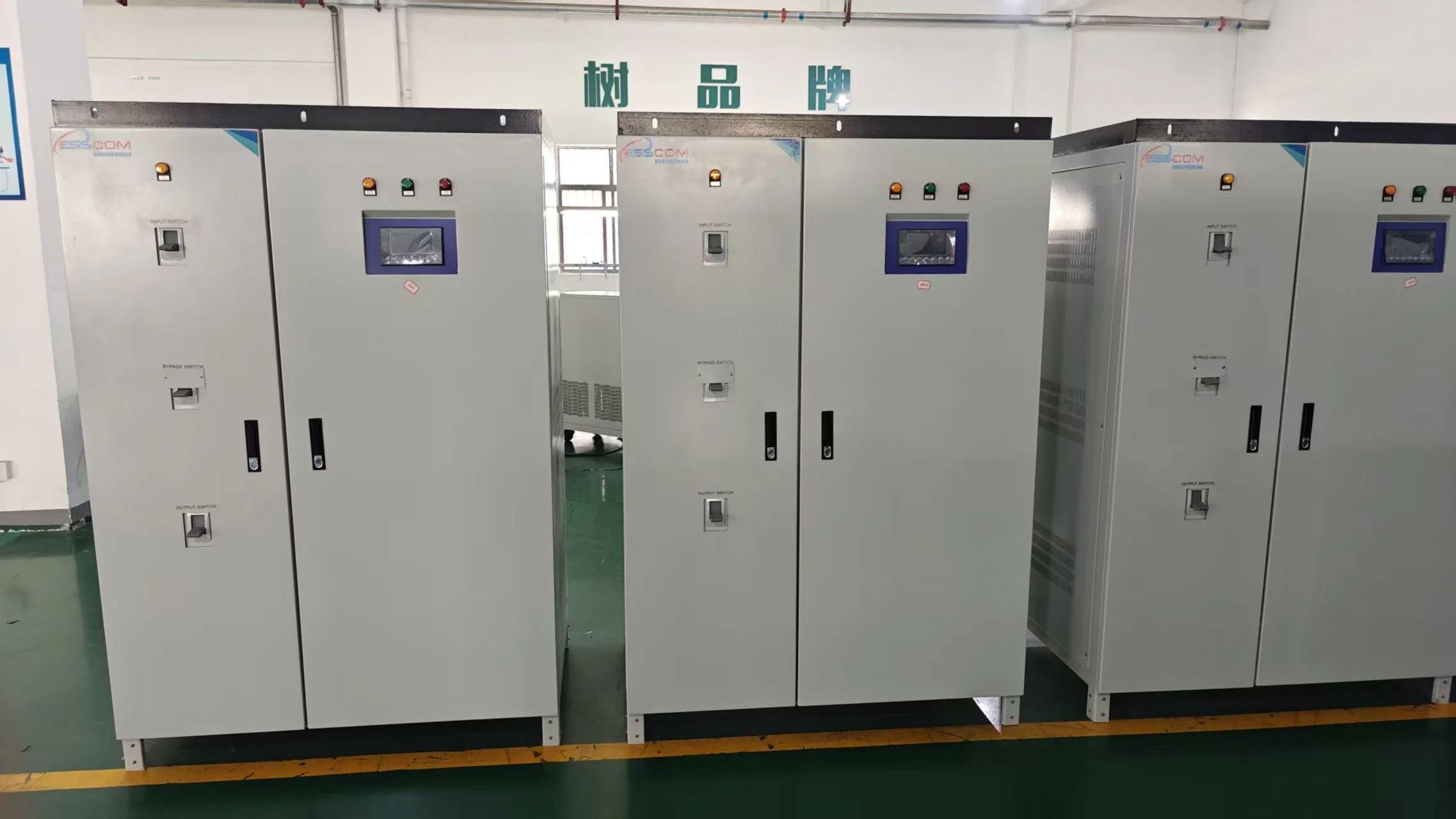

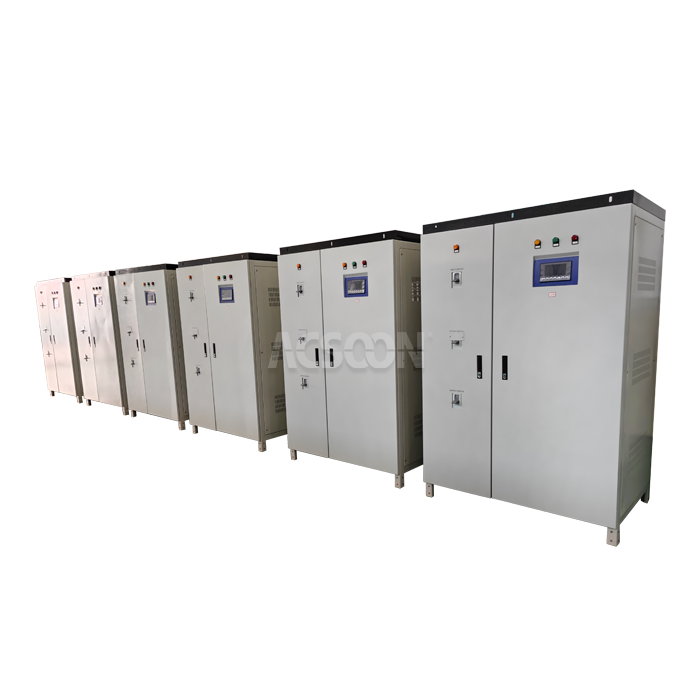

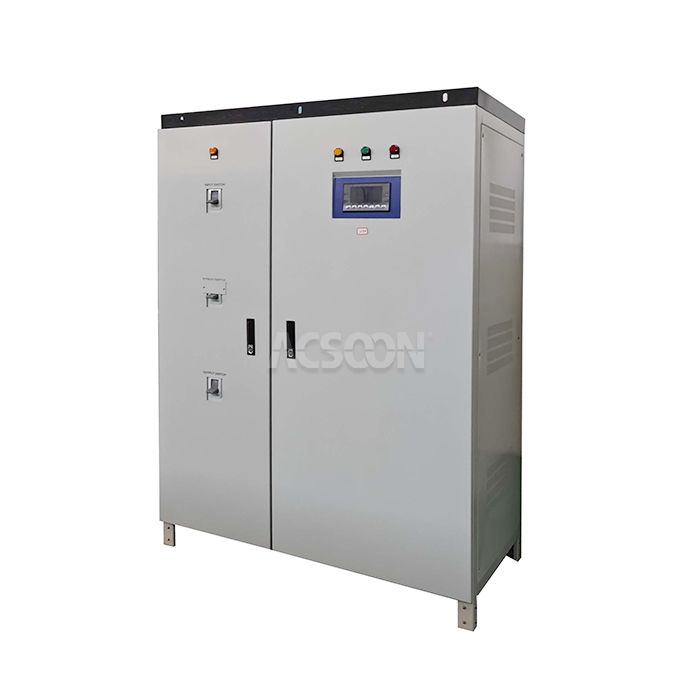

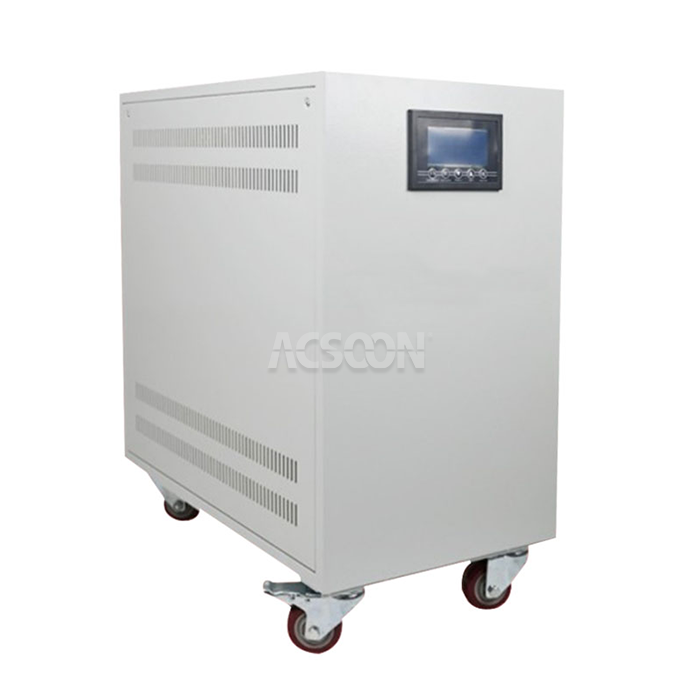

Medical Equipment Voltage Stabilizer | Precision AVR for Healthcare Facilities
XI'AN JERRYSTAR INSTRUMENT CO., LTD provides the dedicated Medical Equipment Voltage Stabilizer, an essential safeguard for sensitive healthcare technology. Utilizing precise servo-motor technology, this Automatic Voltage Regulator (AVR) delivers rock-solid, clean power to protect critical medical devices—such as MRI, CT scanners, and lab analyzers—from damaging voltage fluctuations, ensuring diagnostic accuracy and operational continuity in life-saving environments.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON AF10 Servo Series |
| Input | Voltage: 1-Phase 160V-250V or 3-Phase 304V-456V (±20%) Frequency: 50Hz / 60Hz |
| Output | Voltage: 220V (1-Phase) or 380V/400V/415V (3-Phase) Accuracy: ±1% to ±2% (Customizable) Power: 1kVA to 300kVA+ |
| Regulation Speed | < 1 second (for 10% input change) |
| Output THD | No additional distortion introduced |
| Overload Capacity | 120% for 30 seconds |
| Efficiency | > 98% |
| Display | LCD Digital (Input/Output V, I, Status) |
| Protections | Over/Under Voltage, Overload, Short Circuit |
| Bypass | Manual Bypass Switch (Standard) |
| Operating Temp. | -10°C to 50°C |
| Standards | Compliant with relevant electrical safety standards |
Medical Equipment Voltage Stabilizer Main Features
- Fast Servo-Motor Response: Corrects voltage fluctuations in less than 1 second (for a 10% input change), preventing equipment reset or damage.
- Wide Input Voltage Window: Handles input voltages from 160V to 250V (1-Phase) or 304V to 456V (3-Phase), adapting to poor grid conditions.
- Robust Protection Suite: Integrated protection against over-voltage, under-voltage, overload, and short-circuit conditions.
- User-Friendly Monitoring: Clear LCD display for real-time monitoring of input/output voltage, current, and system status.
Why Choose ACSOON Medical Equipment Voltage Stabilizer?
- Clinical-Grade Precision: Maintains output voltage within ±1-2% accuracy, meeting the stringent requirements of sensitive diagnostic and life-support equipment.
- Pure & Silent Operation: Introduces zero additional harmonic distortion (THD) and operates silently, preventing interference with medical devices and maintaining a quiet patient environment.
- High Reliability with Bypass: Features a built-in manual bypass switch for safe, uninterrupted maintenance without shutting down critical medical loads.
- Proven Safety & Compliance: Designed and certified with a focus on electrical safety and reliability required in healthcare settings.

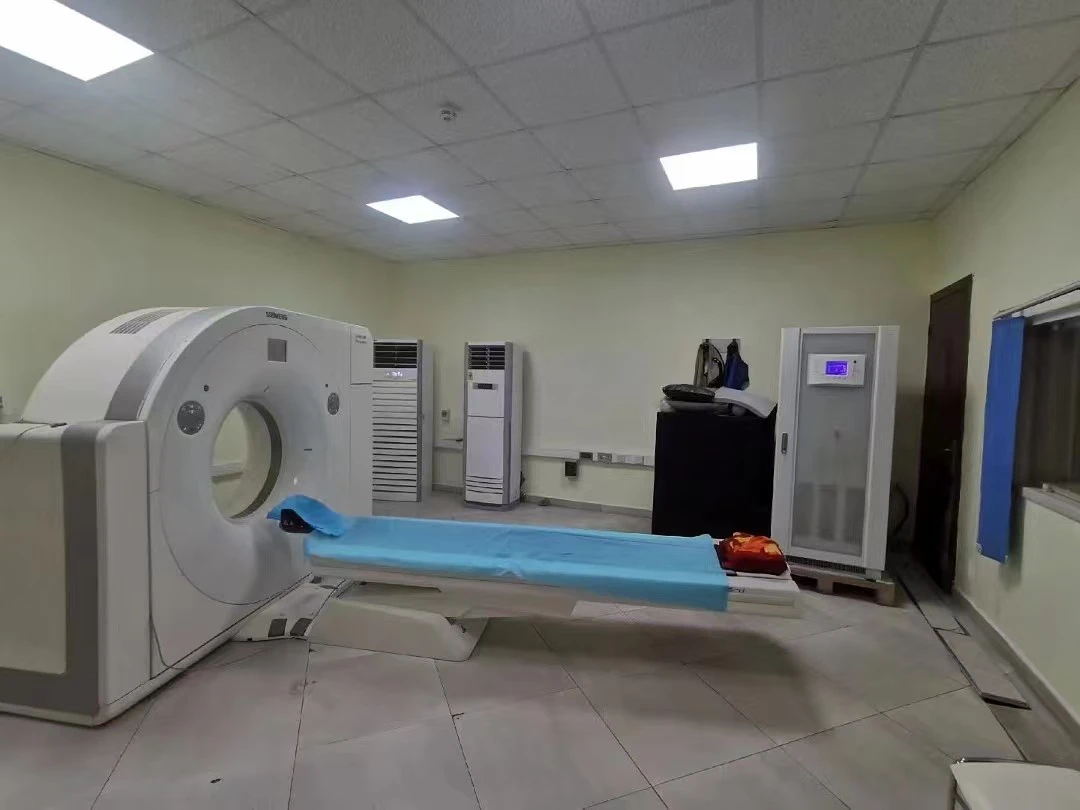

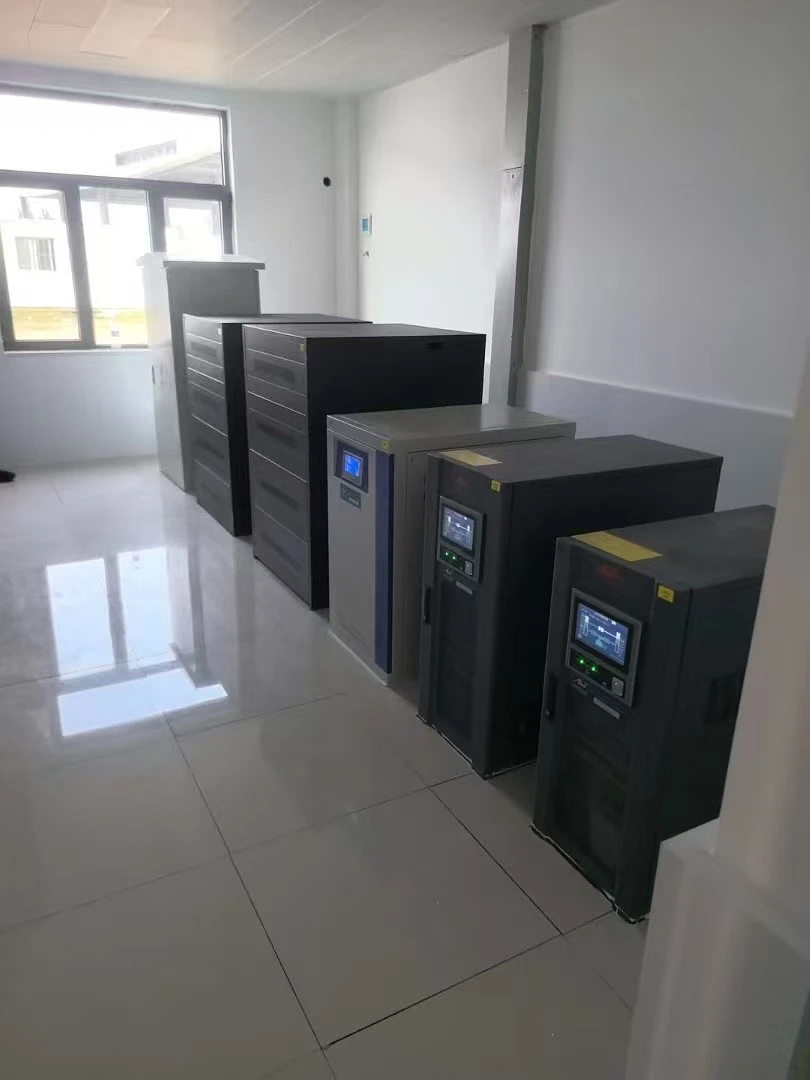

Medical Equipment Voltage Stabilizer Application Areas
- Diagnostic Imaging Suites: Protecting MRI, CT, X-ray, and ultrasound machines from voltage sags and surges.
- Hospital Critical Care Units: Stabilizing power for ventilators, dialysis machines, infant incubators, and patient monitoring systems.
- Clinical Laboratories: Ensuring voltage stability for sensitive analytical equipment like blood analyzers, DNA sequencers, and spectrophotometers.
- Surgical & Dental Centers: Providing clean power for surgical lasers, electrosurgical units, and advanced dental chairs.
Our Services
01
Quality Control
- Medical-Use Component Selection: Key components like the servo motor, carbon brushes, and control board are selected for high durability and low electrical noise.
- Rigorous Performance Testing: Each unit is tested under simulated medical load profiles to verify stability and response time.
- Extended Reliability Testing: Samples undergo prolonged aging tests to ensure mean time between failures (MTBF) exceeds 50,000 hours.
- Final Safety & Function Audit: A comprehensive pre-shipment check verifies all protective functions, insulation resistance, and operational safety.
02

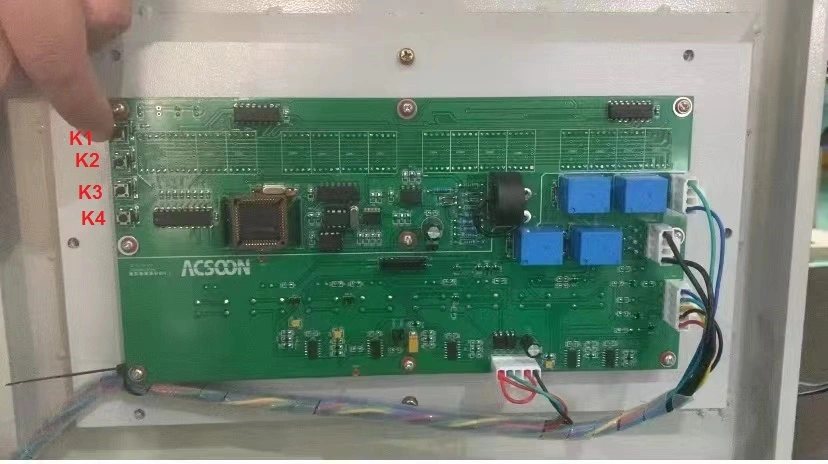

R&D Results
- Enhanced Control Circuitry: Developed a noise-immune control system that prevents false triggering from other hospital equipment.
- Optimized Mechanical Drive: Redesigned the servo motor and gear assembly for smoother, quieter, and more reliable voltage correction.
- Compact Footprint Design: Engineered a space-efficient cabinet layout to fit more easily into crowded hospital electrical rooms or equipment areas.
- Diagnostic Interface: Added optional RS485 communication for integration into building management systems for remote health monitoring.
03
Packaging and Transportation
- Protected Packaging: The stabilizer is securely mounted and wrapped in anti-static and moisture-proof materials inside a sturdy wooden crate.
- Safe Handling: The crate is clearly marked with "Medical Equipment," "Fragile," and lifting points to ensure careful handling.
- Complete Shipment Kit: Includes the unit, user manual, test report, warranty card, and necessary installation hardware.
- Tracked Delivery: We provide door-to-door shipping options with tracking and insurance for complete peace of mind.
04

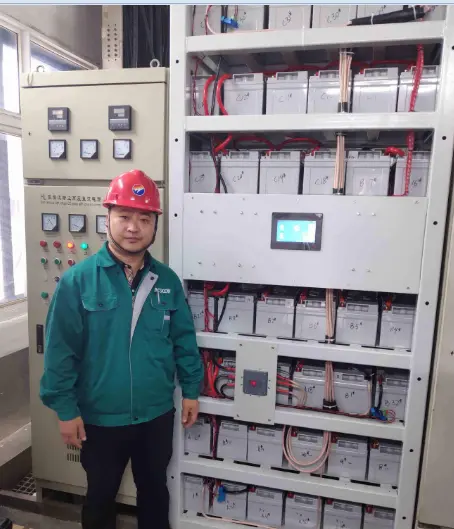

After‑Sales Service
We offer a comprehensive 24-month warranty, priority technical support, and readily available spare parts to minimize downtime in critical healthcare applications.
Qualification Certification
ISO 9001:2015 Certified Manufacturing: Ensures consistent quality in production processes;CE Certification: Confirms compliance with European safety and EMC directives;RoHS Compliance: Manufactured using materials that restrict the use of hazardous substances;Detailed Test Certificate: Each unit is shipped with a performance test certificate.
FAQ |
|---|
| Q1: Why do MRI or CT scanners need a dedicated voltage stabilizer? |
| A: These devices contain highly sensitive electronics and magnets. Even minor voltage fluctuations can cause image artifacts, system errors, or costly shutdowns. A stabilizer ensures perfectly stable input power. |
| Q2: How is this different from a standard industrial stabilizer? |
| A: It is engineered for near-silent operation, zero waveform distortion, and higher precision to avoid interfering with sensitive medical measurements and to meet the quiet standards of healthcare environments. |
| Q3: Can it be used in a hospital's main electrical room to protect an entire wing? |
| A: Yes. High-capacity three-phase models (e.g., 100kVA to 300kVA) are designed for centralized installation to protect multiple pieces of equipment in an operating theater wing or diagnostic department. |
| Q4: What happens if the stabilizer itself fails? |
| A: The built-in manual bypass switch allows you to directly connect the mains power to the load, bypassing the stabilizer completely, ensuring that critical medical equipment remains powered while the stabilizer is serviced. |
| Q5: Is on-site installation support available? |
| A: Yes, we can provide installation supervision and commissioning services by trained engineers to ensure optimal setup and integration with your facility's electrical system. |
