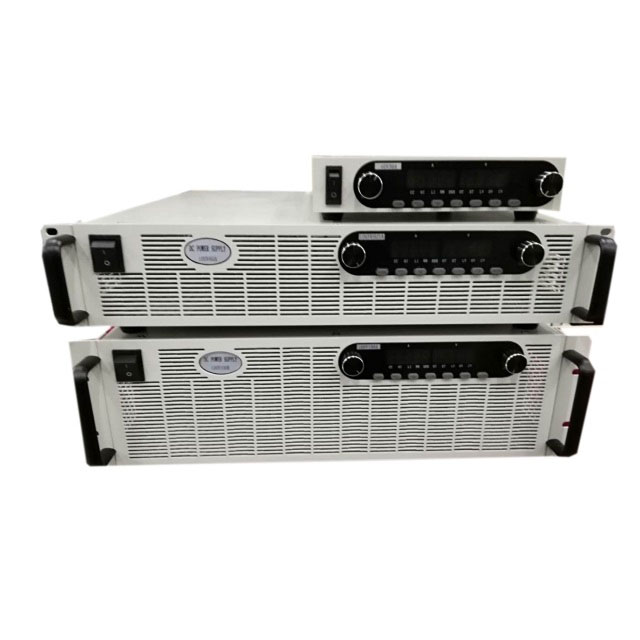

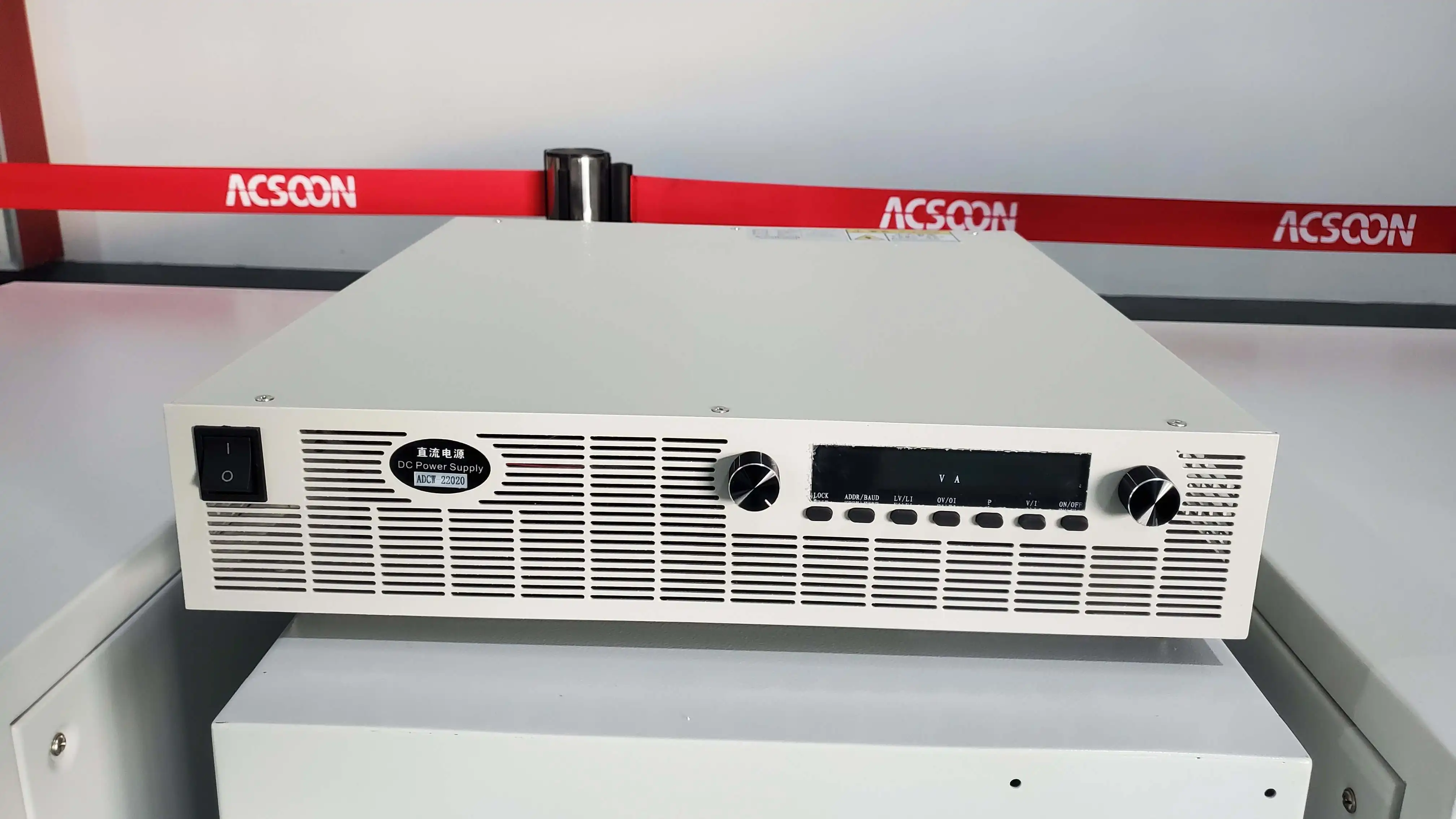

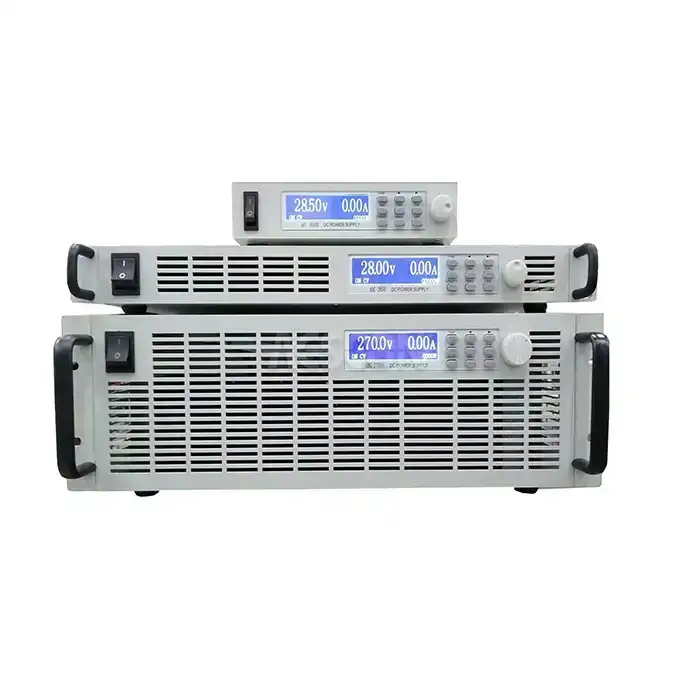

Jerrystar ACSOON Adjustable DC Power Supply for Laboratory and Electronics Testing
2. Applications: Laboratories, school experiments, electronics development and quality testing
3. Output: Voltage and current adjustable within the selected rated ranges
4. Control: Voltage/current preset and CV/CC operation by model
5. Display: Electrical output data on the configured front panel
6. Integration: Confirm interface, protocol and optional analog control
7. Selection: Exact model, voltage/current rating, ripple, accuracy and dimensions to be confirmed
- Product Description
Jerrystar ACSOON Adjustable DC Power Supply for Laboratory and Electronics Testing
Jerrystar / ACSOON adjustable DC power supplies are selected for laboratories, school experiments, electronics development and quality testing. Start with the required voltage, current and control functions, then confirm the exact model and physical format for the test bench.
Key Features
- Adjustable DC output: Set voltage and current within the selected unit's rated ranges.
- Voltage and current presets: The applicable ADC manual describes preset functions and adjustment before output is enabled.
- CV / CC operation: Specify voltage regulation, current limits and load behavior when selecting the model.
- Output data on the front panel: Choose the display and resolution required by the experiment or inspection task.
- Control options for the bench: Confirm the supplied communication interface, protocol, remote sensing and any optional analog control.
Technical Specifications
| Item | Specification / Selection |
|---|---|
| Product | Jerrystar / ACSOON Adjustable DC Power Supply |
| Exact model and output rating | To be confirmed for the required voltage, current and power |
| Output adjustment | 0 to the selected unit's nominal voltage and current |
| Input supply | Single or three phase configuration; confirm the selected unit's nameplate |
| Voltage / current operation | Preset and stabilized voltage/current functions in the applicable ADC manual |
| Display, ripple and accuracy | Use the selected model's specification and acceptance limits |
| Remote operation | RS232/RS485 and protocol requirements confirmed by configuration |
| Physical format | Confirm bench dimensions, terminals, cooling clearance and accessories |
Application Areas
- Electronics development and prototype testing
- School experiments and teaching laboratories
- Research and laboratory test benches
- Quality inspection and production testing
Explore related dc power supply solutions or view the Jerrystar product range.
About Us
XI'AN JERRYSTAR INSTRUMENT CO., LTD supplies ACSOON power conversion equipment. Share the load, input supply, operating environment and required output so the appropriate model and technical scope can be reviewed.
Quality Control
Define the inspection and acceptance scope with the selected model. Request the applicable specifications and test records covering the agreed output, load conditions and protection checks.
Configuration and Technical Support
Confirm ratings, control interface, installation dimensions, cooling and accessories before the order is finalized. Include any special function in the agreed technical specification.
Packaging and Transportation
Packaging, shipment method and installation accessories are confirmed for the final unit. Include the destination and any handling or site access requirements with the enquiry.
After-Sales Service
For support, provide the model, serial number, operating conditions and issue description. Request the applicable warranty terms, maintenance guidance and spare parts information with the quotation.
FAQ
Q1: Which voltage and current rating should I select?
Provide the highest required DC voltage, continuous current and load type. Confirm the exact model and rating from the matching datasheet.
Q2: Does every unit include remote control?
Do not assume the same interface or protocol on every model. Include sensing and integration requirements in the enquiry.
Q3: Will it fit on my bench?
Check dimensions, weight, terminals and cooling clearance for the selected unit; output rating alone does not define a benchtop format.
Custom Solution & Quotation
Send the required voltage, current or capacity, load, input supply and installation conditions for model selection and the applicable datasheet.
