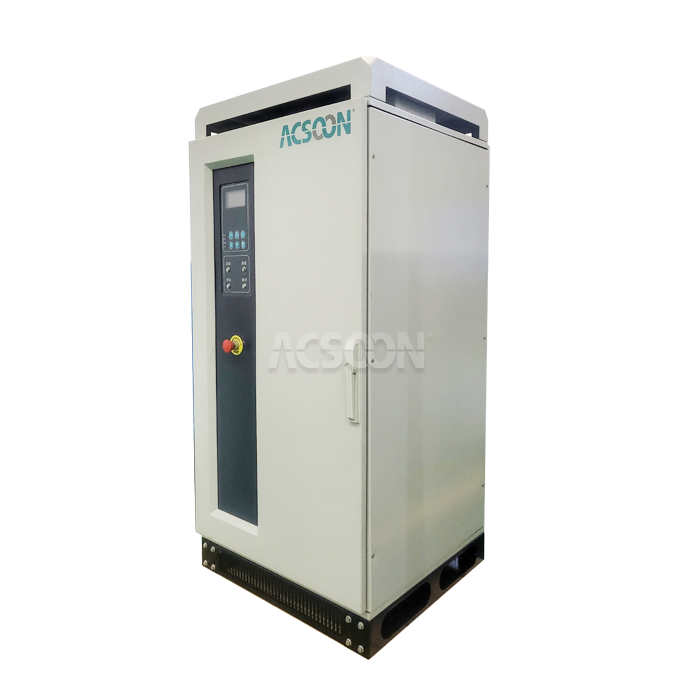

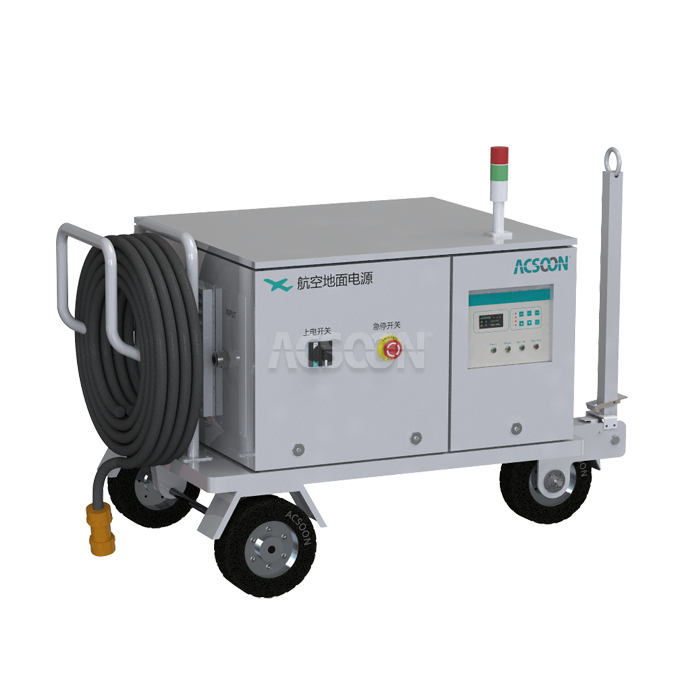

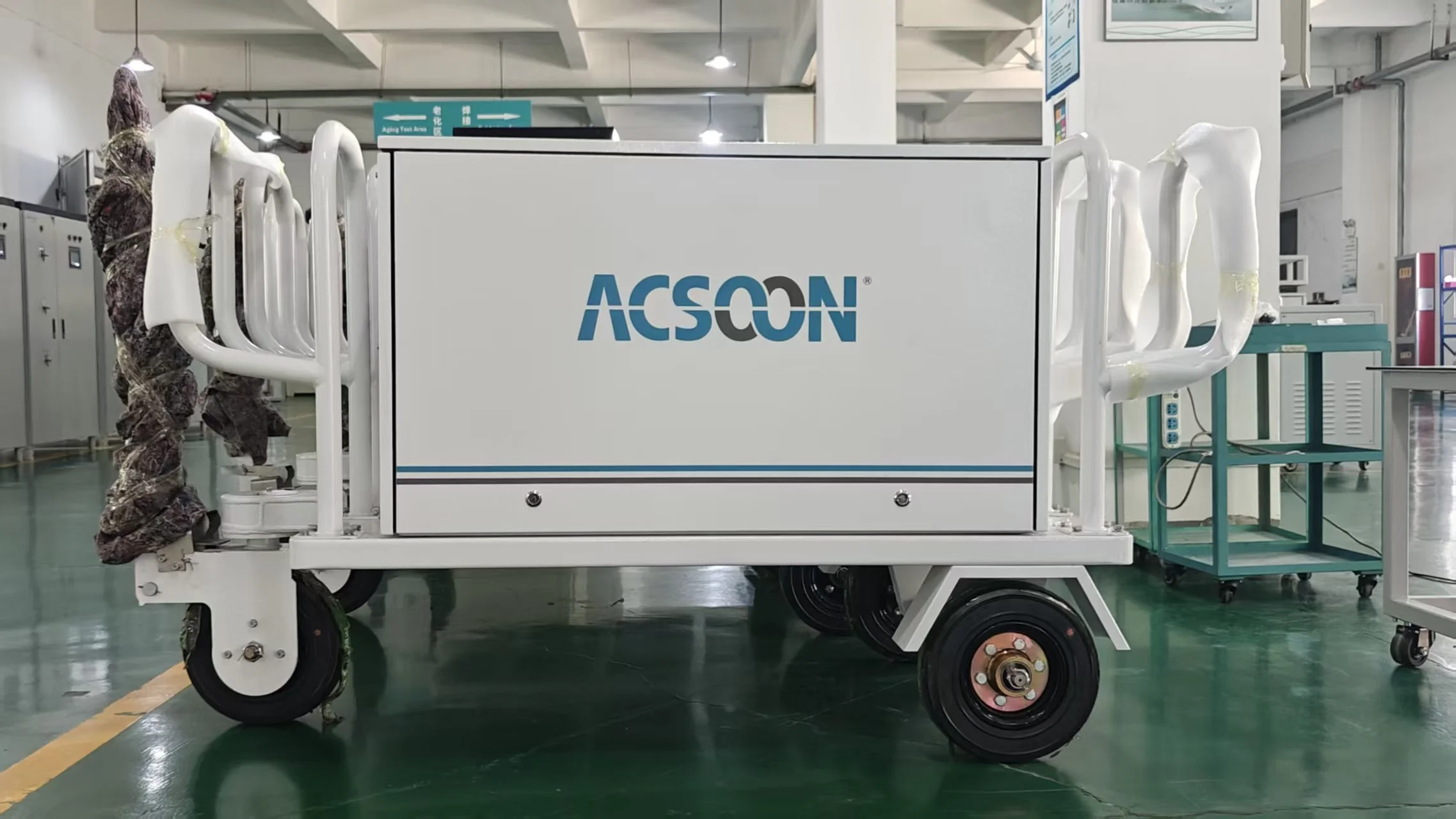

Ground Power Unit 175kw
2.Output Configuration: 115V/200V 400Hz AC & 28.5VDC simultaneous output
3.AC Output: Three-phase four-wire, 400Hz aircraft standard
4.DC Output: 28.5VDC with high current capability
5.Input Supply: 400-480V, three-phase, 50Hz/60Hz industrial power
6.Efficiency: ≥94% with advanced power conversion technology
7.Primary Applications: Wide-body aircraft, military transport, special mission aircraft
8.Key Features: High power density, intelligent cooling, remote monitoring capability
9.Brand: ACSOON (support OEM)
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the powerful Ground Power Unit 175kw designed for the most demanding aviation applications. Our Ground Power Unit 175kw delivers exceptional 175kW power capacity to support the largest commercial and military aircraft, providing reliable ground power for extended operations, maintenance, and testing requirements in the most challenging environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
Ground Power Unit 175kw Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Ground Power Unit 175kw?
ACSOON Ground Power Unit 175kw represents the pinnacle of ground power technology with these outstanding features:
High Power Capacity: 175kW output capable of supporting largest wide-body aircraft
Dual Output Design: Simultaneous 400Hz AC and 28VDC output for comprehensive aircraft support
Advanced Thermal Management: Intelligent cooling system for continuous high-power operation
Military Grade Reliability: Built to withstand rigorous military operational requirements
Smart Power Management: Real-time monitoring and control with remote operation capability

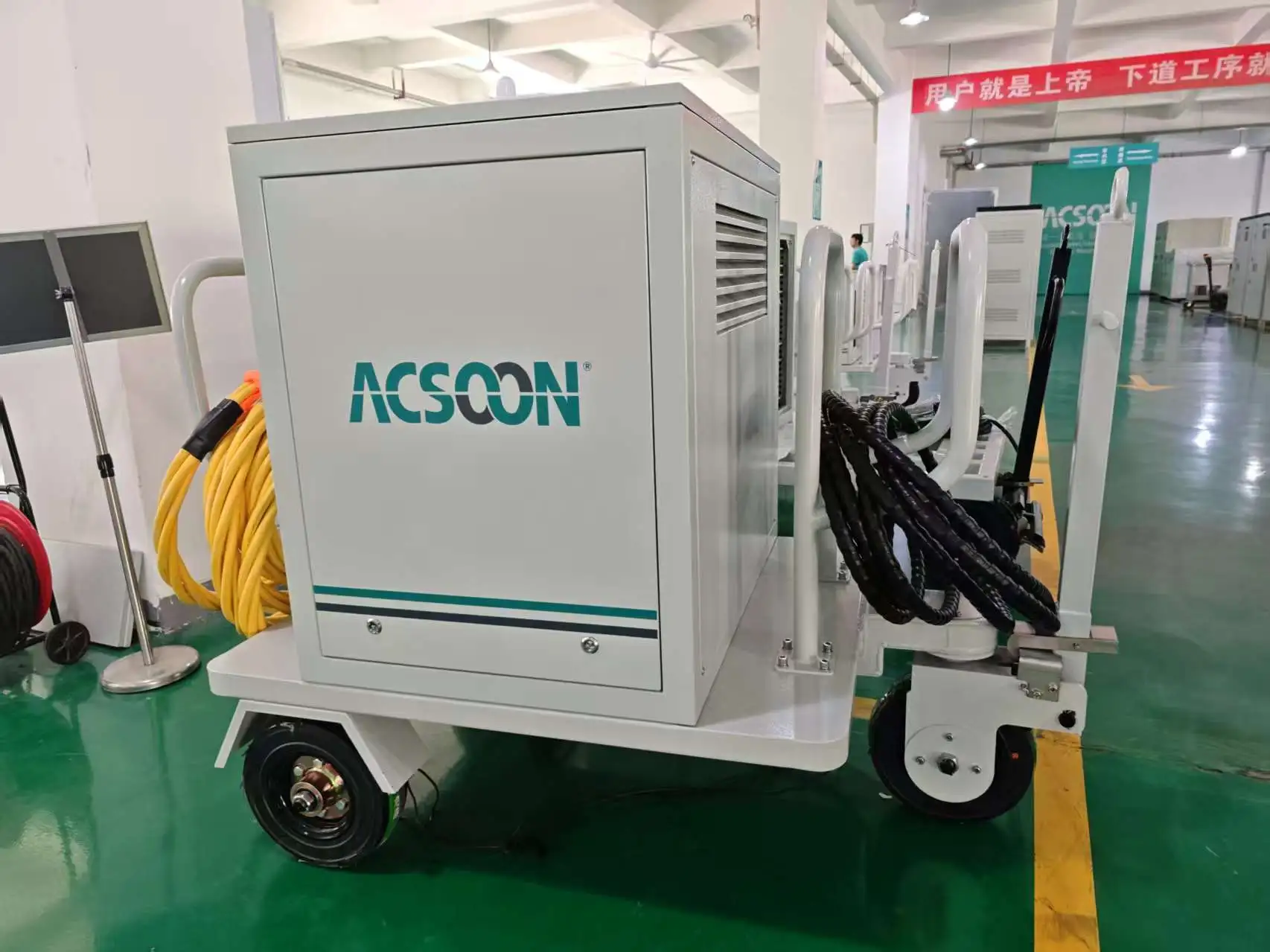

Application Area
Our Ground Power Unit 175kw serves the most power-intensive aviation applications:
Wide-body Aircraft: Powering Boeing 777, Airbus A380, and other large commercial aircraft
Military Transport: Supporting C-17, C-130, and other military transport aircraft
Special Mission Aircraft: Powering AWACS, reconnaissance, and other special mission platforms
Maintenance Facilities: Heavy maintenance operations requiring extended power supply
Engine Testing: Aircraft engine testing and run-up operations
Emergency Response: Critical power supply for emergency and disaster response operations
Our Services
Quality Control
Each Ground Power Unit 175kw undergoes the most rigorous quality validation:
High-power component testing and validation
Extended full-load testing at 175kW capacity
Environmental stress testing for extreme conditions
Electromagnetic compatibility testing for sensitive environments
Final certification to MIL-STD-704F and ISO6858 standards
R&D Results
Our engineering breakthroughs in Ground Power Unit 175kw technology include:
Advanced multi-level power conversion architecture
Enhanced power density through innovative thermal design
Intelligent load management for optimal power distribution
Reduced total harmonic distortion for cleaner power output
Modular design facilitating maintenance and future upgrades
Packaging and Transportation
We ensure secure delivery of every Ground Power Unit 175kw:
Custom heavy-duty shipping platform with integrated lifting points
Environmental protection for sensitive electronic components
Comprehensive documentation including performance certificates
Global logistics coordination for large equipment transport
After-Sales Service
We provide unparalleled support for all Ground Power Unit 175kw installations:
24/7 specialized technical support for critical operations
On-site commissioning and comprehensive operator training
Predictive maintenance programs with remote diagnostics
Software updates and performance enhancement services
Global service network with rapid response capability
Qualification Certification
FAQ |
|---|
| Q1: What aircraft types require a 175kw Ground Power Unit? |
| A: Our 175kw unit is designed for wide-body commercial aircraft, large military transports, and special mission aircraft with high power demands. |
| Q2: How does your Ground Power Unit 175kw handle thermal management? |
| A: We employ an advanced multi-stage cooling system with intelligent fan control and heat dissipation design for continuous high-power operation. |
| Q3: What remote monitoring capabilities does your Ground Power Unit 175kw offer? |
| A: Our system includes comprehensive remote monitoring via Ethernet/RS485 interfaces with real-time data logging and alarm notification. |
| Q4: Can your Ground Power Unit 175kw operate in extreme environmental conditions? |
| A: Yes, our unit is designed for operation in temperatures from -25°C to 50°C with enhanced environmental protection. |
| Q5: What is the typical deployment time for your Ground Power Unit 175kw? |
| A: With proper site preparation, our units can be operational within 4-6 hours, including setup and system verification. |
