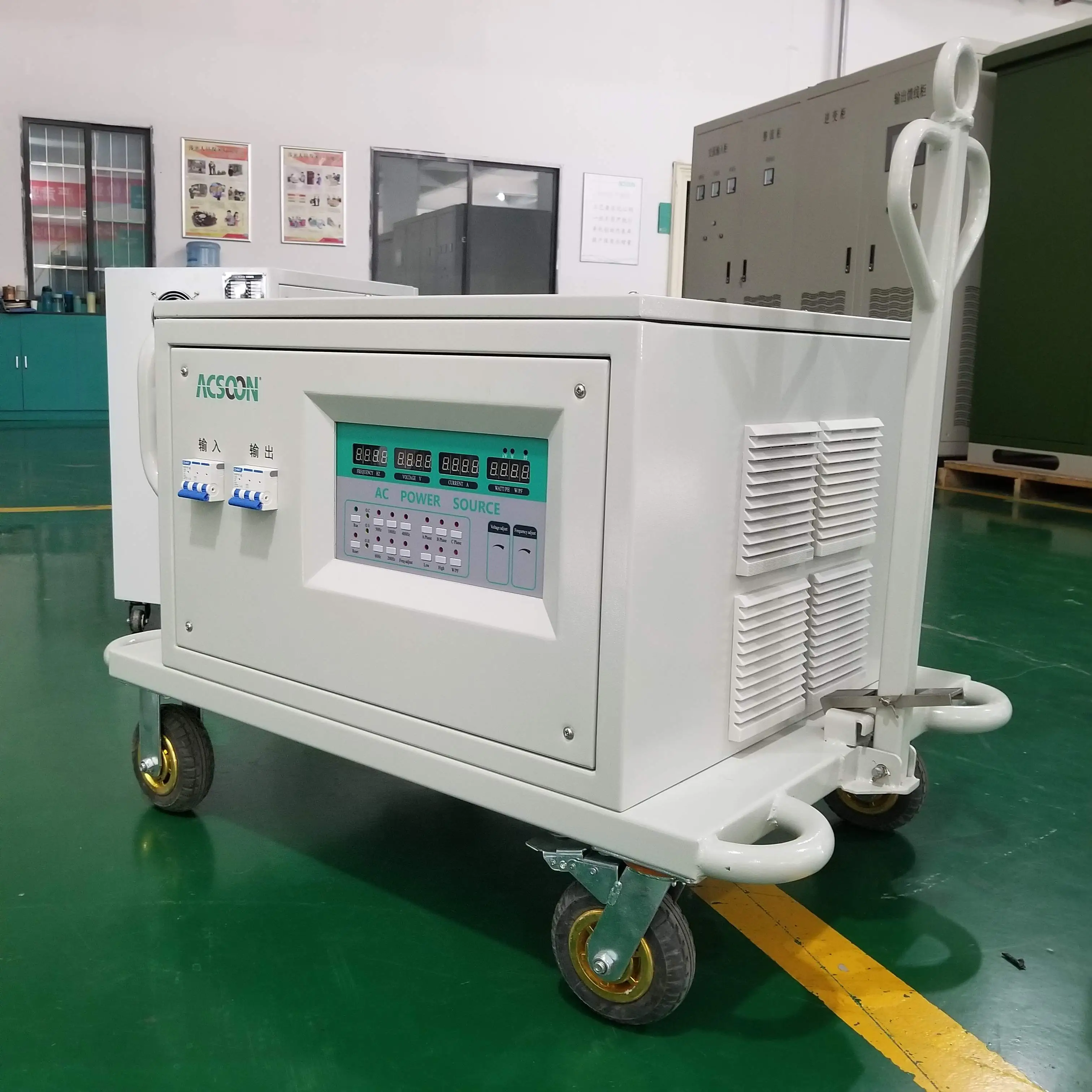

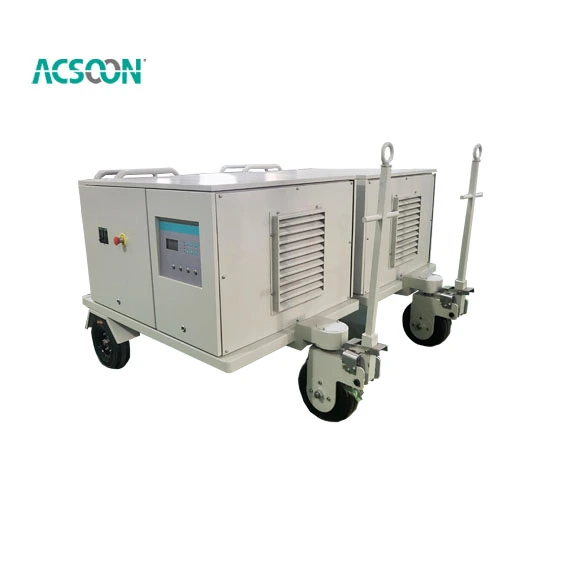

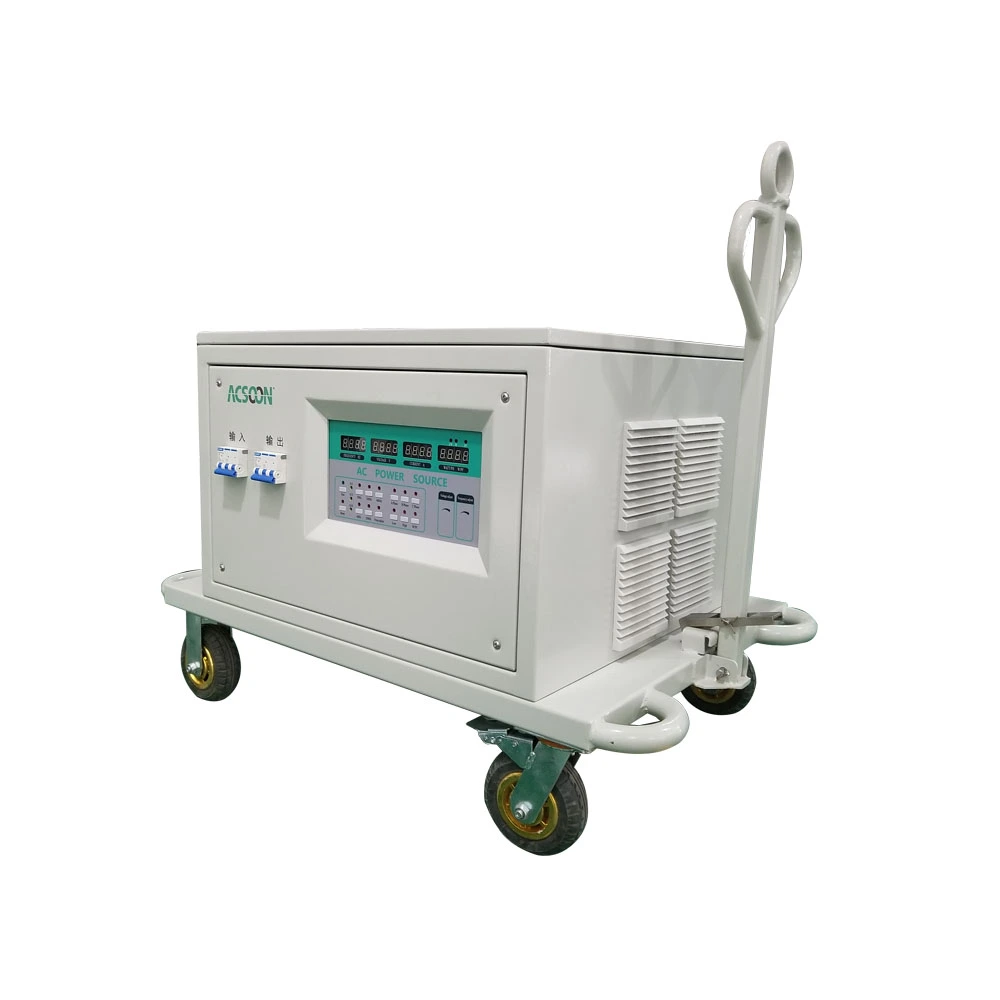

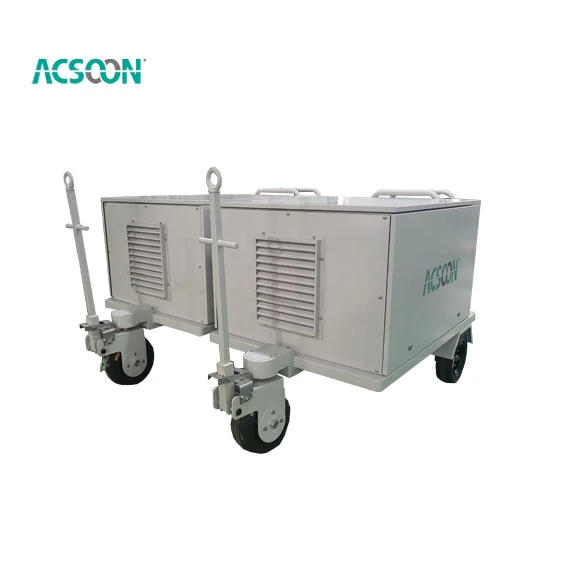

Heavy-Duty Ground Power Unit
2. Technology: Solid-state frequency conversion with 12-pulse design
3. Input: 3-phase 400VAC ±15%, 50/60Hz auto-sensing
4. Capacity: High-power output for large aircraft requirements
5. Key Applications: Wide-body aircraft, cargo operations, military transport
6. Key Features: High-power capacity; robust construction; reliable performance; advanced cooling system
7. Brand: ACSOON (OEM configurations available).
- Product Description
Heavy-Duty Ground Power Unit | High-Capacity Aircraft Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures powerful heavy-duty ground power units for large aircraft operations. Designed to meet the demanding power requirements of wide-body aircraft and cargo operations, our units deliver reliable 400Hz power for extended ground operations with exceptional performance and durability.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
ACSOON Heavy-Duty Ground Power Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Heavy-Duty Ground Power Units?
ACSOON delivers superior power and reliability for demanding applications:
High Power Output: 180kVA capacity for large aircraft requirements
Robust Construction: Heavy-duty components for continuous operation
Reliable Performance: Stable power delivery for extended operations
Advanced Protection: Comprehensive safety and protection systems
Easy Maintenance: Accessible design for simple servicing
Application Areas
Our heavy-duty ground power units are essential for:
Wide-body Aircraft: Large passenger aircraft operations
Cargo Operations: Freighter aircraft ground support
Military Transport: Heavy transport aircraft services
Maintenance Facilities: Large aircraft hangar operations
Airport Operations: High-demand gate operations
Emergency Support: Critical aircraft power needs
Base Services: Military base aircraft support
Special Operations: Oversize aircraft requirements
Details display
Quality Assurance
Each heavy-duty ground power unit undergoes strict validation:
Extended load testing under various conditions
Thermal performance verification
Environmental resistance testing
Safety system certification
Reliability validation testing
Technical Features
Our heavy-duty ground power unit incorporates:
Robust power conversion technology
Efficient cooling system design
Military-grade connection interfaces
Comprehensive monitoring systems
Durable construction materials
Packaging and Delivery
We ensure secure transportation:
Heavy-duty protective packaging
Careful handling procedures
Worldwide shipping services
Professional installation support
After-Sales Service
Comprehensive support package includes:
Technical support services
Maintenance programs
Repair services
Operator training
Parts supply chain
Certifications
FAQ |
|---|
| Q1: What are the main advantages of a heavy-duty ground power unit? |
| A: High power capacity, robust construction, and reliable performance for large aircraft operations. |
| Q2: What aircraft types require this unit? |
| A: Wide-body passenger aircraft, cargo planes, and military transport aircraft. |
| Q3: How does the cooling system perform? |
| A: Advanced cooling design ensures stable operation under heavy loads. |
| Q4: What safety features are included? |
| A: Comprehensive protection systems for overvoltage, overcurrent, and thermal conditions. |
| Q5: Can the unit handle continuous operation? |
| A: Yes, designed for extended operation in demanding conditions. |
